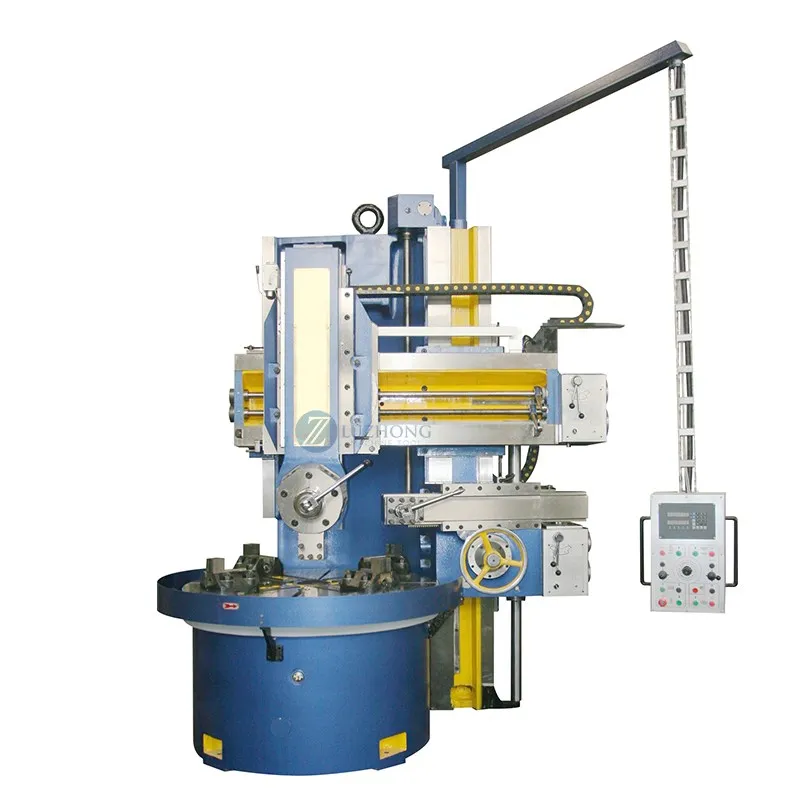

C5120 Manual Metal Vertical Turning Lathe Machine

  • >=1 Sets
    $64,500.00
Max. Swing Diameter (mm):
2000mm
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 60 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 year
After-sales Service Provided:
Online support, Video technical support
Place of Origin:
Shandong, China
Brand Name:
Luzhong Machine
Model Number:
C5120
Condition:
New
Dimension(L*W*H):
3200*2800*4000mm
Type:
Vertical
Certification:
CE ISO
Voltage:
220V/380V
Applicable Industries:
Manufacturing Plant
Key Selling Points:
High Productivity
Weight (KG):
17500 KG
Max. Swing Diameter (mm):
2000
Max. Length of Workpiece (mm):
1250
Max. Turned Length (mm):
1250
Machining Capacity:
Heavy Duty
Name:
C5120 Conventional Manual Vertical Turning Lathe Machine
Max.turning dia.:
2000mm
Table diameter:
1800mm
Max. height of workpiece:
1250mm
Max. weight of workpiece:
8T
Power(W):
30kw
CNC or Not:
Normal
Automatic Grade:
Manual
Supply Ability
Supply Ability:
100 Set/Sets per Month C5120 Conventional Manual Vertical Turning Lathe Machine
Packaging & Delivery
Packaging Details
The Package of our vertical lathe machines is export standard plywood case with iron pallet below ,very strong and durable .
The machine will be shipped to customers by land freight or sea freight .
Port
Any port in China
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 60 To be negotiated
Product Description
Technical specifications
Specification
Unit
C5120D
Table diameter
mm
1800
Max. turning diameter
mm
2000
Max. height of workpiece
mm
1250
Max. weight of workpiece
T
8
Tool section size
mm
40X40
Max. Cutting force of vertical tool post
N
25000
Max.torque of table
N·m
32000
Table speed steps

16
Table speed range
r/min
3.2-100
Vertical tool post feed range

12
Vertical tool post feed steps
Mm/min
0.8-86
Max.travel of vertical tool post(horizontal)
mm
1115
Max.travel of vertical tool post(verticall)
mm
800
Swivel angle of vertical tool post
°
±30°
Side tool post travel(horizontal)
mm
630
Side tool post travel(vertical)
mm
900
Tool post rapid traverse
mm/min
1550
Max.travel of cross beam
mm
850
Cross beam lifting speed
mm/min
350
Main motor power
Kw
30
Cross beam lifting motor power
Kw
2.2
Machine weight
T
17
Recommend Products
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .

5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
