C5250 Manual Double Column Vertical Lathe with DRO/Vertical Turning Lathe

Feedback Ratings
  • 1 Sets
    $276,923.00
  • >=2 Sets
    $268,455.00
Max. Swing Diameter (mm):
5000
Spindle bore:
no
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
90 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Range of Spindle Speed(r.p.m):
0.5-40
Width of bed:
NO
Condition:
New
Type:
Vertical
CNC or Not:
Normal
Automatic Grade:
manual
Year:
New
Place of Origin:
Liaoning, China (Mainland)
Brand Name:
DMTC
Model Number:
C5250
Voltage:
3 Phase 380V 50HZ
Power(W):
75kw
Dimension(L*W*H):
7680*6100*5975MM
Weight:
60000/100000KGS
Certification:
CE,ISO9001
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Overseas service center available
Warranty:
1 Year
Max. Swing Diameter:
5000mm
product type:
Manual Double Column Vertical Lathe with DRO/Vertical Turning Lathe
Material:
High grade cast iron
Installation:
Offer technical support
feature:
high speed,presicion,quality
shape:
vertical
workbench:
hydrostatic guide way
warranty time:
one year
column number:
double column
used in:
Grooving,Head face,severance

Packaging & Delivery

Selling Units:
Single item
Single package size:
7680X6100X5975 cm
Single gross weight:
62000.0 kg
Package Type:
Suitable for Long Sea Transport
Lead Time :
Quantity(Set) 1 - 1 2 - 2 >2
Est. Time(day) 90 150 To be negotiated
Product Description

Product Application

The machine tool heavy double column vertical lathe;

Suitable for high-speed steel and carbide cutting tools, suitable for machining of various industries of non-ferrous metals and non-ferrous metal parts of the cylindrical surface, conical surface, end face, grooving and other rough and finishing.

SPECIFICATIONS FOR C5250 MANUAL DOUBLE COLUMN VERTICAL LATHE
Max. cutting diameter of the vertical slide
mm
5000
Worktable diameter
mm
4500
Max. weight of the work piece
t
30/50
Max. height of the work piece
mm
2000/2500
Worktable speed range
r/min
0.5~40
Series
step
Two gears no series
Max. cutting force of right knife rest
kn
50
Max. cutting force of left knife rest
kn
40
Max. worktable torque
kn.m
100
Feeding rang of knife rest
mm/min
0.1~200
Rapid movement speed of knife rest
mm/min
2000
Beam movement speed
mm/min
350
Turning angle of vertical slide
°
±30
Knife carrier size(W*H)
mm
50*50
Main motor power
kW
DC75
Weight of the lathe
t
60
Dimensions of the machine(L*W*H) and weight
mm
7680*6100*5975 60/100

Main Features

1) The workbench adopts hydrostatic guide way.

2) Radial axis of the bearing adopts high-precision NN30 (D step) bearing. It had high precision, strong bearing capacity.

3) Gear box adopts 40Cr grinding gears. It had high precision and low noise.

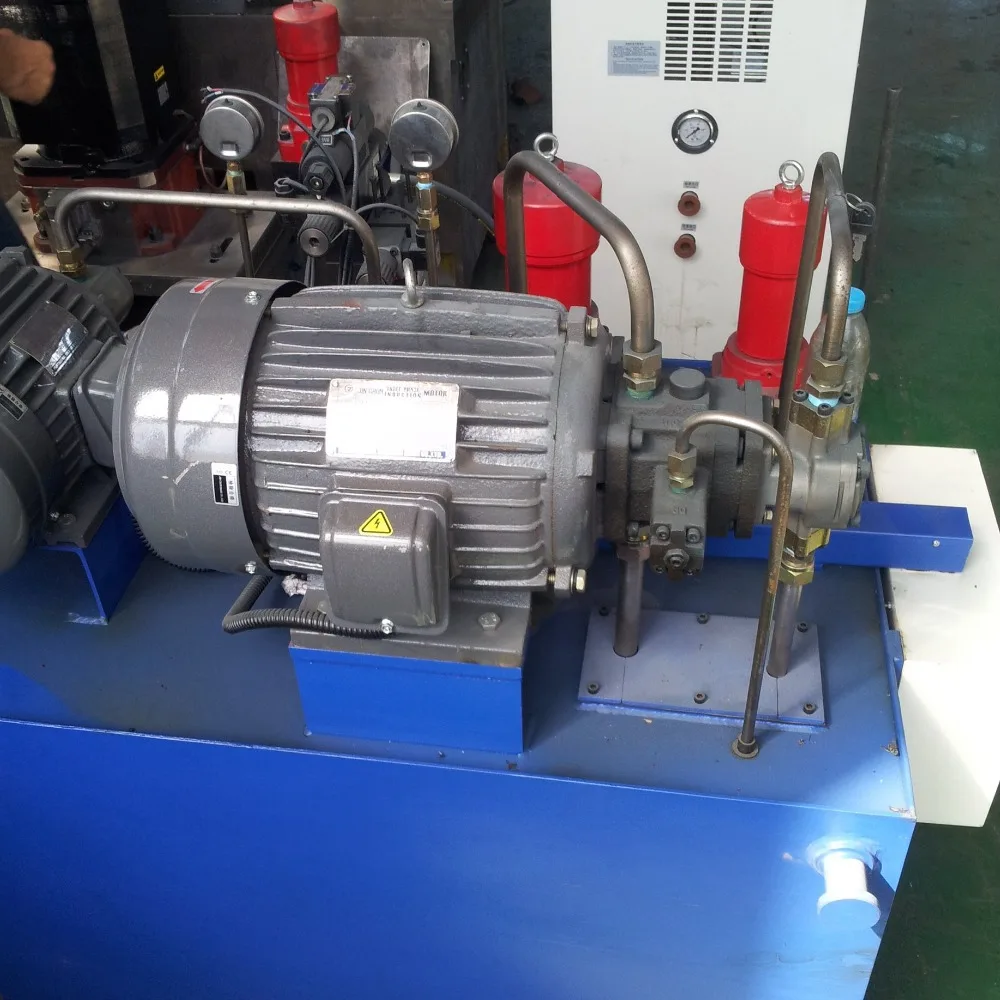

4) Hydraulic parts and electronic parts are from domestic famous manufacturers, which are reliable.

5) The guide sliding surface pastes plastic, improving abrasion resistance. The slide way lubrication adopts the method of offering oil concentrated.

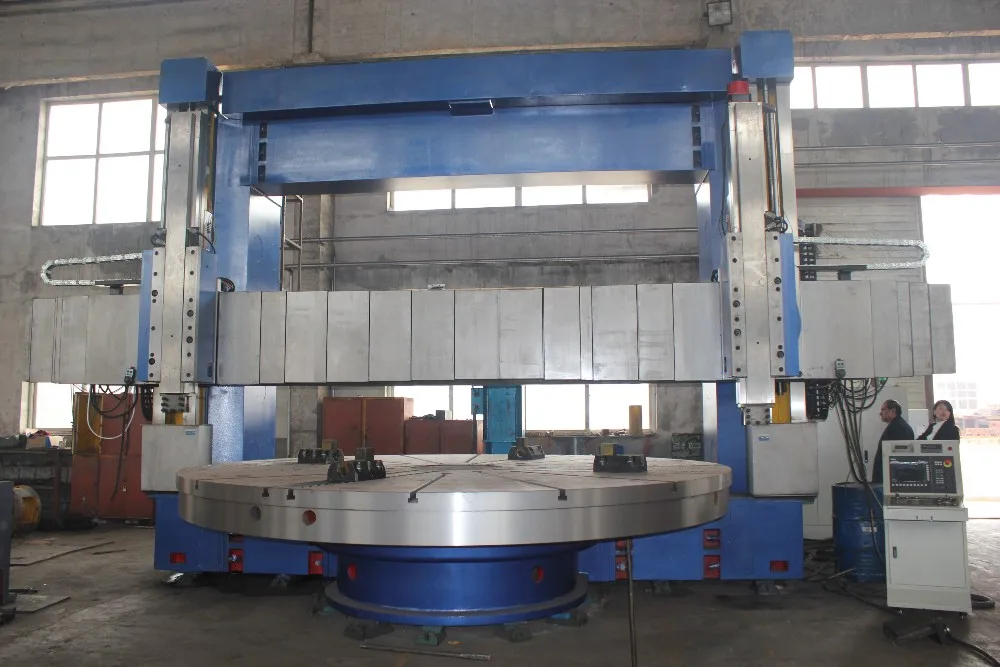

Detailed Images

Machine Parts

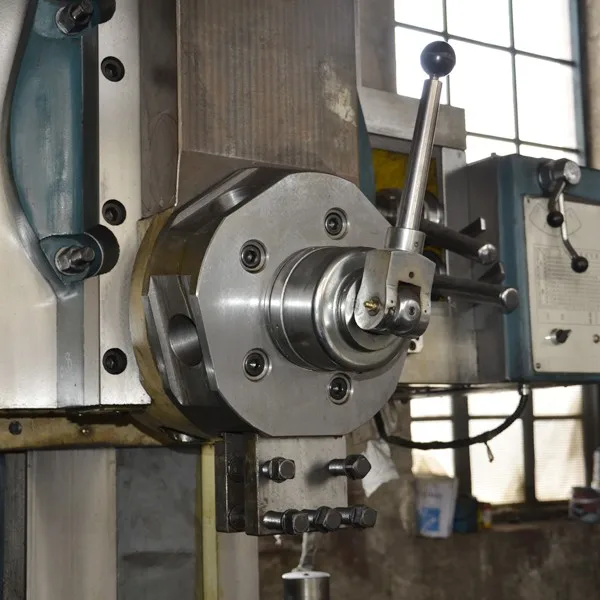

Name: Turret

Left and right vertical turret by the cross-slide, swivel seat, square ram, transmission and hydraulic system. Two turrets its transmission system is the same, the horizontal and vertical motion controlled by an independent AC motor, the feed direction and speed are used electromagnetic clutch, slide rails are covered with PTFE wear-resistant guide rail, ram movement for the screw nut Drive to adjust the gap.

Main Features

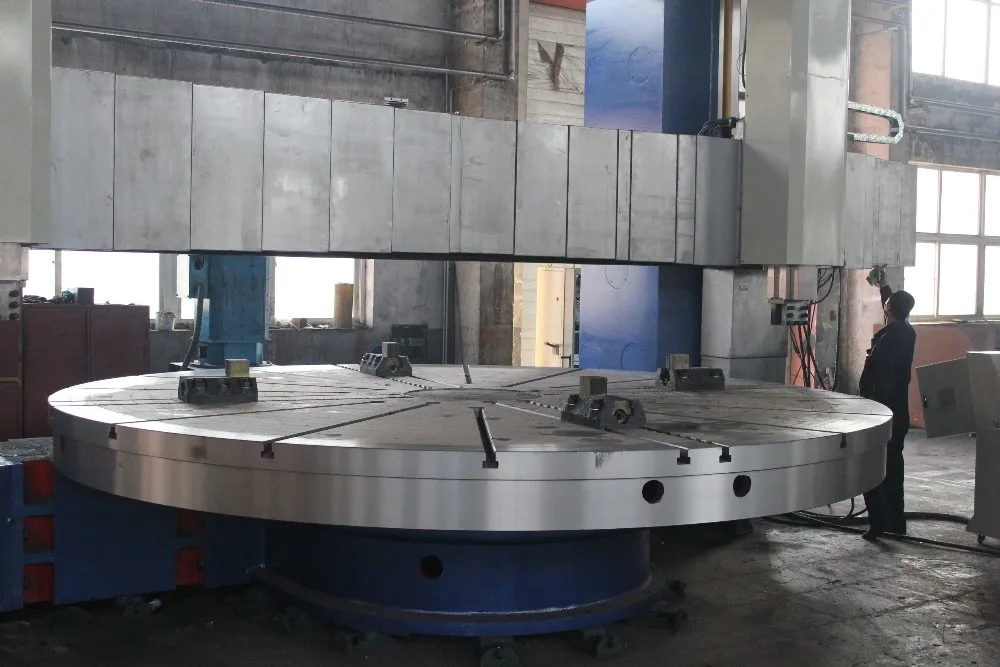

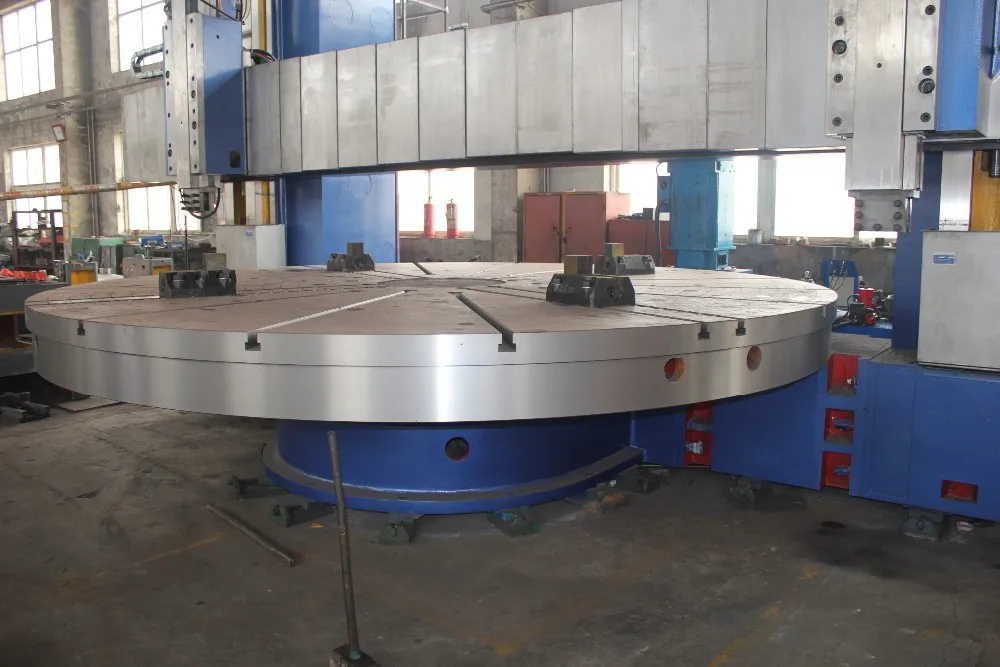

Name: Workbench
Workbench and workbench base respectively for the overall casting structure, the use of high strength and low stress cast iron, grade HT250 aging treatment has sufficient rigidity, strength and stability. Workbench bearings using high precision NN30 series double row short cylindrical roller bearings, by adjusting the radial clearance to ensure high precision rotary table, and a high working life. Workbench guide rail for constant current hydrostatic guide, to ensure long-term stable work bench.

Machine Parts

Name: ELECTRIC SYSTEM
All machine control components such as contactors are installed in the power distribution cabinet. All the operating components are centrally mounted on the hanging button station. Machine electrical system and mechanical action set many chains, to ensure the machine control and mechanical movement of the reliability, safety, in the event of failure, just press the emergency button, the whole equipment power.

Main Features

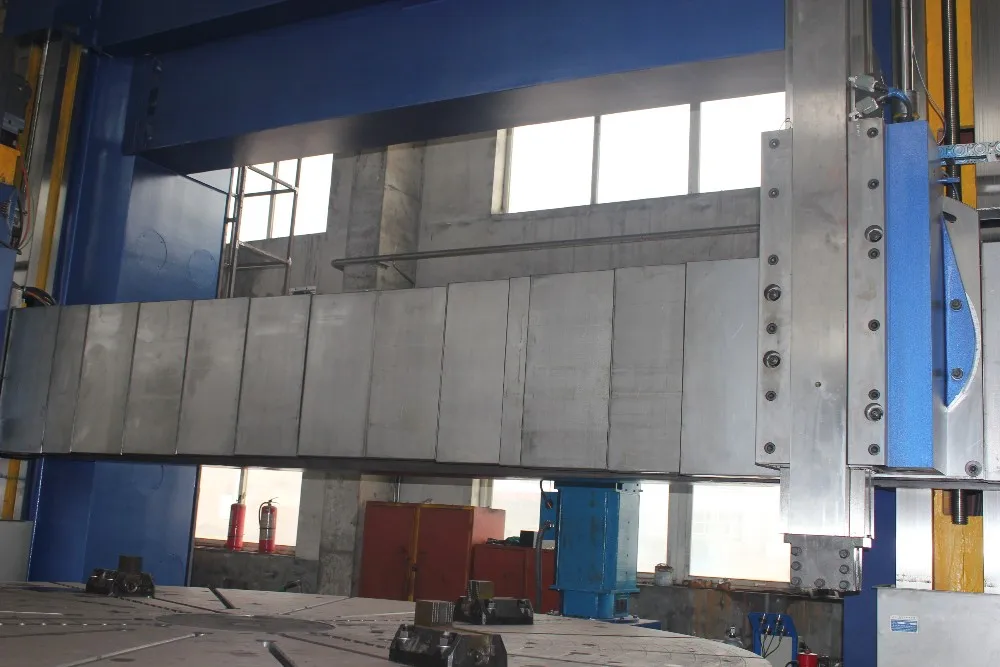

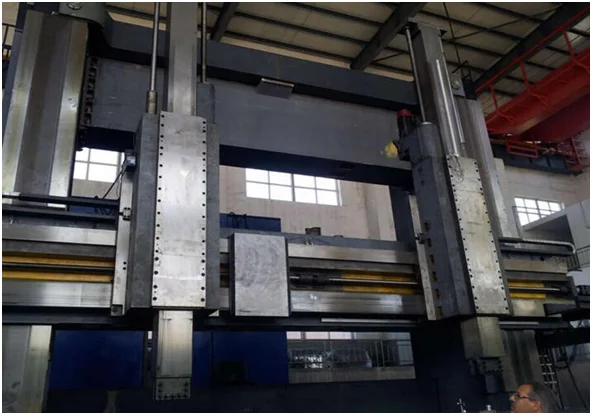

Name: Double Column
Gantry is consisting of the left and right columns and connecting beams. In the upper part of the gantry there are left and right lifting boxes, driven by the AC motor, through the worm gear and double screw to make the beam along the left and right column rails to move up and down. Machine tools left and right columns, beams and other large-scale use of high strength, low stress cast iron material, hardness HB170-190, the machine has greater strength and higher stiffness, after aging treatment to eliminate stress and ensure the accuracy of the machine.

You may concerned
Before packaging, we will do strict accuracy test on worktable, tool turret to make sure our machine with execellent performance, meanwhil, testing report will be sent with other operation manual.
(Your saitisfaciton is our ultima goal )
Order Model
CK5123
CNC Single Column VTL
Order Country
Italy
Order Date
2014.05.12
Payment term
L/C
Trade Term
CFR ALGHERO
Main parmeters
Max Cutting Dia: 2300mm
Max weight of workpiece:8ton
Order Model
CK5112
Order Country
Turkey
Order Date
2017.11.12
Payment term
L/C
Trade Term
CIF Izmir
Main parmeters
Max cutting diamter: 1250mm
Max weight of workpeice: 5ton
Our Service

Customer Visiting

Business Card

Packing & Delivery
Packaging
Size
7680*6100*5975mm
Weight
60T

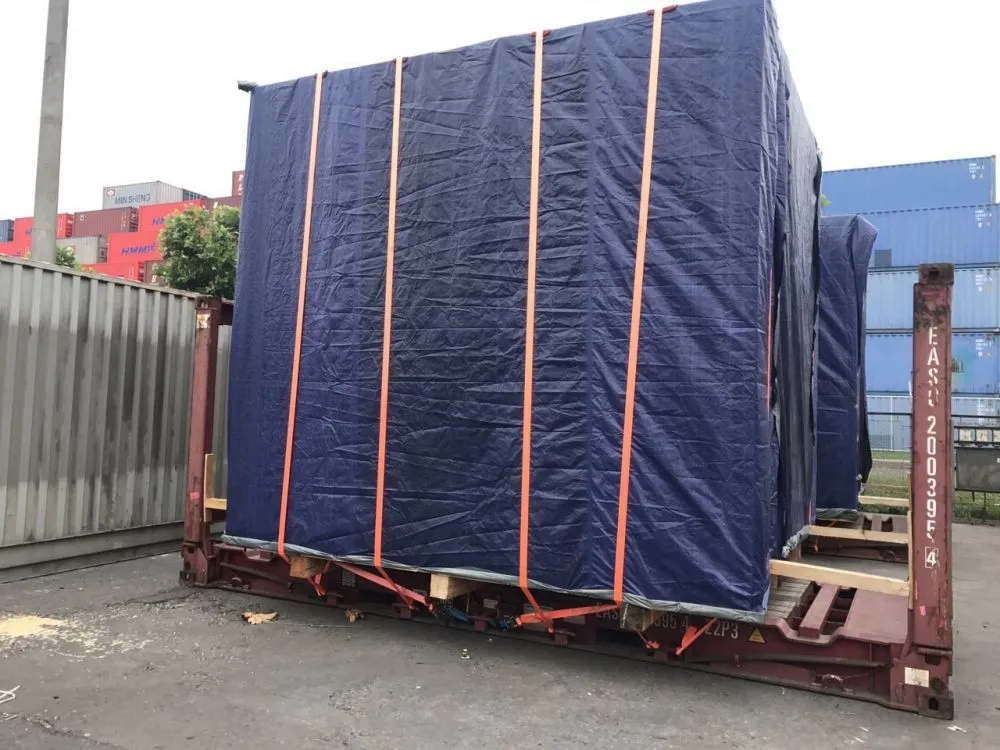

Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
