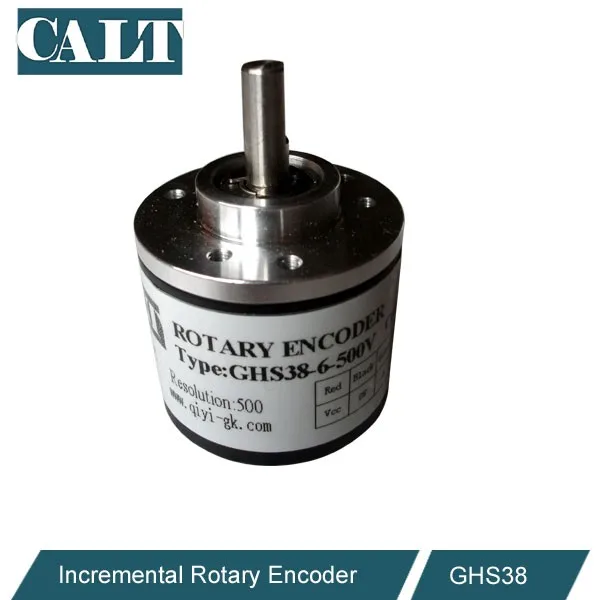

CALT GHS38 Low price 10-3600ppr optical incremental quadrature 5-10mm shaft rotary encoder

FOB Reference Price:Get Latest Price
$18.00 - $60.00 / Pieces | 1 Piece/Pieces (Min. Order)
Lead Time:
Quantity(Pieces) 1 - 50 >50
Est. Time(days) 3 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
CALT
Model Number:
GHS38
Usage:
Speed Sensor
Theory:
Optical Sensor
Output:
Digital Sensor
Type:
GHS38
Name:
high precision optical rotary encoder
Material:
Aluminum Alloy
Outer size:
38mm
Shaft:
5/6/8/10mm
Resolution:
10-3600PPR
Protection Class:
IP54
Operating temperature:
-20 ~80 ℃
Supply voltage:
DC5V/DC5V-26V
Supply Ability
Supply Ability:
5000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
Standard Strong Export Carton Box
Port
Shanghai
Lead Time :
Quantity(Pieces) 1 - 50 >50
Est. Time(days) 3 To be negotiated
Product Description

CALT GHS38 Low price 10-3600ppr optical incremental quadrature 5-10mm shaft rotary encoder


Application & Features:

 ASIC devices internal, good reliability, long life, anti-jamming performance.
 Stainless steel shaft has a higher stability and protection.
 Metal shell is more solid and anti-impact.
 Outlet end use waterproof metal interface protection
 Bearing load heavy, anti-oil and water.
 Applicability to a wide variety of mechanical and industrial control.
 10 ~ 3600 pulses Optional: (Other pulses available on request)
 High grade protection is optional


Model :

Dimensions:


Specifications:


Output circuit
Open-collector output
Voltage output
Push-pull complementary outputs
Line driver
Supply voltage
5~30V
5~30V
5±0.25 5~30V
5±0.25 5~30V
Current consumption
≤80mA
≤80mA
≤80mA
≤150mA
Load current
40mA
40mA
40mA
60mA
Output high
Min Vcc*70%
Min Vcc-2.5V
Min Vcc-1.5V
Min 3.4V
Output low
MAX 0.4V
MAX 0.4V
MAX 0.8V
MAX 0.4V
Rise time Tr
MAX 1us
MAX 1us
MAX 1us
MAX 200ns
Fall time Tf
MAX 1us
MAX 1us
MAX 1us
MAX 200ns
Highest frequency response
300kHz
300kHz
300kHz
300kHz
Max speed r/min
Starting torque
Axis maximum load
Impact
Anti-vibration
6000
<0.05Nm
Radial 25 N Axial 15N
50G/11ms
10G 10-2000Hz
Moment inertia
Work Temperature
Storage Temperature
Protection Degree
Weight
4 x 10.-8kgm²
-30~85ºC
-35~85ºC
IP54/IP65
100g

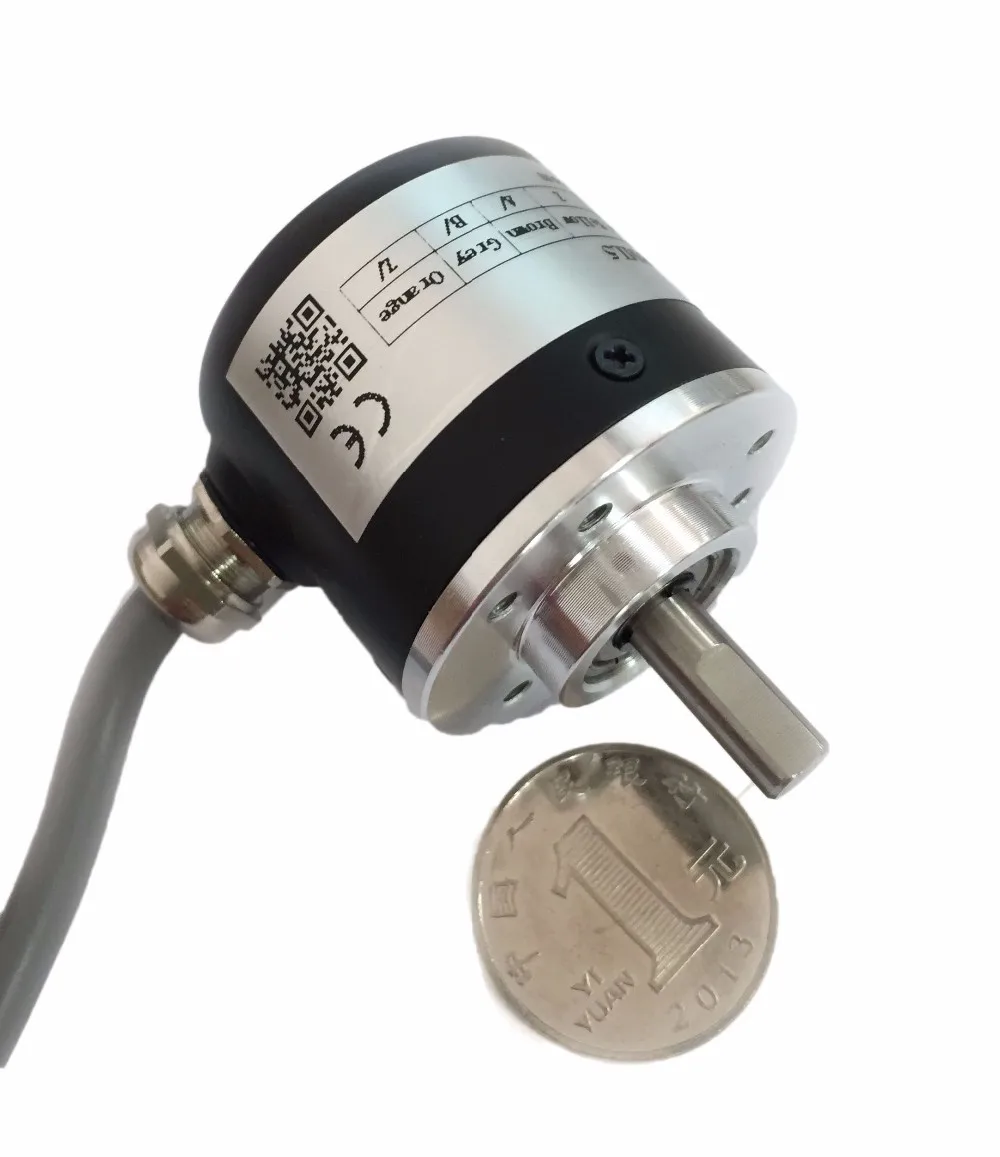

Products Show

We can customize many different encoder sizes with different specifics .Also provide the alternative products for famous brand encoders .Welcome to send us inquiries.
