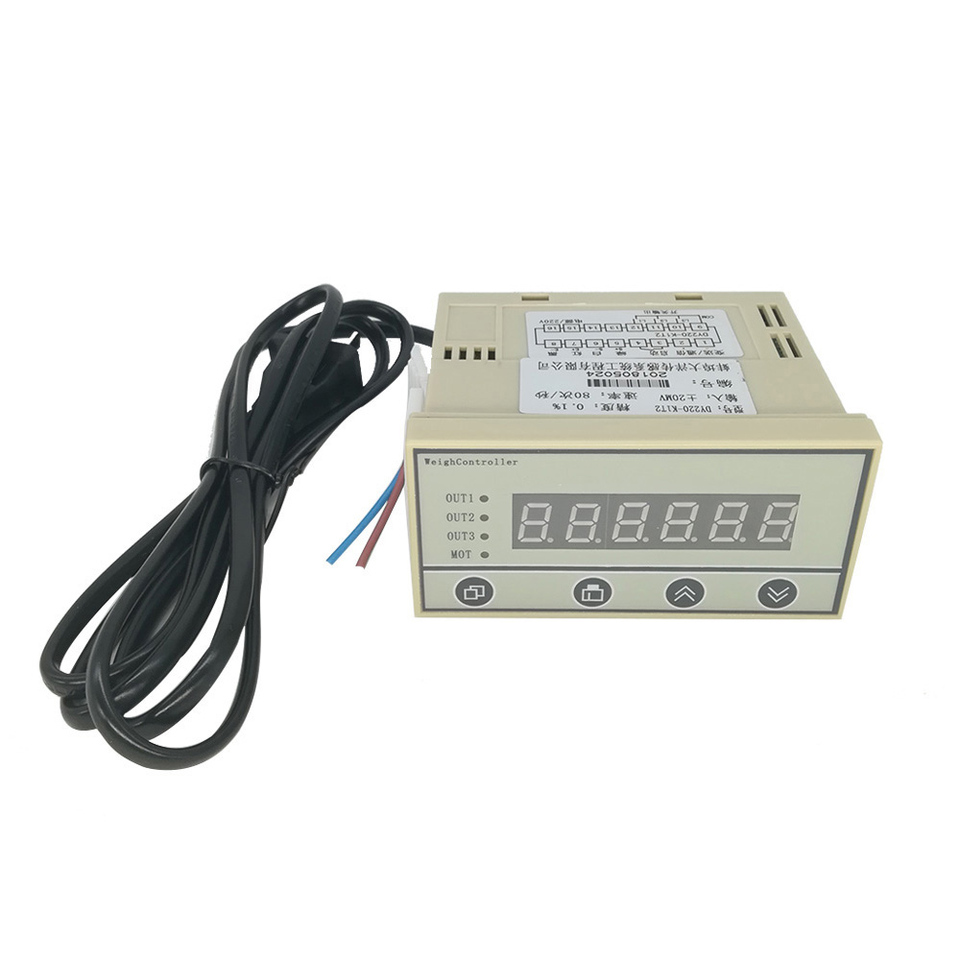

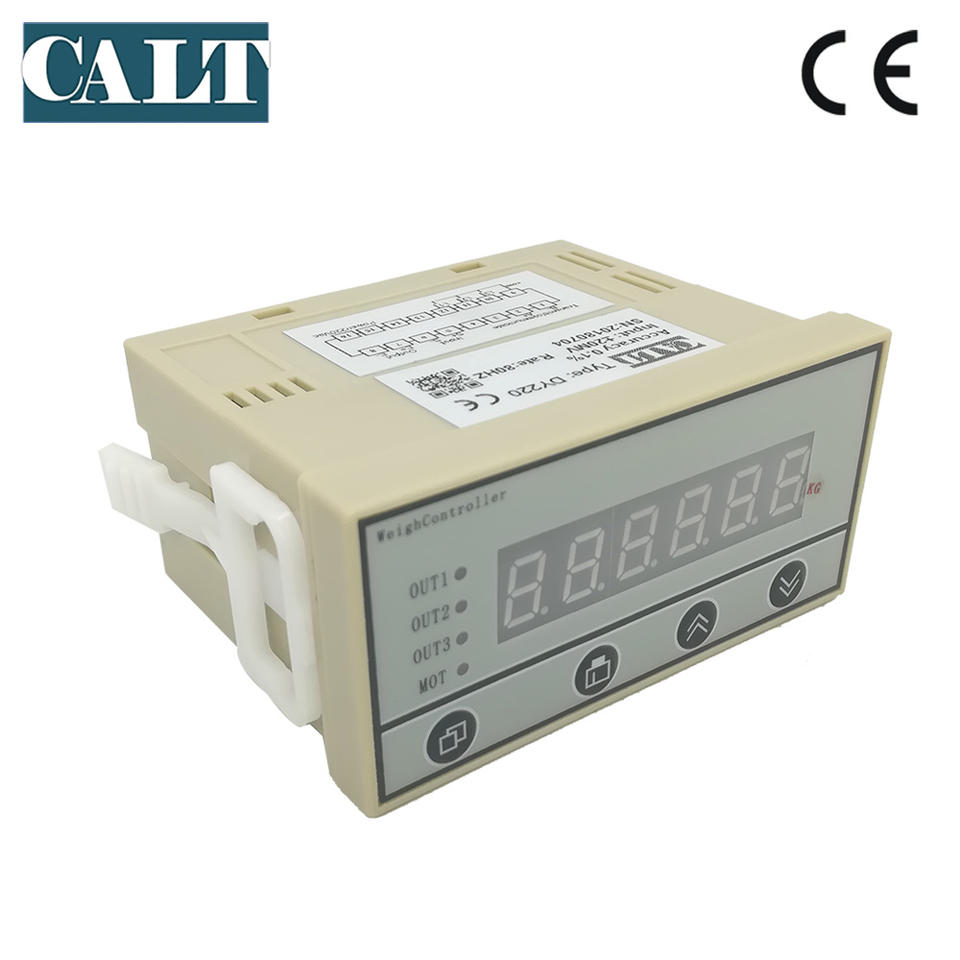

CALT High Precision Digital Weighing Controller Load Cell Indicator

  • 1-14 Pieces
    $72.00
  • 15-999 Pieces
    $69.00
  • >=1000 Pieces
    $49.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China
Brand Name:
CALT
Model Number:
DY220
Usage:
PRESSURE SENSOR
Theory:
Other
Output:
Digital Sensor
Product name:
CALT High Precision Digital Weighing Controller Load Cell Indicator
Supply voltage::
AC 100~240V
Frequency:
50/60Hz
Accuracy:
0.1%
Application:
Load cell display
Display Type:
LED
Display Range:
-9999~29500
sampling rate:
80 times/second
Operation Temp.:
-20~50℃
Guarantee:
12month

Packaging & Delivery

Selling Units:
Single item
Single package size:
21X12X14 cm
Single gross weight:
1.500 kg
Package Type:
Carton
Lead Time :
5
Product Description

CALT High Precision Digital Weighing Controller Load Cell Indicator

Specifications:
1. Analog input
Analog inputs use 20 bits AD chip, Count Speed up to 80 times / sec, the measurement accuracy of 0.2%
Display range -9999 ~ 19999 .The largest sub-degree 50000. For the bridge voltage 5V, 100mA


2. The switch output

3 relay or OC outputs. Relay contacts AC 250V / 1A, OC output drive 100mA / 48Voptional.


3. Transmission output
Output 4-20mA, 0-10V, 12bit precision driving 500 ohm load. Optional features.


4. communication port
485,232 communication interface, upload executable modbusRTU and active protocol. This function is optional. Only can choose one function with transmission function


5. A simple comparison output
Features: 3 output meter can be set to be greater than or less than the comparative comparison. When the measured value exceeds the upper limit output is active when the measured value is less than the upper limit minus hysteresis output is invalid. If the output is less than comparison, the measured value is less than the lower limit of the output is active when the measured value is greater than the lower limit plus hysteresis invalid.

Menu Structure

3.1 parameter modification. Standby mode, press [k1] + password to enter the password written 100. Entering advanced parameters (13 parameters later) password is written 105. Specific steps are as follows: Press [k1] key, there will be 00000, after press [k4] key to move the blinking digit moves to the flashing digit to be modified, press [k3] to modify the blinking digits, password changes is correct, press [k1] key to enter the set parameters, and then press [k1] to switch the set of parameters, select the parameter to be modified, press [k4] enter the parameters after the modification is completed, press [k1] OK to return to the measurement interface [k2]
3.2 weight calibration. Standby mode, press [k2], to see details of the third page (V: calibration method)
3.3 Key cleared. Standby mode, press [k4], and the measured value is less than zero range is completed is cleared.
3.4 restore the factory settings. 3.1 according to enter parameter modification (but need to enter a password to use special password) to switch to the first 42 parameters, enter a number between 11-19, and then press the [k1] to switch to the next parameter, press [k2 [to exit the way to restore the instrument parameters 1-9 initial state.

Display symbolically
A 1 Alarm outputvalue
b2 alarm output value
c3 alarm output value dalarm hysteresis AL alarm status strunning state E A / D code value dAtransmitter output code U Software version

Calibration method
Standby mode, press [k2], appears E0xxxx, press [k4] is cleared, there E00000 zero calibration is complete. Press [k2] qualifying C00000, plus a known standard weights or heavy objects, press [k4], and then by pressing [[k3] to increase the value + [k4] to move the blinking digit, modified weight by weight, stable, press [k2] OK, the calibration is complete, the value and weight of the weights should be consistent, if not the exact same order again once calibrated, accurate after calibration, press [k1] return force measurement interface.
