CATV trunk Amplifiers for indoor used

FOB Reference Price:Get Latest Price
  • >=20 Sets
    $30.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
OEM or HKT
Model Number:
HKTFD-9A
Supply Ability
Supply Ability:
2000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Neutral package

Indoor CATV Amplifier Model No:HKTFD-9A

Specifications

  • 1GHz working platform, high output, low distortion, excellent flatness in band
  • Use high quality NXP or NEC module, make sure good C/N,C/CSO,C/CTB Unit in the work
  • Use plug-in functional device, it could achieve blind mating for guiding groove design. Asymmetrical stitch of the equalizer had been designed to avoid incorrect using. Gilded copper stitches and pins are suitable for contacting and debugging.
  • The standard optional output interface: 1 high power output or 2outputs.
  • Built-in two aluminum panels to prevent electromagnetic radiation.
  • Multistage lightning protection devices ensure long-time stable and continuous working.
  • New attractive aluminum alloy case with waterproof, moistureproof and anti-Oxidation design is favorable to installation and heat elimination.


    Specifications:



    Items

    Units

             Technical Parameter

    Frequency Range

    MHz

    45~750/862/1000

    Nominal Gain

    dB

    26

    28

    30

    32

    34

    Minimal Gain

    dB

    ≥26

    ≥28

    ≥30

    ≥32

    ≥34

    Nominal Output Level

    dBuV

    98

    100

    102

    104

    106

    Nominal Input Level

    dBuV

    72

    Max Output Level

    dBuV

    108

    Flatness in band

    dB

    ±0.75

    Noise Figure

    dB

    ≤10

    RF Return Loss

    dB

    ≥14

    C/CTB

    dB

    ≥57

    C/CSO

    dB

    ≥56

    Gain Adjust Range

    dB

    1~20dB

    adjustable continuously

    Slope Adjust Range

    dB

     1~15dB

    adjustable continuously

    EOC Jumper



    Built-in EOC Jumper for Ethernet Data (Optional)

    Signal Hum Ratio

    %

    <2

    Gain Stability

    dB

    ±1

    Output Impedance

    Ω

    75

    Working Temperature

    °C

    -40~+60

    Storage Temperature

    °C

    -40~+80

    Power Supply

    V

    AC135~265 or AC35~90

    Warranty



    1 Year

    Dimension

    CM

    20×17×7

    Weight

    KG

    1.349

    OEM/ODM available

Company Information

About

based on the data collection and application of wireless cities and the Internet of Things(IoT), we are committed to building a multidimensional ecosystem operation service system that integrates software, hardware, services, and operations.




Hunan HKT Technology Co., Ltd. (hereinafter referred to as "HKT") was established in 2010 with registered capital of 51.168 million yuan. In July 2015, HKT successfully listed at the national small and medium enterprise equity transfer center and officially entered the capital market with stock code 832849.
Our Advantages

OUR ADVANTAGES

It is a global leading provider of network communication transmission equipments of digital TV,communication equipments of tri-play networks integration and integrated network solutions.We are supplier of over 200 cable network operators and exported to Europe, South America, North America, the Middle East, Southeast Asia and other countries and regions.

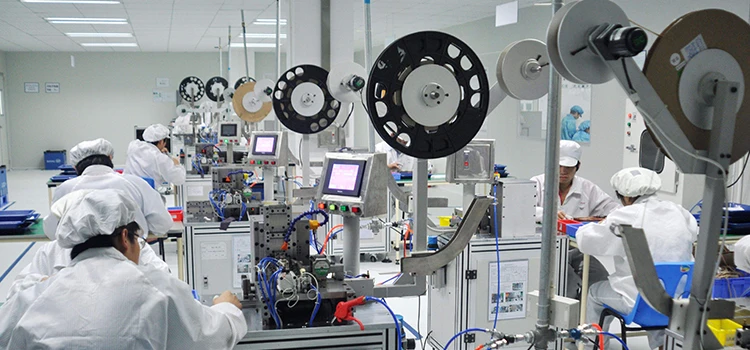

Complete Production line
