CBB61 SH polypropylene AC capacitor 250v 16uf

FOB Reference Price:Get Latest Price
$0.08 - $1.07 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Anhui, China (Mainland)
Brand Name:
CSF Saifu OEM Capacitor
Model Number:
CBB61 Fan Capacitor
Type:
Polypropylene Film Capacitor
Application:
AC/Motor, Ceiling Fan, Fan
Package Type:
Through Hole
Capacitance:
1~40uF
Rated Voltage:
200VAC~660VAC
Operating Temperature:
40/70/21, 40/85/21
Material of Case:
Plastic case for CBB61 fan start capacitor
Terminal:
Lead wire, Tabs, Pins for AC motor CBB61 capacitor
Reference standard:
GB/T3667.1(IEC60252-1)
Class of Operation:
Class B(10000h), Class C(3000h)
Class of safety protection:
P0/P2
Test voltage terminal to terminal:
2 Un for 2 seconds
Test voltage terminal to case:
(2Un+1000)VAC or 2000VAC-50Hz for 60 seconds
Insulation resistance:
≥3000MΩ.μF(100Hz, 20℃,1min)
Certificate:
CQC/TUV/UL/VDE, RoHS/SGS/ISO9000
OEM:
OEM orders are accpted
Supply Ability
Supply Ability:
3000000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
High stability and reliablity fan capacitor, CBB61 capacitor, air ventilator capacitor CBB61 Fan capacitor can be packed as export standard.
Port
Ningbo/Shanghai
Product Description

CBB61 SH polypropylene AC capacitor 250v 16uf

Features of CBB61 fan start capacitor:

1. Rectangle flame retardant plastic case, epoxy resin sealed;

2. Small size ,light weight ,convenient for installation;
3. Low dissipation factor, high insulation resistance;
4. Self-healing property, high stability and reliability;
5. Suitable for electric fan, exhaust fan, electric sewing machine, water pump etc., beneficial to the starting and running of AC motor.


Specifications:

Product type
AC motor capacitor CBB61 fan start capacitor
Reference standards
GB/T 3667.1(IEC60252-1)
Operating temperature
40/70/21, 40/85/21
Class of operation
Class B(10000h) Class C(3000h)
Class of safety protection
P0/P2
Rated Voltage
200~500VAC
Capacitance range
1~40uF
Capacitance tolerance
±5%
Test voltage terminal to terminal
2Un for 2 seconds
Test voltage terminal to case
(2Un+1000)VAC or 2000VAC-50Hz for 60 seconds
Insulation resistance
≥3000MΩ.μF(100Hz, 20℃, 1min)

Dimensions:

Capacitance
450VAC
250VAC
1μF
37x13x23mm
37x13x23mm
1.2μF
37x13x23mm
37x13x23mm
1.5μF
37x14x25mm
37x13x23mm
2μF
37x16x28mm
37x13x23mm
2.5μF
37x18x28mm
37x14x25mm
3μF
47x18x29mm
37x14x25mm
3.5μF
47x18x34mm
37x16x28mm
4μF
47x18x34mm
37x16x28mm
4.5μF
47x22x34mm
37x16x28mm
5μF
47x22x34mm
37x18x28mm
5.5μF
47x22x34mm
37x18x28mm
6μF
47x22x34mm
47x18x29mm
6.5μF
48x26x38mm
47x18x29mm
7μF
48x26x38mm
47x18x29mm
8μF
48x26x38mm
47x18x34mm
10μF
58x26x44mm
47x22x34mm
12μF
58x26x44mm
47x22x34mm
15μF
58x26x44mm
47x22x34mm
16μF
58x26x44mm
48x26x38mm
20μF
58x35x49mm
48x26x38mm
25μF
58x35x49mm
48x26x38mm
30μF
Negotiable
58x26x44mm
35μF
Negotiable
58x26x44mm
40μF
Negotiable
58x26x44mm
Note: Other specifications, size and terminal outside table are negotiable.
Detailed Images

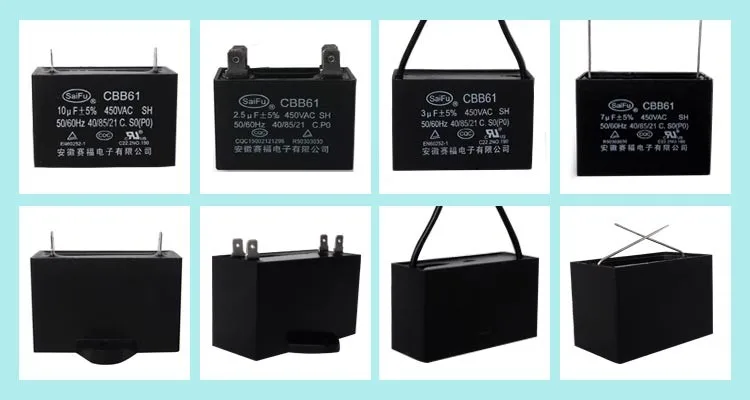

Different kinds of CBB61 capacitor to meet your diversified requirements:

Structure of CBB65 capacitor:
1. CBB65 capacitor cores are rolled by metalized film;
2. Plastic case, flame retarded epoxy resin filled;
3. Plastic case, with ear or without ear;
4. With lead wires or pins for terminal;

5. Special specification and lead out can be customized.

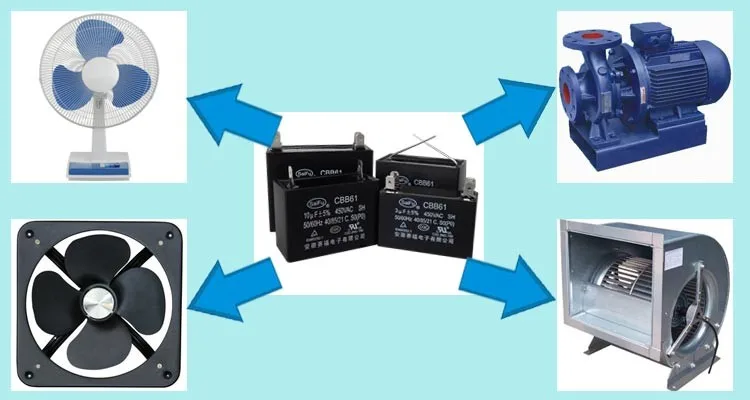

Applications

Widely applied to starting and running of AC single-phase motors at 50Hz/60Hz frequency power such as fan, water pump, exhaust fan, etc..

Related Products

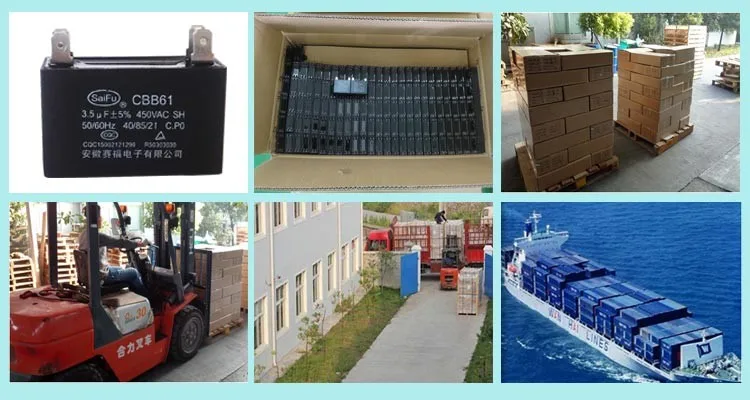

Packing & Delivery
Our Company

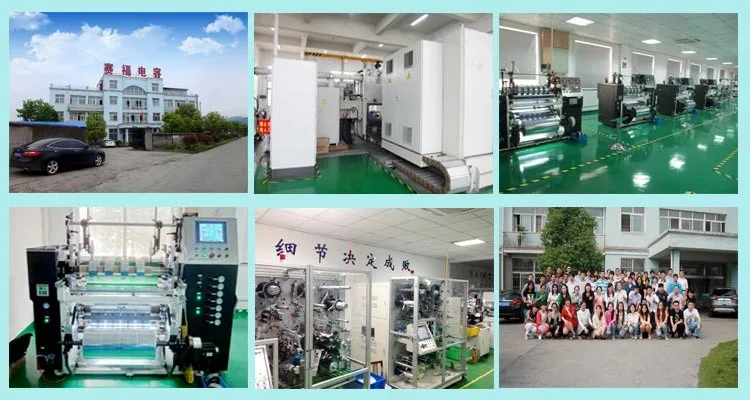

As a company which is specialized in manufacturing metallized film for capacitor use and metallized film capacitors for about 10 years, we possess non-dust workshop, many professional manufacturing equipments, many professional test equipment and testing instruments. You can see part of them from below pictures:

Certifications:

FAQ

1.Are you a factory or trading company?
We are an experienced capacitor manufacturer.
2.Where is your factory and how can I visit your factory?
Our factory located in Tongling, Anhui province. It will be about 3 hours if by high-speed railway from Shanghai.
3.What's your advantages?
Competitive price; perfect quality; low MOQ; high quality of service( 24 hours on line, fast delivery)...
4. Can I get some samples before place order?
We are happy to send samples to you. Samples will be free if less than 10pcs, but you should pay the cost for transportation expenses. If you need large quantity of samples, let's discuss it then.:-)
