CE Approval 500ml 1L 2L Bench-top Laboratory Rotary Vacuum Evaporator SK-98-1

  • 1-2 Sets
    $580.00
  • >=3 Sets
    $550.00
Application:
Distillation Food Processing Pharmaceutical Processing
Model Number:
SK-98-1
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
10 day(s) after payment received
Customization:
Customized logo (Min. Order: 10 Sets)
Contact Supplier
Samples - $550.00 /Set, 1 Set (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Food & Beverage Factory, Retail, Laboratory, Chemistry, Pharmaceutical Industry
Condition:
New
Power Source:
Electric
Process:
Rotary
Place of Origin:
Henan, China
Brand Name:
Zhengzhou Sykes
Voltage:
220V, 110V optional
Weight:
9.5kg
Certification:
CE
Warranty:
1 Year
After-sales Service Provided:
Online support
Product:
Rotary Vacuum Evaporator
Temperature range(℃):
Room temperature -99
Ultimate Vacuum Degree (mp):
0.1
Evaporating flask:
500ml, 1L, 2L
Receiving bottle:
1
Glass rotation axis:
15*190
Rotary Speed (rpm):
10-120
Evaporating Speed(ml/min):
40
Lifting function:
Manual lift
Vacuum Sealing:
Polymer composite

Packaging & Delivery

Selling Units:
Single item
Single package size:
61X49X46 cm
Single gross weight:
23.0 kg
Package Type:
Standard Wooden Package
Picture Example:
package-img
package-img
Lead Time :
Quantity(Set) 1 - 10 >10
Est. Time(days) 10 To be negotiated
Product Description

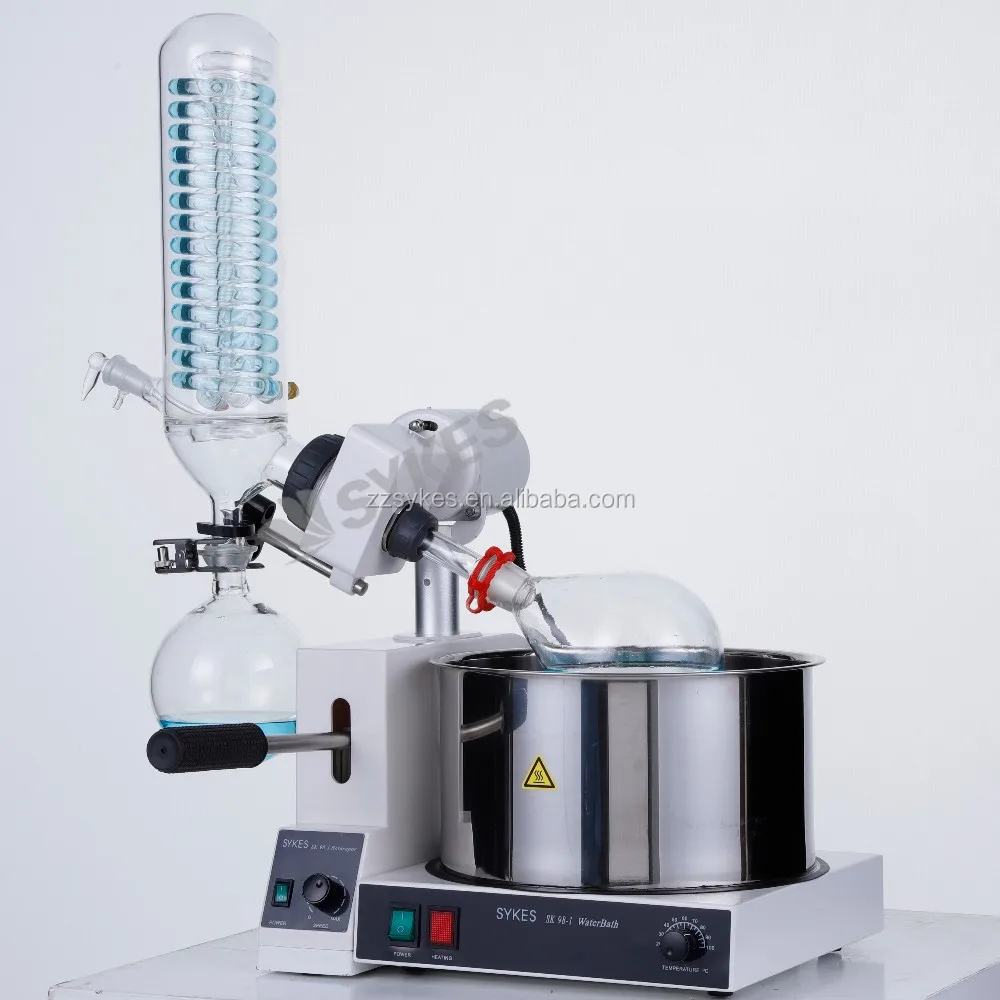

CE Approval 500ml 1L 2L Bench-top Laboratory Rotary Vacuum Evaporator SK-98-1


Working Principle


An ( Explosion-proof ) rotary evaporator ( also called rotary vacuum evaporator or rotary devaporizer or rotovap or rotavapor or rotavap ) is used for purification and distillation test. They rotate and shape a thin film in negative pressure condition by heating, evaporate efficiently, and then condense and recollect solvent to purify and separate.

Application


1. An ( explosion-proof ) rotary evaporator ( also called rotary vacuum evaporator or rotary devaporizer or rotovap or rotavapor or rotavap ) is a device used in chemical laboratories for the efficient and gentle removal of solvents from samples by evaporation. It is widely applied in such experiments such as concentration, evaporation, distillation, separation of chemical, using the rotating bottle to dry the powder and crystallization and so on.

2. An ( explosion-proof ) rotary evaporator ( also called rotary vacuum evaporator or rotary devaporizer or rotovap or rotavapor or rotavap ) can be used with recirculating water vacuum pump and low temperature cooling liquid circulating pump/ recirculating chiller to form the total system.

Configuration


Technical Data


Product
Rotary Evaporator
Model
SK-98-1
Performance
Rotary Speed (R/min)
10-120
Evaporating Speed(ml/min)
40
Ultimate Vacuum Degree (mp)
0.1
Function
Speed Control
Mechanical speed regulation
Safety Function
Overload Protection
Lifting
Manual lifting
Structure
Motor
Output Power 25W
Condenser Type
Double serpentine condensing tube
Evaporating Flask
0.5-2L
Receiving Flask
1L
Glass rotation axis
15*190
Vacuum Sealing
Polymer composite
Specification
Diameter of cooling nozzle (mm)
10
Lifting Distance(mm)
120
Temperature Range(℃)
Room temperature -99℃
Rated Power Supply (V)
220
Dimension (mm)
400*490
Weight(kg)
21

Features


1). Sealing rings adopt imported German technology polymer composite to guarantee high vacuum level.

2). Lifting operation is convenient with smooth, and it is convenient to lock it.

3). Equipped with the special motor, rotation speed is stable and smooth, and rotation speed is 10 ~ 140rpm.

4). German mechanical temperature control can guarantee precise control.

5). High efficient condensation can reach 1500c㎡ condensation area.

6). High recovery.

Detailed Images




* High borosilicate glass 3.3 condenser


* Vertical coil type

* Condensation area: 1500c









* High borosilicate glass 3.3 feeding valve

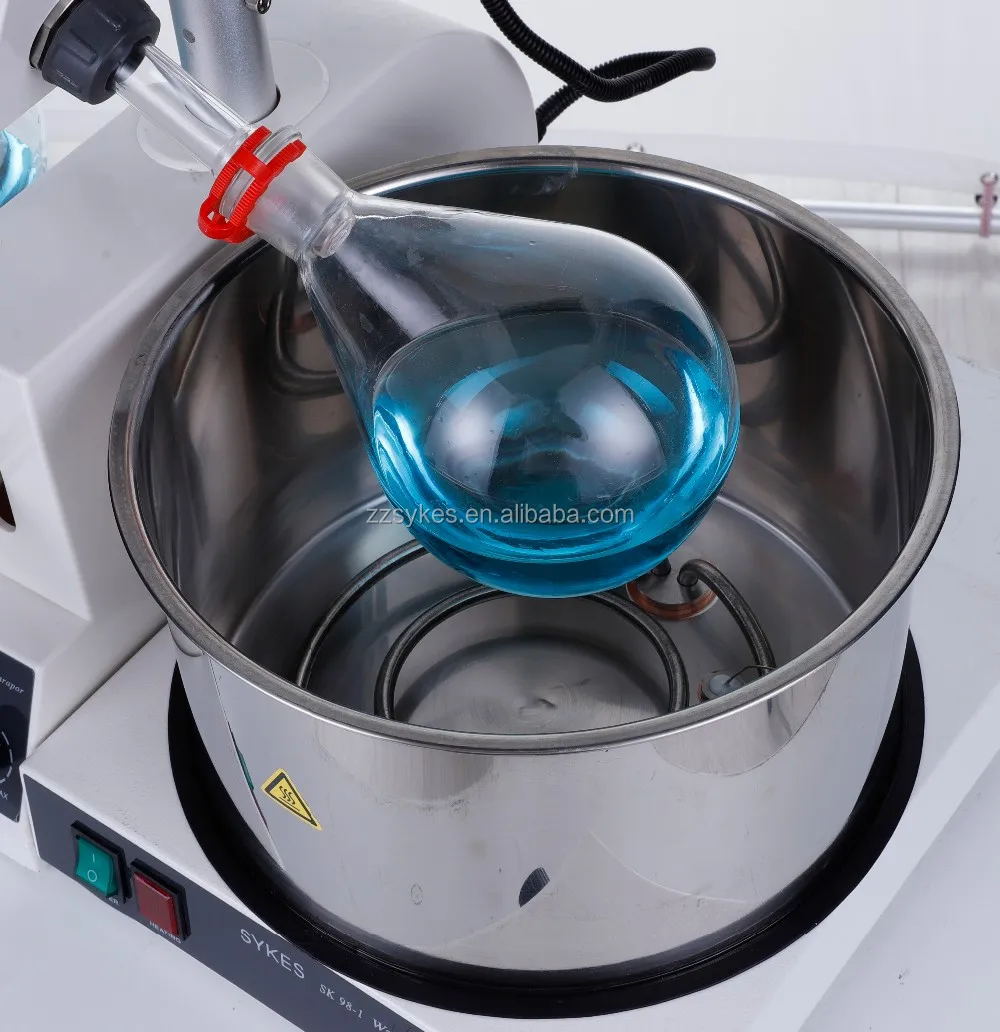

* High borosilicate glass 3.3 evaporation flask


* Capacity 500ml, 1L, 2L optional






* High borosilicate glass 3.3 receiving bottle


* Capacity 1L





* Operation panel of bath


* Temperature range: room temperature to 99℃

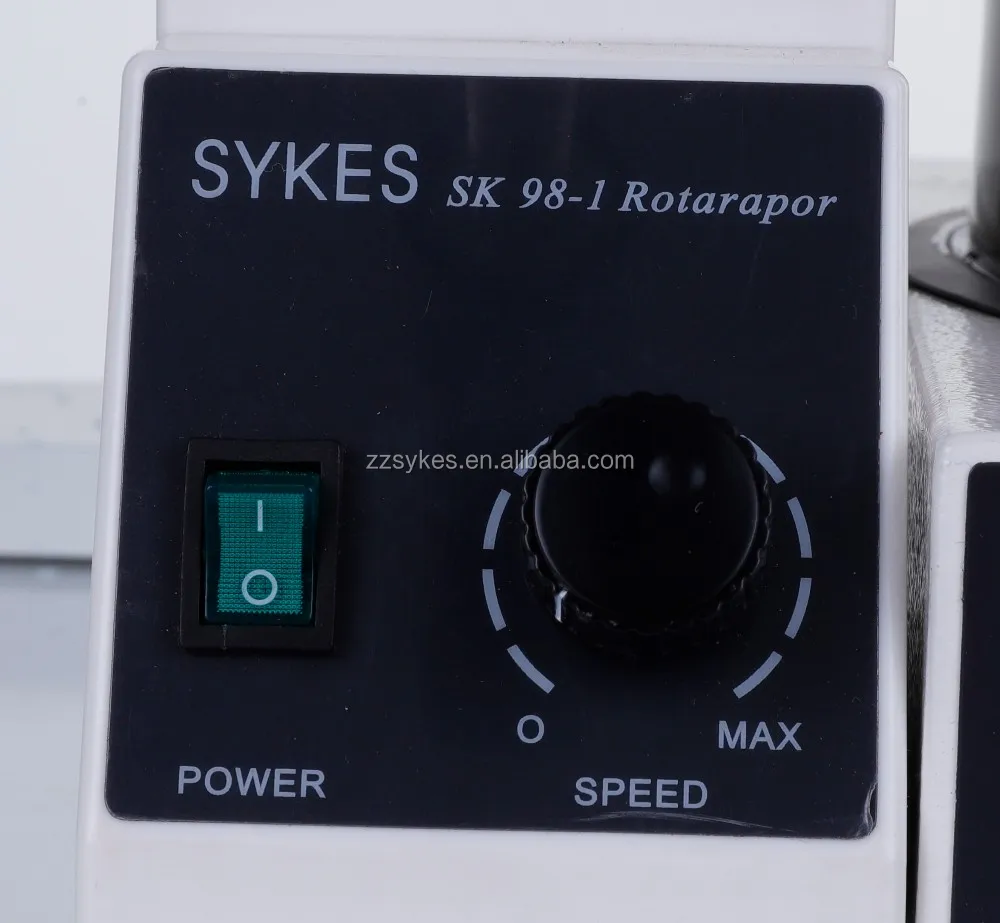

* Rotation speed regulation panel

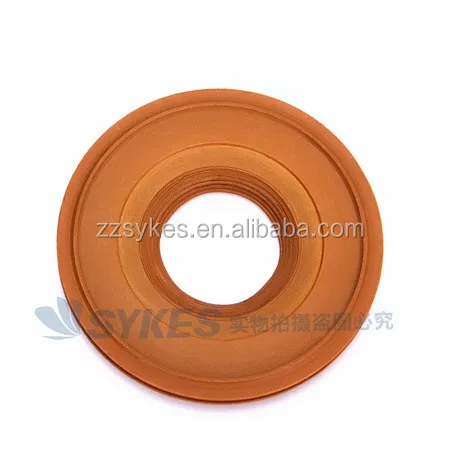

* Imported German technology polymer composite to guarantee high vacuum level

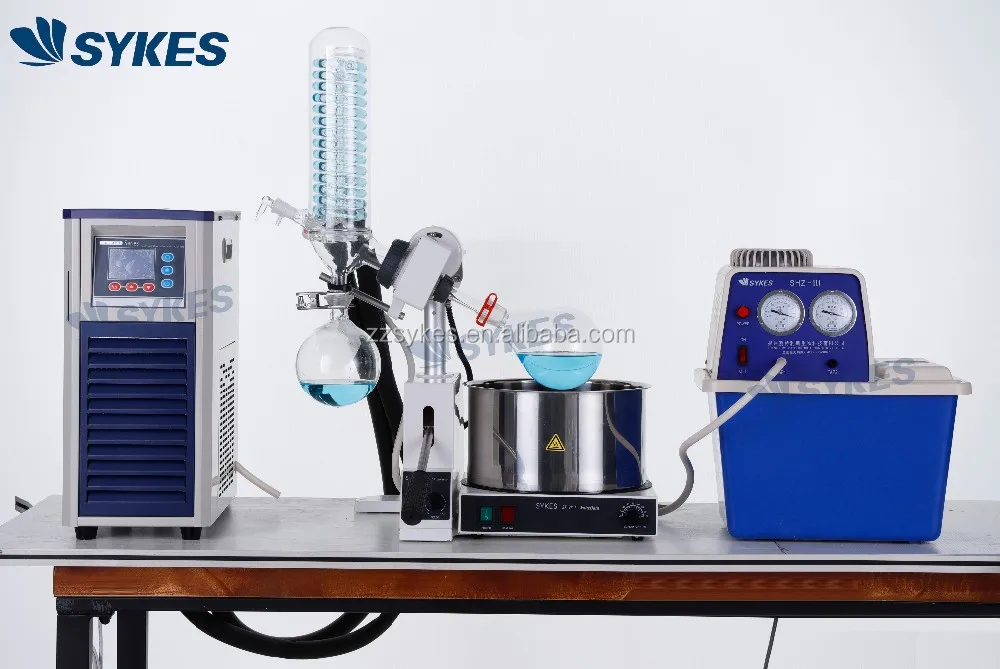

Corollary Equipments

* -15℃ To Room Temperature Recirculating Chiller DL-400


* 500ml ~ 2L Rotary Evaporator SK-98-1

* Spray Paint Teflon ( PTFE ) Water Circulating Vacuum Pump SHZ-III



* -20 To +20 Recirculating Chiller LC-520


* 500ml ~ 2L Rotary Evaporator SK-98-1


* Spray Paint Teflon ( PTFE ) Water Circulating Vacuum Pump SHZ-III


Accessories


Recirculating Chiller DL-400

Temperature range: -15℃ to room temperature

Temperature stability: ±2℃
Flow: 12L/min
Lift: 5 ~ 7m
Refrigerant: R404A
Power supply: 220±10%V, 50Hz or 110V, 60Hz
Dimension: 415*225*497mm

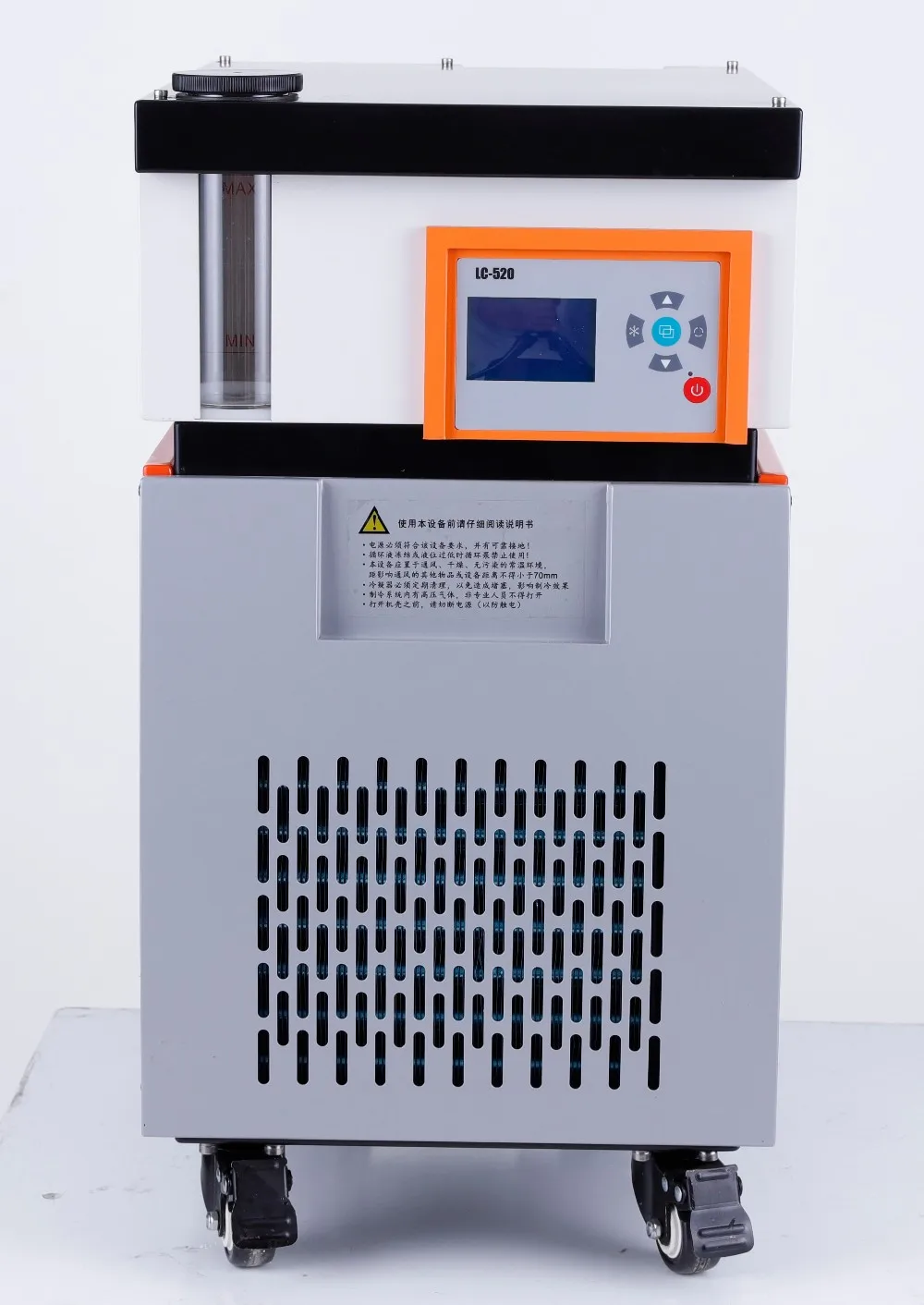

Recirculating Chiller LC-520

Temperature range: -20 to +20℃
Temperature stability: ±2℃
Bath Volume: 5L
Refrigerant: R404A
Power supply: 220±10%V, 50Hz or 110V, 60Hz
Dimension: 470*325*550mm

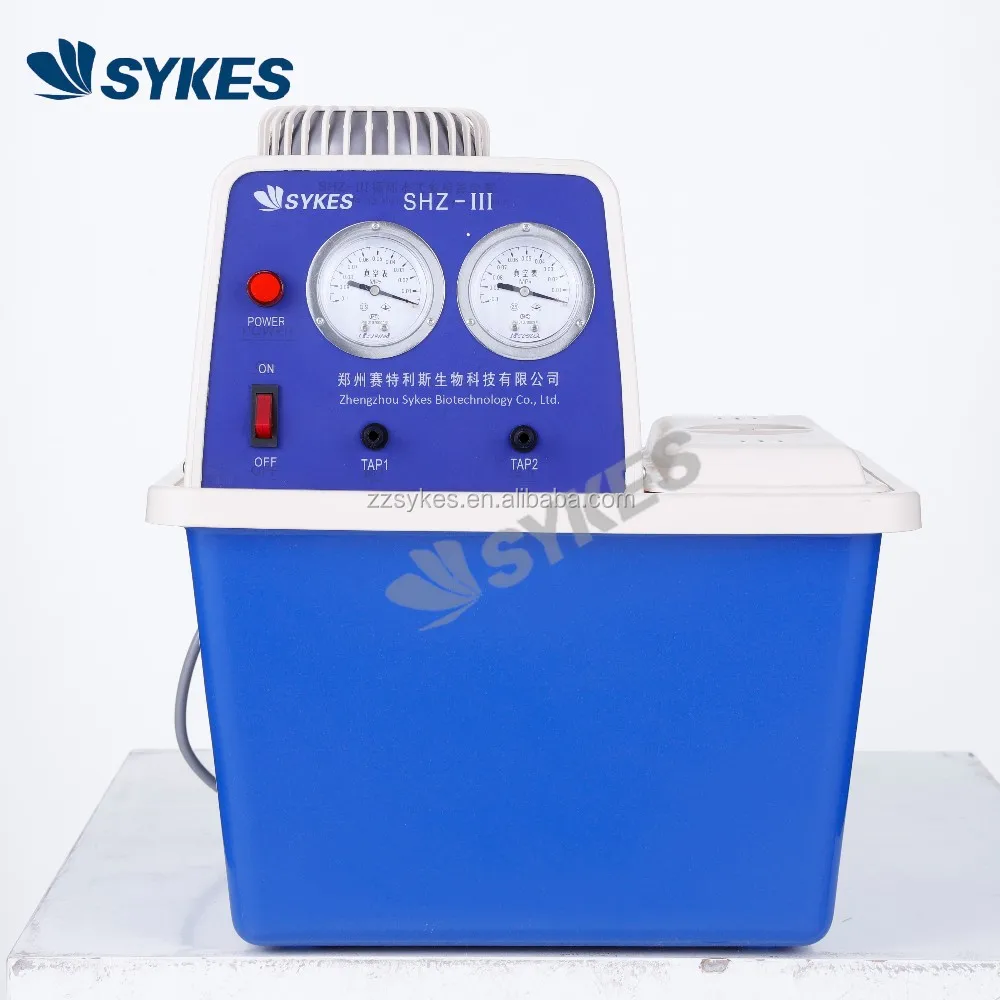

Spray Paint Teflon Water Circulating Vacuum Pump SHZ-III

Vacuum: 0.098MPa ( 20mbar, 2KPa )
Single tap air sucking amount: 10L/min
Tap number: 2
Flow: 80L/min
Lift: 10m
Power supply: 220±10%V, 50Hz or 110V, 60Hz
Spray paint Teflon (PTFE) on the ejector and gas-extraction nozzle, gas pipeline

Diaphragm Vacuum Pump MP-201

Vacuum: 0.098MPa ( 20mbar, 2KPa )
Rotation Speed: 1300rpm
Inlet Diameter: φ6mm
Pumping Speed: 25L/min
Dimension: 300* 230*150mm

CE Certificate
More Photos Show
Packing & Delivery
Related Products
Spray Paint Teflon Water Circulating Vacuum Pump


     Diaphragm Vacuum Pump


           Recirculating Chiller


Why Choose Us

1. Zhengzhou Sykes Biotechnology Co., Ltd. is a sub-company of Zhengzhou Sykes Glass Instruments Co., Ltd. Which is a professional manufacturer of laboratory instruments for over 30 years in China.


2. Professional R & D Team can supply customers with perfect solution according to specific requirements.

3. Long-term and stable raw material suppliers, and we offer factory price based on high quality products directly, it is more profitable for business.

4. Professional QA/ QC team focus on quality control during raw material purchasing, production line and final inspection.

5. ODM and OEM are available.

6. Flexible payment terms.

7. One year warranty and free lifetime maintenance service

8. We not only guarantee the safe transportation but also save the freight cost for customers.
