CE Approval Intelligent Temperature control 0.5L 1L 2L Lab Thin Film Rotary Evaporator Rotovap Rotavapor RE-201D

  • 1-4 Sets
    $450.00
  • >=5 Sets
    $400.00
Application:
Distillation Food Processing Pharmaceutical Processing
Model Number:
RE-201D
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
10 day(s) after payment received
Customization:
Customized logo (Min. Order: 100 Sets)
Customized packaging (Min. Order: 100 Sets)

More

Graphic customization (Min. Order: 100 Sets) Less
Contact Supplier
Samples - $400.00 /Set, 1 Set (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Food & Beverage Factory, Retail, Laboratory, Chemical and Pharmaceutical Industries
Condition:
New
Power Source:
Electric
Process:
Rotary
Place of Origin:
Henan, China
Brand Name:
Zhengzhou Sykes
Voltage:
220V
Dimension(L*W*H):
700*450*920 ( mm )
Certification:
CE
Warranty:
1 Year
After-sales Service Provided:
Online support
Product:
Thin film rotary evaporator
Temperature range(℃):
Room temperature -99
Temperature Stability:
±1℃
Ultimate Vacuum Degree:
0.098Mpa
Evaporating flask:
0.5L, 1L, 2L
Receiving flask:
1L
Condenser:
Vertical type
Motor Power(W):
40
Rotary Speed (rpm):
10-120
Power of Oil Bath(KW):
1.5

Packaging & Delivery

Selling Units:
Single item
Single package size:
69X69X60 cm
Single gross weight:
37.0 kg
Package Type:
Standard Wooden Package
Picture Example:
package-img
package-img
Lead Time :
Quantity(Set) 1 - 10 >10
Est. Time(days) 10 To be negotiated
Product Description

Working Principle


An ( Explosion-proof ) rotary evaporator ( also called rotary vacuum evaporator or rotary devaporizer or rotovap or rotavapor or rotavap ) is used for purification and distillation test. They rotate and shape a thin film in negative pressure condition by heating, evaporate efficiently, and then condense and recollect solvent to purify and separate.

Application


1. An ( explosion-proof ) rotary evaporator ( also called rotary vacuum evaporator or rotary devaporizer or rotovap or rotavapor or rotavap ) is a device used in chemical laboratories for the efficient and gentle removal of solvents from samples by evaporation. It is widely applied in such experiments such as concentration, evaporation, distillation, separation of chemical, using the rotating bottle to dry the powder and crystallization and so on.

2. An ( explosion-proof ) rotary evaporator ( also called rotary vacuum evaporator or rotary devaporizer or rotovap or rotavapor or rotavap ) can be used with recirculating water vacuum pump and low temperature cooling liquid circulating pump/ recirculating chiller to form the total system.

Technical Data


Product
Rotary Evaporator
Model
RE-201D
RE-301
RE-501
Evaporating Flask(L)
2
3
5
Receiving Flask(L)
1
1
3
Motor Power(W)
40
40
40
Rotary Speed(rpm)
0-120
0-120
0-120
Vacuum Degree
0.098Mpa
0.098Mpa
0.098Mpa
Power of Oil Bath(KW)
1.5
1.5
2
Draining Valve
-
-
PTFE
Temperature Range
Room Temperature-200℃
Room Temperature-200℃
Room Temperature-200℃
Temperature Stability
±1℃
±1℃
±1℃
Power Supply(V)
220V50HZ
220V50HZ
220V50HZ
Dimension(cm)
700*450*920
680*450*920
820*400*1100

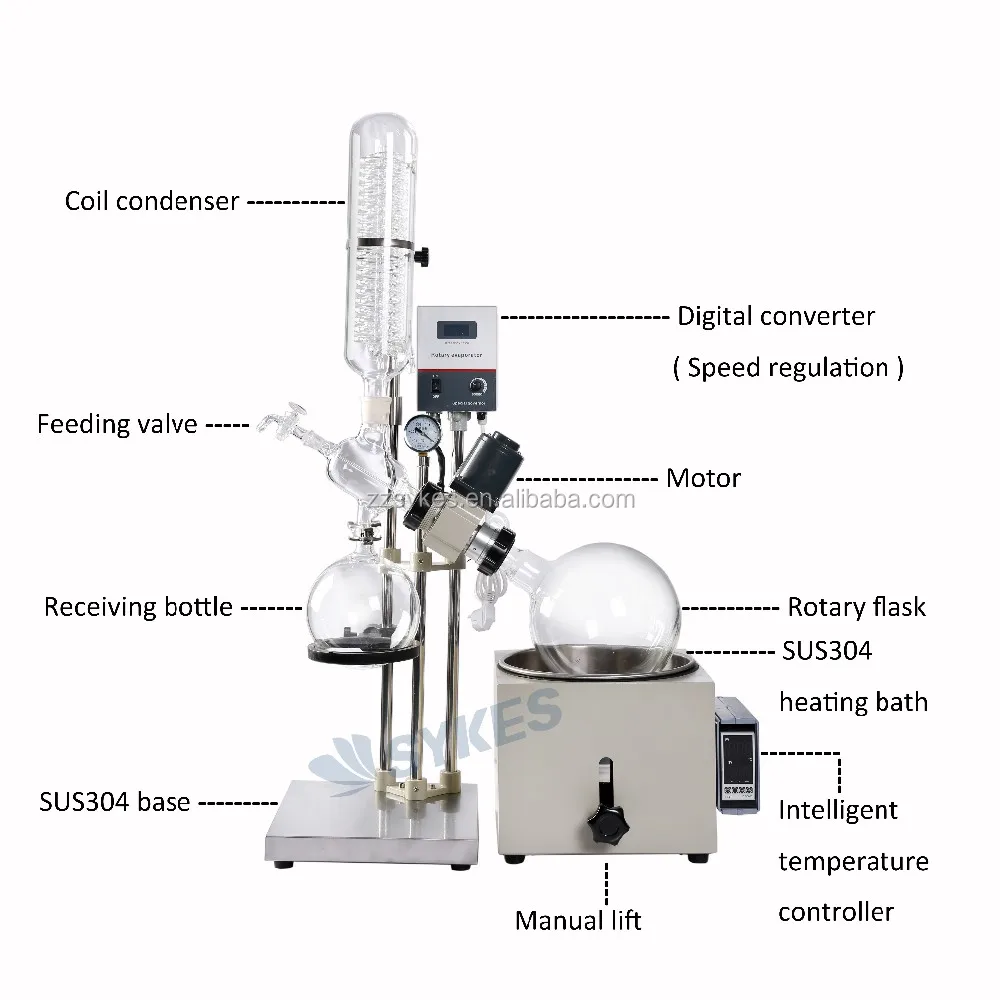

Configuration


Features


1). Reasonable structure with high quality material . High Borosilicate GG3.3 Glass ,Stainless Steel SUS304 and aluminum parts

2). PTFE and rubber compound seal can maintain high vacuum.

3). Double coil Condenser to ensure efficient chilling and recovery.

4). The rotating bottle is connected with nuts for easy handling.

5). A vacuum switching valve, without affecting the system vacuum distillation of the situation and the solution can be continuously collected.


6). Equipped with a vacuum gauge, the best working vacuum is available for different low boiling point materials.

7). Heating Water/Oil Bath with Intelligent Temperature control system

8). PTFE and Rubber seal wearing parts of all the new national standard, user-friendly replacement.

9). Speed controller is stepless ,stable and reliable.

10). Water bath electric lift and manual lift support, easy to use.

11). PTFE draining valve, corrosion resistance, pollution-free.

Detailed Images





* High borosilicate glass 3.3 condenser


* Vertical coil type

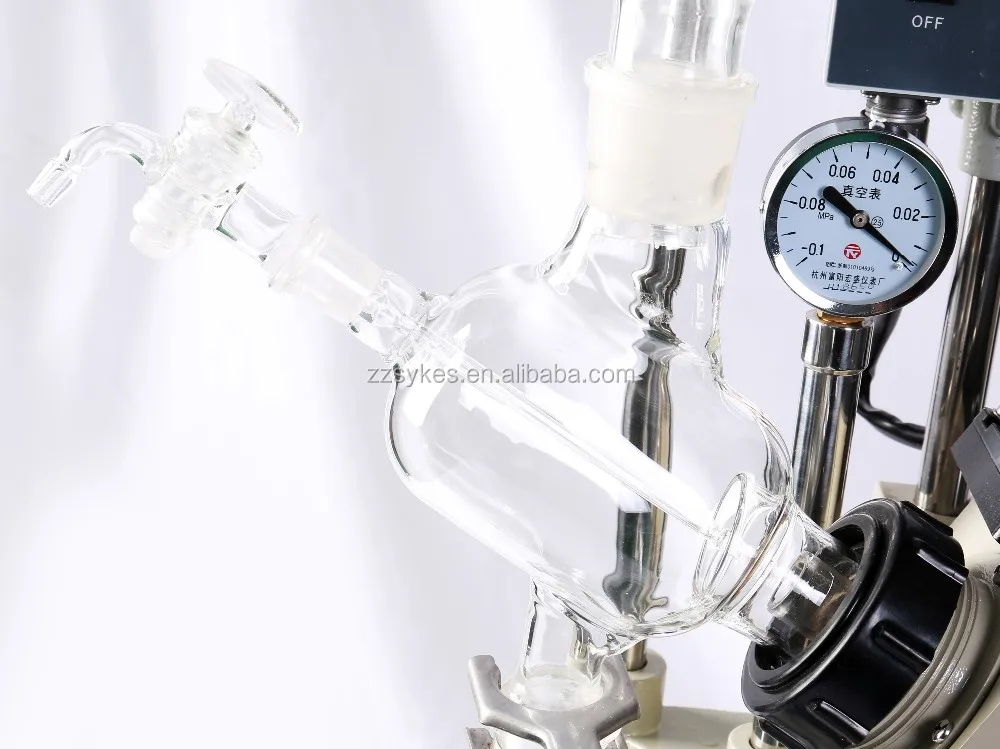

* High borosilicate glass 3.3 three-way bottle






* High borosilicate glass 3.3 evaporation flask


* Capacity 5L

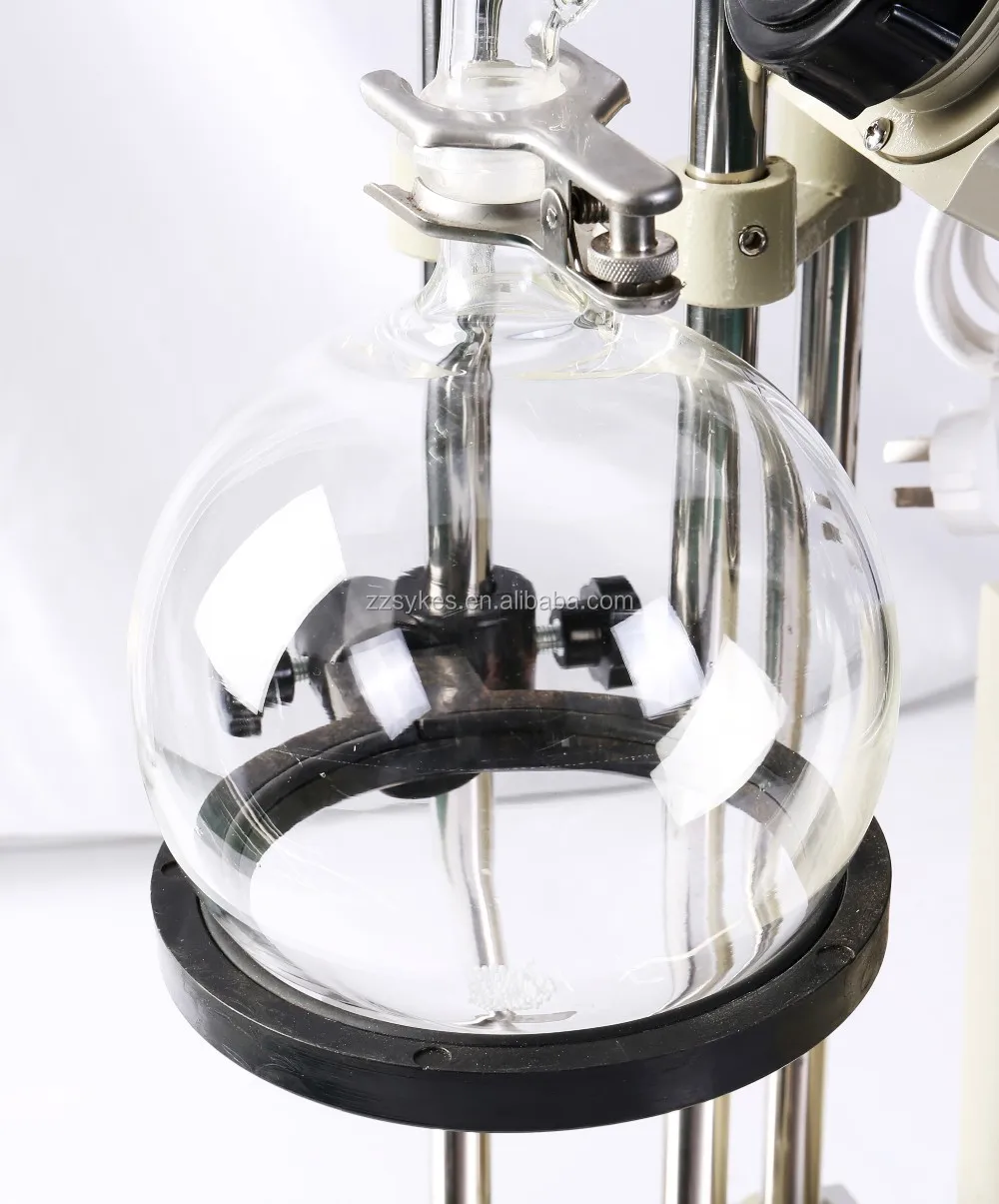

* High borosilicate glass 3.3 receiving bottle


* Capacity 3L

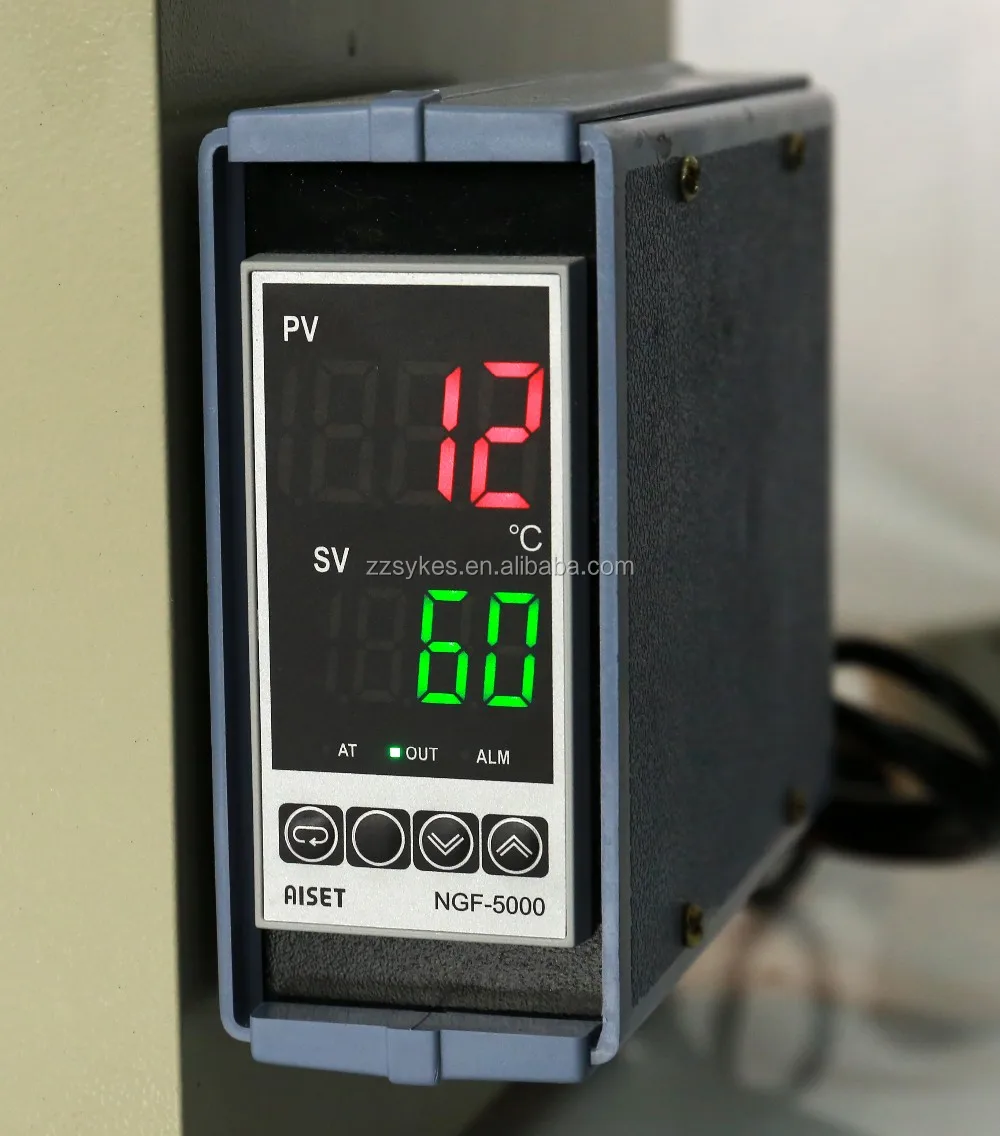

* Operation panel of bath


* Temperature range: room temperature to 99℃

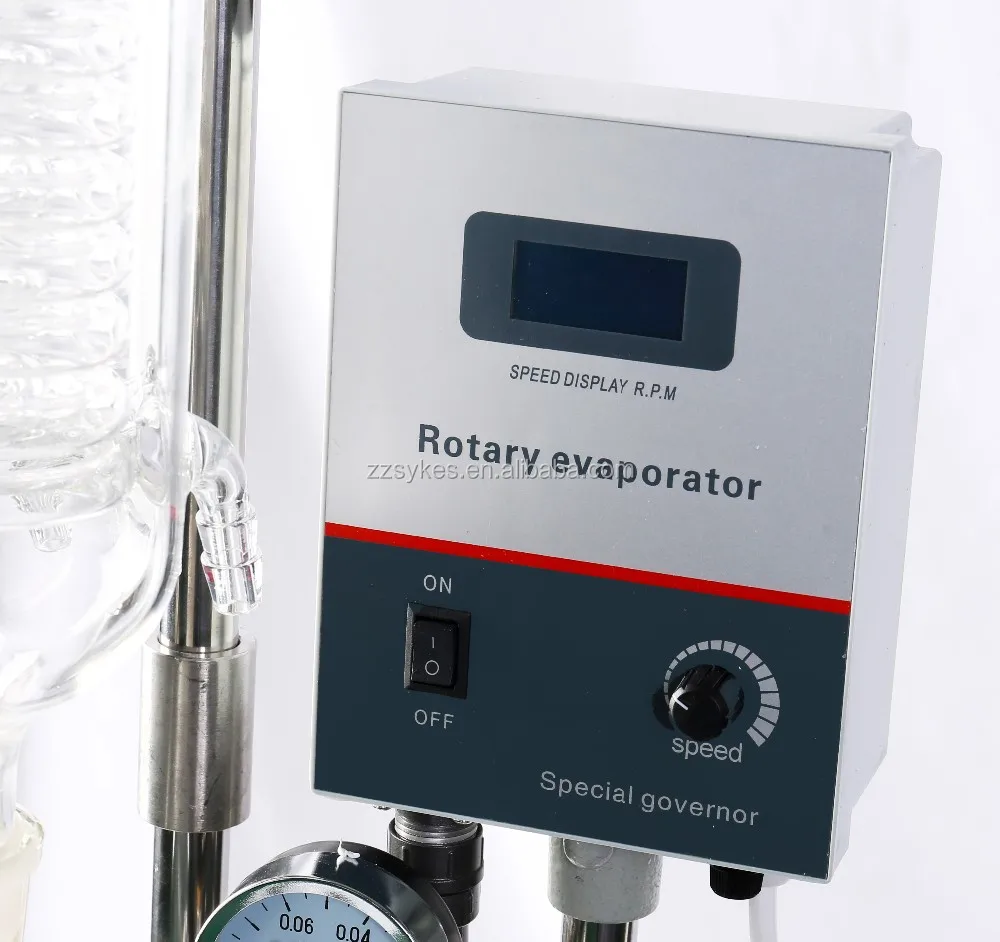

* Rotation speed regulation panel


CE Certificate
Corollary Equipments
Product
Spray Paint Teflon Water Circulating Vacuum Pump SHZ-III
Max. Vacuum
0.098MPa ( 20mbar, 2KPa )
Single Tap Air Sucking Amount
10L/min
Power
180W
Number of Taps
2
Flow
80L/min
Lift
10m
Powersupply

110V, 60Hz or 220 ~ 240V, 50/60Hz
Product
Recirculating Chiller DL-400
Using temperature range (℃)
-15 ~  Room temperature
Temperature stability (℃)
±2
Flow (L/min)
12
Lift (m)
5~7
Refrigerant
R404A
Power Supply
110V, 60Hz or 220 ~ 240V, 50/60Hz
Packing & Delivery
Related Products
Spray Paint Teflon Water Circulating Vacuum Pump SHZ-III


5L Rotary Evaporator R1005


0.5L ~ 2L Rotary Evaporator SK-98-1


Why Choose Us

1. Zhengzhou Sykes Biotechnology Co., Ltd. is a sub-company of Zhengzhou Sykes Glass Instruments Co., Ltd. Which is a professional manufacturer of laboratory instruments for over 30 years in China.


2. Professional R & D Team can supply customers with perfect solution according to specific requirements.

3. Long-term and stable raw material suppliers, and we offer factory price based on high quality products directly, it is more profitable for business.

4. Professional QA/ QC team focus on quality control during raw material purchasing, production line and final inspection.

5. ODM and OEM are available.

6. Flexible payment terms.

7. One year warranty and free lifetime maintenance service

8. We not only guarantee the safe transportation but also save the freight cost for customers.

FAQ

1. Are you a trading company or a manufacturer ?

Reply: We are a professional manufacturer of laboratory instrument and we have our own factory.

2. Do you provide sample ?

Reply: Absolutely, we provide customers with the sample. Sample is not free because of the material cost of our products, but we shall give you our best price.

3. What is the payment term ?

Reply: 100% payment before shipment. In order to protect customers' payment security, Trade Assurance Order is highly recommended.

4. Do you offer ODM or OEM service ?

Reply: ODM or OEM is available.

5. What is MOQ ?

Reply: 1 Set.

6. How to place an order ?

Reply: There are two ways to place an order from us. 1st, you can contact us to place an order directly, then we shall offer you PI with our bank info, then we shall arrange the products as soon we get your payment. 2nd, you can place an order on Alibaba directly, and make the payment online, we shall arrange the products as soon as we confirm your payment.

7. What about shipment way ?

Reply: We shall ship the products to customers by sea, by air, by express ( DHL, TNT, FedEx, etc. ).
