CE Approved Y3 5 hp electric motor for Metallurgy with Insulation F

FOB Reference Price:Get Latest Price
$18.00 - $6,800.00 / Pieces | 50 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
Eastop
Model Number:
Frame 80-415, 2-12Pole
Output Power:
0.75-400kw
Type:
Induction Motor
Frequency:
50/60Hz
Phase:
Three-phase
Certification:
CCC, CE, UL
Protect Feature:
Totally Enclosed
AC Voltage:
220/380/660V
Efficiency:
IE 2
Housing:
Cast Iron
Windings:
100% new Copper Wire
Protection Grade:
IP23 IP54
Insulation Class:
B F
Speed:
2900RPM 1400RPM 960RPM 660RPM
Duty:
S1
Cooling Method:
IC411
Color:
as per your wish
Supply Ability
Supply Ability:
800 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Carton with foam for 80-100Frame motor; 112-132 frame motors with Plywood cases; 160 and above with Wooden Cases. Cartons and Plywood cases packing could be in PALLET as your wish. We always ship by 20feet container.
Port
CHINA
Lead Time :
25Days after receipt of deposit for 1*20feet container goods
Product Description

CE Approved Y3 5 hp electric motor for Metallurgy with Insulation F
1.Y2/Y3 Series three phase asynchronous motors,developed with new tchniques.
2.Y2/Y3 series motors are defined as totally enclosed,fan cooled,squirrel cage type and noted for their novel design, beautiful model, compat structured,low noise,high efficiency, large torque, excellent starting performance,easy serving etc. The motors are adopted with F class insulation and designed wih assessing method forinsulation system according to international practice, itenhances greatly have reached an international advanced level of the same kind of products at the initial days of the 90S.
3.Y2/Y3 series motors can be widely used as driving equipment of various machineries, such as machine tools, blowers, pumps, compressors, transporters, agricultural and food processing. Pedestal installation size and centre height ad other indexes of the motor completely measured by Y3 series three-phase asynchronous motors.
4. Ambient temperature: -15 °C -40 °C . Altitude should be higher than 1000metres above sea level.
Connection: Y star-connection for 3kw and less power motors; Delta-connection is for above power motors. The temperature rise of the stator winding is examined at 80K.

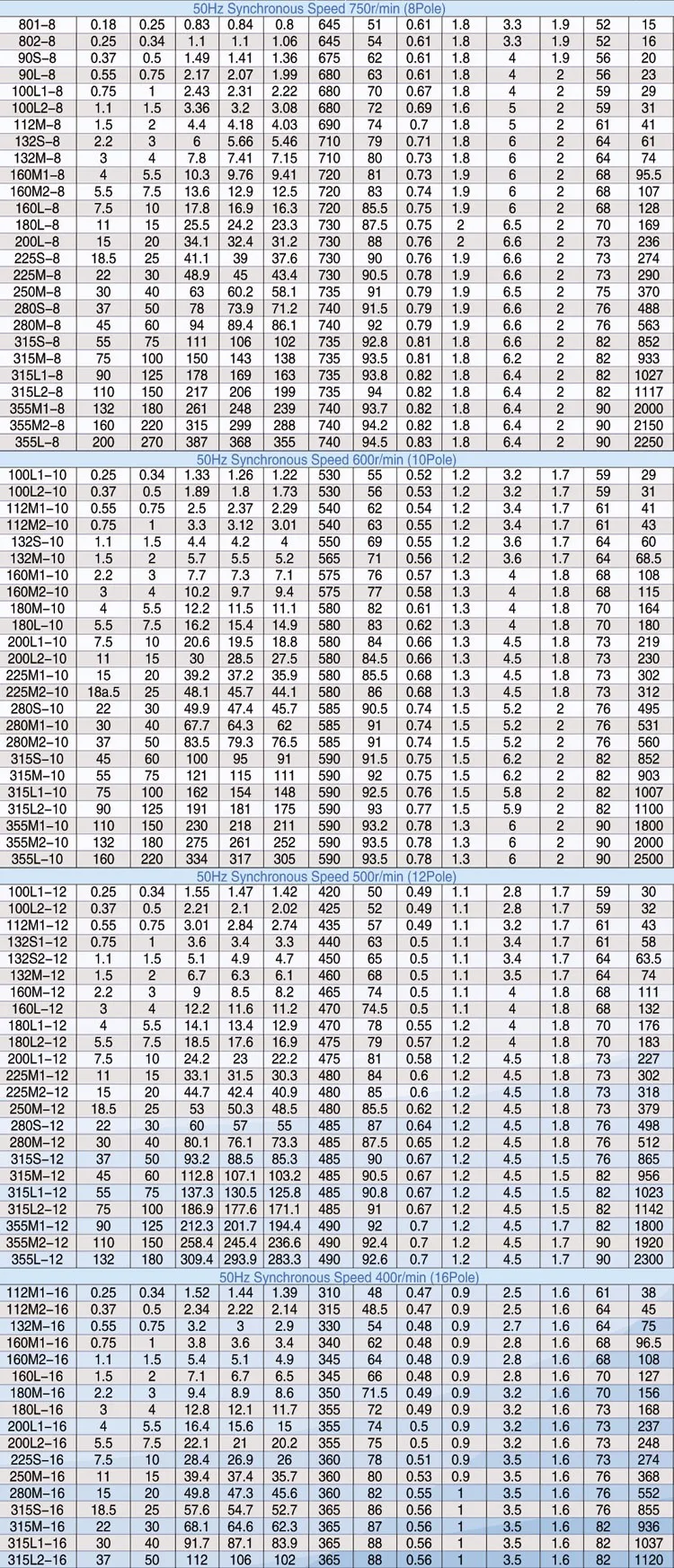

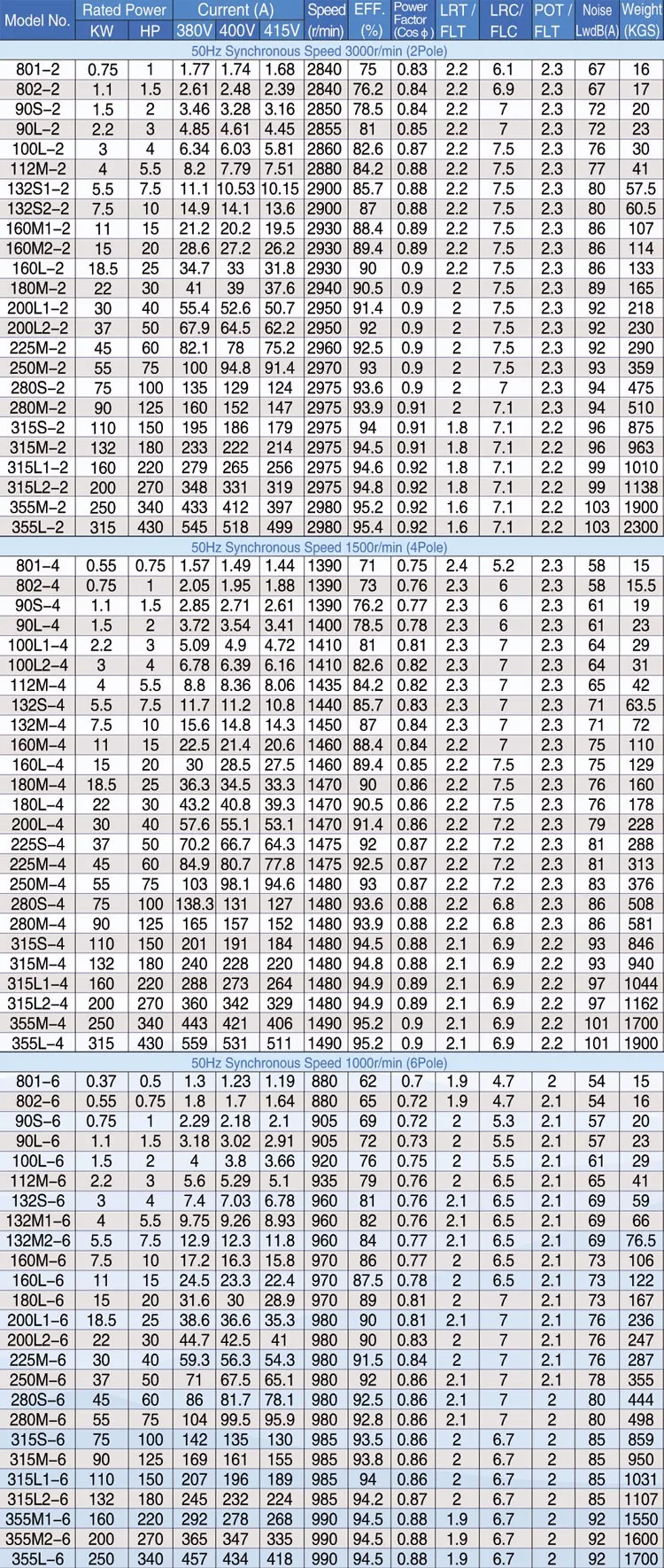

Y3 TECHNIALDATA
Mouting Data
Mouting Type
B3
B5
B35
B34
V1
V2
V3
Pruduct
Certifications
Delivery
FAQ

Q: Do you offer OEM service?
A: Yes
Q: What is your payment term?
A: 30% T/T as deposit in advance, 70% balance receipt of the copy of B/L or before shipment.
Q: What is your lead time?
A: About 25 days after receipt the deposit or original irrevocable L/C.
Q: What certifiicate do you have?
A: We have CE, ISO. And we can apply for specific certificate for different country such as COI for Iran, SASO for Saudi Arabia, etc.
