CE Approved YC 1.2kw electric motor for air compressor with silicon-steel-sheet stator

FOB Reference Price:Get Latest Price
$18.00 - $6,800.00 / Pieces | 50 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
Eastop
Model Number:
Frame 63-112, 2-4Pole
Output Power:
0.18-7.5kw
Type:
Induction Motor
Frequency:
50/60Hz
Phase:
Single-phase
Certification:
CCC, CE, UL
Protect Feature:
Totally Enclosed
AC Voltage:
110/220V
Efficiency:
IE 2
Housing:
Cast Iron
Windings:
100% new Copper Wire
Protection Grade:
IP54 IP44
Insulation Class:
B
Speed:
2900RPM 1400RPM
Duty:
S1
Cooling Method:
IC411
Color:
Blue, Gray, Yellow and so on
Supply Ability
Supply Ability:
800 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Carton with foam for 80-100Frame motor; 112-132 frame motors with Plywood cases; 160 and above with Wooden Cases. Cartons and Plywood cases packing could be in PALLET as your wish. We always ship by 20feet container.
Port
China
Product Description

 CE Approved YC 1.2kw electric motor for air compressor with silicon-steel-sheet stator
1.YC series single-phase asynchronous motor is commonly known as a capacitor start motor. Single phase motor stator winding has a primary winding and a secondary winding, the phase difference of 90 degrees in space, We know that the single-phase motor is the main winding of the magnetic field is generated pulsating magnetic field, through the secondary winding and capacitor split phase, in order to produce a fixed rotation direction of the magnetic field, when the speed exceeds the70-80% role, the centrifugal switch will cut off the secondary winding and the start capacitor, capacitor start motor is characterized by large starting torque, starting torque is greater than 1.8, low power factor, used to start demanding situations, cast iron shell motor.
   2.YC series heavy-duty capacitor start motor, YC series of small power motors, aluminum shell MC series capacitor start motor. Structure must have a centrifugal switch and starting capacitor, with a high starting torque and good operation performance, small volume, light weight, low noise, convenient maintenance. YC series single-phase asynchronous motor applied to general machinery and equipment without special requirements, such as agricultural machinery, food machinery, fan, water pump, machine, mixing machine, air compressor.

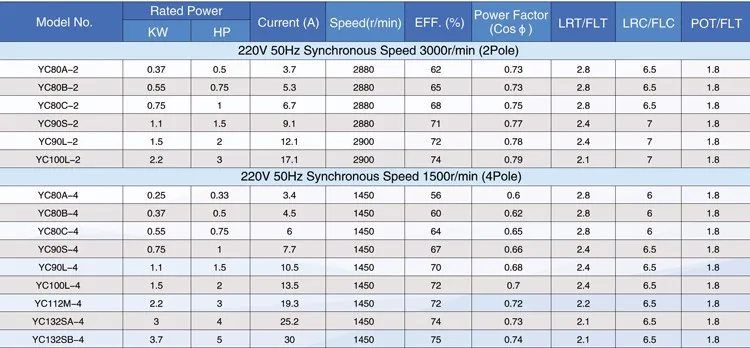

YC TECHNIALDATA
Mouting Data
Mouting Type
B3
B5
B35
B34
V1
V2
V3
Pruduct
Certifications
Delivery
FAQ

Q: Do you offer OEM service?
A: Yes
Q: What is your payment term?
A: 30% T/T as deposit in advance, 70% balance receipt of the copy of B/L or before shipment.
Q: What is your lead time?
A: About 25 days after receipt the deposit or original irrevocable L/C.
Q: What certifiicate do you have?
A: We have CE, ISO. And we can apply for specific certificate for different country such as COI for Iran, SASO for Saudi Arabia, etc.
