CE Approved vem electric motor for power plants with silicon-steel-sheet stator

FOB Reference Price:Get Latest Price
$18.00 - $6,800.00 / Pieces | 50 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
Eastop
Model Number:
Frame 56-160, 2-12Pole
Output Power:
0.18-18.5kw
Type:
Induction Motor
Frequency:
50/60Hz
Phase:
Three-phase
Certification:
CCC, CE, UL
Protect Feature:
Totally Enclosed
AC Voltage:
220/380/660V
Efficiency:
IE 2
Housing:
Aluminium
Windings:
100% new Copper Wire
Protection Grade:
IP55 IP54
Insulation Class:
F
Speed:
2900RPM 1400RPM 960RPM 660RPM
Duty:
S1
Cooling Method:
IC411
Color:
as per your wish
Supply Ability
Supply Ability:
800 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Carton with foam for 80-100Frame motor; 112-132 frame motors with Plywood cases; 160 and above with Wooden Cases. Cartons and Plywood cases packing could be in PALLET as your wish. We always ship by 20feet container.
Port
CHINA
Product Description

CE Approved vem electric motor for power plants with silicon-steel-sheet stator
1.MS series three-phase asynchronous motor is the totally enclosed, fan-cooled inducti were the newest product in the 90S' ,its overall level has reached the same products abroad at the beginning of 90S'level. The product apply to economic lake-off fields, such as machine tools, water pump, fan, compressor, also can be applied to transportation, stirring, printing, agricultural machinery, food and other kinds of excluding inflammable, explosive or corrosive gas.
2. MS series three-phase asynchronous motor installation size and power grade in conformity with relevant standards of IEC and Germany DIN42673 standard line and Y series motor, its shell protection grade for IP54, cooling method for IC41l, operate continuously (S1). Using F insulation class and grade B assessment according to temperature (except for 315 L2-2, 4355 all specifications F grade the assessment, and ask the assessment load noise index.
3. MS series three-phase asynchronous motor the rated voltage is 380 V. rated frequency is 50 Hz. 3 KW the following connection is Y , other power are delta connection .
4.Motor running the place at no more than 1000 m; Environment air temperature changes with seasons, but no more than 40 °C; Minimum environment air temperature is-15 °C; The wet month average high relative humidity is 90%; At the same time, this month is not higher than the lowest average temperature 25 °C.

Ambient termperature: -15°C-0-40°C
Altitude: Not exceeding 1000m
Rated voltage: ±5%
Rated frequency: 50Hz / 60Hz
Connection: Y Star-connection for 3Kw and below
                  Δ Delta-connection for 4Kw and more
Duty/Rating: Continuious(S1)
Insulation Class: F, the termperture rise of the stator winding is examined at 80K.
Protection Class: IP55
Cooling Method: IC411

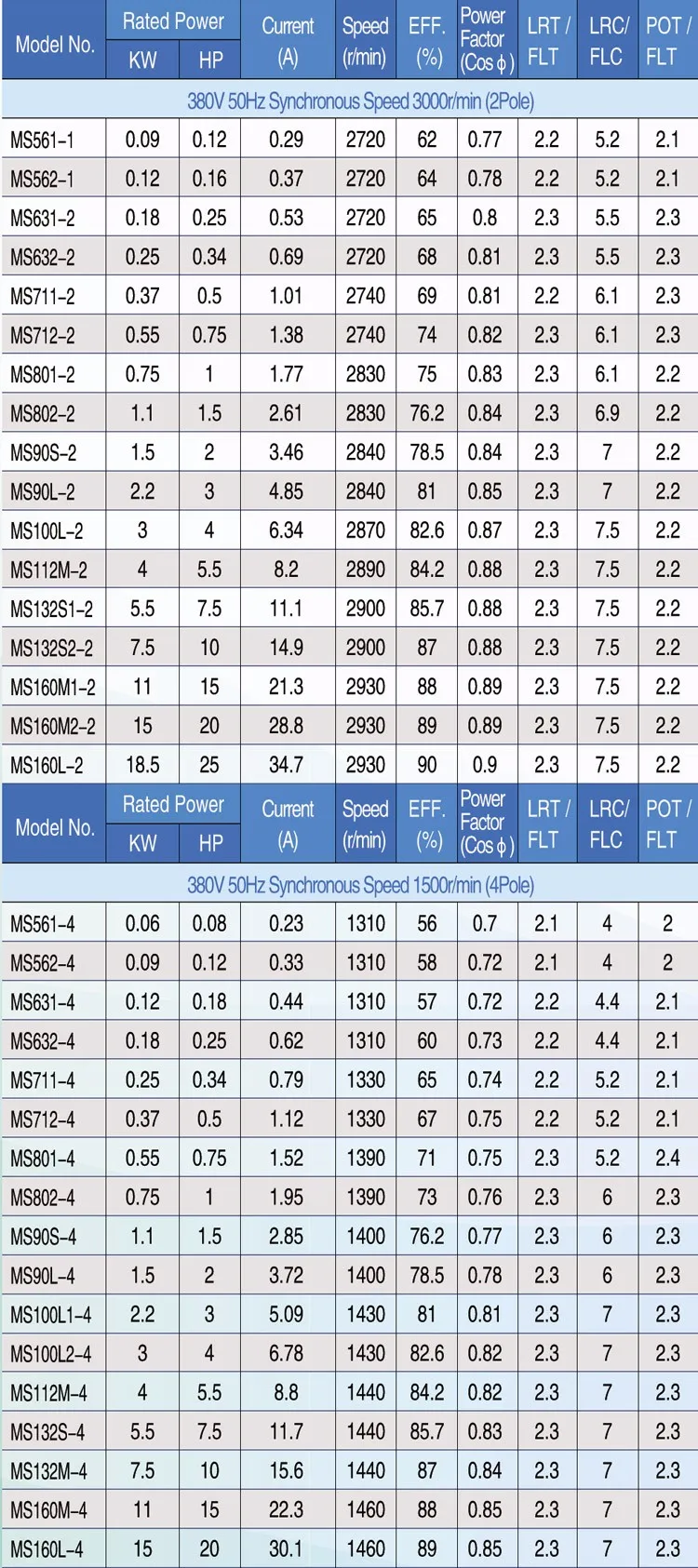

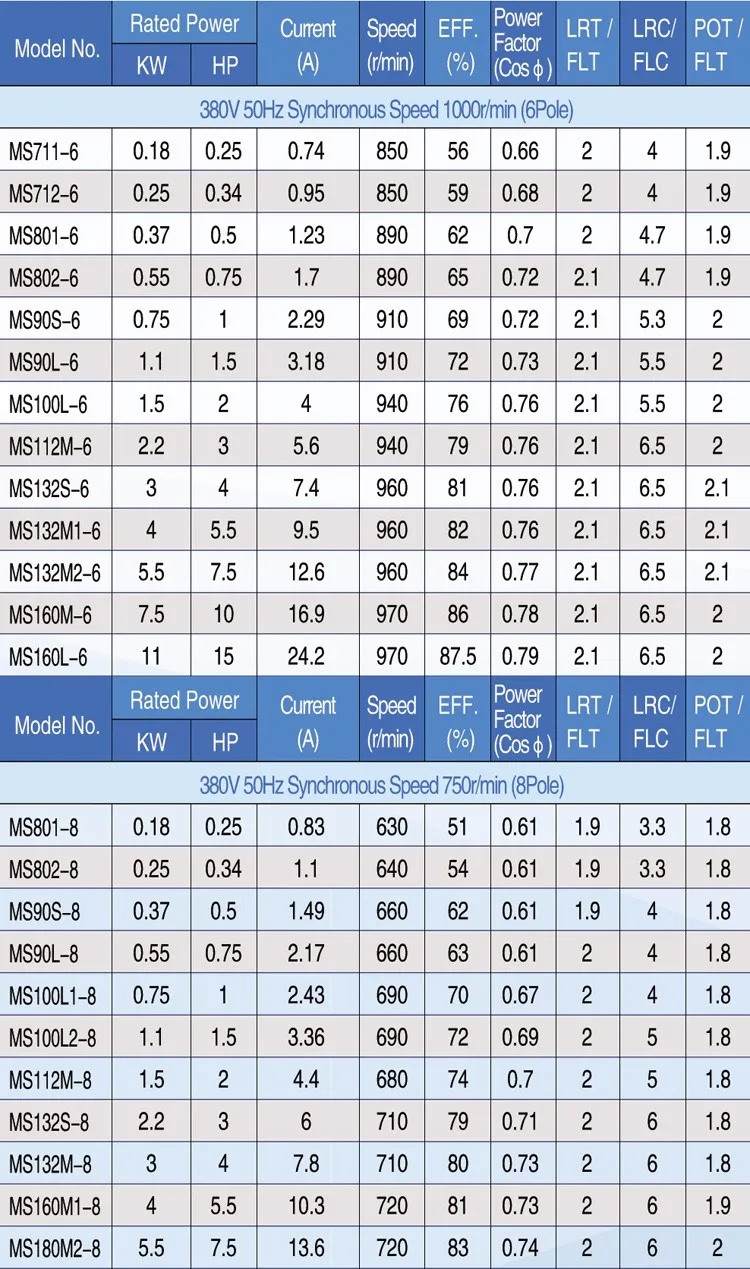

MS TECHNIALDATA

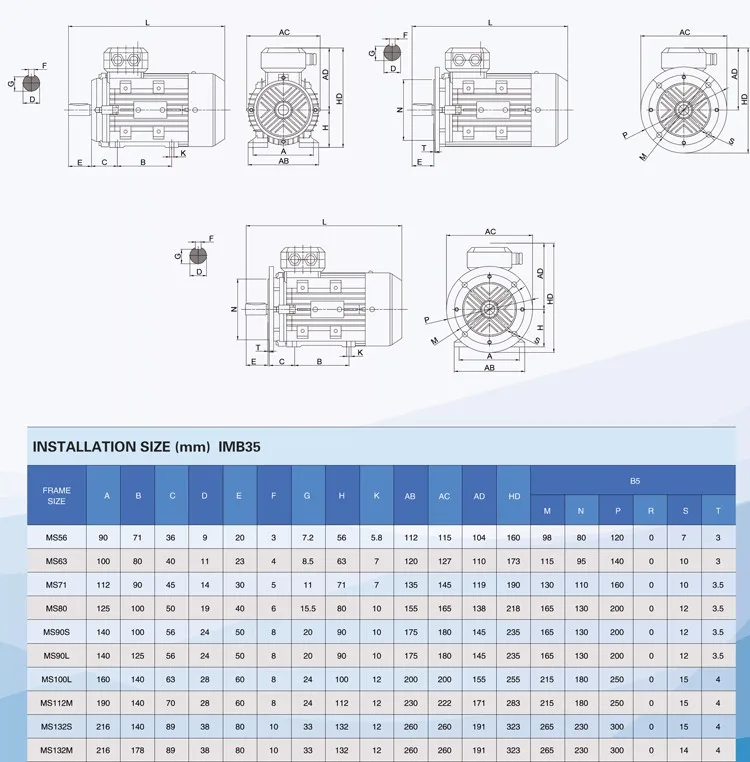

Mouting Data
Mouting Type
B3
B5
B35
B34
V1
V2
V3
Pruduct
Certifications
Delivery
FAQ

Q: Do you offer OEM service?
A: Yes
Q: What is your payment term?
A: 30% T/T as deposit in advance, 70% balance receipt of the copy of B/L or before shipment.
Q: What is your lead time?
A: About 25 days after receipt the deposit or original irrevocable L/C.
Q: What certifiicate do you have?
A: We have CE, ISO. And we can apply for specific certificate for different country such as COI for Iran, SASO for Saudi Arabia, etc.
