CE Certificated Flake Ice Machine Philippines Contain Flake Ice Plant

  • >=1 Sets
    $30,000.00
Model Number:
BIF-10T
Output:
BIF-10T
Lead Time:
Quantity(Sets) 1 - 5 >5
Est. Time(days) 30 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets)
Flake Ice Machine For Cooling (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Power(W):
45.5kw
Ice Shape:
Flake Ice
Dimension(L*W*H):
2200*1900*1750mm
Warranty:
1 year
After-sales Service Provided:
Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
Condition:
New
Capacity:
10T/Day
Place of Origin:
Henan, China (Mainland)
Brand Name:
Huayu Brother
Voltage:
380v
Weight:
1880kg
Certification:
CE
Ambient temp:
25℃
Water inlet temp:
20℃
Evaporator temp:
-20℃
Condensing temp:
40℃
Power supply:
3P/380V/50Hz
The ice thickness:
1.5-2.2mm
Refrigerant:
R404A
Cooling capacity:
76.5kkw
Generall power:
45.5kw
Product name:
10Ton Flake Ice Machine
Supply Ability
Supply Ability:
100 Set/Sets per Month 10Ton Flake Ice Machine
Packaging & Delivery
Packaging Details
Standard export plywood case for CE Certificated Flake Ice Machine Philippines Contain Flake Ice Plant
Port
Qingdao port
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 5 >5
Est. Time(days) 30 To be negotiated
Product Description

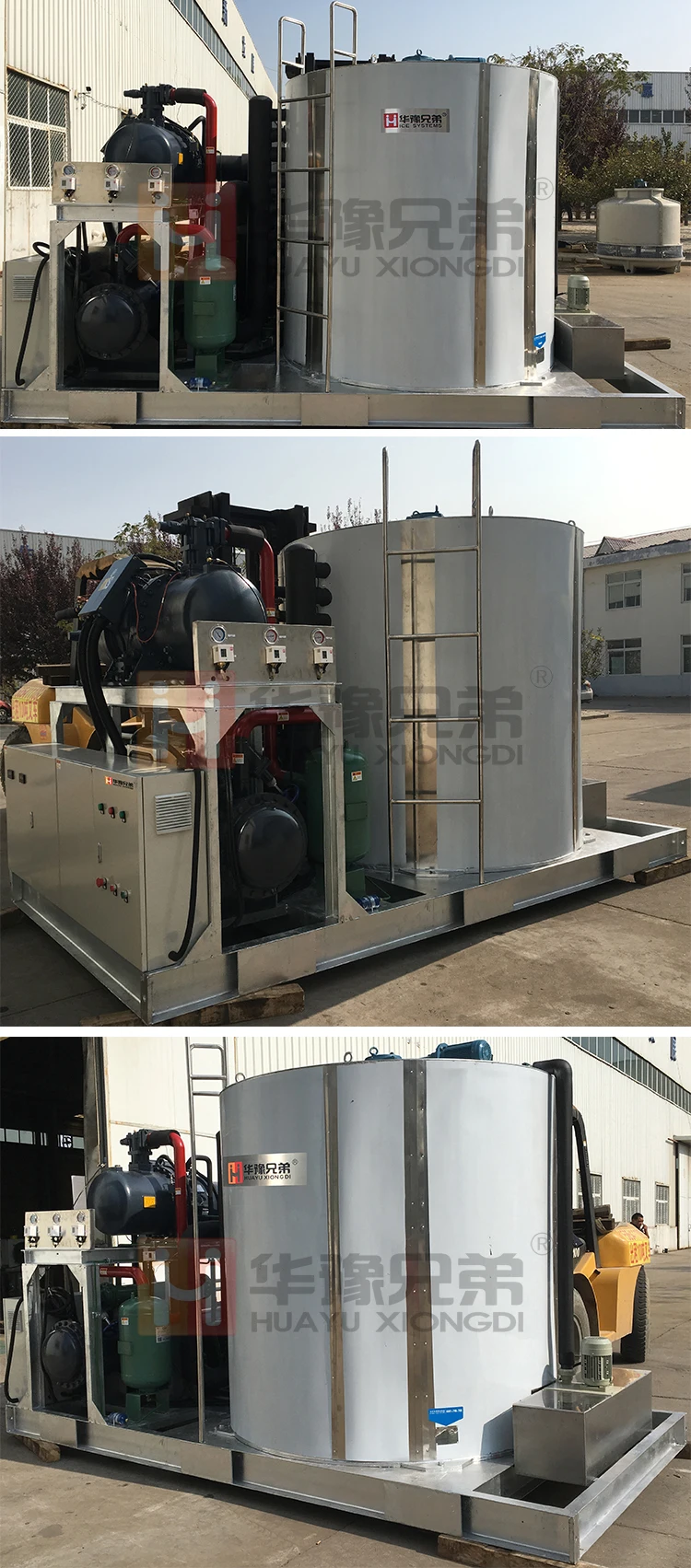

CE Certificated Flake Ice Machine Philippines Contain Flake Ice Plant

Final Product------------Flake ice Pictures:

Product Application

10T Flake ice machine is widely used in supermarket and shopping malls to keep vegetable,fruit and seafood product fresh.flake ice is not only can keep the referigeration products from dehydration, but also maintain the color, taste and quality, ensure keeping fresh in a long time.

Model
BIF-10T
Ice capacity
10t/24 hours
Cooling capacity
75.9Kw
Gear motor power
0.55Kw
Pump power
0.37Kw
Water pressure
0.1-0.5Mpa
Weight
1880KG
Size
3200*1900*1750mm
Flake ice thickness
1.5mm
Flake ice temp.
-5℃
Refrigerant
R404A

Main Features:

1》The material of the flake ice machine is 316 stainless steel with the stainless steel spiral ice blade,which ensures itoperating steady even under hostile environment.

2》Using the ship's own power and adopts special compressor makes the seawater flake ice machine safety,energy saving and efficiency. Its life period can reach to approximately 15years.

3》The ice maker applies PLC automatic control and all-automatic monitor,no need of personal operating,greatly saved labor cost.


Applications Scope:

The Flake Ice Machine have been applied in refreshing vegetable, fruit, foodstuff in supermarket, food processing, chemical projects,etc.

Our Projects:

Our Company
Our Service

Pre-Sales Service

1) Inquiry and consulting support.
2) Sample testing support.
3) View our Factory.

After-Sales Service

1) Training how to instal the machine, training how to use the machine.
2) Engineers available to service machinery overseas.

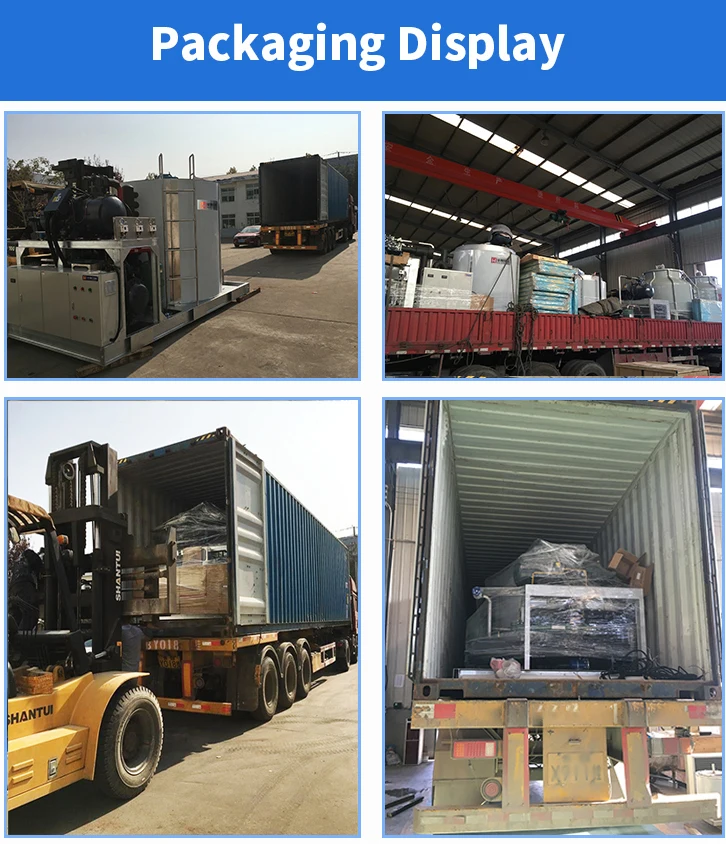

Packing & Delivery
Packaging
Size
3200*1900*1750mm
Weight
1.88 T



Packaging Details
The normal package is standard wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
