CE PED ISO certified large small micro beer brewery equipment

FOB Reference Price:Get Latest Price
$42,000.00 - $43,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Processing:
Fermenting Equipment
Condition:
New
Place of Origin:
Shandong, China (Mainland)
Brand Name:
SDET
Model Number:
SDET-500L 800L
Processing Types:
Carbonated Beverage
Voltage:
3phase/380V 400V 415V 220V 240V
Power(W):
15-70Kw Depends
Dimension(L*W*H):
User Requirements
Weight:
100-5000kg
Certification:
CE PED ISO
Name:
CE PED ISO certified large small micro beer brewery equipment
Material:
stainless steel or red copper
Spent grain door:
330*430mm
Manway of fermenter:
Top or side
Fermenter cone:
60degree conical bottom
Inner surface:
3.0mm SUS304
Outer surface:
2.0mm SUS304
Welding:
100% TIG welding
Cleaning way:
CIP arm with 360degree rotary spraying ball
Polishing:
mirror polishing inside
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
5 Years
Supply Ability
Supply Ability:
15 Set/Sets per Month
Packaging & Delivery
Packaging Details
1.Plastic film in fumigation free wooden case or fixed with iron frame
2.Customer's requirements available for CE PED ISO certified large small micro beer brewery equipment
Port
qingdao
Lead Time :
25-45days depends on capacity and quantity
Video Description

CE PED ISO certified large small micro beer brewery equipment

Product Description

Configuration list

             CE PED ISO certified large small micro beer brewery equipment
NOEquipment system Components
1Milling system malt miller
Grain Case optional
Srew feeder optional
2  Brewhouse system   Mash/lauter tun
Kettle/whirlpool tank
Hot liquid tank
Boiler
Heat exchanger
Wort pump
Hot water pump
Stiring Device

Other accessories are available: 1. Ornamental Pipe; 2. Mashing Pipeline; 3. Operating Plateform; 4. Yeast Feeder; 5. Venturi Tube; 6. Butterfly Valve DN40; 7. Butterfly Valve DN32; 8. Soft Pipe;  9. Sugar Measuring Cylinder; 10. Saccharimeter;

3. Fermenting system  Fermentation tank

Other accessories are available: 1. L-Pipe; 2. Butterfly Valve; 3. Pressure Gage; 4. Solenoid Valve; 5. Vacuum Valve; 6. Cooling Pipe; 7. Thermal Insulation Pipe;

4.   Cooling system    Ice water tank
Refrigeration unit
Ice water pump

Relative Pipes and Valves

5.  CIP cleaning system

Washing tank

Sterilization Tank



Pump and Valve

6.Control system PID or PLC control system
Mashing control
Fermenting control
Cooling control

 Accessories Advantages
1. Complete and new accessories for beer brewery equipment.
2. All kinds of our accessories adopt first-class brand products.
3. All the parts are long life, high performance, high-quality, low-loss.
4. Stainless steel fittings materials are all adopt SUS304/316, applicable large micro beer brewery equipment to ensure the safety of food grade.
5. All the electrical accessories reach CE export standards.
6 .Each accessory roles in the whole equipment system, supporting reliable.
7. Stable quality, superior performance, strict quality control.

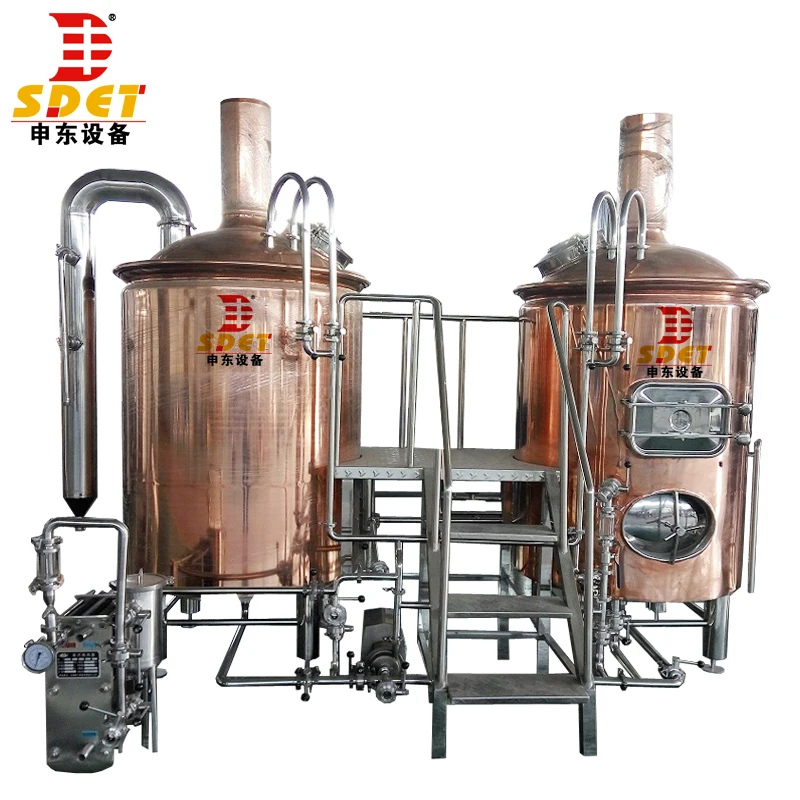

Mashing system

Brewhouse is various in combination of vessels, of course to achieve the same four steps mashing, lautering, boiling, whirlpool, by special brewing intentions of brewer including wort output, wort gravity, sparging water, brews in certain time, brewing method etc.
2 Vessel Brewhouse
Mash/Lauter Tun + Boil Kettle/Whirlpool Tun
Mash/Lauter Tun/Hot Liquor Tank Combi vessel + Boil Kettle/Whirlpool Tun
Mash/Lauter Tun + Boil Kettle/Whirlpool + Hot Liquor Tank
3 Vessel Brewhouses
Mash/Lauter Tun + Boil Kettle + Whirlpool Tun
Mash(kettle) Tun + Lauter Tun + Boil Kettle/Whirlpool Tun
4 Vessel Brewhouses
Mash(kettle) Tun + Lauter Tun + Boil Kettle + Whirlpool

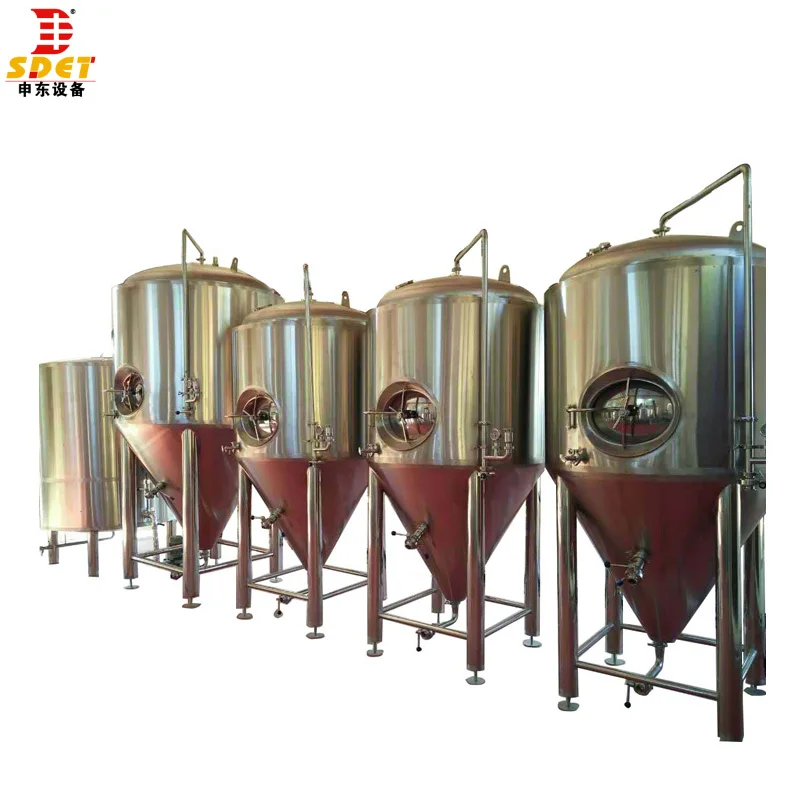

Fermentor system

Function: Use for cool wort fermentation or maturation.
Component: It is consisted of manhole, Mechnical relief valve,Sample valve, Pressure gage, Rotate racking arm, Butterfly valve, and so on. This components are the indispensable part of large small micro beer brewery equipment
Types: 50L-10000L, and even bigger capacity.
Cooling method: dimple plate or glycol cooling jacket around tank both top and bottom.
Design pressure is 0.3MPa; Working pressure is 0.15MPa.( Our standard design, MPa can be customized)
Complete PPR pipeline link with glycol water tank and fermenting tank for cooling.



Glycol cooling system
Glycol water tank
Function: Use for glycol water chilling and keep cooling wort in the late of fermentation period.
Component: Glycol tank, electromagnetic valve, Pump, PPR pipeline and etc. This components are the vital part of CE PED ISO certified large small micro beer brewery equipment.
Cooling method: Single stage cooling (cold water cooling) and Two stage cooling (Glycol water and tap water cooling).
Control method: Automatically by PID Instrument Panel/PLC Screen Controller cabinet.
Chiller
Function: Use for chilling glycol water
Chiller brand: World-wide famous brand Australia COOLSOON.
Component: Compressor, Water pump, Evaporator, Pressure controller, Condenser, Expanision, Dry filter, Antifreeze switch, Hand valve and so on. This components are crucial part of small micro brewery equipment.

Control System
PID semi-automatic controller: Simple operation, easy maintenance.
Cabinet material: stainless steel or spraying plastics;
Function: Show brewhouse tanks temperature, turn on/off all motors and pumps by button, control all fermenters/BBTs /glycol tanks temperature, chillers soft start, supply power for CIP cleaning system and so on.
PLC touch screen controller: Programmable, stable, Brewing recipes can be stored.
Cabinet material: stainless steel or spraying plastics;
Function: Show and control brewhouse tanks temperature, step heating is automatic, turn on/off all motors and pumps by touch screen, control all fermenters/BBTs/glycol tanks temperature, chillers soft start, supply power for CIP cleaning system and so on.

Cleaning system
Function: Use for cleaning tanks
Component: Disinfection tank, Alkali tank (with heating element), Pump and so on. This components are significant part of CE PED ISO certified large small micro beer brewery equipment.
Purpose: It is used for heating, washing, cleaning all the tanks when it finish the brewing.

Application

CE PED ISO certified large small micro beer brewery equipment that can use it to make beer, and it is the best seller beer brewery equipment for the customer who are from USA, European, and other countries. They use it in micro brewery, restaurant, brewpub, catering centers. And as the time went by, they make a lucrative money, and become the professional brew master.

More equipment

Home beer brewery equipment :50L~200L mini brewery, for home brewery fan, mini brasserie

Large micro beer brewery equipment 100L~5000L, 5BBL~30BBL, 1hl~50hl or even larger

Pub restaurant hotel small beer brewery equipment:100L~1000L, 1BBL~10BBL, 1hl~10hl or even larger

Company Information

Shandong Shendong Equipment Technology Co., Ltd. is one professional beer brewery equipment manufacture in China. We specialize in personally manufacturing micro beer brewery equipment, medium beer brewery equipment and big sized brewery plants. We also manufacture all types and sizes of fermenting and storage tanks. Our breweries can be designed according to the specific wishes of our customers. We also can offer you a wide variety of technical solutions. We can provide beer to make by fermentation of the equipments of having, can train to make wine teacher.



SDET company attended many exhibtions each year, in 2016, we attended Craft Brewer Conference(CBC) in USA, China Brew China Beverage in Shanghai and several exhibitions in domestic. In the 11th-15th September, 2017, we attended drinktec 2017 in Germany.

We will show more CE PED ISO certified large small micro beer brewery equipment in the future exhibition.



Our customer
Micro beer brewery equipment has been sold around the world in the past few years in many countries. Due to the excellent quality and good reputation, we have opened the market in many countries,our CE PED ISO certified large small micro beer brewery equipment have export to USA, Germany, Uzbekistan, Romania, Brazil, Ecuador, South Africa and other countries, and our customers also give us a high rating and recognition. If you need, you can go to local brewery to visit.

Certifications

We have been sold a large great number of beer brewery equipment to Euro, and USA, and other countries. The large small micro beer brewery equipment  are adopted stainless steel 304/316L, and have passed the ISO CE PED Certificate, and other pressure certificate. In order to make you believe our company, now, enclosed our certificate to lessen your worries.

Contact Information

If you want to know more about the CE PED ISO certified large small micro beer brewery equipment, pls have no hesitation to contact with me.
