CE approved Nano powder sample grinding machine planetary ball mill 0.4L, 2L, 4L, 8L, 12L, 20L, 100L

FOB Reference Price:Get Latest Price
$600.00 - $4,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
planetary ball mill planetary ball mill machine planetary ball mill 0.4L planetary ball mill 4L planetary ball mill 8L planetary ball mill 10L planetary ball mill 12L planetary ball mill 16L planetary ball mill 20L planetary ball mill 100L
Lead Time:
Quantity(Sets) 1 - 5 >5
Est. Time(days) 10 Negotiable
Customization:
Customized logo (Min. Order: 10 Sets)
Customized packaging (Min. Order: 10 Sets)

More

Graphic customization (Min. Order: 10 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Output (kg/h):
1 - 200
Feeding Size (mm):
<10mm
Output Size (mesh):
125000 - 126000
Applicable Industries:
Manufacturing Plant, Farms, Home Use, Retail, Food Shop, Energy & Mining, Food & Beverage Shops
Application:
Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing, grinding all kinds of materials
Condition:
New
Type:
Ball Mill
Product Type:
grinding ball mill
Place of Origin:
Henan, China
Brand Name:
FINESCHINA
Voltage:
220V or customized
Dimension(L*W*H):
varies
Certification:
ISO9001, CE, SGS
Weight (KG):
80
Range of Spindle Speed(r.p.m):
670 - 900
Power (kW):
0.75
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Online support, Engineers available to service machinery overseas
Key Selling Points:
Multifunctional
Name:
Planetary ball mill
Feeding size:
10mm
Outlet size:
0.1 micronmeter
Spare parts supplying:
Anytime
Brand name:
FINESCHINA
Material of grinding pot:
stainless steel, ceramics, agate, aluminia, nylon, zirconia
Max.Continuous Operating Time:
72 hours
Power(W):
0.55KW-5.5KW
Supply Ability
Supply Ability:
110 Set/Sets per Week
Packaging & Delivery
Packaging Details
standard export wooden case
Port
Shanghai, Qingdao, Tianjin, Ningbo
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 5 >5
Est. Time(days) 10 To be negotiated
Video Description

PLANETARY BALL GRINDING MILL FROM FINESCHINA

Product Description



FEATURES OF HIGH EFFICIENCY PLANETARY BALL MILL

  • Capable of grinding materials in vacuum or inert gas environment with SS jars or SS grinding jacket.
  • Elegant design, easy to operate
  • Ideal for wet or dry grinding application
  • Automatic and programmable control with LED display
  • Multiple grinding modes to choose
  • High uniformity and excellent repeatability
  • Fast rotational speed, high efficiency and fine granularity
  • Reversing function
  • Programmable interval and pause times
  • Four samples with different sizes and materials in one experiment
  • Stepless speed regulation; ideal rotary speed selection according to experimental results
  • Large range of materials available for grinding media
  • Gear-drive offers an effective solutions to problems caused by belt driving, such as belt creep and belt abrasion
  • Low center of gravity, good rigidity, compact structure, low noise, safe and reliable operation, no pollution and small wear
  • Cooling of the grinding chamber with a built-in fan for long grinding times
 Planetary Ball Mill has four ball grinding tanks installed on one turntable. When the turntable rotates, the tank axis makes planetary movements, the balls and samples inside the tanks are impacted strongly in high speed movement, and samples are eventually ground into powder. Various kinds of different materials can be ground by the mill with dry or wet method. Minimum granularity of ground powder can be as small as 0.1μm.



TECHNICAL PARAMETERS

Type

Specification

Grinding Jar



(ml)

Qunatity

YXQM—0.4L

0.4L

50~100

4

YXQM—1L

1L

50~250

4

YXQM—2L

2L

50~500

4

YXQM—4L

4L

100~1000

4

YXQM—8L

8L

500~2L

4

YXQM-12L

12L

1000-3L

4

YXQM-16L

16L

1000-4L

4

YXQM-20L

20L

2L-5L

4

YXQM-40L

40L

4L-10L

4

YXQM-60L

60L

6L-15L

4

YXQM-80L

80L

8L-20L

4

YXQM-100L

100L

10L-25L

4





For the sizes of milling pots, we can customize it. We also produce low temperature planetary ball mill

APPLICATIONS FOR PLANETARY BALL MILL

Geology and Mineralogy: rock, gravel, sand, minerals
Ceramics: porcelain, sintered ceramics, clay, fireclay
Chemistry: pesticides, fertilisers, salts, inorganic and organic materials
Biology: plants, leaves, freeze-dried samples
Pharmaceuticals: ophthalmological agents, gels, creams, extracts, drugs, pastes, dragees, tablets
Metallurgy: ores, sinters
Material technology: pigments, precious materials, new materials, alloys, mechanical alloying and activating
Analysis preparation: spectroscopy, X-ray fluorescence, X-ray structure analysis, chromatography

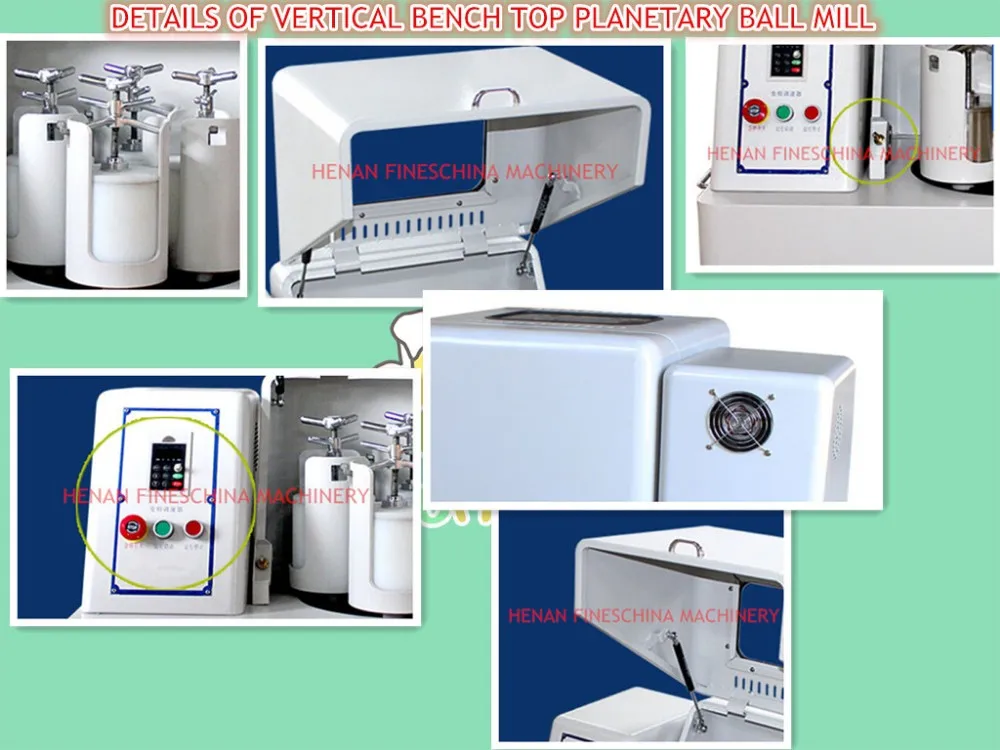

DETAILS OF PLANETARY BALL MILL

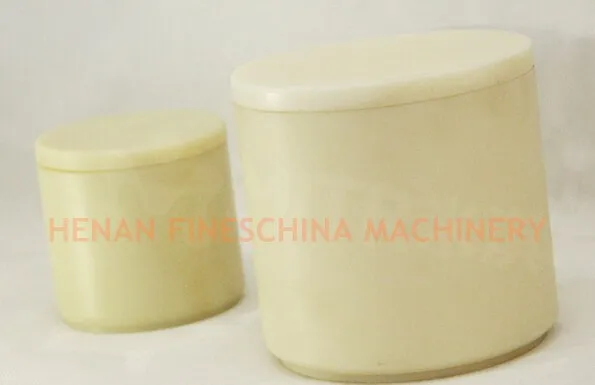

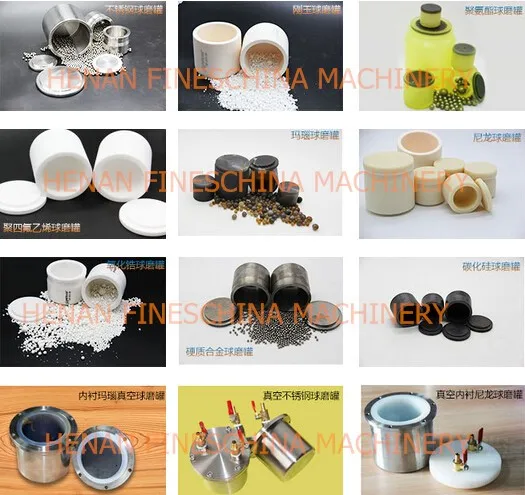

MILLING JARS & MILLING BALLS

Our factory can provide stainless steel jar, alumina jar, nylon jar, PU jar, tungsten jar, etc. And

we can also provide stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls,

tungsten balls, etc

BEFORE AND AFTER GRINDING



STOCKING



Packaging & Shipping







OEM Service

We specialize in Lab equipment and have big production capacity. OEM is welcome.





Warranty

Generally our warranty is 1 year.





After-Sales Service

Experienced after sales persons follow the using condition, and solve any problems for customer in the first time. Engineer overseas were also available



OTHER HOT SALE PRODUCTS

FAQ



Q: What's the discharging size can planetary ball mills reach ?

A: The final fineness can reach 0.1 micron.



Q: What is the MOQ and any discounts could be offered?

A: We don't have an MOQ. More quantity more discount.



Q: Can this products be customized?

A: Yes, we offer customize service for our clients. You just need to provide us some technical data such as dimensions.



Q: What's material of ball mill jars should I choose?

A: The ball mill jars are chosen according to the raw material. Normally, the grinding jar material should be harder than the material to be ground and should not contaminate the raw material.



Q: How long will you deliver the goods after I place an order?

A:  Generally, we will send  within 7 days once your payment is receipt.
