CE certificate automatic machinery dry dog pet food extrusion line

FOB Reference Price:Get Latest Price
$20,000.00 - $80,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
SLG65/70/85/95
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant, Food & Beverage Factory
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
SBN
Application:
Dog
Voltage:
380v 50Hz or OEM
Power:
70KW
Weight:
4000 Kg
Dimension(L*W*H):
25000*1500*2200
Certification:
ISO9001
Warranty:
One Year
After-sales Service Provided:
Field installation, commissioning and training, Engineers available to service machinery overseas
Motor brand:
Siemens China Beide
Electric elements:
Siemens
Inverter Brand:
Detal
Machine material:
Stainless Steel 201 304
Screw material:
38CrMoAL
Packing:
Wooden case
Capacity:
100-800KG/H
Product:
pet food
Name:
High output customized pet food production line
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
Daub coal oil on the surface to protect the machine from moisture, Then cover with plastic film.Finaly pack them with wooden case.
Port
Qingdao, Dalian,Shanghai
Video Description
Product Description

1.CE certificate automatic machinery dry dog pet food extrusion line description:

1).Dry dog pet food extrusion line uses meat meal, fish meal, corn powder, soya meal and other grains' powder as main materials to make the pet food, like dog, cat, fish, bird food etc. With different shapes and taste by changing the dies, formulations. The pet foods are made under high temperature condition, and popular to the pet food market.
2.Raw Materials: Meat Meal, Fish Meal, Corn Powder, Soya Meal and Other Grain Powder
3.Products: Pet Food, Like Dog, Cat, Fish, Bird Food etc. with Different Shapes and Tastes by Changing the Dies and Formulations.
4.Capacity: 120-150 KG/H, 200-250 KG/H, 400-500 KG/H, 800-1000 KG/H.
5.Voltage: Three phases: 380V/50HZ, Single phase: 220V/50HZ, we can make it according to customers' local voltage according to different countries.
6.Machines Materials: All the machines are made by food grade stainless steel.

7.Specification of dry dog pet food extrusion line:

Jinan Saibainuo Machinery Co., Ltd for food machine manufacturering since 2004, offer competitive advantage machines, so with us your money in safe, your business in safe.

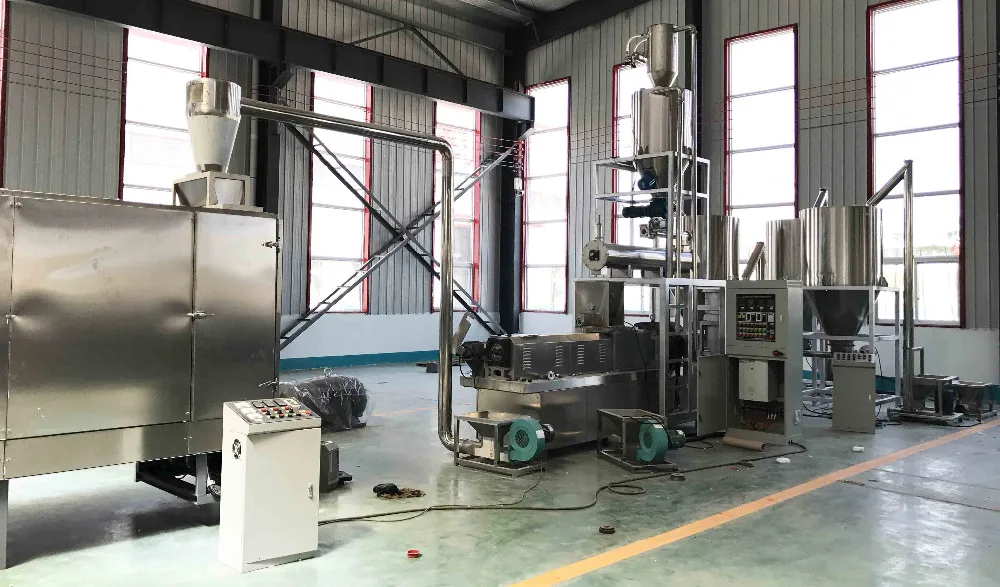

This is our high capacity production line in our factory.

The inside structure of our twin screw extruder.

Our gas dryer.

Detailed Images

Name: high speed mixer

Dimension(m): 1.1×0.8×1.4
Motor Power: 3KW
Speed: 400rpm
Throughput: 20kg per loading (5-6 minutes per loading)
Functions:
Mix powder raw material with water
Features:
1. stainless steel material(1.5mm).
2. new handle-opened design of discharge holes,no material leak
3.High speed can mix material better than other slow mixer.

Name: screw conveyor

Dimension(m): 3.2×0.6×0.7
Motor Power: 1.1KW
Screw speed: 300rpm
convey height range:1.5~2.5M
barrel diameter: Φ141mm
Function:
Power material can be conveyed in the stainless steel roller to the feed machine of extruder without leaking, dust and pollution; feed quantity is even and stable.
Features:
stainless steel material

Name: twin screw extruder

Dimension(m): 2.6×1.0×1.3
Total power: 37kw
Main Motor Power:22KW
Feeder motor:0.75kw
Cutting motor: 1.5kw
Heating power:10kw
Extruder diameter:Φ65 mm
Function:
Extrude and cook raw material into different size and shapes
Features:
Screw material is 38CrMoAl with nitriding treatment, the hardness is
60HRC.. The barrel also use good material, hardness is 55HRC.
The gear box has forced lubrication system.
All motors can be adjusted the speed by Inverter.
The Extruder can change different moulds to produce different Shapes product.

Name: multi-layer dryer

Dimension(m): 5.4×1.3×1.8
Motor power:0.75kw
Heating powder: 27kw
Belt speed:0.1-10M/minute
Temperature: 20-200℃
Function:
There are Three layers inside,each layer is 5 meters long, it can save space and energy. Electricity heating,used to bake and dry food.
Features:
The net belt running speed can be controlled by Inverter, to change the food drying time in the dryer.
Heating adopts the electric heat tube.
It has automatic temperature Control system.
The belt and the cover are all stainless steel.

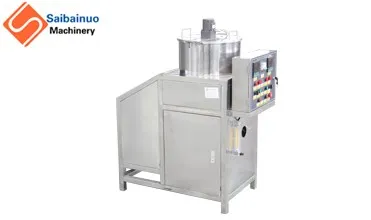

Name: oil sprayer

Dimension(m):1.1×0.5×1.3
Motor Power:0.37 KW
Heating power:2KW
Function:
make the liquid oil, sugar and the solid fat be heated, then spray them on the Surface of food by the oil pump.
Feature:
It has heating system and spraying system

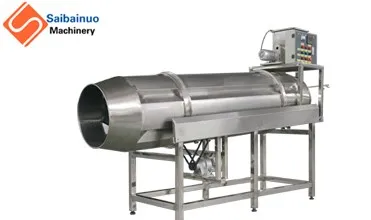

Name: flavoring line

Dimension(m): 3.8×0.8×1.8
Motor Power: 1.5KW
Function:
Scatter the powder seasoning on the food, The roller will mix the fat and seasoning powder evenly. Make food nice taste.
Feature:
Stainless steel material(1.5mm thickness).

Certifications
Our Service

EACH CLIENT CAN ENJOY THE FOLLOWING 7 SERVICES:
1). Free consultation service before, during, and after sales;
2). Free project planning and design services;
3). Free debugging of equipment until everything is functional;
4). Free management of equipments' long distance shipping;
5). Free training of equipment maintenance and operating personally;
6). Free new production techniques and formulas;
7). Provide 1 year complete warrantee and lifetime maintenance service.

Packing & Delivery

Packaging & Shipping:
1).packaging: daub coal oil on the surface to protect the machine from moisture, Then cover with plastic film.Finaly pack them with wooden case.
2).If you want to know the transportation cost: by air-please tell me your airport name; by express-please tell me your detailed address(including zip code,house number,street,city,country); by ship-pls tell me your delivery port
