CF-3401 DC 24 Volt Auto Submersible High Pressure Water Pump

FOB Reference Price:Get Latest Price
$10.00 - $25.00 / Pieces | 20 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China (Mainland)
Brand Name:
CatFLO
Model Number:
CF-3401
Structure:
Diaphragm Pump
Usage:
Water
Application:
Cleaner,Sprayer,Yacht
Power:
Electric
Fuel:
24V DC Power
Pressure:
Max Pressure
Motor:
DC Motor
Open Flow:
4.5LPM (1.2GPM)
Max Pressure:
100PSI (7.0BAR)
Current:
2.5A
Standard or Nonstandard:
Standard
Theory:
Diaphragm Pump
Supply Ability
Supply Ability:
150000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1pc/inner color box;30pcs/ctn; Seaworthy strong cartons
Port
Fuzhou
Product Description

CF-3401 DC 24 Volt Auto Submersible High Pressure Water Pump


* Open Flow: 4.5LPM (1.2GPM)

* Max Pressure: 100PSI (7.0BAR)

* Motor Voltage: 24V DC

* Run dry without damage

* 2 Chamber positive displacement diaphragm pump for smooth and quiet operation

* Duty cycle :Intermittent (The continuous working time will be different under different pressure)

* Pump can be with: pressure switch controlled or by-pass controlled.

  For the power controlled you can choose pump without pressure swith or by-pass


Typical Applications

* Agriculture/Yacht / RV/Caravan pressurized water system
* Sprayer fixture (Vehicle-mounted sprayer, electric sprayer)
* Cleaning machine, Humidifier, Water purification, Medical apparatus
* Food beverage filling & liquid transfer
* Any other pressurization system

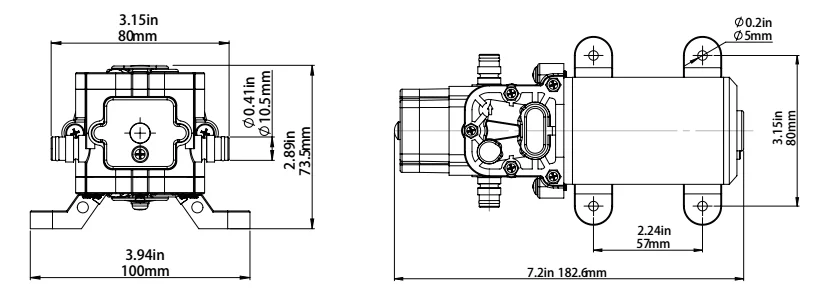

Parameter Figures
Model
Volt
(V)
Flow
(ipm/gpm)
Pressure off
(psi/bar)
Amp draw
(A)
Inner box
(mm)
N.W/G.W
(kg)
CF-3201
12
4.5/1.2
100/7.0
4.5
185*110*65
1.20/1.30
CF-3401
24
4.5/1.2
100/7.0
2.5
185*110*65
1.20/1.30
CF-3202
12
5.8/1.6
80/5.5
5.5
185*110*65
1.20/1.30
CF-3402
24
5.8/1.6
80/5.5
3.0
185*110*65
1.20/1.30
CF-3203
12
5.2/1.4
100/7.0
5.0
185*110*65
1.20/1.30
CF-3403
24
5.2/1.4
100/7.0
3.0
185*110*65
1.20/1.30

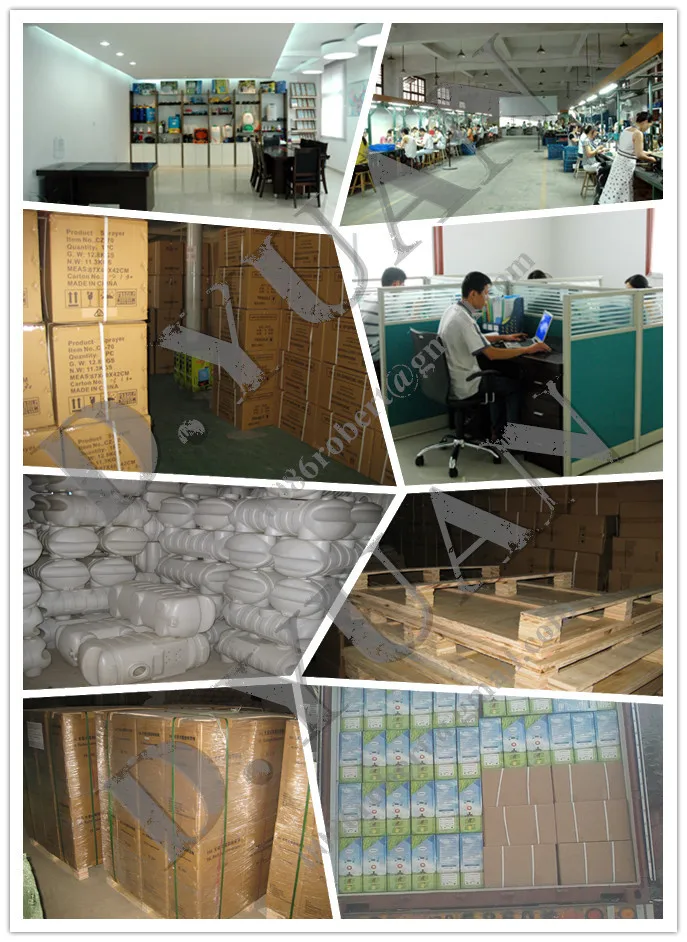

Packing & Delivery
Trouble - Shooting
SYMPTOM
POSSIBLE CAUSE
CURE


Reduced Flow
Plugged strainer
Clean outside of strainer and clean debris from around impeller.
Discharge line plugged
Clean out hose by backflushing.
Low battery voltage
Check battery condition and charge if necessary.
Kinked discharge hose
If hose is kinked because of sharp bend , convert to hose which will not kink at bends.



No water pumped
Wire connections
Make sure wire connections are not corroded . Visual check is not enough -a slight pull on each wire will tell if the wires are still joined .Check to be sure on wire joins are hanging down into the water .
Fuse meited
Check fuse to see that it is the correct size if fuse still blows ,check impeller through inlet opening to be sure it is not jammed or stuck with debris.
Float switch failure
Lift end of float switch up-if pump runs , switch is OK . If pump does not run , turn Manual SWITCH TO on position-if pump runs ,automatic switch has failed.






Pump won't shut off
Something under float
Clean under the float to make sure debris is not holding the float up.



Stuck float
Chenk to see that the float is loose and free of gummy bilge oil. If float action appears sluggish and / or the float does not move freely , intermittent or sporadic operation of the pump may occur . This condition is usually the result of oil and / or Dirt accumulating in and around the movable parts of the switch . To corrent , try soaking the entire switch in Marine cleaner for ten minutes , agitating several times and checking for smooth and free operation of the float . Repeat if necessary.
Switch mounted too low
If the pump is sucking air and the automatic switch has not reached the OFF position , then the switch may be mounted too low for the pump and should be reinstalled at least 1/4 higher than the pump base.
Wires over-heated. Melted insulation
Combination of jammed impeller and wrong size fuse
Be sure impeller is clean of debris and is free to rotate . Reduce fuse to propei size .Replace damaged wiring and / or switch .
Repeated melted fuse
Fuse size or jammed impeller
Be sure fuse has amp rating . Check impeller to see that it is not bound up by fish line . ETC.
FAQ

1. Are you a manufacturer ?
Yes,We specialize in different kinds of 12V/24V DC water pump such as diaphragm pump,marine pump,RV pump,drinking water pump,gear pump etc and electric sprayers for over 15 years with excellent quality and competitive price.
2. What's your MOQ ?
Normally it is 100PCS, but we also accept samples for new costumers to test .
3.Do you accept OEM / ODM ?
Yes , we have different customers make their own OEM product. We also can make products as per your requirement .
4. What about the delivery time ?
Usually we can ship your orders within 15-30 days from receipt your 30% deposit .
5.What's your payment terms ?
T/T 30% in advance,70% balance against B/L copy.
6. Can I buy different types in one container ?
Yes, you can mix different types in one container.
7. What is your port of loading ?
Fuzhou Port,Xiamen Port or Ningbo Port .
8.What is your warranty ?
We offer 12 months limited Warranty of Manufacturer for defective items (excluding items damaged and/or misused after receipt ) .
9. Why you find some price on our items show only 1-20USD/PCS, can you get the price at USD1.0 ?
1-20USD is just price range for your reference here.
10.Do you have some discount ?
To clients who bring repeat orders and large orders.Please contact us for the Best Quote.
