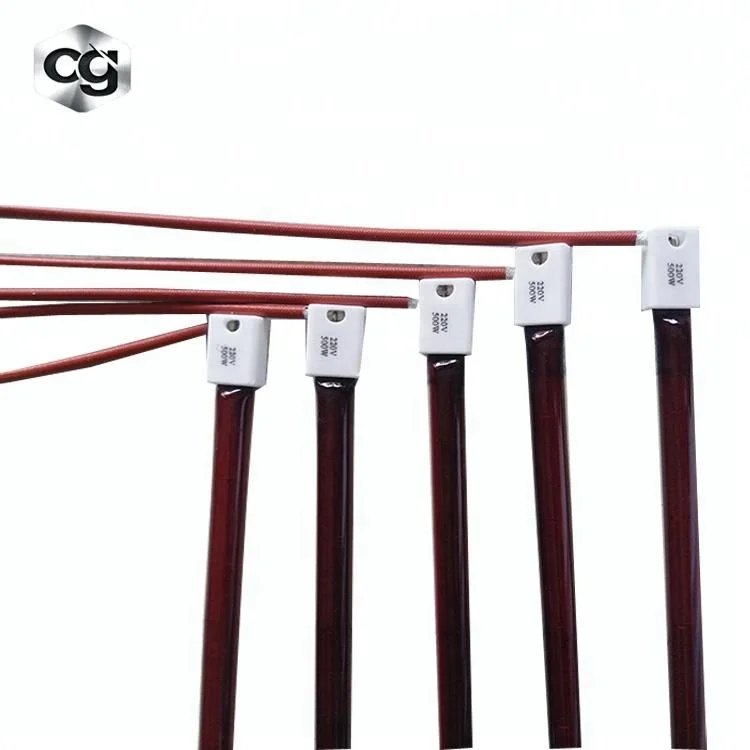

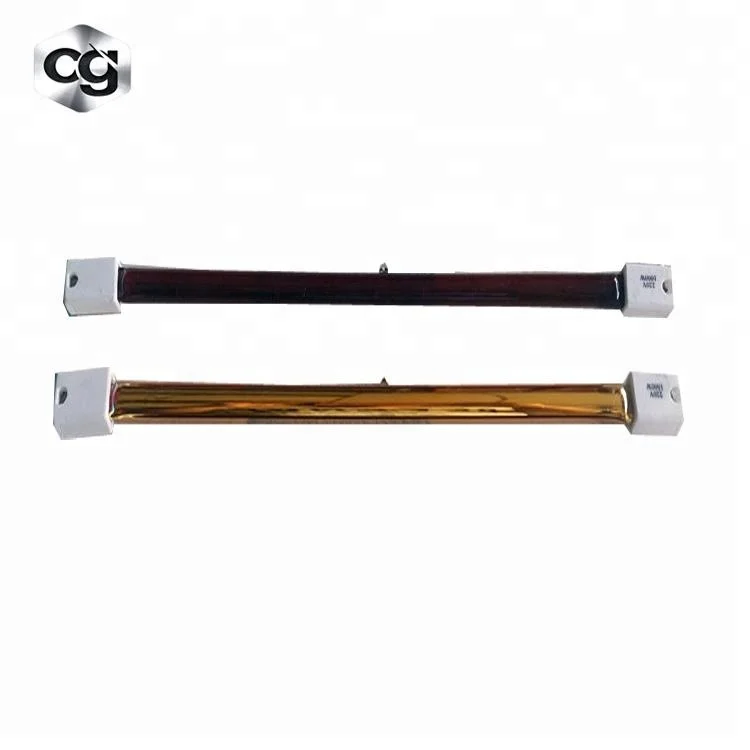

CG 1000w High-Temperature Infrared Quartz Halogen Tube

FOB Reference Price:Get Latest Price
$2.00 - $15.00 / Pieces | 10 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
CG
Model Number:
CG-IQH
Color:
White, Red/Gold/White
Specification:
Infrared lamp
Material:
Glass, Quartz
Certification:
CE
Product name:
Quartz Heating Lamp
Heating Filament:
Tungsten/ Carbon
Shape:
Straight
Diameter:
8-20mm
Life time:
5000+hrs
Peak wavelength:
1200-1400nm
Filament temperature:
1800-2400C
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
bubble wrap each pcs;wooden box or carton for out pack
Port
shanghai
Lead Time :
7-15 days
Product Description

Dear Sir or Madam,


We're a manufacturing and trading combo, produce and Specialize in 1000w High-Temperature Infrared Quartz Halogen Tubefor more than 10 years. As the  Infrared Quartz Halogen Tube is customized for different sizes and shapes, we can not put all models on the web page.

Pls kindly contact us for exact quotation:
E-Mail: sales(@)cg-heater.com
WhatsApp/wechat/skype:0086-17372625162

CG 1000w High-Temperature Infrared Quartz Halogen Tube

Quartz infrared heating elements emit medium wave infrared energy and are particularly effective in systems where rapid heater response is required. Tubular infrared lamps in quartz bulbs produce infrared radiation in wavelengths of 1.5–8 µm. The enclosed filament operates at around 2500 K, producing more shorter-wavelength radiation than open wire-coil sources. Developed in the 1950s at General Electric, these lamps produce about 100 W/in (4 W/mm) and can be combined to radiate 500 watts per square foot (5400 W/m2). To achieve even higher power densities, halogen lamps were used. Quartz infrared lamps are used in highly polished reflectors to direct radiation in a uniform and concentrated pattern.

Technical Data
1000w High-Temperature Infrared Quartz Halogen Tube
Material
Quartz
Heating Wire
Tungsten/ Carbon Fiber
Voltage
110V-380V
Wattage
300W-3000W
Color
Red/Gold/White
Length
200-1500mm
Diameter
8-20mm
Life time
5000+hrs
Wave Length
1.5–8 µm

Features


1.23.5% more efficient than a standard lamp that utilizes a secondary reflector
2.Virtually 100% of the infrared energy is directed toward the object being heated, with minimal waste
3.Eliminates the need for costly, heavy, inefficient secondary reflectors
4.Upgrade outdated equipment and improve radiant efficiency
5.Keeps interior equipment surfaces and surrounding equipment cooler
6.Increase in efficiency allows for reduction in lamp output, extending lamp life
7.Can be grouped together for very high watt densities
8.Specific IR dispersion angles from lamps

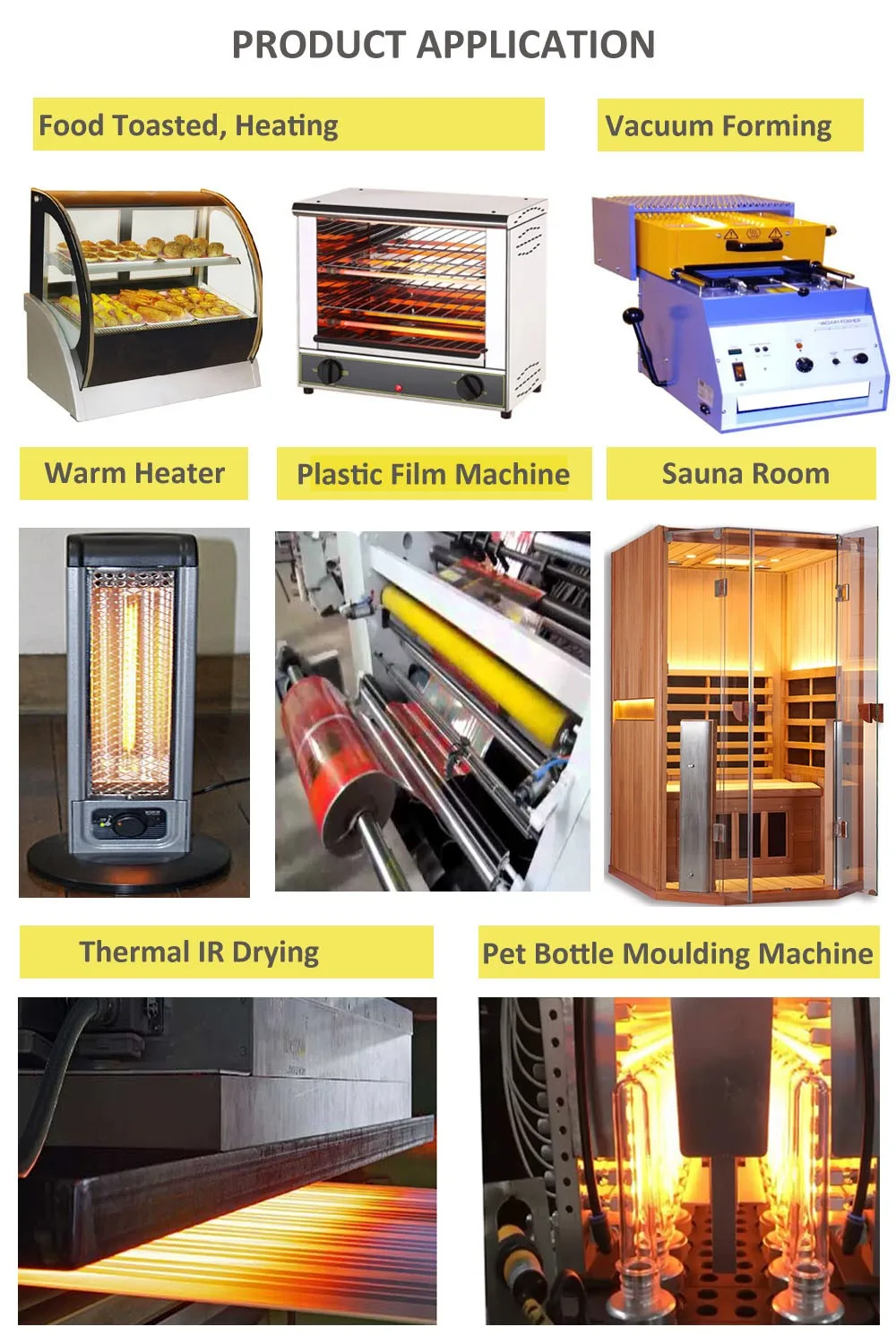

Application


Plastics:

• Thermoforming

• Vacuum forming
• Curing extruded parts
• Drying Ceramic
• Laminating

Electronics:

• Preheat PCBs

• IR reflow ovens for SMT

Paper:

• Speed drying coated paper

• Adhesive activation

Textiles:

• Drying dyed/printed fabric

• Curing latex coatings
Ceramic:
• Drying glazes/pigments
Thin Film Deposition:
• Vacuum coating substrates
Wood/Furniture:
• Heating bonded/painted/plastic
coated components
 • Drying same components

Food:

• Warming

• Baking

Paint:

 • Drying lacquers/finishes
• Baking lacquers/finishes

Packaging:

• Heat shrink

• Forming

Printing:

• Ink drying

Order Guider


1. Length/tube diameter

2. Voltage

3. Power

4. Quantity

Please kindly note that we could do any customized type for you.

Packing & Delivery

Packing Details  : Packing, 1pcs/ inner carton

Delivery Details : with 15 working days after receipt of your payment
