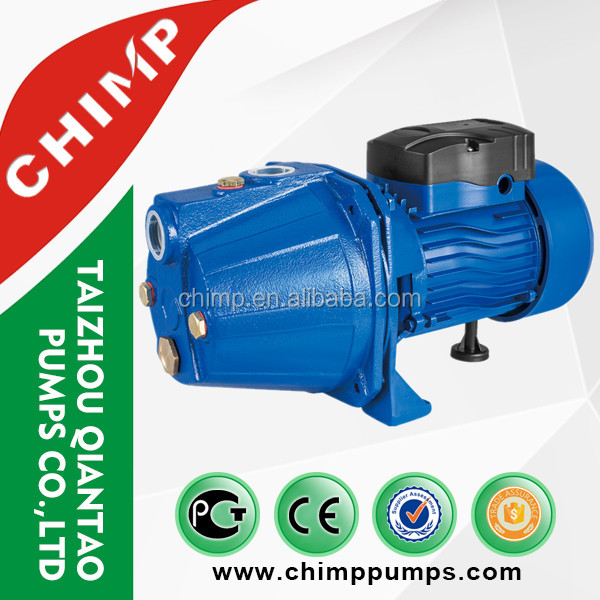

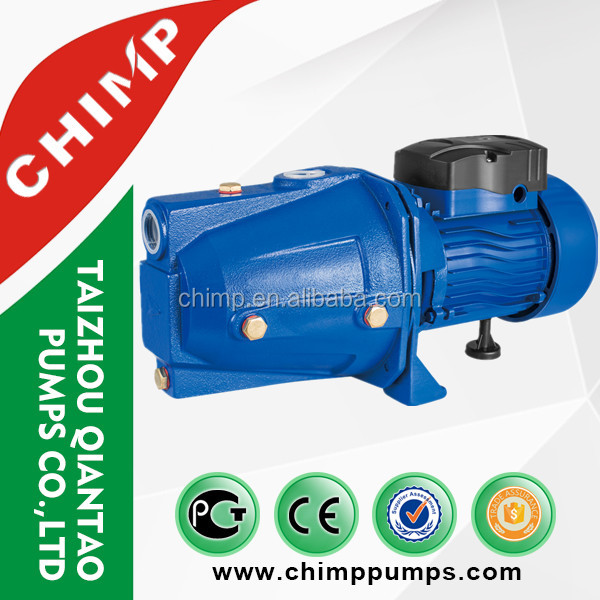

CHIMP hot selling 1.0hp self-priming jet pump domestic surface clean water booster pump

FOB Reference Price:Get Latest Price
US $20-45 / Pieces | 100 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
CHIMP
Model Number:
JET-100L
Theory:
Jet Pump
Structure:
Single-stage Pump
Usage:
Water
Power:
Hydraulic
Standard or Nonstandard:
Standard
Fuel:
electricity
Pressure:
High Pressure
Application:
pressure boost
Hmax.:
35-55m
Qmax.:
35-60l/min
Suct.max.:
9m
Pump body:
cast iron
Pump support:
cast iron
motor:
brass or aluminium
color:
blue/black/yellow/green/red/gray
liquid:
clear water
Certificate:
ISO/BV/PCT/GOST/CE(MD,LVD,EMC)
quality:
high quality
Supply Ability
Supply Ability:
2000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
STRONG CARTON PACKING WITH EXPORT STANDARD. IF EACH MODEL MORE THEN 500PCS CAN MAKE COLORED STRONG CARTON
Port
NINGBO, SHANGHAI, TIANJING, ETC
Lead Time :
WITHIN 35 DAYS AFTER RECEIVED THE ADVANCE PAYMENT

CHIMP hot selling 1.0hp self-priming jet pump domestic surface clean water booster pump

JET series









Product Description

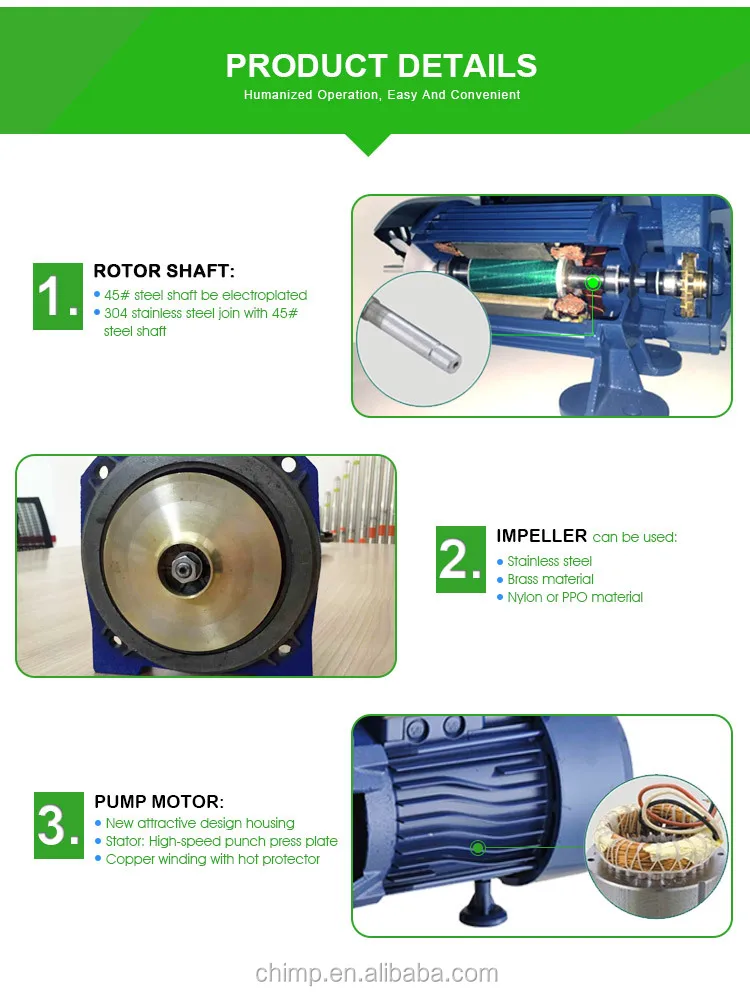

PUMP

  • Stainless steel/brass/ppo impeller
  • Max. Liquid termperature: +40℃
  • Max. Suction: 9m
  • Cast iron pump body and support

MOTOR

  • Motor with copper winding
  • Shaft: stainless steel welded with 45#/45# steel be electroplated
  • Insulation class: B or F
  • Protection class: IP X4
  • Max.Ambient temperature:+40℃
  • Cooling: External ventilation

PUMP INSTALLATION AND APPLICATIONS

It can be used to transfer clear water or other liquids similar to water in physical and chemical properties. It is suitable for lifting water from the well, sprinking irrigation in garden, pressure boosting of running water, and suppporting equipment etc.

.JPG





NO.DESCRIPTIONNO.DESCRIPTIONNO.DESCRIPTIONNO.DESCRIPTION
1pump body11Washer21Housing31"O" ring
2charge plug12Impeller22Stand32Wound stator
3"O" ring13"O" ring23Fairlead33Rotor
4"O" ring14Key24Cable presser34Split ring
5Nozzle15Mechanical Seal25Screw35Back cover
6"O" ring16pump support26Terminal board36Bolt
7Venturi pipe17Drops guard27Capacitor37Fan
8Diffuser18Bearing28Terminal box cover38Fan cover
9Nut19Snap ring29Bolt
10Snap ring20Bolt30Charge plug



PRODUCTS TECHNIQUE






MODELPOWERMAX.FLOWMAX.HEADMAX.SUCTINLET/OUTLETGWPACKING DIMENSION(MM)
kWHP(l/min)(M)(M)(inch)(kgs)
JET-60L0.450.640      36       91"x 1"12.844*20*23
JET-80L0.60.850      38       91"x 1"13.144*20*23
JET-100L0.75160      43       91"x 1"13.844*20*23
JET-110L1.11.560      55       91"x 1"14.545.5*20*23
JET-60S0.450.640      36       91"x 1"12.339.5*20*23.5
JET-80S0.60.850      38       91"x 1"12.839.5*20*23.5
JET-100S0.75160      43       91"x 1"13.239.5*20*23.5
JET-110S1.11.560      55       91"x 1"14.141*20*23.5
JET-1501.11.570      55       91 1/4"x 1"2255.5*20.5*24.5
JET-2001.5280      65       91 1/4"x 1"2355.5*20.5*24.5







Company Information

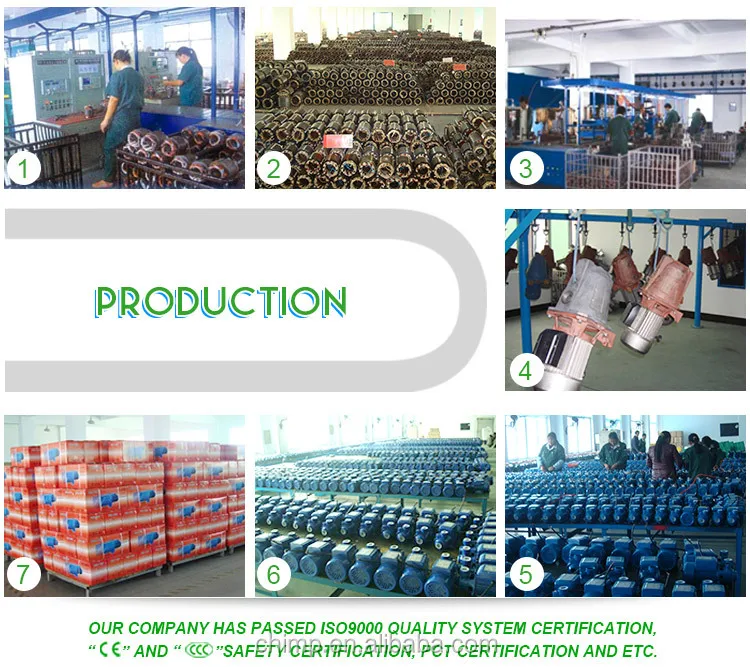

 WORKSHOP AND PRODUCTS


Company profile

Manufacturer: TAIZHOU QIANTAO PUMPS CO., LTD.

Location: Dayangcheng Industrial Area, Daxi Town, Wenling, Zhejiang

Trademark: CHIMP

2016 Wenling Top 100 enterprises ranked: TOP67

2015 Wenling Top 100 enterprises ranked: TOP87

History: More than 25 years experience of manufacturing pumps and motors;

Scale: Cover an area of 70000 square meters (still in the expansion) and around 350 employees
Technology:
Three groups of professional technical engineers and strong R& D team; five groups of independent professional assembly line;

Management: Scientific ERP management and strict quality control system;

Equipments: Automatic wiring machine, Automatic paint spraying equipment, CNC precision automatic lathe, Electrophoresis line;

Innovation: Continuously diversity products range to satisfy customers’ needs;

Production capacity: 80000 pcs/month

Marketing network: Asia,Europe, Africa and America

Certificates: CE, ISO9001, RoHs

Marketing models: Both Exports and domestic sales




Packaging & Shipping








MORE HOT PRODUCTS

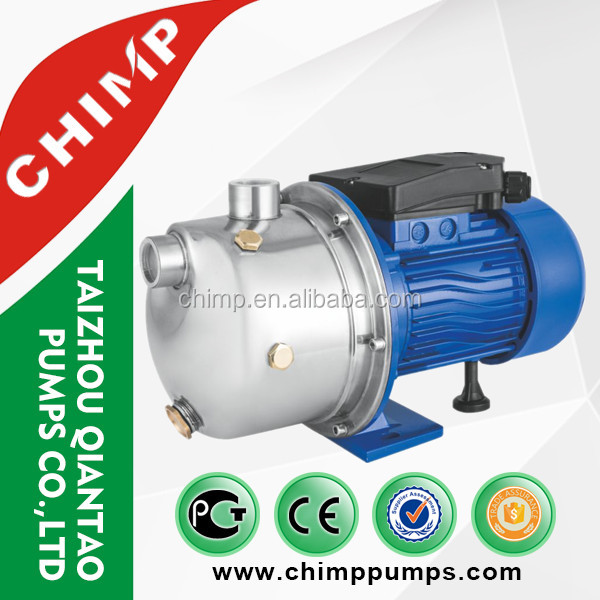

JET-100S .jpgJET200.jpgJSW-65.jpgM80 .jpgQB60.jpgSTP.jpg
