CHINA 2017 PHILICAM Wood Working Machinery CNC Machine

FOB Reference Price:Get Latest Price
$3,000.00 - $20,000.00 / Sets | 1 Set/Sets cnc machine (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
CNC or Not:
CNC
Place of Origin:
Shandong, China (Mainland)
Brand Name:
PHILICAM
Model Number:
1325
Voltage:
AC380V/50HZ
Power(W):
9.0KW
Dimension(L*W*H):
1300*2500*200mm
Weight:
2500KG
Certification:
CE ISO
Product name:
Wood CNC Machine
Application:
Woodworking
Control system:
Syntec
Working area:
1300*2500*200 Mm
Motor:
Servo Motor
Spindle:
Air Cooling Spindle
Spindle power:
9kw Air-cooling
Transmission:
Gear Rack
Z axis:
Taiwan TBI ball screw
Color:
Customer Needing
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
18 Months
Supply Ability
Supply Ability:
200 Set/Sets per Month cnc machine
Packaging & Delivery
Packaging Details
plywood packing cnc machine
Port
Qingdao
Lead Time :
7-15 days
Product Description

CNC Machine Product Application

Automatic feeding , optimization is expected to open , vertical drilling , automatic feeding in one fell swoop . without interruption process , maximize the output efficiency .
machine control interface design humanization , fool type operation , the operator can mount a simple training . no technical workers . quick action , high efficiency , to help you achieve a leap in production capacity .

SPECIFICATIONS FOR FLD 1224 CNC MACHINE
Description
Parameter
X,Y Working Area
1300*2500mm
Z Working Area
200mm
Positioning accuracy
±0.02mm
Lathe Structure
Welded with thick channel steels and square tubes
Thickness of machine bed
The machine body 10mm thickness.
Manufacturing process of machine bed
High temperature tempering treatment and vibrating stress relief(VSR)
Table
Vacuum table, with vacuum pump
Position mode
Pop-up pins
X,Y Structure
WMH Rack and rail
Z Structure
Rolling Ball screw
Ball screw
Taiwan TBI ball screw.
Guide rails
ABBA 25mm linear square guide rails
Max. Idling Speed
50m/min
Max. working speed
15m/min
Working voltage
AC380V/50Hz
Run command
HPGL G code
Spindle

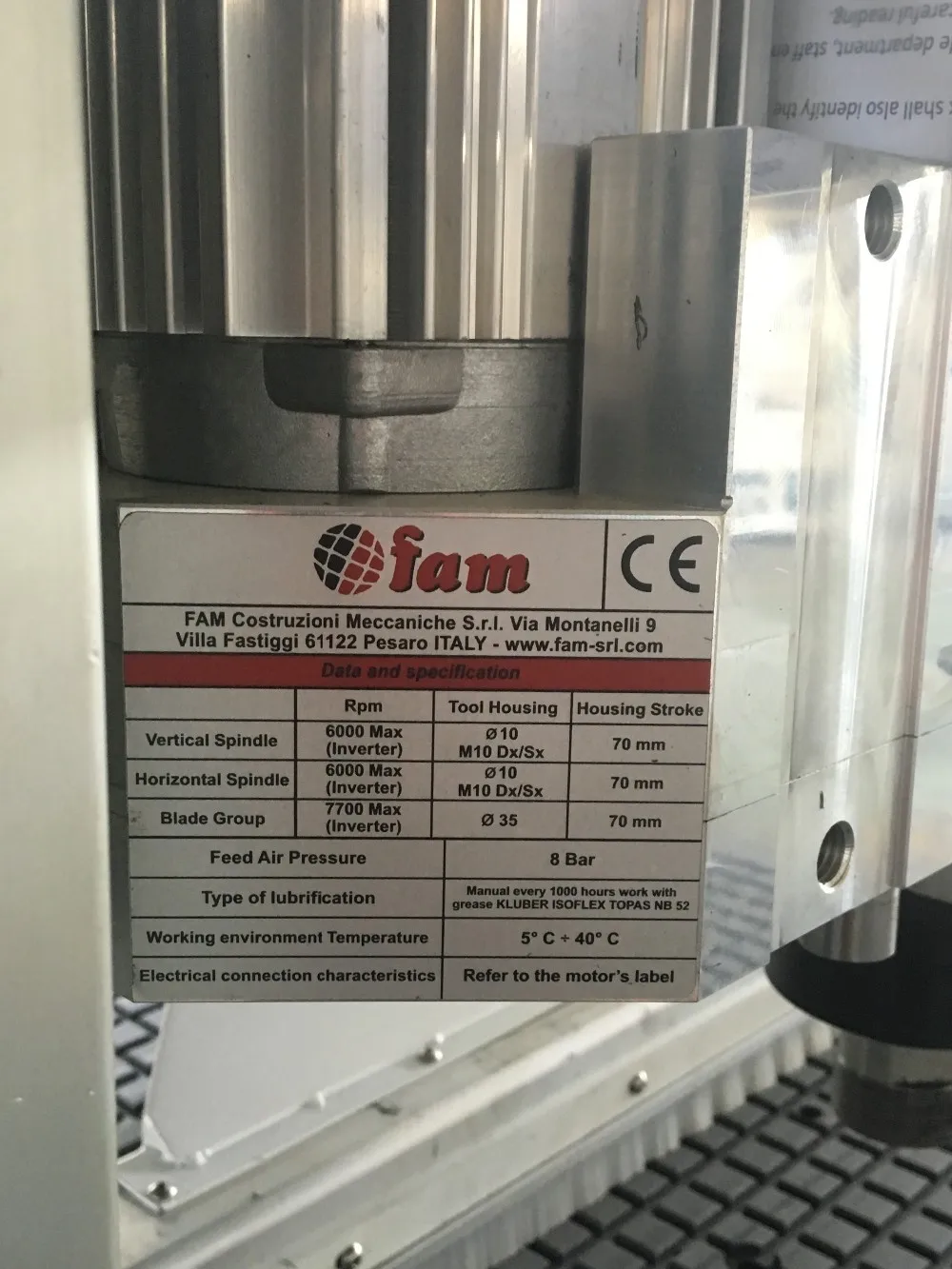

Italy Fam 5+4 drilings spindle and 9 KW air cooling spindle
Spindle Speed
6000-18000rpm/min
Tool Changer System
Disc auto-tool changer system with 12 pieces of tools
Motor and driver
Imported Yaskawa servo
Reducer
Imported Japan Shimpo
Operating System
Imported Taiwan Syntec control system
Position mode
Imported Airtac Pop-up pins
Electric components
Imported Schneider Electric
Dust-collect Function
Binocular dust collector
Oil-injection system
Automatic oil-injection system

CNC Machine Main Features

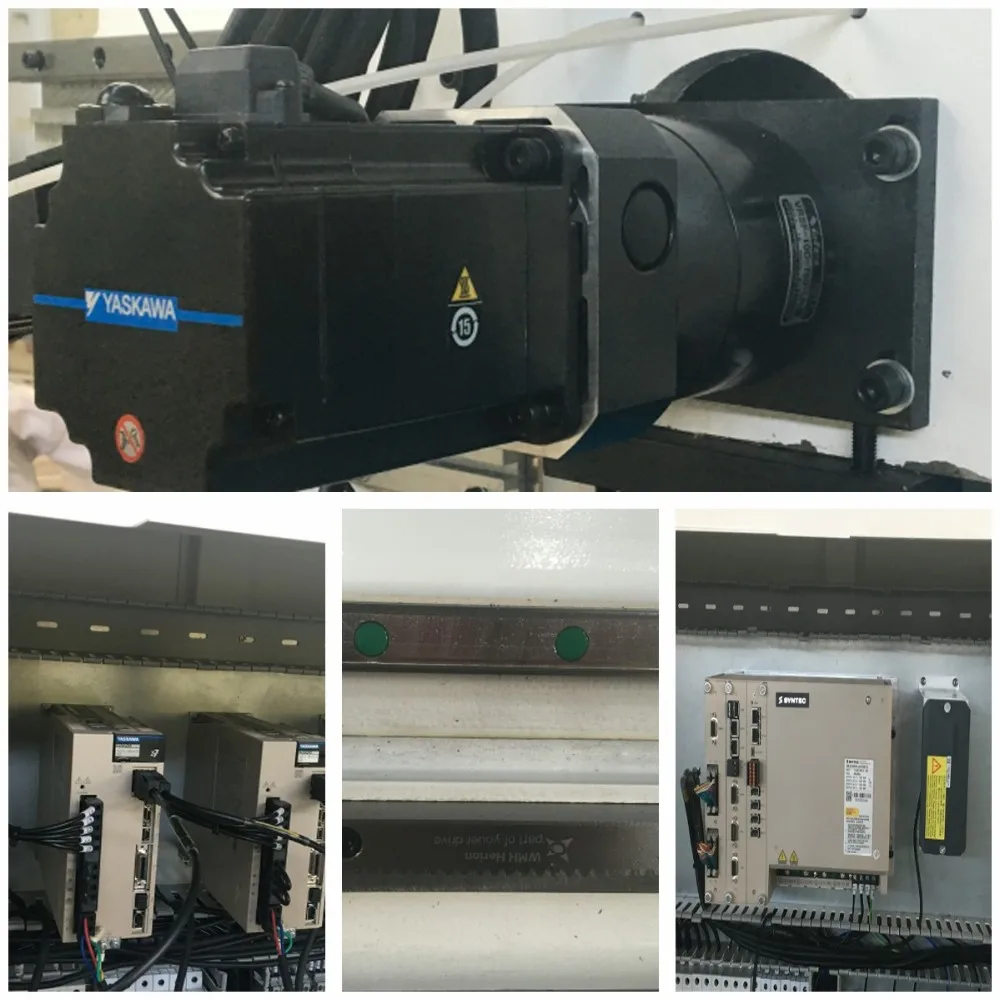

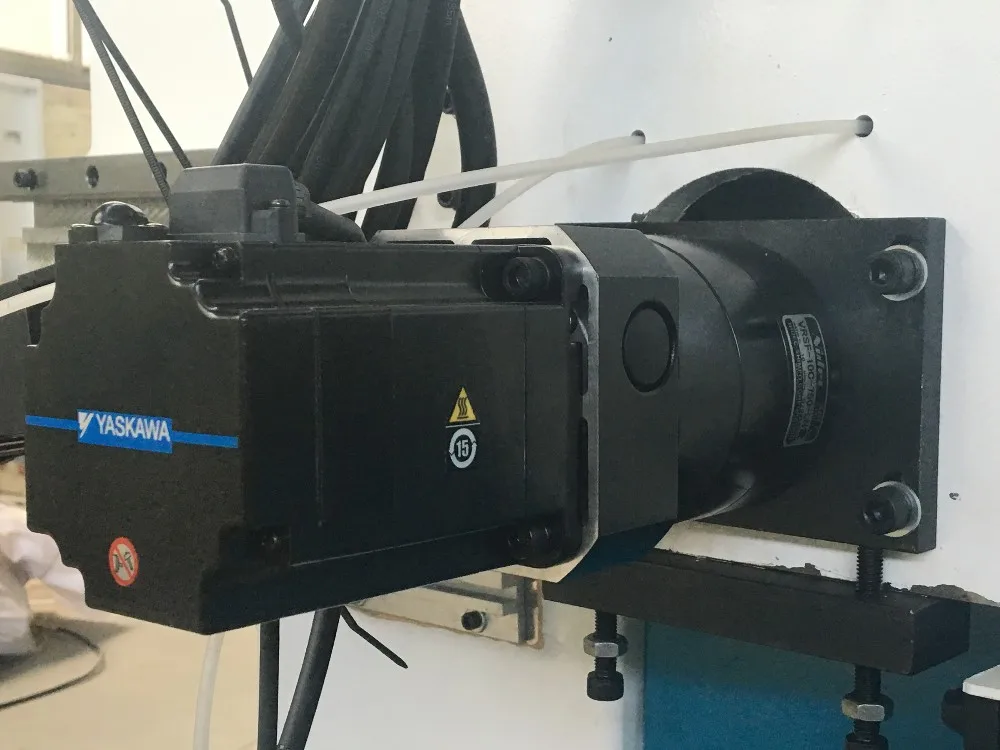

1) This product adopts Japan servo drive system and Shimpo reducer

2) high power heat exchange air cooling spindle

3) the French Schneider electrical components and other imported components , stable performance .

4) Table is a vacuum adsorption table , which can be used to adsorb different area of material

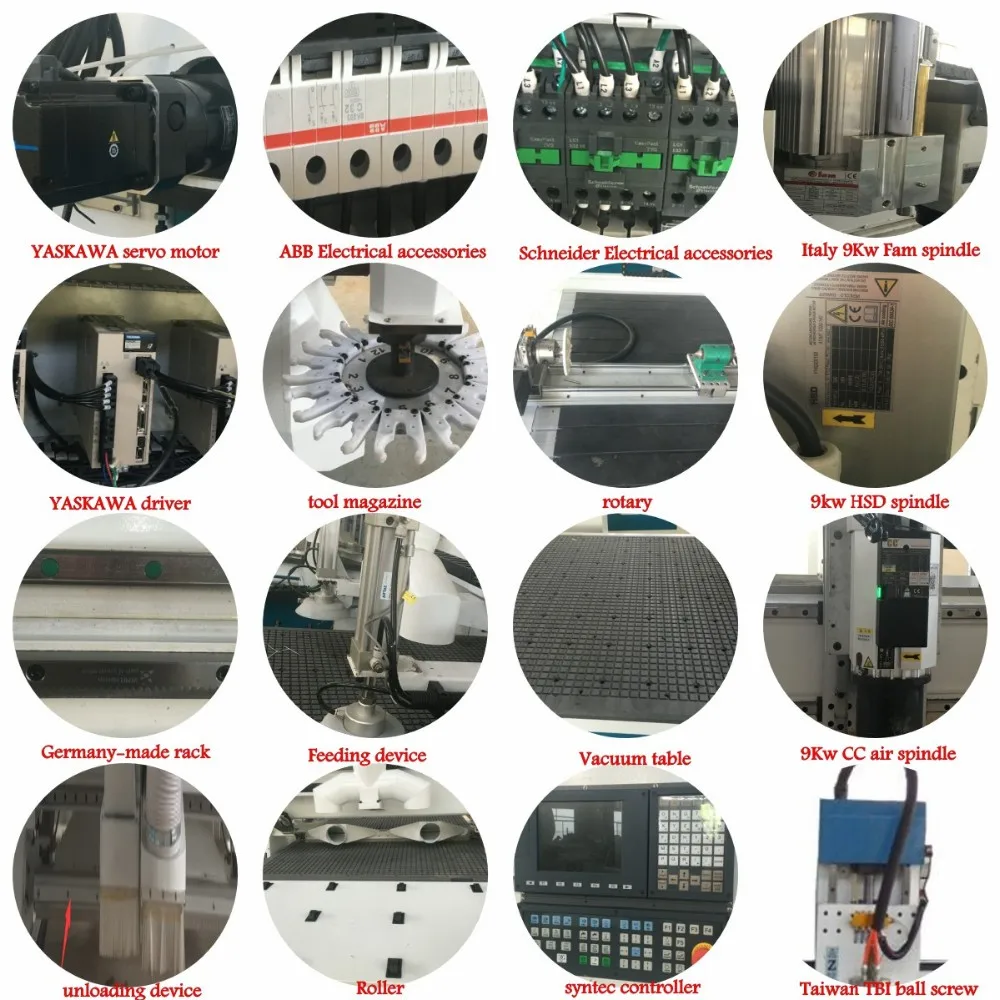

Detailed Images
Our Service

Customers satisfaction is our greatest goal.We offer 365 days and 24 hours service

Before-Sales Service

* Our response time is 12 hours and

   solution in 2-4 days for international

   customers

After-Sales Service

*We provide  service with our professional sales manager with ONE-TO-ONE model,for after sales service,we have English speaking engineer also with ONE-TO-ONE model.

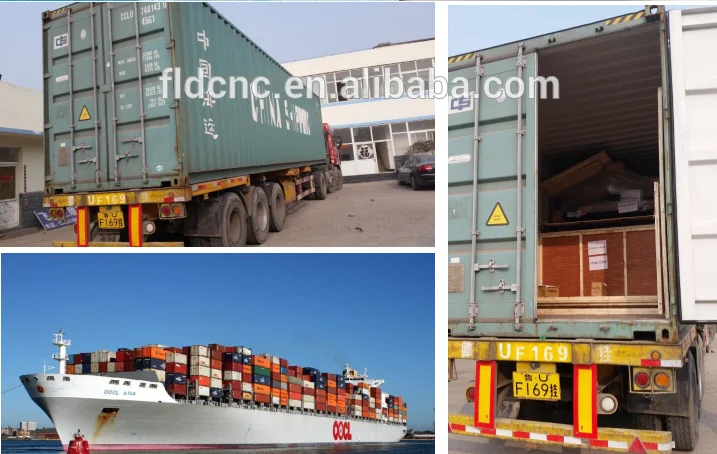

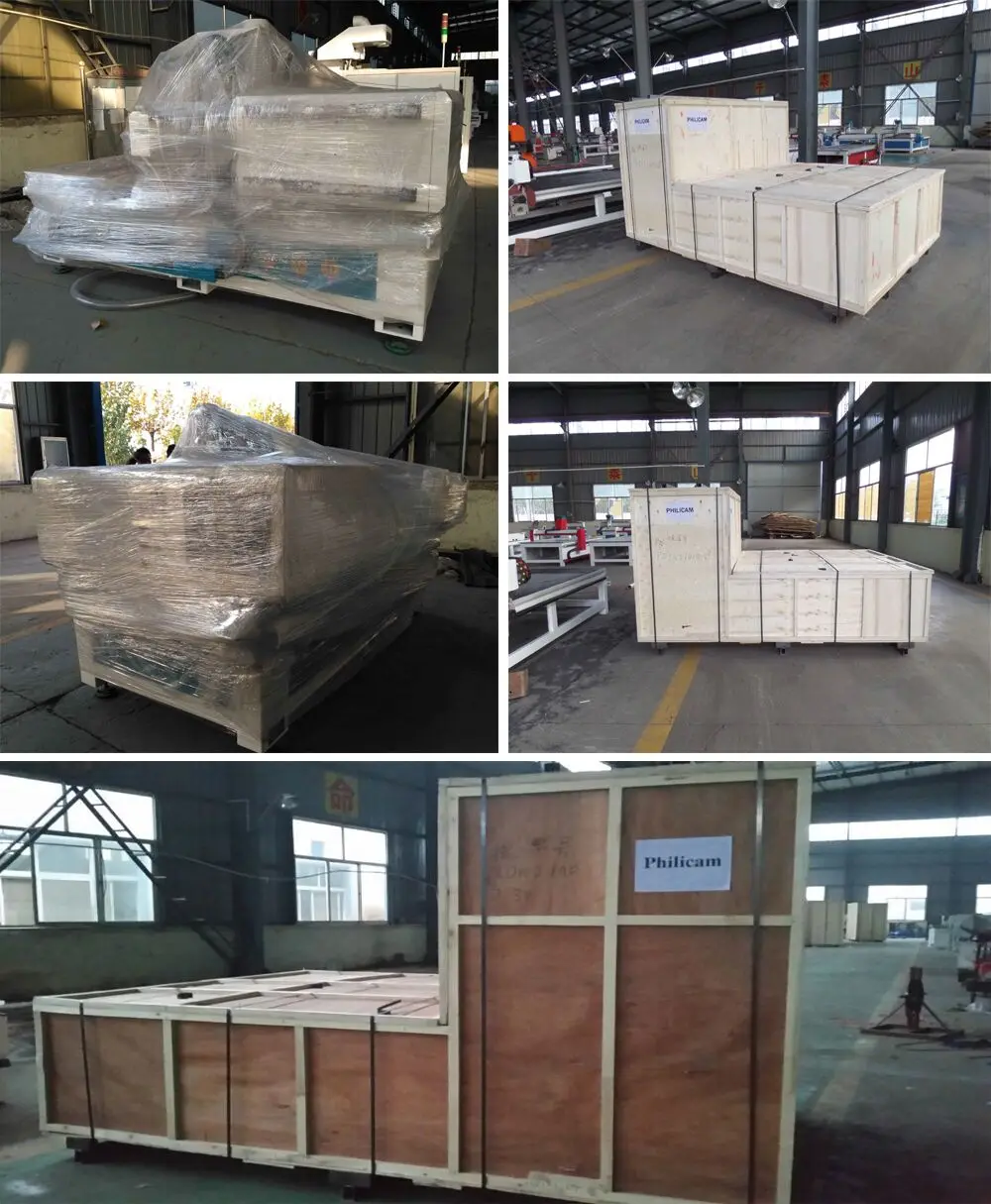

Packing & Delivery

CNC Machine Packing

It is better in leak proof ness and waterproof. When importing the plywood case is with fumigation-free, the procedure is simple.
Firstly, packed the cnc router machine with plastic sheet for clearing and damp proofing.
Secondly, then put the cnc router machine in the plywood case for safety and clashing.
Thirdly, transport the plywood case into the container.

CNC Machine Delivery



Within 15-20 working days for production, we will arrange delivery after received the total payment.

Certifications

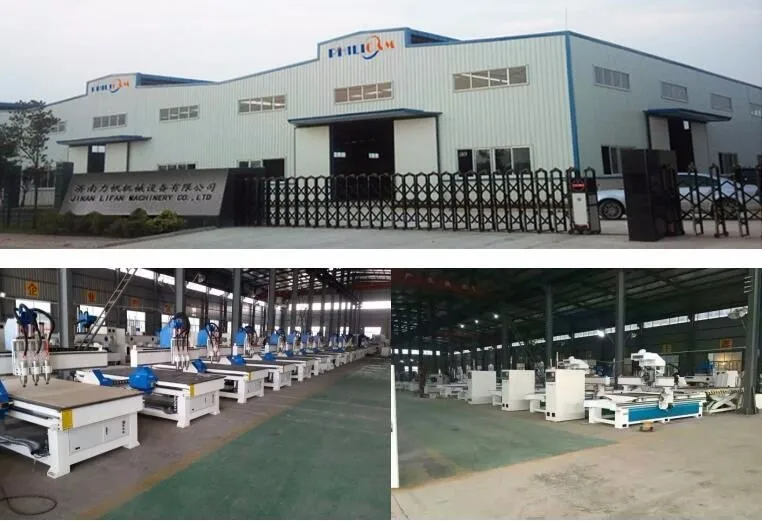

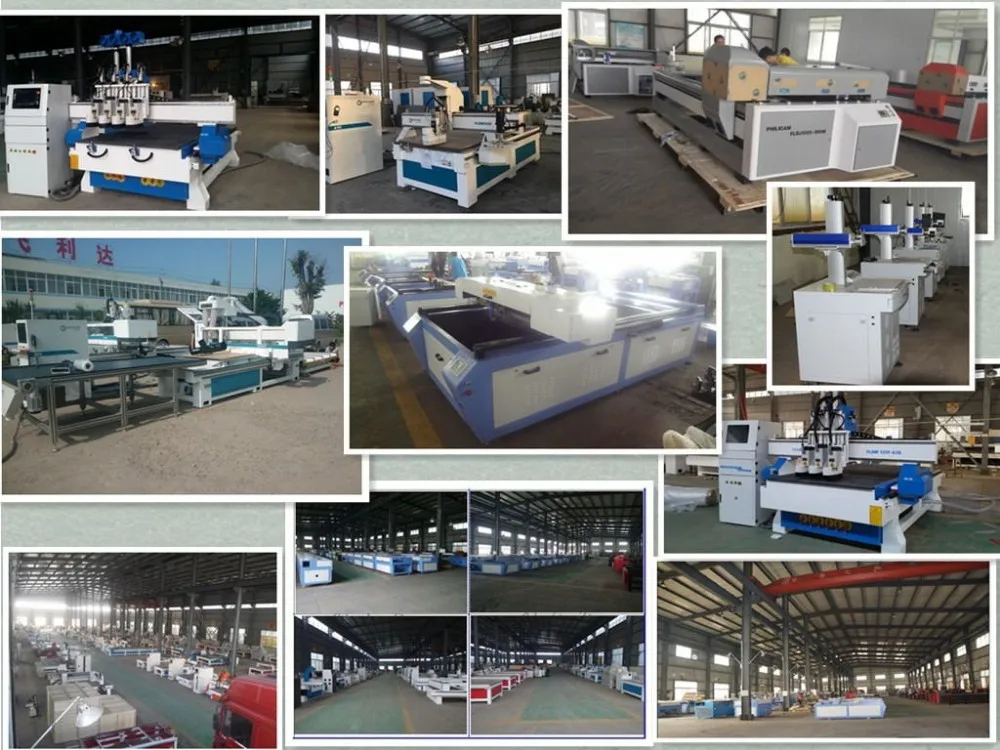

Our Company

Philicam Group was established in 2003, which is a high-tech corporation with cnc routers development,design,production,maintainance and marketing. Engaged in R&D of CAD/CAM technology with the cooperation of Shandong Mechanical Institute,Philicam enjoys fast development and has a high level Professionalism and service system.

FAQ

Q1: I need a cnc router, can you give me some suggestions

 Sure, please send us inquiry and tell us your processing materials,size and thickness, we will recommend you suitable model.


Q2: which kind of materials can be processed on this machine?
Most of nonmetal and metal materials, such as wood,MDF,aluminum,acrylic, aluminum and so on.

Q3: Are you a factory or trading company?
We are the manufacturer and we have over ten years factory experience .And we welcome you to visit us.

Q4: How long is the delivery time for this Professional manufacturer for cnc wood engraving engraving cutting cnc furniture machine?
For standard machines, it would be 12-15 days; For non-standard machines and customized machines according to client s specific requirements, it would be 20 to 25 days.

Q5: How should I pay for my order ?
You can do 30% prepayment at first, then we will start to make production. After finish production,shipping,then you can pay that 70% balance.
