CHLaser 2000W 3000w Manufacturer directly Cutting metal laser cutting CNC Tube machine

  • 1 Sets
    $28,000.00
  • >=2 Sets
    $27,000.00
Model Number:
CX-CT6000
Power(W):
500
- +
available
750
- +
available
1000
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Contact Supplier
Samples - $1.00 /Set, 1 Set (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
After-sales Service Provided:
Online support, Field maintenance and repair service, Video technical support, Overseas service center available
Applicable Material:
Metal
Laser Type:
Fiber Laser
Cutting Area:
1500x3000
Cutting Speed:
30m/min
Graphic Format Supported:
AI, PLT, DXF, BMP, DST, DWG, LAS, DXP
Application:
Laser Cutting
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Condition:
New
Cutting Thickness:
20mm
CNC or Not:
Yes
Cooling Mode:
Water Cooling
Control Software:
Cypcut
Place of Origin:
Hubei, China
Brand Name:
CHLaser
Certification:
CE, ISO
Warranty:
2 Years, 5 Years
Laser Source Brand:
RAYCUS
Laser Head Brand:
Precitec
Guiderail Brand:
HIWIN
Control System Brand:
Cypcut
Key Selling Points:
High-accuracy
Product name:
CHLaser Laser 3015 3000W 1000W 1000W CNC Fiber laser cutter for Sheet
Color:
Black
Power supply:
380V/50HZ
Function:
Cutting Metal Materials
Laser source:
Germany IPG Fiber Laser
Working area:
1300mmX2500mm/1500*3000mm
Item:
CCD Camera Laser Cutting Machine
Keyword:
sheet metal laser cutting machine price

Packaging & Delivery

Selling Units:
Single item
Single package size:
580X230X230 cm
Single gross weight:
4000.0 kg
Package Type:
wooden pakaged CHLaser Laser 3015 3000W 1000W 1000W CNC Fiber laser cutter cardboard die cutting machine for Sheet Metal brasscopper
Lead Time :
Quantity(Set) 1 - 3 >3
Est. Time(days) 15 To be negotiated
Product Description

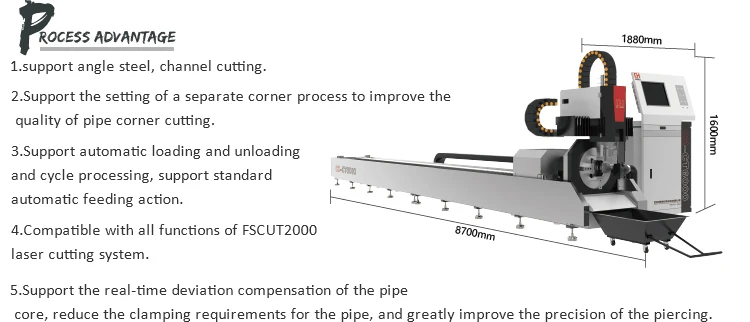

CH Laser·Metal Tube Laser Cutting Machine: Directly importing three-dimensional graphics, using laser cutting method, can easily handle the seamless pipe cutting, round hole cutting, square hole cutting, irregular pattern of stainless steel pipe cutting, steel pipe products cutting, aluminum alloy pipe cutting, etc. It can be used with different power lasers to adapt to different wall thicknesses. The Laser-formed parts with features: no burrs, no black mouth, and the same product size is extremely consistent. The laser cutting machine has the characteristics of fast cutting speed, high production efficiency, long service life, simple operation, only need to supply electricity and zero consumables, save labor, working safety, environmental protection and zero pollution.






















Cutting Tubes

Round tubes, rectangular tubes, elliptical tubes, etc., channel steel, C-shaped steel, etc.

Cutting Materials

Carbon steel, stainless steel, aluminum, galvanized materials, etc.

Laser Wavelength

1064nm

Laser Power

500-6000W

Positioning accuracy of Rotary axis motion

±0.05mm/m

Positioning accuracy of Propulsion shaft motion

±0.05mm/m

Movement speed

54m/min

Round pipe diameter range

20-160mm/220mm/300mm

Square tube / rectangular tube size

20-160mm/220mm/300mm

Maximum  pipe length

6000mm(3000mm optional

Minimum line width

 0.15mm
 Wall cutting thickness ≤10mm
 Drive method Servo motor
 Cooling method Water chille

Power Supply

AC 380V±10%50Hz











It can cut all kinds of shaped tubes.

Such as cutting  various kinds of heterogeneous : such as  round pipe, square pipe, rectangular pipe, flat pipe, I-beam, channel steel and U-tube.









Packaging & Shipping



Packaging DetailWe have 3 layers package, for the outside, we adopt wood craft case. In the middle,the machine is covered by the foam from shaking. In the inside,the machine is covered by thickening plastic bag for waterproof.
Delivery5-7 days after payment.







Company Information

Established in 1998, CH Laser is one of the pioneers who specialized in developing LASER equipment in China, including laser marking, laser cutting and laser welding machine. 80% of staff are technicians, and 30% of them are senior technicians; CH laser has been cooperating with a couple of colleages and institutes, we have achieved more than 50 patent rights.











Main Products





Our Services

1. Warranty

2 Years warranty for fiber laser marking machine. Our customer will be fulled trained for operation and maintaining tachonolgy after the order confirmed. 24 Hours full after sales service. Our engineer will help customer solve prombles by E-mail, Skype,Whatsapp, Wechat etc in time when the promble happens. If necessary, oversales service is avilable.



2. Quality Control

Skilled and strict quality inspection team is available during the materials purchasing and product procedure. All finished machine we delivery are 100% strictly tested by our QC department and engineering department. We will provide detailed machine pictures and test videos to customers before delivery.



3. OEM Service

 Customiized and OEM orders are welcome due to our aboundant experiences. All the OEM service are free, customer only  need to provdie us with your logo drawing, funcation requirements, color etc. No MOQ required.



4.Privacy

None of your presonally information will be disclosedor shared with any third partd. Contact all of your inquires or questions or helps will be answered within 24 hours even in holidays. Please be free to contact us if you have any question.



5. Payment Terms

Alibaba Trade Assurance(New, safe and popular payment terms)

30% T/T paid in advance as deposit, the balance paid before shippment.
