CJTOUCH 19" industrial touch screen monitor IR touch with VGA DVI input outdoor waterproof lcd monitor

  • 2-499 Sets
    $210.00
  • >=500 Sets
    $205.00
1 batch = 2 Sets
Model Number:
COT190E-IWF02
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Samples: $210.00 /Set, 1 Set (Min. Order): Buy Samples
Contact Supplier
Samples - $210.00 /Set, 1 Set (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
CJTOUCH
Screen Size:
19"
Type:
Infrared, Cjtouch Infrared(IR) touch screen
Interface Type:
D-Sub, DVI, USB
Resolution:
1280X1024@60Hz
Viewing angle (v/h):
80°/80°/85°/85°(Typ.)(CR≥10)
Contrast:
1000:1
Luminance(cd/m2):
250
Touch System Interface:
USB interface
Output:
DC 12V /4A
MTBF:
50000 hr at 25°C
Multi touch:
2-10points touch
Mount Interface:
Vesa 75mm and 100mm
Support Color:
16.7m Colors
Products Status:
Stock

Packaging & Delivery

Selling Units:
Single item
Single package size:
53X23X51 cm
Single gross weight:
14.0 kg
Package Type:
2sets per carton, EPE packging inside.
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 2 3 - 500 >500
Est. Time(days) 5 20 To be negotiated

CJTOUCH 19" industrial touch screen monitor IR touch with VGA DVI input outdoor waterproof lcd monitor

1 year Free warranty

Advantage of our IR touch monitor:

· Industrial Desgin With Excellent Durablity

· IR touch Technology Multi Touch 2-10 Touch Points

· 3MM Enhanced Glass With Vandal Proof Resistance

· High Light Transmission Clear Glass

· Easy to Use:Plug and Works on Windows/Linux/(Android)

· Perfect Solutions For Use In Public

· VESA Mounting and Rear Mounting

· OEM/ODM& Customized Option: Brightness/Computer Integrated Inside/Etc

· Factory Competitive Price & Fast Delivery

Drawing :

COT190E-IWF02 Drawing.jpg

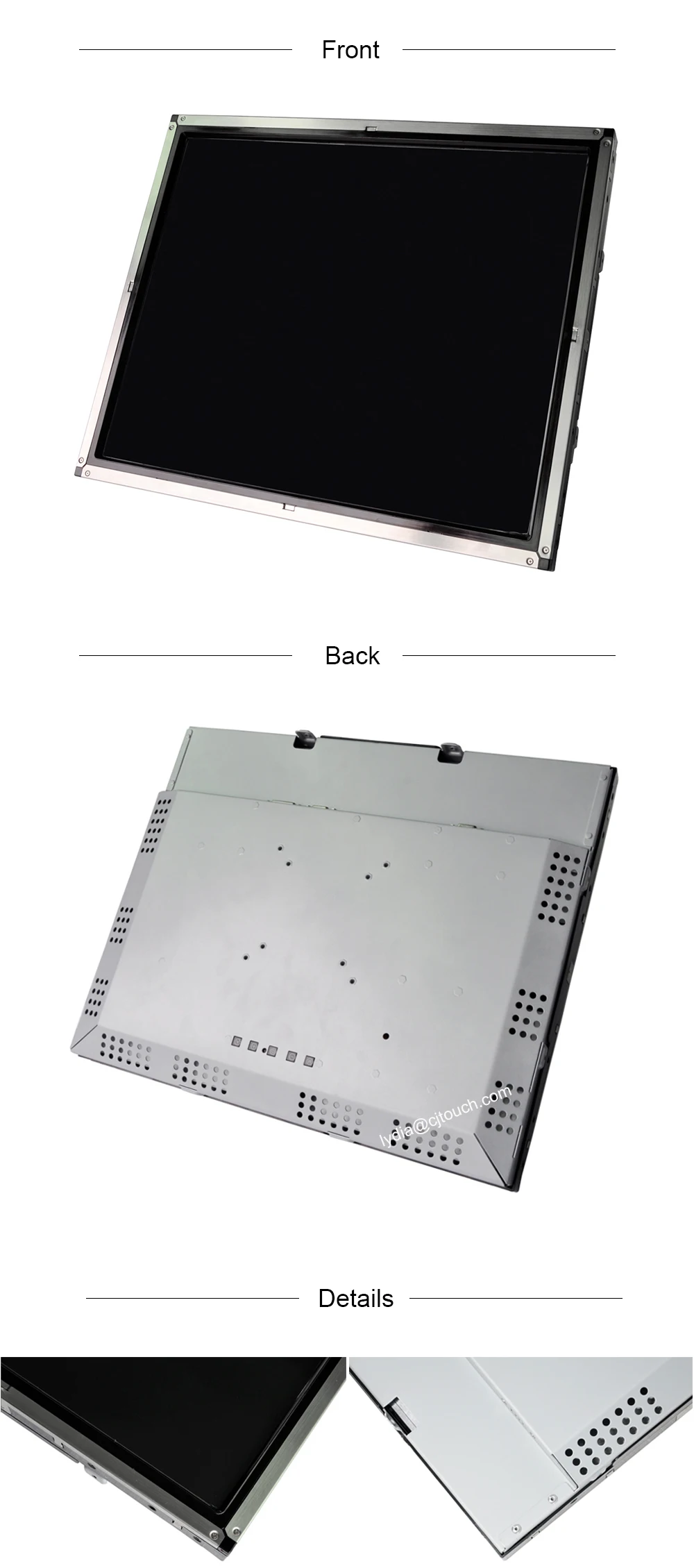

Details Pictures:
COT190E-IWF02 PIC.jpg

Specifications:

General

Model

COT190E-IWF02

Series

Water-proof (IP65)

Monitor Dimensions

Width: 415mm  Height: 343mm  Depth: 55mm

LCD Type

19 Active matrix TFT-LCD

Video Input

VGA and DVI

OSD controls

Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset

Power Supply

Type: External brick
Input (line) voltage: 100-240 VAC, 50-60 Hz
Output voltage/current: 12 volts at 4 amps max

Mount Interface

1)VESA 75mm and 100mm

2)Mount bracket, horizontal or vertical

LCD Specification

Active Area(mm)

376.320(H)×301.060(V)

Resolution

1280×1024@60Hz

Dot Pitch(mm)

0.294×0.294

Nominal Input Voltage VDD

+5.0V(Typ)

Viewing angle (v/h)

80°/85°

Contrast

1000:1

Luminance(cd/m2)

250

Response Time(Rising/Falling)

3ms/7ms

Support Color

16.7M colors

Backlight MTBF(hr)

30000

Touchscreen Specification

Type

Cjtouch Infrared (IR) touch screen

Multi-touch

Default 2points touch , 4/6/10points can optional

Resolution

4096*4096

Light Transmission

92%

Touch Life Cycle

50 millions

Touch Response time

8ms

Touch System Interface

USB interface

Power consumption

+5V@80mA

External AC Power Adapter

Output

DC 12V /4A

Input

100-240 VAC, 50-60 Hz

MTBF

50000 hr at 25°C

Environment

Operating Temp.

0~50°C

Storage Temp.

-20~60°C

Operating RH:

20%~80%

Storage RH:

10%~90%

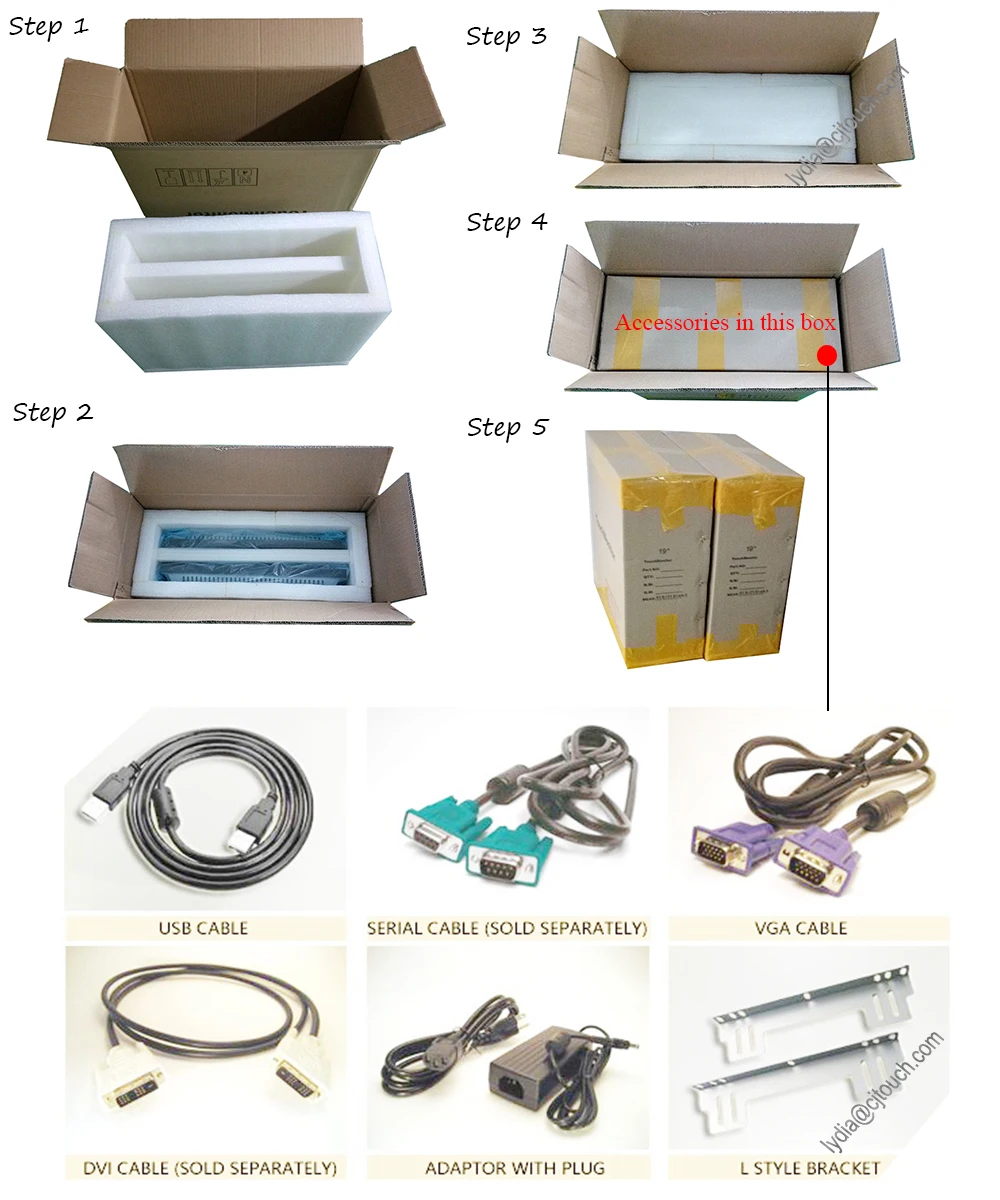

Package:

Certificates :



Application  :
application2

Who we are ?


Dongguan CJTouch Electronic Co., Ltd. is a leading provider of Touchscreen, Touch monitor and All-in-one computers. With advanced, cost-effective touch solutions, CJTouch believes in engaging with customers while providing customized services.
Experience:
Established in 2006 and headquartered in Dongguan, China, CJTouch has proven to be reliable and trustworthy partners to help seamlessly integrate our products into your total solution.
 Over 10 years of combined experience in researching and developing touch-enabled screens and monitors.
 Two factories with over 200 skilled and qualified employees, including R & D engineers, technical experts and sales representatives.
What We Offer:
Through our consistent and high quality performance, CJTouch has got ISO 9001 certified and has earned CE, UL, FCC, RoHS and other international certifications.
 Single & Multi-touch screens (custom sizes available)
 Single & Multi-touch monitors (custom sizes and functions available)
 All-in-one computers
 ODM/OEM services
Technology:
CJTouch has always relied on continuous innovation to stay ahead in touch technology. We are committed to delivering the most cutting-edge solutions in the industry.
 Surface Acoustic Wave (SAW) touch technology
 Infrared touch technology
 Projected Infrared Touch technology
Applications:
We offer an extensive array of services with products being widely used in industries such as finance, gaming, retail, kiosk, health care, education, etc.

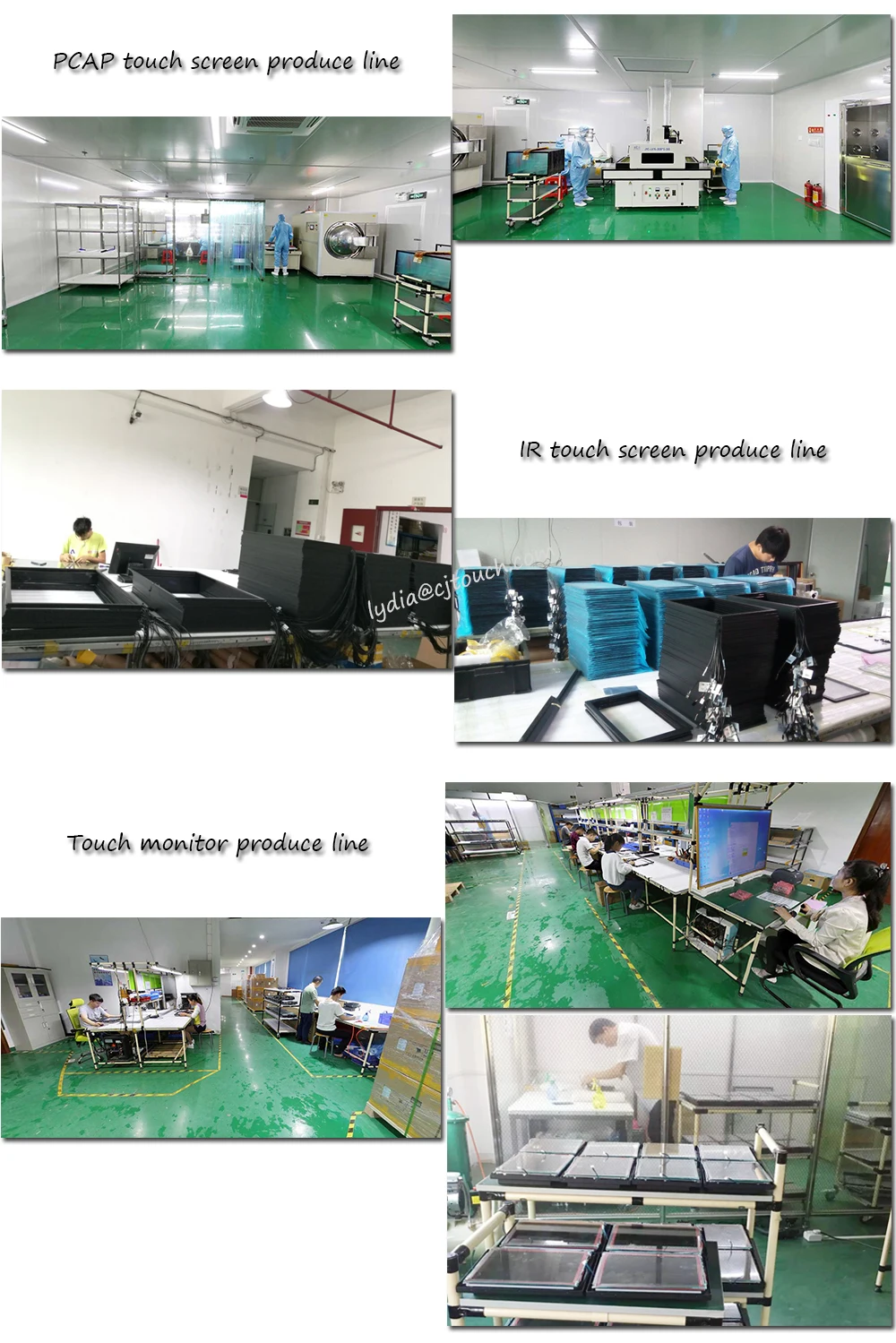

Produce line 1.jpg
Our office :

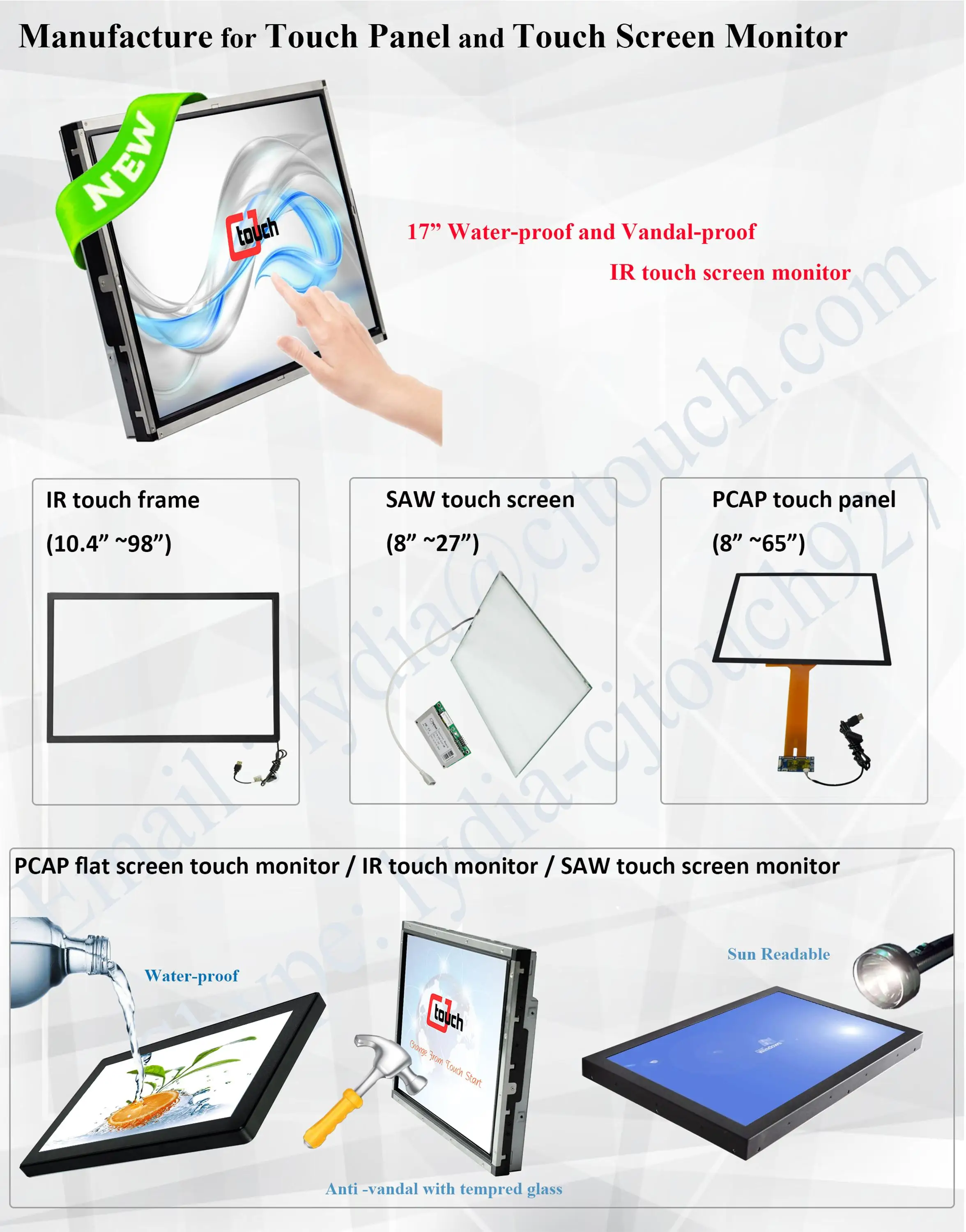

Other products what we can offer :
