CK6140 high quality cnc torno mechanic horizontal lathe machine 1000 with best price

FOB Reference Price:Get Latest Price
$7,800.00 - $10,000.00 / Set | 1 Set/Sets (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Type:
Horizontal
Condition:
New
Place of Origin:
Shandong, China
Dimension(L*W*H):
2120X1400X1700
Brand Name:
Lu Young
Model Number:
Ck6140
Voltage:
3 Phase 380V
Certification:
CE ISO
Machine Type:
cnc torno mechanic horizontal lathe machine 1000 with best price
Max.swing over bed:
400mm
Max.swing over cross slide:
225mm
Spindle bore:
60mm
Spindle speed:
150-2500rpm
Processing length:
500mm;750;1000
Tool holder:
4 station electric tool post
Chuck:
3 Jaw Manual Chuck
Control system:
SIEMENS GSK FANUC (optional)
Warranty:
12 Months
Weight:
1800KG
After-sales Service Provided:
Engineers available to service machinery overseas
Power:
5.5KW
Automatic Grade:
Automatic
CNC or Not:
CNC
Max. Swing Diameter:
400mm
Supply Ability
Supply Ability:
1000 Set/Sets per Year
Packaging & Delivery
Packaging Details
Seaworthy export package for CK6140 high quality cnc torno mechanic horizontal lathe machine 1000 with best price
Port
Qingdao or Shanghai
Lead Time :
30 working days

CK6140 high quality cnc torno mechanic horizontal lathe machine 1000 with best price

Product Description





 CK6140 high quality cnc torno mechanic horizontal lathe machine 1000 with best price mechanical and electrical integration design,generous appearance beautiful, reasonable structure, easy to operate. Machine tool rails with wear-resistant cast iron,castings high temperature customization, repeated artificial aging treatment, the use of ultra-audio quenching, hardness above HRC50 ℃, long-term stability to ensure the accuracy of machine tools, Z-center screw, so that cutting force uniform ,Improve accuracy. High-quality cast iron cast bed foot so that the machine is more stable, more accurate.

Specification of  CK6140 high quality cnc torno mechanic horizontal lathe machine 1000 with best price

 CK6140 high quality cnc torno mechanic horizontal lathe machine
ItemCK6140ACK6140B
Max. swing dia. over bedΦ400mmΦ400mm
Max. swing dia. over cross slideΦ225mmΦ245mm
Max. processing length(mm)75010007501000
Dia. of spindle holeΦ60mmΦ52mm
Spindle speed150-2500rpm150~500rpm (low) 320~1600rpm (high)
spindle taperMT6
Tool holder4 station electric tool post(optional 6/8staion electric turret)
Tool bar section 20X20 20X20
Main motor power5.5KW5.5KW
X/Z axis fast feeding speed6/8 M/MIN6/8 M/MIN
X/Z axis  position accuracy(mm)0.01/0.0150.01/0.015
X/Z-axis repeatability(mm)0.012/0.0130.012/0.013
Clamping3 Jaw Manual Chuck(optional pnematic or hydraulic chuck)
Tailstock sleeve dia.60606060
Tailstock sleeve travel120mm120mm
Tailstock taperMT4
Dimension2120X1400X17002050x1400x1650
2370X1400X17002300X1400X1650
Weight(kg)1800195018502050

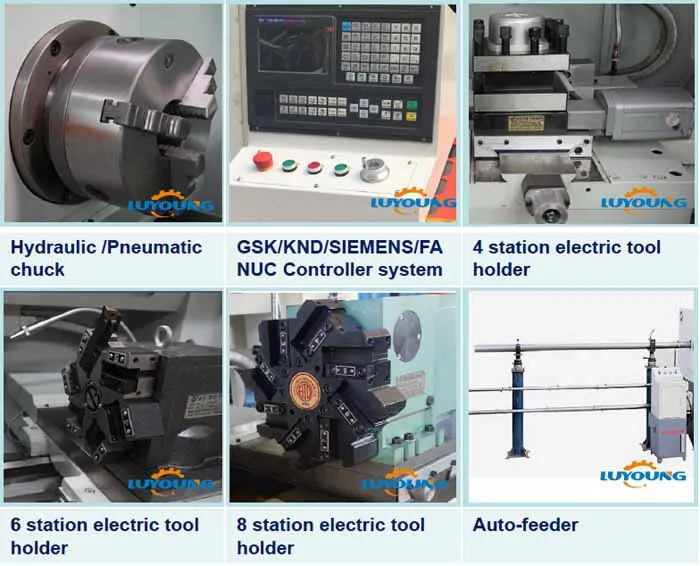

Standard configuration:Optional configuration:
GSK928 CNC ControllerSiemens,Fanuc cnc controller system
Servo motor for X,Z axis, Servo drivenpneumatic chuck,hydraulic chuck
3 Jaw Manual Chuckpneumatic tailstock,hydraulic tailstock
4 station electric tool post6 staion tool turret,8staiton tool turret
Auto lubrication systemAuto feeder system
lighting systemChip conveyor
cooling system
 Optional configuration:

Hot selling products

Small CNC lathe machine

Middle cnc lathe machine

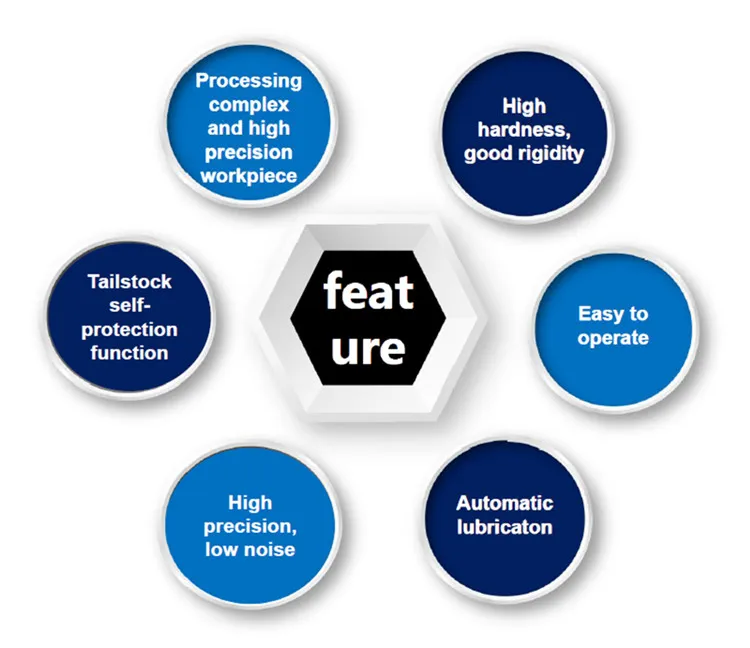

Product Feature


Product feature of CK6140 high quality cnc torno mechanic  horizontal lathe machine

1.Processing complex and high precision workpiece. Bed head box optimization design,
suitable for discs, shaft parts of the turning process, long thread processing, can be applied to the complex shape of the complex and high precision disk type,shaft parts Processing.
2.High hardness, good rigidity, high audio quenching, machine guide rails and saddle rails are
using special materials, hard rail, high frequency quenching, super hard wear and tear, durable,
good processing accuracy
3.Automatic lubrication, the lubrication point of the use of forced automatic lubrication device for
quantitative quantitative lubrication of the screw and guide rail, when there is an abnormal state or
lack of fuel, the automatic warning signal.
4. High precision, low noise. Spindle high precision double ball bearing support, low noise, high
precision, good stability.
5.Tailstock self-protection function, tailstock with fast cam clamping device, high efficiency.
Tailstock sleeve to prevent the drill bit rotation device, to avoid the malfunction caused by the drill
bit rotation and damage the tailstock sleeve hole taper, the effective protection of the tailstock parts.
6.Easy to operate, especially for complex parts or high-precision high-volume parts of the processing, but also the first choice of numerical control teaching.



Why choose us?

1.Strong strength,The company has 20 years of production experience, rich product range to meet the needs of different customers.
2.Quality product ,Workshop workers skilled and rigorous testing of product quality, strict control of each production process.
3.Direct factory price,provide competitive factory price and save your costs.
4.7×24 hours after-sale service,Any questions, please contact us directly at any time
5.Strong packing,will protect the goods from any possible damage during transit.
6.TRADE ASSURANCE,protect your orders from payment to delivery.



Company Information

20 years' production experience

The main product of Taian Luyoung Machinery Co.,Ltd is CNC lathe machine, CNC milling machine, CNC machine centers,CNC swiss type automatic lathe. Annual output is 900sets/ year.
1.More than 20 years of production experience.
2.Exported more than 40 countries.
3.More than 300 staffs in factory.
4.CE and ISO9001 certification .
5.7×24 hours online service.









Who choose us?

The products have exported more than 40 countries around the world, please look who choose us:



After-Sales Service

7×24 hours after-sale service





1. Warranty for one year.
2.Supply 7×24 hours online technology support.
3.Professional solution one by one.
4.Free training for customers online or in our factory.
5.The oversea service is available.

Packaging & Shipping

Strong packing will protect the goods from any possible damage during transit


1.Non-fumigation packaging, we use seaworthy plywood.
2. Steel base plate, it is stronger 3-5 times than normal plywood base plate.
3.Water-proof and damp proof, water resistant film wraped all the machine.
4.Fully sheathed case,prevention of collision and keep the goods intact.

1.How to get the best quotation?

Tell me the model ,quantity and your requirements, then we will give you our best price to you.

2.If we don’t know the model of the lathe,how to choose the model?

Send the drawing of the workpiece ,then our technicist will recommend the exact model to you.

3.How about the MOQ(Minimum Order Quantity)?

 1 set

4.Can we place an order by TRADE ASSURANCE?

 Of course, all of our orders can be placed by this way. Please rest assured your money.

5.How long about your guarantee period?

12 months. If there are accessories damaged during the warranty period,we will we will replace it for free.
