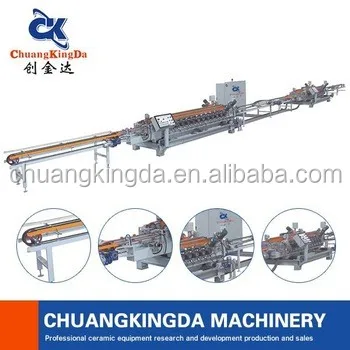

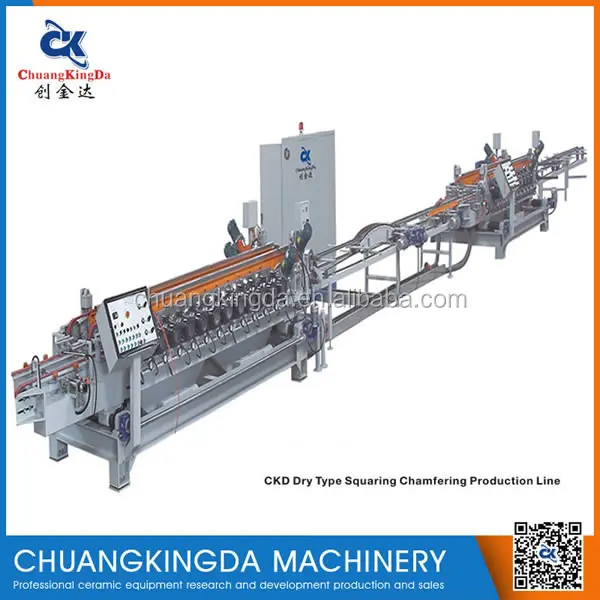

CKD Tile forming machine/Automatic dry type ceramic tile squaring chamfering producting line/Connect kiln production line

FOB Reference Price:Get Latest Price
$1.00 - $60,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
squaring chamfering machine
Production Capacity:
8000㎡/24H
Power(W):
235kw
Certification:
CE ISO
Condition:
New
Tile Type:
Ceramic
Use:
Floor
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
CKD
Model Number:
CKD
Voltage:
380v 50Hz
Dimension(L*W*H):
6000*2600*1300*2
Weight:
8500kg*2SET
WORKING WIDTH:
250-250MM, 1000-1000MM
WORKING THICKNESS:
7~12MM
TOTAL LENGTH:
23000MM
AIR CONSUMPTION:
100L/MIN
TOTAL POWER:
235KW
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
5 Set/Sets per Month
Packaging & Delivery
Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Port
FOSHAN/SHENZHEN/GUAGNZHOU
Lead Time :
30DAYS
Certifications
Product Description

Product Application

1. Introduction

Full Automatic Single Blade Dry Cutting Squaring Line is mainly applied to cut tile into 2 halves or 4 equal pieces in ceramic manufacturing and further processing industries. It has solved the problems of high cost, Low efficiency, Poor quality. The output of this line can reach 5500 SQM per day for cutting 600mm*600mm tiles into 600mm * 300mm, Which is equivalent to the amount of a kiln.

2. Features

1) Full automation, The stable performance can free more hands to do something else.
2) Simple installation, Compatible to production line without too much revising to the machine.
3) Easy operation, Just a few hours` training is sufficient for operators to learn how to use.
4) Low maintenant cost, All the consumables, Accessories and spare parts are in international standard.
5) Large amount of output, Up to 5500sqm per day.
6) Long Service Life.

3. Parameters

NO.
DESCRIPTION
QTY
1
TRANSMISSION CONVEYOR L=1600MM
1SET
2
NO.1 DRY TYPE SQUARING AND CHAMFERING MACHINE WITH DOUBLE SIDES(18+2-200*600)
1 SET FORWARD
3
TURNING CONVEYOR L=2200M
1SET
4
N0.2 DRY TYPE SQUARING AND CHAMFERING MACHINE WITH DOUBLE SIDES(20+2-300*1000)
1 SET BACKWORD
5
EXIST CONVEYOR L=2500MM
1SET
6
Sponge Dryer
1 SET
Tile working size
after cutting size
Electric power system
Water consumption
gas pressure
Total
length
Total
 power
600*600mm
600*400 mm, 600*300 mm, 600*200 mm,
600*150 mm etc
380V 50HZ 3PH
70 L/min
≥0.6MPa
13100mm
20.04KW
Related Products

Dry type multi blade cutting squaring chamfering machine

91.8% Response Rate

automatic tile squaring chamfering production line

91.8% Response Rate

Web type squaring chamfering production line

91.8% Response Rate

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

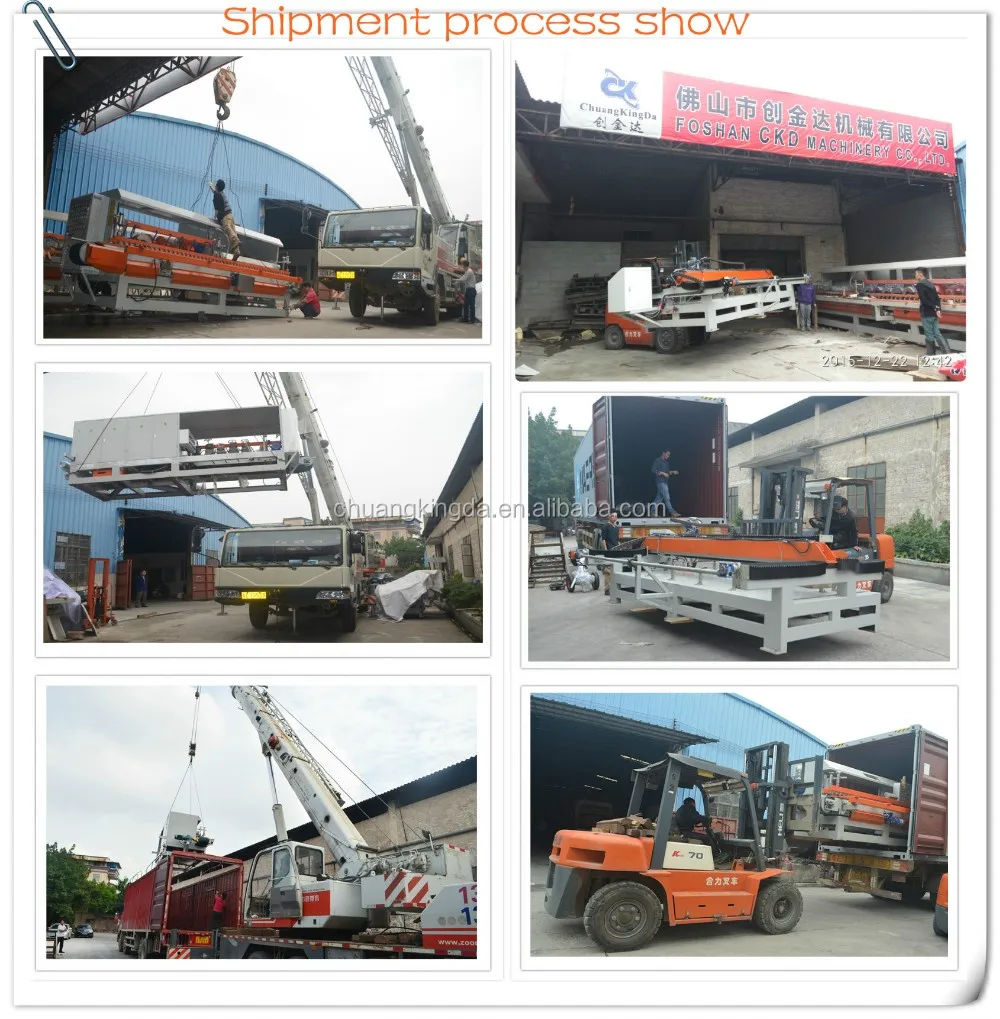

Packing & Delivery
Packaging
Size
12.032(L) * 2.352 (W) * 2.69(D) M
Weight
22 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Our Company
Contact us

FOSHAN CHUANGKINGDA MACHINERY CO., LTD.

Name:Vivi Pan
Phone Id: +86 13570514748(whatsapp, qq, wechat)
                  +86 18042896412
QQ: 2406314672
website: http://chuangkingda.en.alibaba.com
                http://www.chuangkingda.com

To our client letter

Dear Sir/Madam,
Thank you for your time to visit our web site. We have many different models cutting machine polishing machine, squaring machine etc,,,if you need pls contact us for more details.
Dear,,,you have any further information needed, please send us an inquiry with your requirement, full details and high resolution, and all machinery can be customized. then we will reply you soon!
Dear,,,we have professional technology for after-sales service, teach your worker how to control machine how to safely and maintain machine.
Do every machine and service by our deep heart!
Best regards
CKD manufacturer
