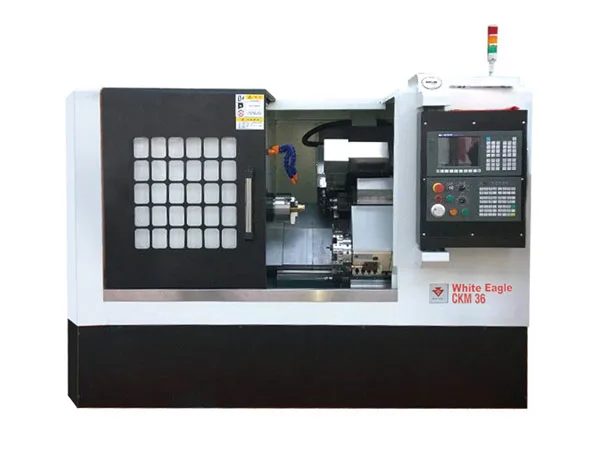

CKM36: Vertical Milling and Turning Center

FOB Reference Price:Get Latest Price
$2,800.00 - $3,700.00 / Set | 1 Set/Sets (Min. Order)
Max. Swing Diameter (mm):
360mm
Spindle bore:
56mm
Lead Time:
Quantity(Sets) 1 - 10 >10
Est. Time(days) 45 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Max. Length of Workpiece (mm):
300 mm
Spindle Bore(mm):
56 m'm
Machining Capacity:
Heavy Duty
Condition:
New
Range of Spindle Speed(r.p.m):
10 - 4500
Max. Turned Length (mm):
300 mm
Type:
TURNING CENTER
Spindle Motor Power(kW):
5.5/7.5
Year:
2020
Place of Origin:
Anhui, China
Brand Name:
White Eagle
Model Number:
CKM36
Voltage:
customed
Dimension(L*W*H):
2800*1700*1700mm
Certification:
ISO CE TUV
Weight (KG):
3000 KG
Warranty:
1 Year
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
Key Selling Points:
Multifunctional
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Home Use, Retail, Construction works , Energy & Mining, Advertising Company
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
None
Showroom Location:
None
Max. Swing Diameter (mm):
360 mm
Name:
CKM36: Vertical Milling and Turning Center
Weight:
3000kg
Max swing over toolpost:
180mm
Spindle diameter:
56mm
Swing over bed:
360mm
Barrel travel:
No tailstock
Spindle nose style:
A2-5
Range of speed:
10~4500rpm
Toolpost station:
Gang tool
Motor power:
5.5/7.5kw
Supply Ability
Supply Ability:
10 Set/Sets per Month CKM36: Vertical Milling and Turning Center
Packaging & Delivery
Packaging Details
Standard wooden box available for sea transportation
Port
Shanghai
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 10 >10
Est. Time(days) 45 To be negotiated
Product Description
Vertical Milling/Turning Center
Model
CKM28
CKM30
CKM35
CKM36
Main data
Max.swing over bed(mm)
Φ280
Φ300
Φ350
Φ360
Max.diameter of work-piece(mm)
Φ220
Φ300
Φ320
Φ360
Max.swing over toolpost(mm)
Φ490
Φ120
Φ130
Φ180
Max.machining length(mm)
200
300
220
300
Distance between centers(mm)
Spindle&chuck
Spindle nose style
A2-4
A2-4
A2-5
Hydraulic chuck
#20 collet
Φ135
Φ135
Φ169
Spindle motor(kw)
2.2/3.7
3.7/5.5
5.5/7.5
5.5/7.5
Max.spindle speed(rpm)
6000
4200/5500
4500
4500
Spindle bore diameter(mm)
Φ25
Φ41
Φ46
Φ56
Bar auto-feeding bore(mm)
Φ24
Φ30
Φ34
Φ45
Travel
X/Z axes spec(mm)
250/250
280/300
380/330
380/330
Rapid travel of X/Z axes(m/min)
12/16
12/16
12/16
12/16
Precision
Position accuracy of X/Z axes(300mm)
±0.005/±0.005
±0.005/±0.005
±0.005/±0.005
±0.005/±0.005
Repeated position accuracy if X/Z axes(300mm)
±0.003/±0.003
±0.003/±0.003
±0.003/±0.003
±0.003/±0.003
Toolpst
Toolpost station
Gang tool
Gang tool
Gang tool
Gang tool
Tailstock
Barrel travel of tailstock(mm)
No tailstock
No tailstock
No tailstock
No tailstock
Barrel tapper of tailstock(mm)
Max.travel of tailstock(mm)
Max.tapper of tailstock
Packing
Overall size(L*W*H)(mm)
2400*1450*1550
2500*1500*1600
2600*1500*1600
2800*1700*1700
Weight
Machine weight(kg)
1800
2000
2000
3000
Packing&Shipping
We usually packing with wooden box ,suitable for the sea transportation. We also can pack the goods as per your request

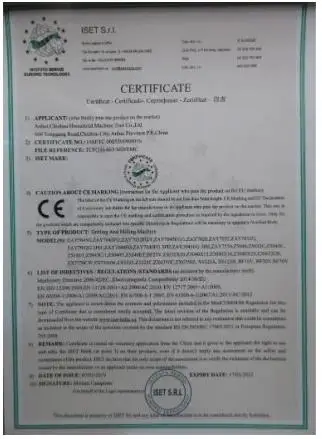

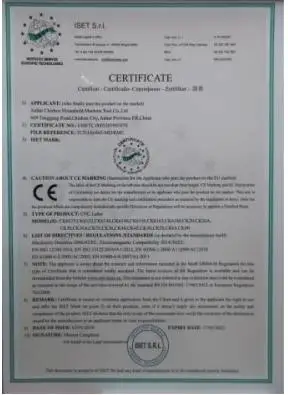

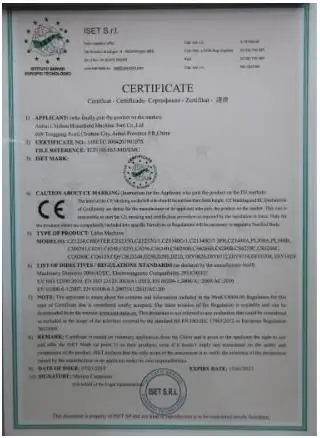

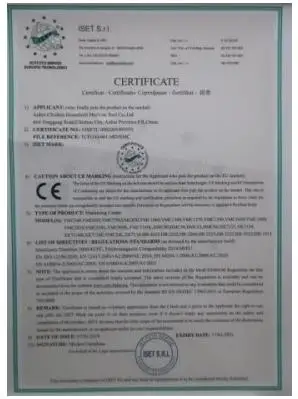

Certifications

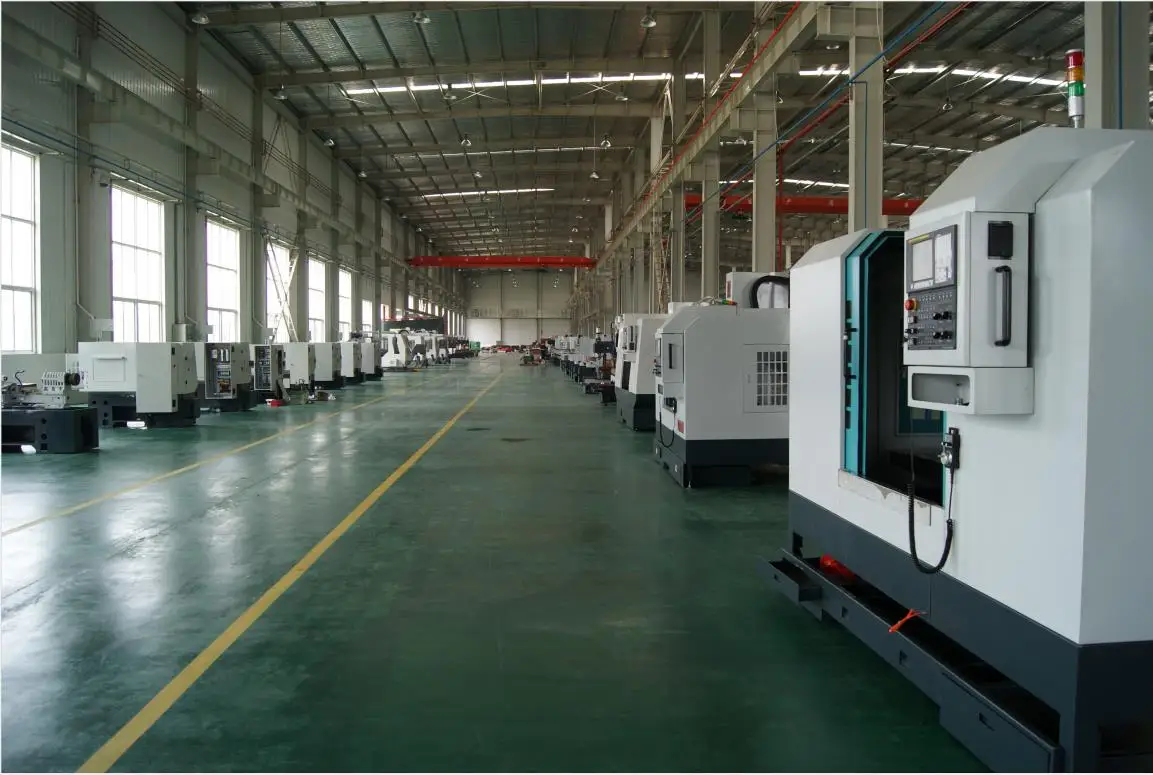

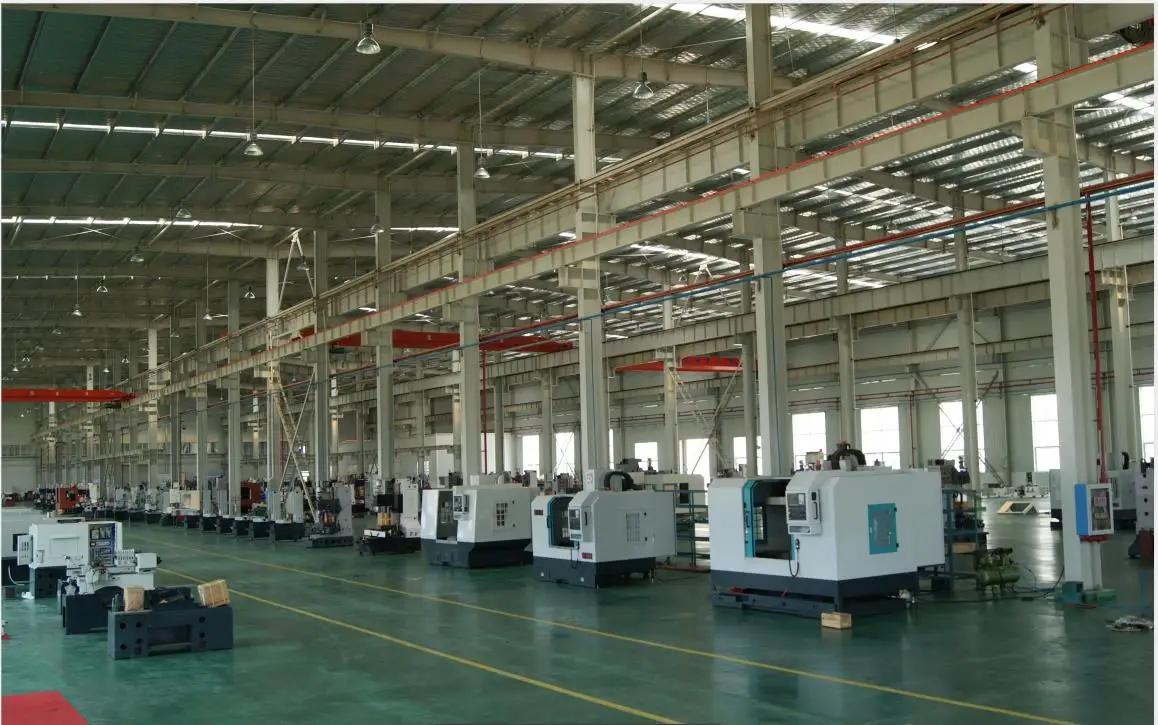

Company Introduction
Anhui Chizhou Household Machine Tool Co. Ltd, The Group covers a land area of 355,000㎡ and building area of 180,000㎡.There are more than 500 sets of various production equipment, such as the imported Gantry Type Pentahedron Machining Center ,Precision Guide-way Grinders , CNC Gantry Milling Machine ,Vertical Machining Center ,Horizontal Machining Center , CNC lathe , CNC Universal Grinding Machine , CNC Milling Machine ,and more than 40 high technological advanced equipments. Products are sold at domestic and international market.Our sale area becomes a global network ,which includes more than 130 countries and regions .Products are widely used in aerospace
,automotive ,shipbuilding ,electric power ,mold manufacturing ,textile ,information industry ,general machinery ,and other
fields.The White Eagle Group regards the quality as its life .Our Trademark “White Eagle “ is identified as Chinese Famous
Trademark by Chinese State Administration for Industry and Commerce .We has successively won the ISO9001 Quality Management SystemCertificate ,CE certificate ,Famous Trademark Certificate of Anhui Province ,and are given many honors ,such as State-level Newly Products ,Brand –name Products in Anhui Province ,Export brand-name products ,National first class enterprise of industrial export products ,and Provincial excellent private technology enterprise .The Group’s advanced products include Vertical Machining Center,Horizontal Machining Center , CNC Drilling and Milling Machine, CNC Lathe ,and General Medium-type Machinery .Depending on the best quality and performance ,our products are welcomed in domestic and international market .

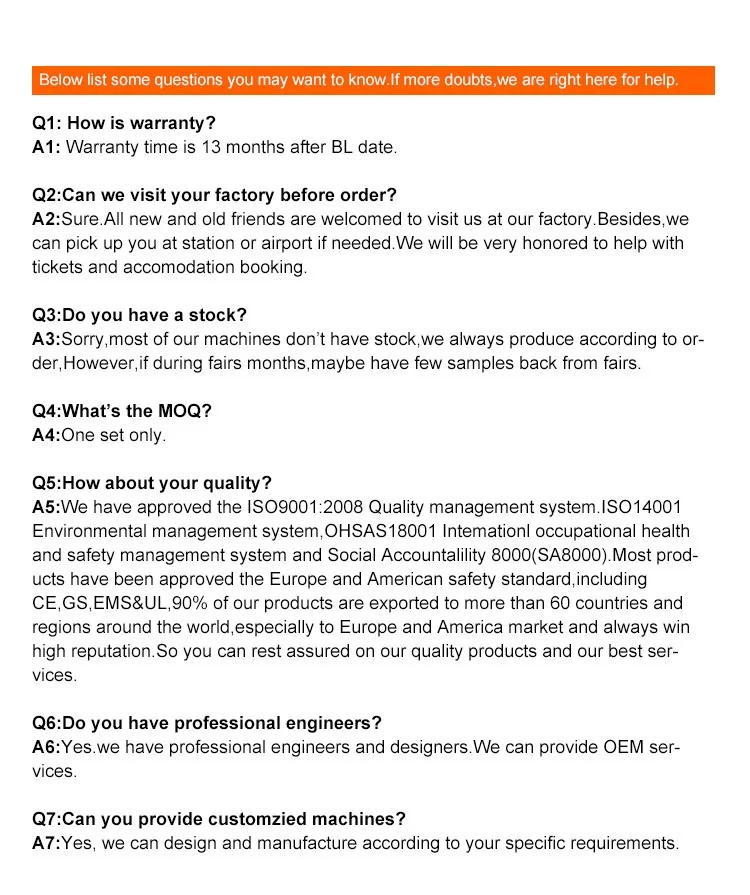

FAQ
