Attributes
-Working Table Size(mm)
CNC Routermachine type
CNCcnc or not
Guangdong, Chinaplace of origin
380 Vvoltage
1Power (kW)
weight (kg):33
warranty:1 Year
positioning accuracy (mm):0.01
number of axes:-
No. of Spindles:Other
travel (x axis)(mm):300
travel (y axis)(mm):500
repeatability (x/y/z) (mm):0.01
Spindle Motor Power (kw):1
brand name:LY
dimension(l*w*h):-
key selling points:Easy To Operate
machinery test report:Provided
video outgoing-inspection:Provided
core components:Bearing

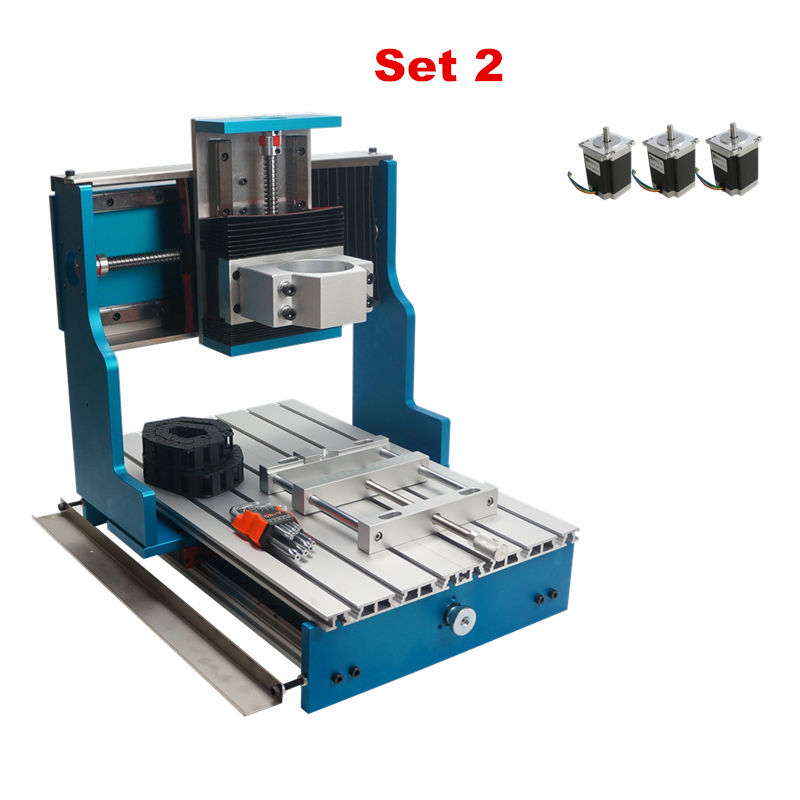

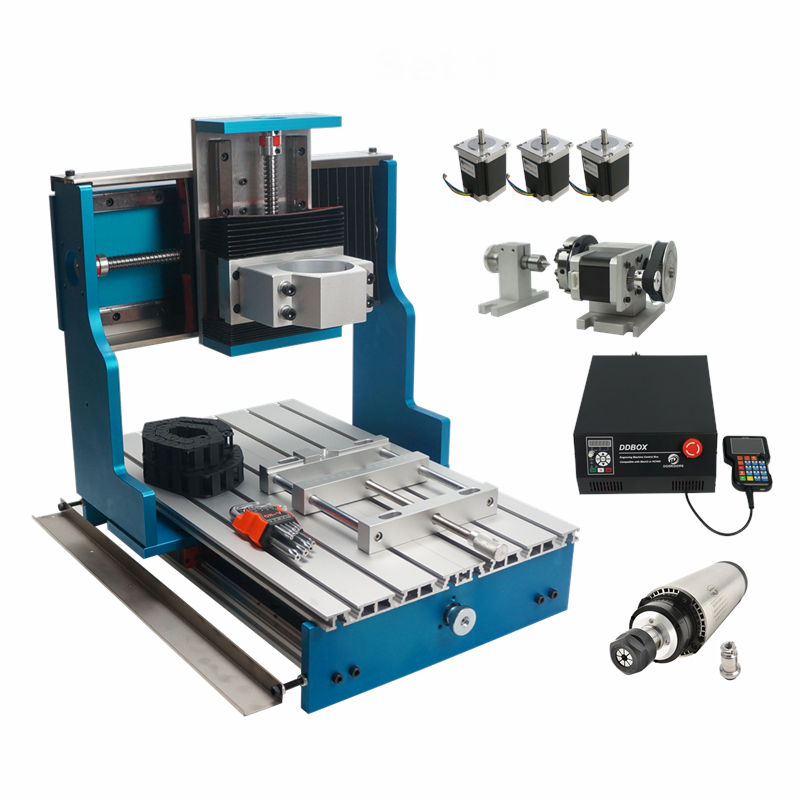

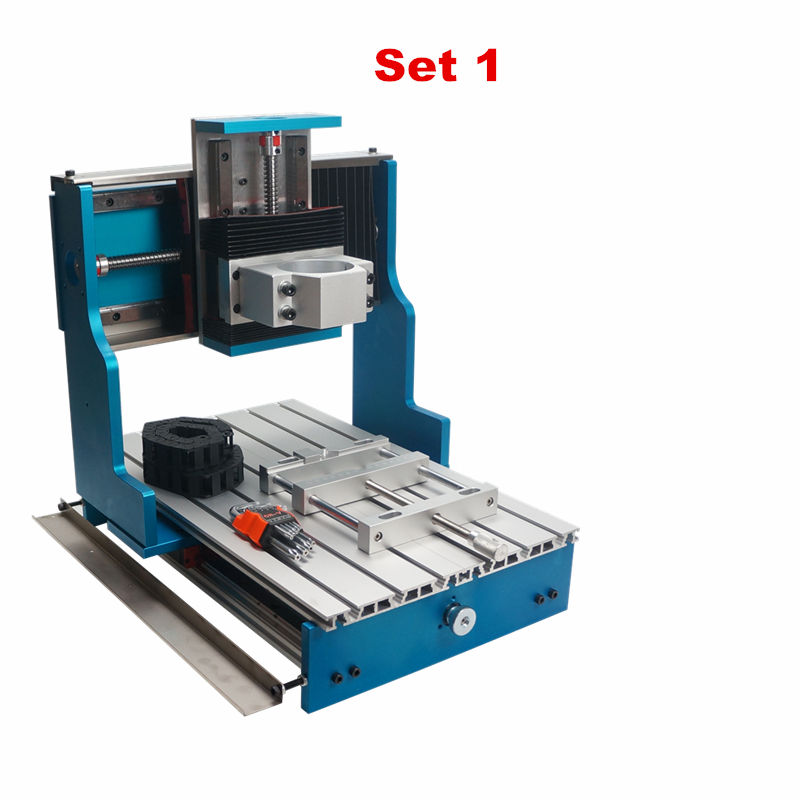

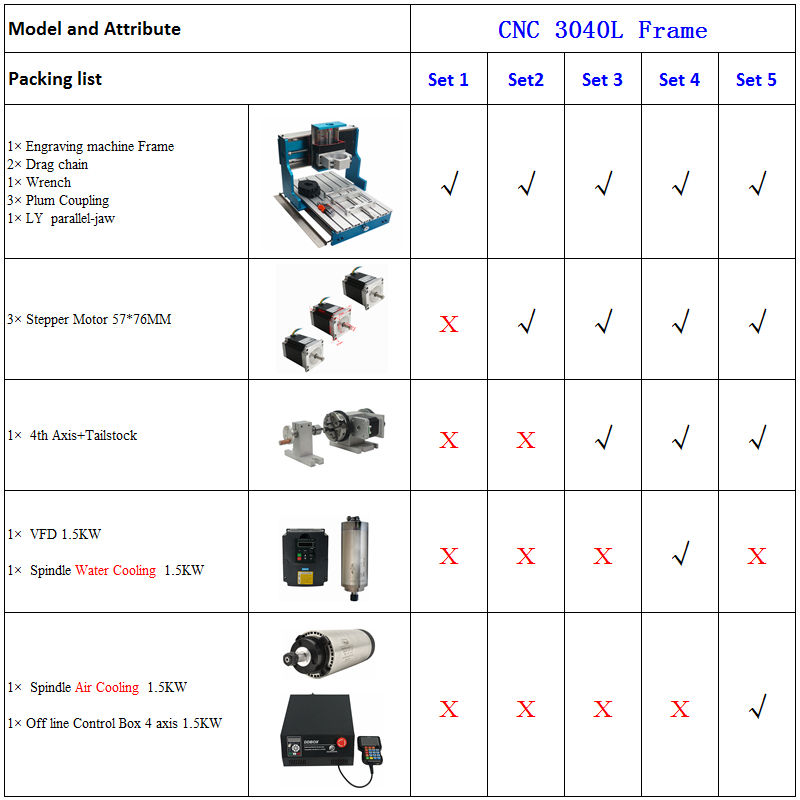

MODEL:CNC Frame 3040L

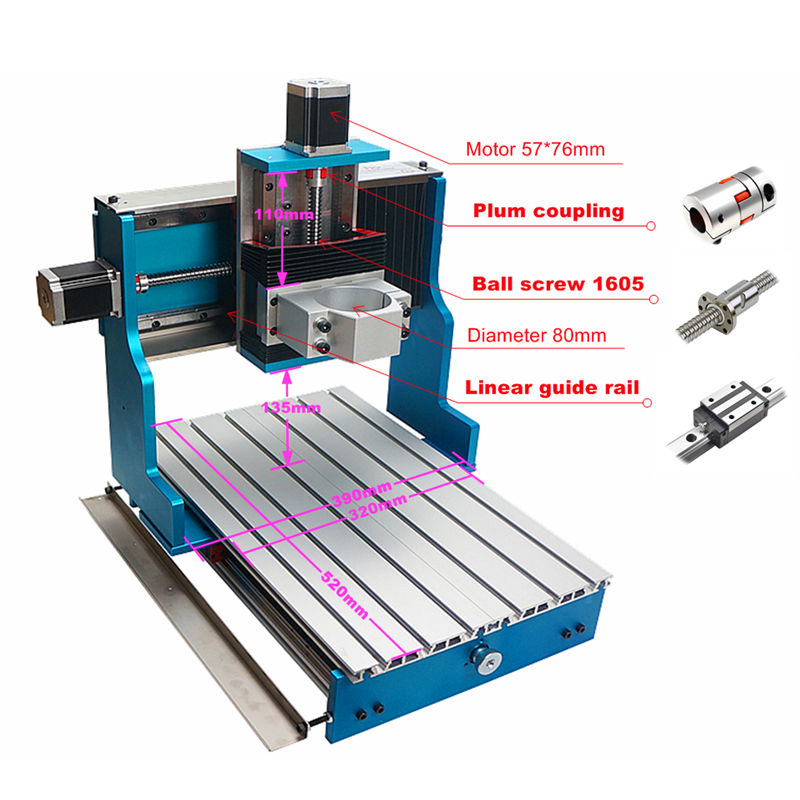

Table material::320 * 520mm (20mm aluminum alloy T table)
Engraving area::260*380*110mm
Z-Axis Stroke::110mm, Engraving depth depends on the length of the tool edge
Acceptable material thickness::≤ 135mm
Type of screw::Ball screw 1605
Diameter of Spindle motor::80mm
Motor:Nema 23 (57*76mm)
Rack material::6061 and 6063 Hard aluminum alloy
Selling Units:Single item
Single package size:53.0X52.0X52.0 cm
Single gross weight:33.000 kg
