CNC Hydraulic Refrigeration Condenser Evaporator Automatic Serpentine Stainless Steel Fin Copper Tube Pipe Bender Machine

  • 1 - 1 Sets
    $40,000.00
  • >=2 Sets
    $25,000.00
Model Number:
WAK-S
Samples:
$10,000.00 /Set | 1 Set (Min. Order) | Buy Samples
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Customization:
machine (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China
Condition:
New
Machine Type:
Beading Machine
Brand Name:
cangzheng
Raw Material:
PIPE
Material / Metal Processed:
Aluminum, copper, Steel
Power:
CNC
Automation:
Automatic
Extra Services:
Full automatic
Certification:
ce
Weight (KG):
1800
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support
Key Selling Points:
Competitive Price
Warranty:
1 Year
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Applicable Industries:
Manufacturing Plant
Local Service Location:
None
Showroom Location:
None
Tube Diameter:
3-12mm
Tube Wall Thickness:
0.3-1.0mm
Bending Capacity:
Single tube
Bending Angle:
1~180 degree
Bending Radius:
R11~R30
Bending Times:
Up to 110 times/cycle
Feeding length:
0-700mm/time, max. 3 times
Rotary Table Size:
2000mm
Air Pressure:
0.5-0.6MPa
Name:
condenser and evaporator full-Automatic copper tube bending machine
Product Certification certification
CE Certified.
Valid from 2016-10-17 until 2049-12-31
Supply Ability
Supply Ability:
10 Set/Sets per Month condenser and evaporator full-Automatic copper tube bending mach
Packaging & Delivery
Packaging Details
condenser and evaporator full-Automatic copper tube bending machine is packaged within wooden case.
Port
shanghai
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Video Description
Product Description

Condenser and evaporator full-Automatic copper tube bending machine

The full automatic serpentine bender is used to process single aluminum/ copper / Bundy tube with de-coiling, straightening and cutting machine and bending function in one line automatically. Compare to traditional manual process, the full-automatic machine improve the work efficient and save labor cost greatly.

Main Features

1.Three-part clamping die to minimize tube distortion, get smooth cutting end surface.
2.High accuracy concentricity ensures to get good welding quality in following process.
3.Chipless cutting with 360°rotary cutting and stretching with two points clamping.
4.Patented special designed servo control bending system for different bending direction and bending angle in exact size. (Patent No.: ZL 2011 1 0092227.X)
5.Patented special designed bending tools ensure exact bending radius, less deformation and good appearance (Patent No.: ZL 2011 2 0107426.9)
6.Patented special designed bending structure ensures the stable performance for up to 10-12 grouped tubes in one time. (Patent No.: ZL 2009 2 0013741.8)
7.Servo drive system, PLC control system, and touch screen control to get high accuracy product size with easy operation and maintenance.

Main Technical data
1
Tube Material
Copper tube / Aluminum tube /Bundy tube
2
Tube Diameter
Φ3-12mm
3
Tube Wall Thickness
0.3-1.0mm
4
Bending Capacity
Single tube
5
Bending Angle
1~180 degree
6
Bending Radius
R11~R30
7
Bending Times
Up to 110 times/cycle
8
Feeding length
0-700mm/time, max. 3 times
9
Rotary Table Size
Φ2000mm
10
Control System
PLC control / Touch Screen
11
Air Pressure
0.5-0.6MPa
12
Motor Power
13KW
13
Electric System
380V, 50Hz, 3Phae (Customized)
14
Dimension
4800 x 1300 x 1680 mm (Excluded Table)
15
Weight
About 3000 KG

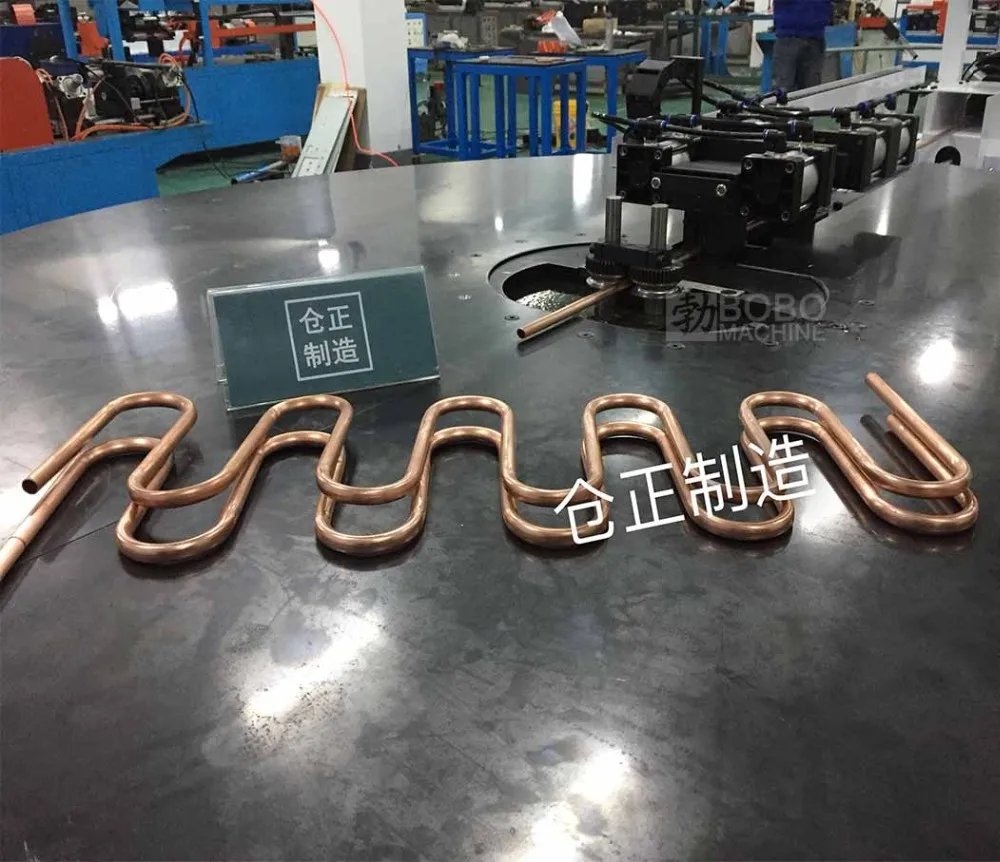

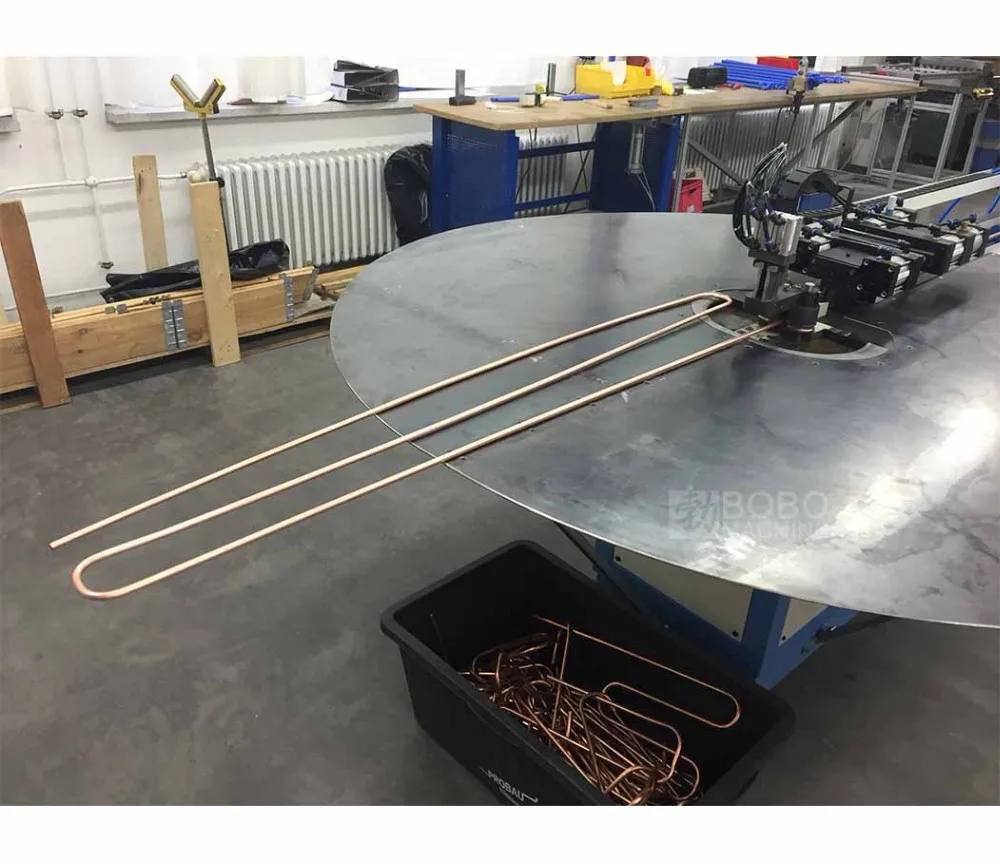

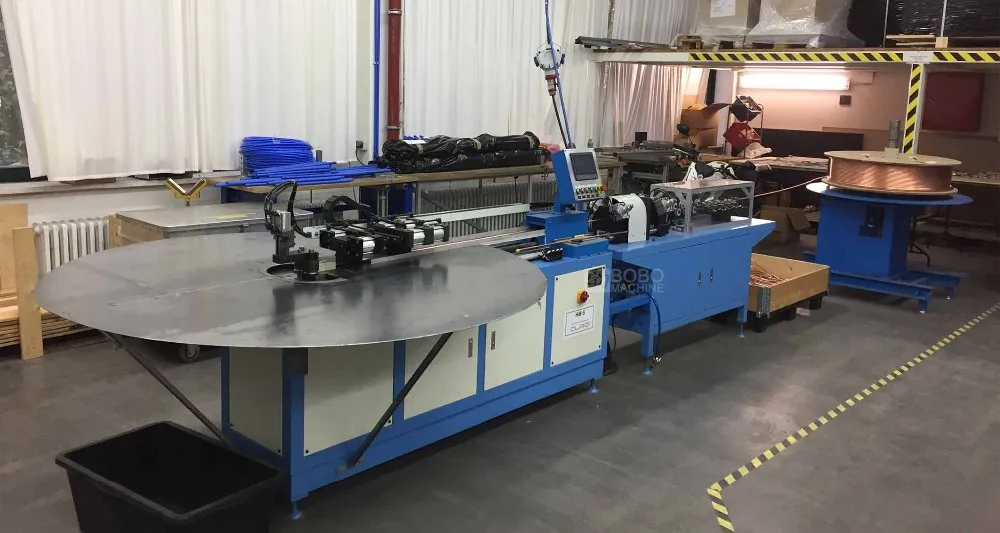

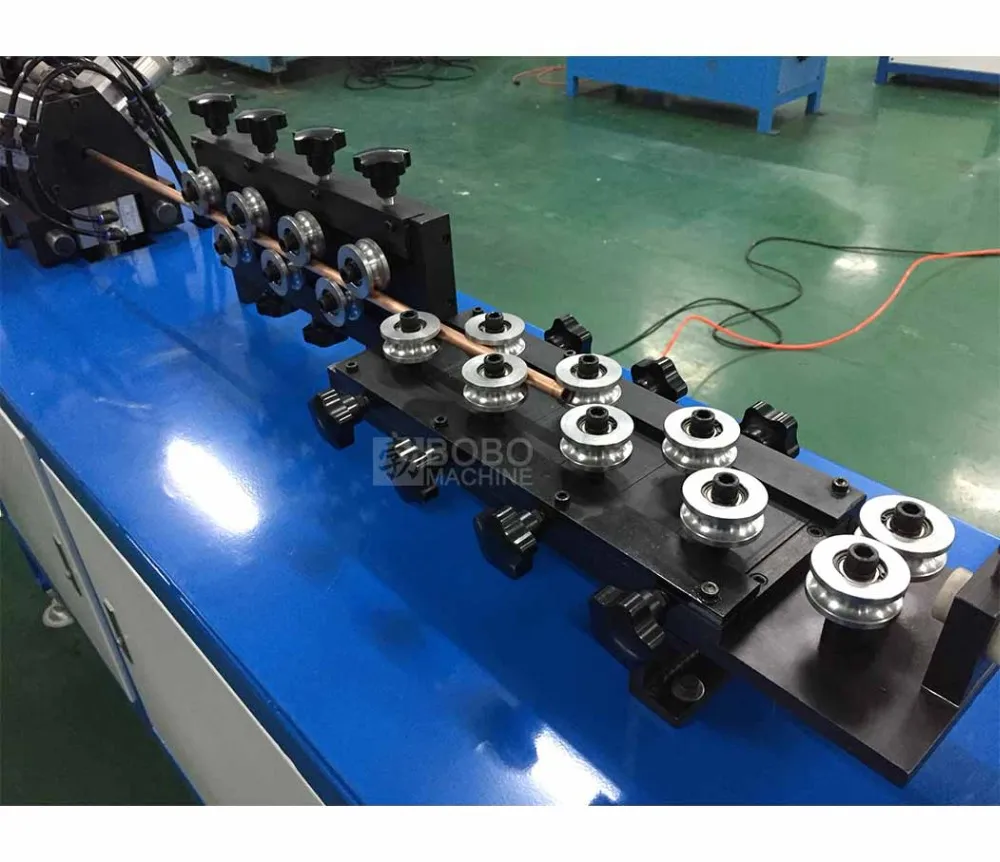

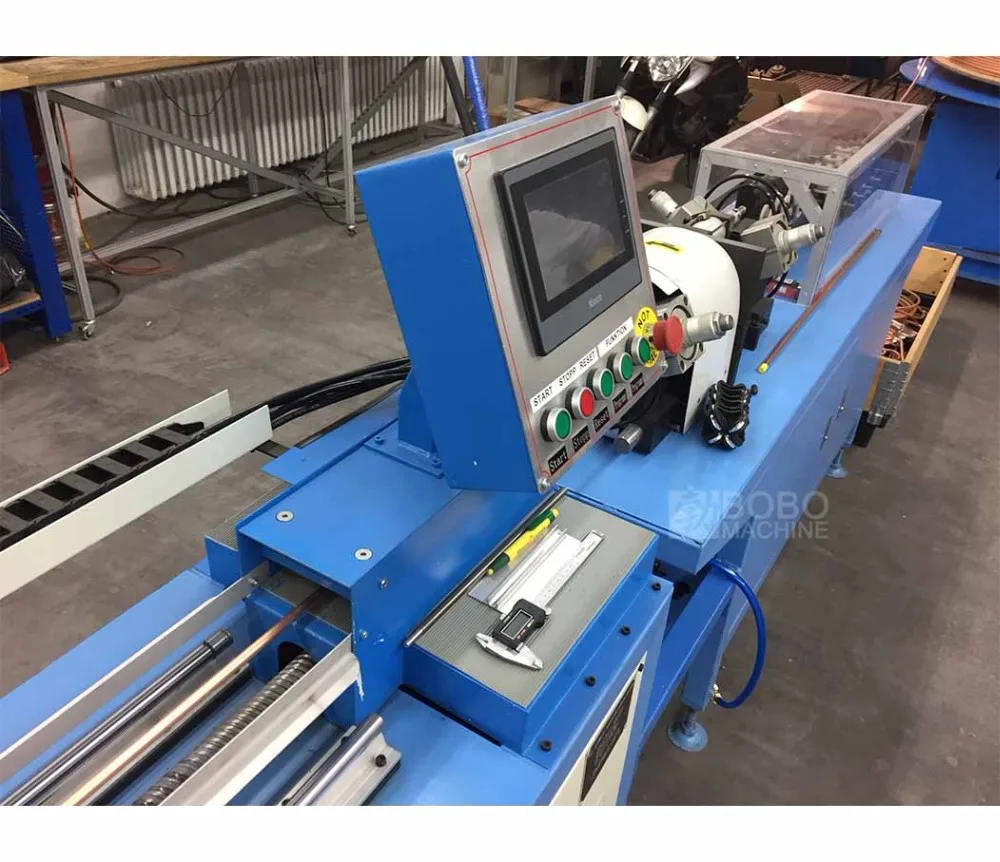

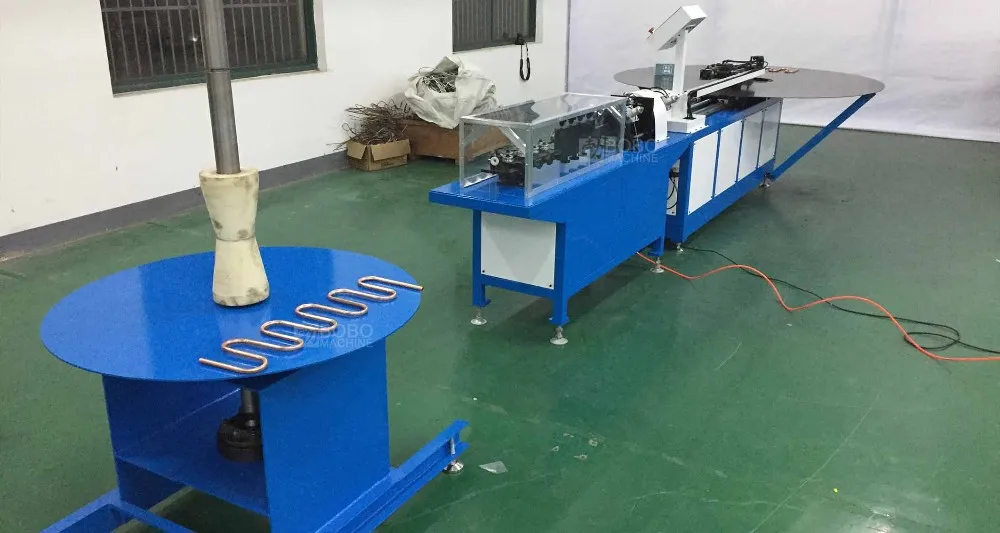

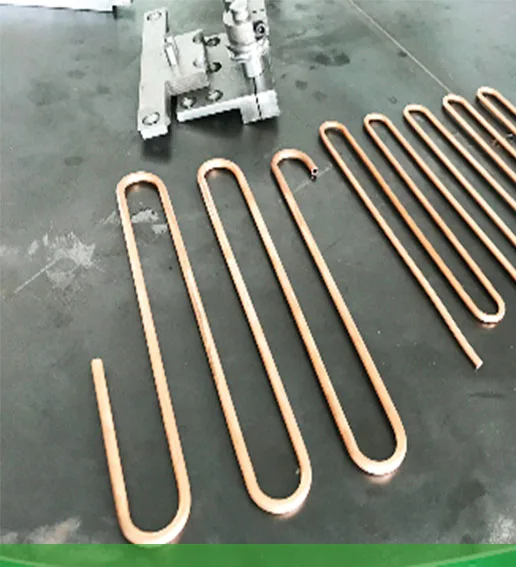

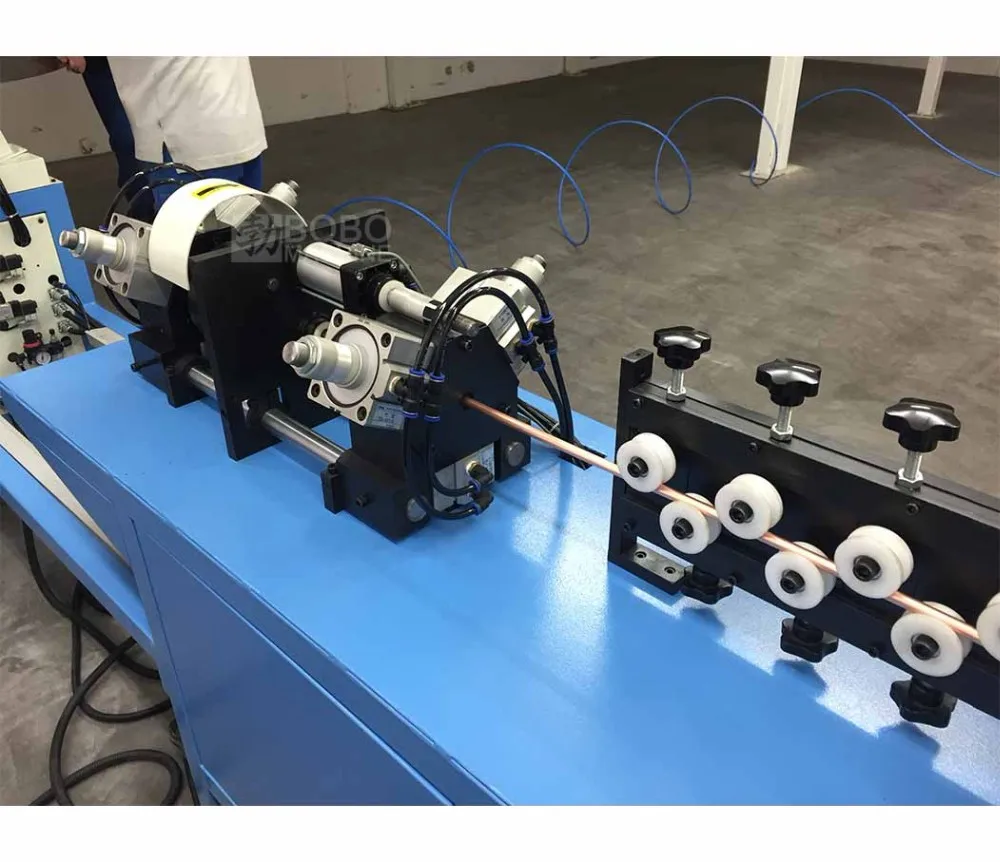

Detailed Images
Our Service

Guarantee

The guarantee period is one year since the date B/L. During this period, we will offer free parts for changing if machine quality problem. Also the spare parts can be offered in original cost after that. The freight for part sending will be paid by buyer.

After-Sales Service

We offer free training here in China. Also we can send technicians oversea for whole line installation and training. The relevant cost including Visa, insurance, round flight ticket, labor cost and accommodation should be borne by buyer

Packing & Delivery

Packaging

Size:4800 x 1300 x 1680 mm (Excluded Table)


WEight:About 3000KG

Packaging Details

The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
