CNC lathe machine with automatic bar feeder

FOB Reference Price:Get Latest Price
$3,000.00 - $12,000.00 / Set | 1 Set/Sets (Min. Order)
Spindle bore:
105mm
Max. Swing Diameter (mm):
630
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Customization:
Customized packaging (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
Type:
Horizontal
Condition:
New
Year:
2017
Max. Spindle Speed (r.p.m):
1000 r.p.m
Machining Capacity:
Heavy Duty
Spindle Motor Power(kW):
11
No. of Spindles:
Single
Max. Turned Length (mm):
3000
Number of Axes:
3
Positioning Accuracy (mm):
0.001 mm
Repeatability (X/Y/Z) (mm):
0.003
Place of Origin:
Shandong, China
Brand Name:
SANZHENG
Model Number:
CK6163G
Voltage:
220/380V
Certification:
CE
CNC Control System:
GSK
Weight (KG):
3000
Warranty:
1 YEAR
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
Applicable Industries:
Manufacturing Plant, Construction works , Energy & Mining
Key Selling Points:
High-accuracy
Machine Type:
Lathe Machine CNC
Product type:
CNC lathe machine with automatic bar feeder
Name:
large diameter metal cnc lathe machine
Spindle speed:
100-1000
Processing workpiece accuracy:
IT 7
power of main moter:
11kw
Control system:
gsk980TDC
Max. Swing Over carriage:
350mm
Z axis max. travel:
1500
Max.processing lenth:
3000mm
CNC or Not:
CNC
Automatic Grade:
Automatic
Max. Length of Workpiece (mm):
3000 mm
Max. Swing Diameter (mm):
630 mm
Supply Ability
Supply Ability:
500 Set/Sets per Month CNC lathe machine with automatic bar feeder
Packaging & Delivery
Packaging Details
wooden case
CNC lathe machine with automatic bar feeder
Port
Qing dao port
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Video Description
Product Description

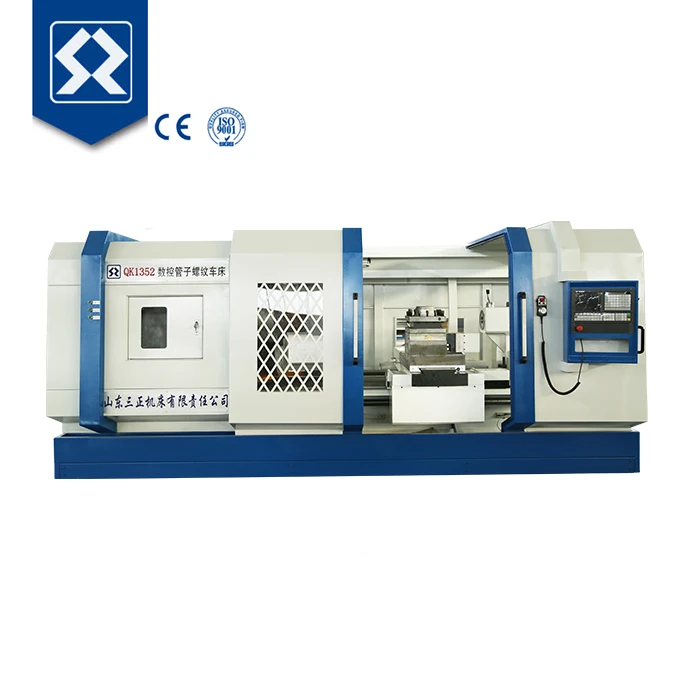

CNC lathe machine with automatic bar feeder
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
CNC lathe machine with automatic bar feeder .

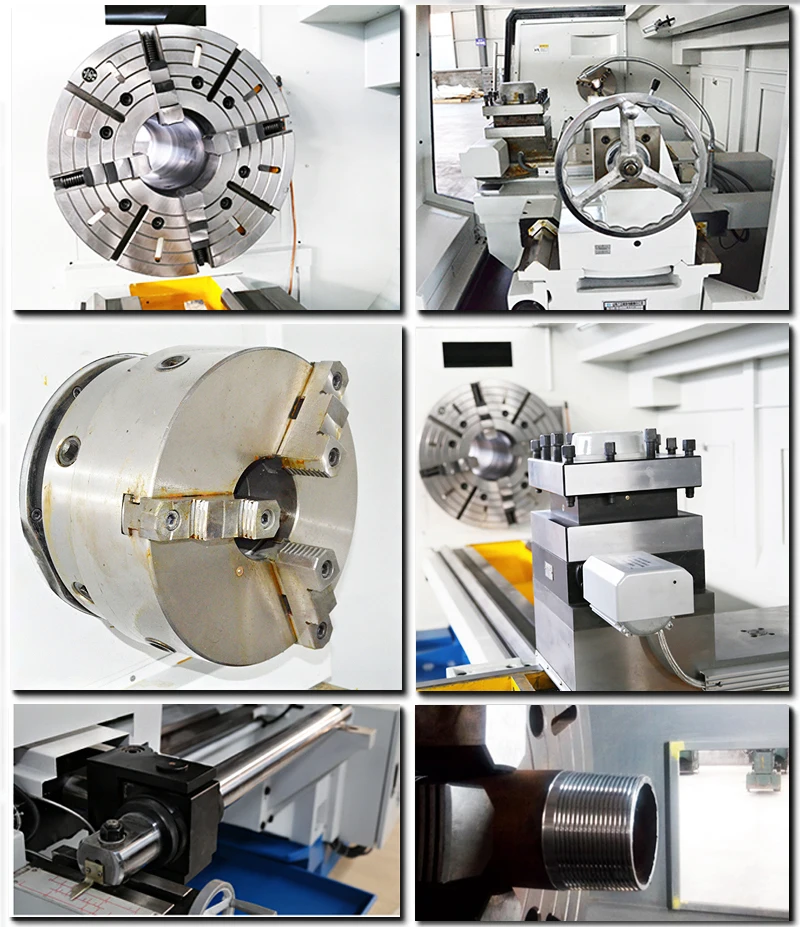

It is reasonably structured and easy to operate. The chip-removal device is in ack-tilting structure and the lathe as a whole receives natural aging treatment, heat-treatment and then ibration treatment. The guide rail is 550 mm wide and its surface is treated with high-frequency quenching. The spindle in the head stock is a three-point-supporting structure. The spindle has four shift of governing and the change between shifts is automatically by hydraulic means, Within each shift, the stepless governing is used to provide not only high speed and high accuracy but also allowing cutting leavy-load at low speed.
Model
CK6163G
Max. swing over bed
630mm
Max. swing over carriage
350mm
Max. processing length
1000/1500/3000mm
Guideway width
550mm
Range of spindle speed changes
17-1000 r/min
Taper hole ofspindle
Metric120(1:20)
Chuck connection form
D11
Power of main moto
11 kw
Z axis max. travel
1000/1500/3000mm
X axis max. travel
320mm
Quick traverse speed
4000mm/min
Minimum input unit
0.001
Pepeated positioning accuracy
+ 0.003
Power of main motor
Vertical 4
Tool post style
2.4s
Porcessing workpiece accuracy
IT7
CNC lathe machine with automatic bar feeder .
The guide rail's surface is treated with wear-resistant plastic-affixing technique and automatic intermittent lubricating mode is applied to extend its service life and increase its running accuracy. The operational box is of a suspended, independent and movable structure, with large range of movement, and it is also provided with a handheld pulse generator to make tool operating more.
Related Products
Packing&Shipping

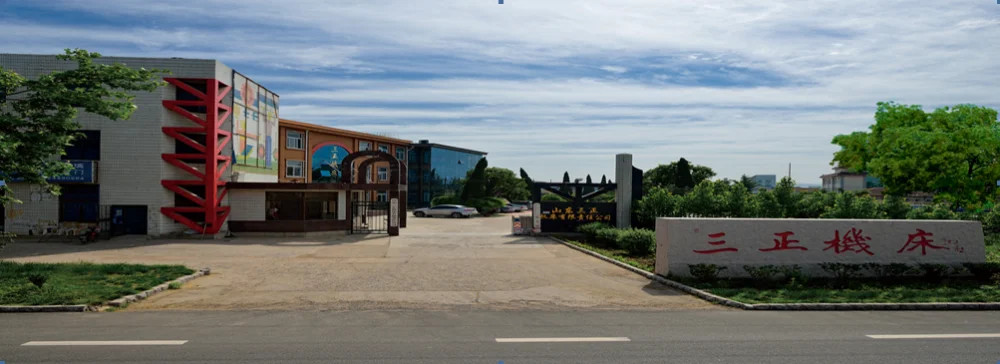

Company Introduction

Shandong ShanZheng Machine Tool CO.,LTD.,a large-scale professional lathe manufacture , is a more than 20years experience modern enterprises which cover the area of design, research, production sale and after-sale service in manufacturing pipe threading lathe. We passed the  ISO9001 quality management system certification, CE certification . The products are not just sold in China but also exported to Germany, Australia, Saudi Arabia, Holland, Chile, Singapore and other countries . We are the largest production suppliers Of pipe threading lathe in Germany.

Our faith “Quality is the most important and Honest is the key to development” is our forever operation philosophy.

Superiorities of our products:

1.Compared with other factories, casting material which produced by our company independently is really better than the others. The product adopts the advanced electric furnace melting resin sand molding casting technology, so the gas permeability is superior and it can effectively avoid the casting internal voids, porosity. We can absolutely ensure the casting quality after the analysis of United States imported equipment precision spectrometer. 2.With the super audio quenching treatment, the hardness of Body guide rail can reach HRC55 degrees and above. It can keep the hardness high accurate, and prolong the wear resistance and service life. The lathe beds of Other manufacturers are all adopted abutting joint because of cupola restrictions (1 tons of cupola a pack of hot metal) , but our six electric furnace are 3 tons, So our one to twelve meters lathe bed and guide screw are all for one with the better Stiffness and toughness. 3. The lathe bed we produced is all researched and developed by our own engineers. It adopts special structure ,and the natural aging treatment, these all can greatly increased the rigidity and are helpful to widen and thicken the dragging plate, therefore the machine will be more stable and have the stronger cutting ability.
