CNC machining center VDF850A from DRC Machinery

FOB Reference Price:Get Latest Price
US $30,000-40,000 / Set | 1 Set/Sets (Min. Order)
Supply Ability:
20 Set/Sets per Month
Port:
Dalian
Overview
Quick Details
Condition:
New
Type:
Vertical
Place of Origin:
Liaoning, China (Mainland)
Brand Name:
R&C
Model Number:
VDF850
Voltage:
380V
Power(W):
7.5/11KW(FANUC-0i-mate-MD)
Dimension(L*W*H):
3116*2260*2460mm
Weight:
5200kg
Certification:
ISO9001,CE
Warranty:
1 year, 1 year
After-sales Service Provided:
Engineers available to service machinery overseas
Package:
Sea worthy packing
Worktable size:
1000*500mm
Table load Max(kg):
500
X/Y/Z travel(mm):
850/510/510
Positioning accuracy:
X0.025 YZ0.020
Tool magazine capacity/Type:
20/drum 24/swing arm
Spindle motor power(kW):
7.5/11
Feedrate (mm/min):
17600
T-slot:
5*18*100
Packaging & Delivery
Packaging Details
Seaworthy packing is necessary to protect the goods from the strains of long sea voyage.
CNC machining center VDF850A from DRC Machinery
Delivery Time
60 days after received your payments
Product Description

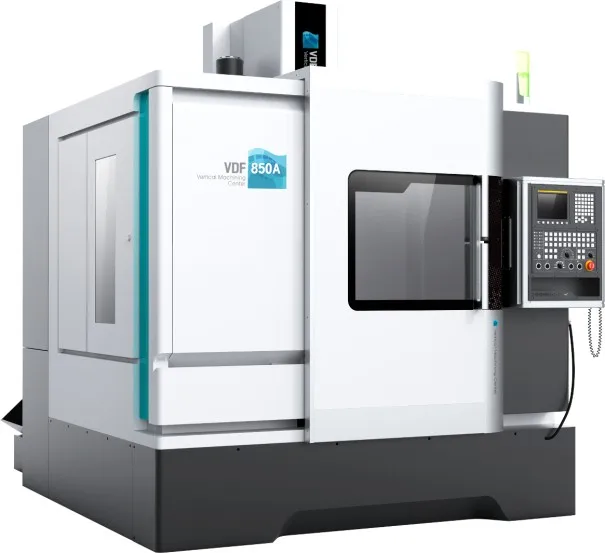

VDF850A CNC machining center

VDF-850A vertical machining center is a new generation of CNC machine tools produced by DRC Machinery. The machine is unique and stable and rigid structure. Through the repeated simulation and calculation of engineering mechanics, To achieve a rigid multiplier and streamlined engineering needs. Fully hardened mobile slide, with precision grinding processing, the combination of a satisfactory quality of precision. Not only for plate, disk, shell, precision parts of the processing, but also for mold processing.

SPECIFICATIONS FOR VDF850A
Main parameter
Unit
VDF850A
VDF1200
Workable size
mm
1000x5000
1220×620
Max loading capacity
kg
600
1200
X axis travel
mm
870
1220
Y axis travel
mm
530
620
Z axis travel
mm
530
685
The spindle center line to the front of the column distance
mm
550
660
The spindle end to the table on the plane distance
mm
530
85-770
X, Y, Z Cutting speed
mm/min
1 ~ 10000
0~10000
X, Y, Z Rapid traverse rate
m/min
20/20/20
20/20/18
The spindle speed range
r/min
60 ~ 8000
45~6000
Air pressure
Mpa
 0.6 ~ 0.8
0.5~0.8
The knife capacity
pics
20 or 24
24
Table T-slo
mm
 5×18×100
5×18 mm×100 mm
Positioning accuracy
mm
X/Y/Z:0.025/0.016/0.020
0.018/0.014/0.014
Repeat positioning accuracy
mm
X/Y/Z0.010/0.006/0.008
0.007/0.006/0.006
Machine  size
mm
2680 × 2260 × 2460
3000x2703x2900
Machine weight
kg
6500
8000

Main Features

1. Machine base, column, spindle box, cross slide, table and other basic pieces of all high-strength cast iron, stable organization, and permanently ensure quality.
2. High-speed, high-precision spindle:
3.  X, Y, Z axis feed are used hardened hard track, and with high-quality plastic guide plate composite sliding rail support.
4.  The machine is equipped with a fully enclosed protective cover, beautiful, safe, leakproof, protect the environment.
5.  High precision ball screw

Detailed Images


Machine Bed

Machine bed is made of high-strength cast iron, casting structure through the machine dynamics analysis and finite element analysis



Spindle

High-speed, high-precision spindle: through the high torque synchronous toothed belt drive, do not slip, and can significantly reduce the transmission noise and heat generated.


Workable Bench

The machine tool table is made of high strength cast iron, and the casting structure is subjected to machine tool dynamic analysis and finite element analysis, with reasonable reinforcement.

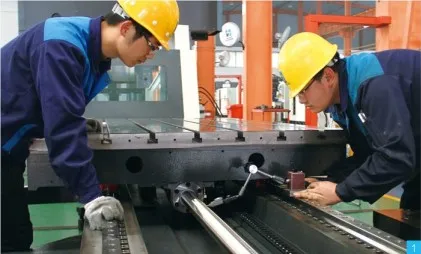

Guide

X, Y, Z axis feed are imported plastic hard rail structure, with high-precision ball screw, the ball screw after stretching, greatly increasing the transmission stiffness .

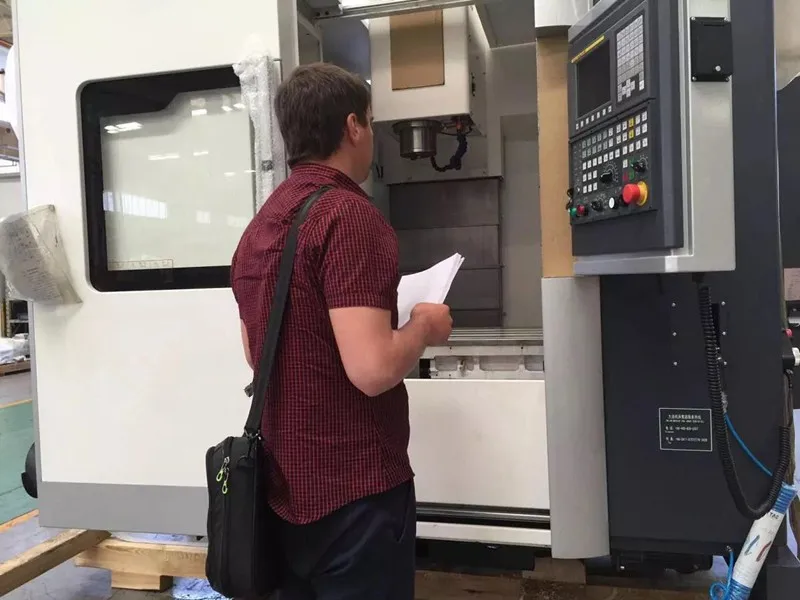

End User & Delivery
Related Products

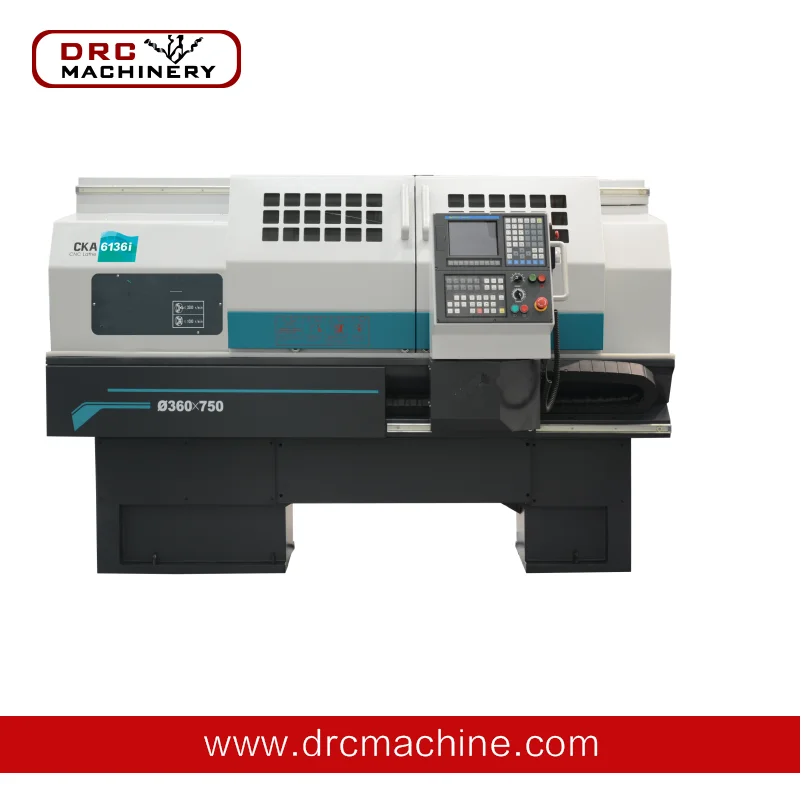

CNC lathe

CK6136I

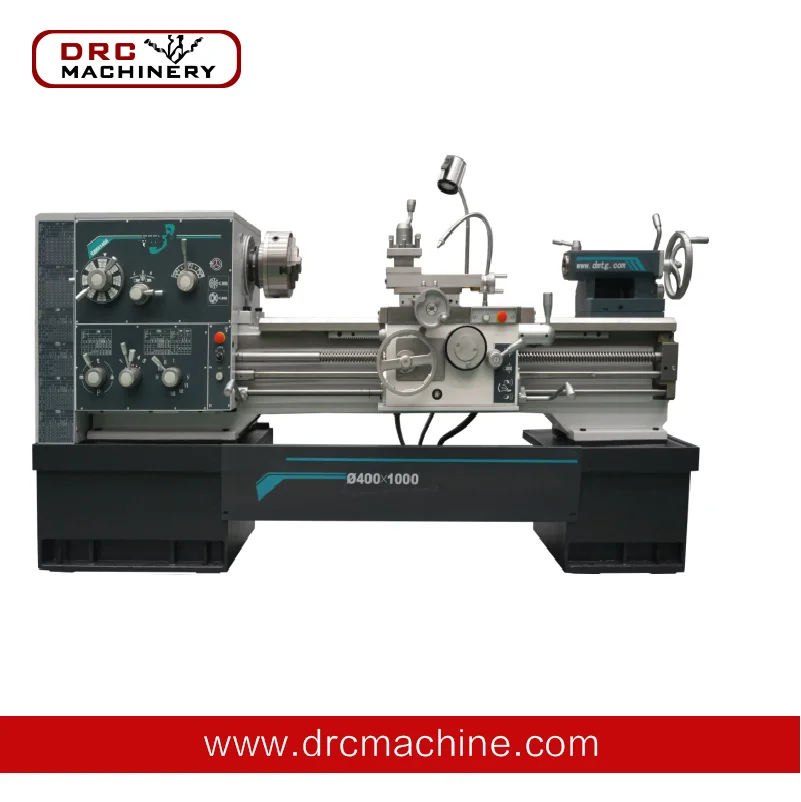

Conventional lathe

CDE6150

Horizontal machining center MDH50

Why Choose Us
After Sale Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

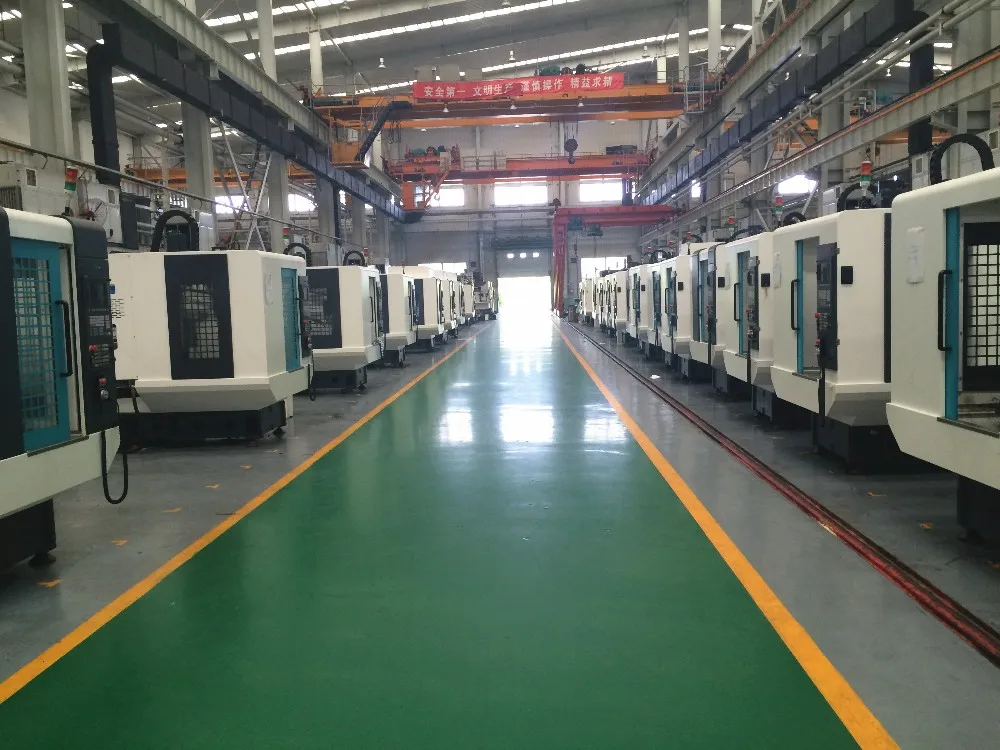

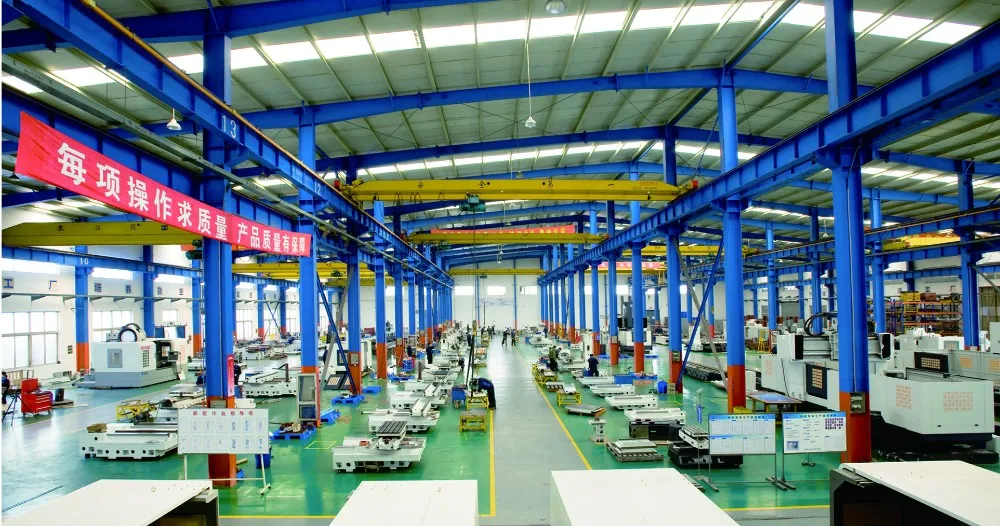

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

FAQ

1. What is your minimum order quantity ?
MOQ is one set.

2. Can your company send the technical personnel to our company and direct our workers for free?
When the machine arrive the buyer’s installation site, we timely send mechanical and electrical engineers to install according to the buyer's schedule, the buyer undertakes board and lodging of personnel abroad in the process of installation, and also USD100.00 per day per person. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.

3. What CNC system do you use?
Fanuc , Siemens, Mitsubishi , GSK etc. Its depends on your choice.

4. When is the delivery time.
Generally we would delivery about 60 days after received your prepayments


5. What is the warranty?
1). Our warranty is one year. 1. During the warranty period, because of product quality problems, the company is responsible for free maintenance, if need to change parts, we be responsible for free replacement.
2). 2. If the machine problem is not belonging to our machine quality problems, when the buyer needs us send engineers to give repairing service, we charge the appropriate cost.
