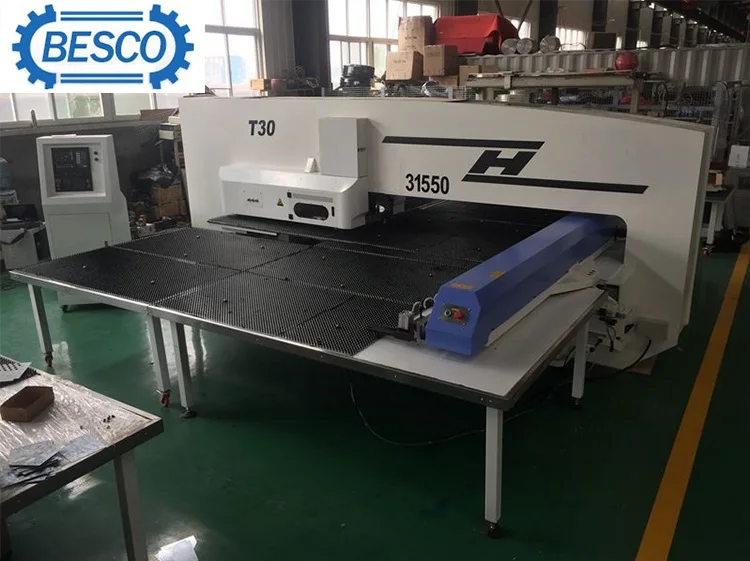

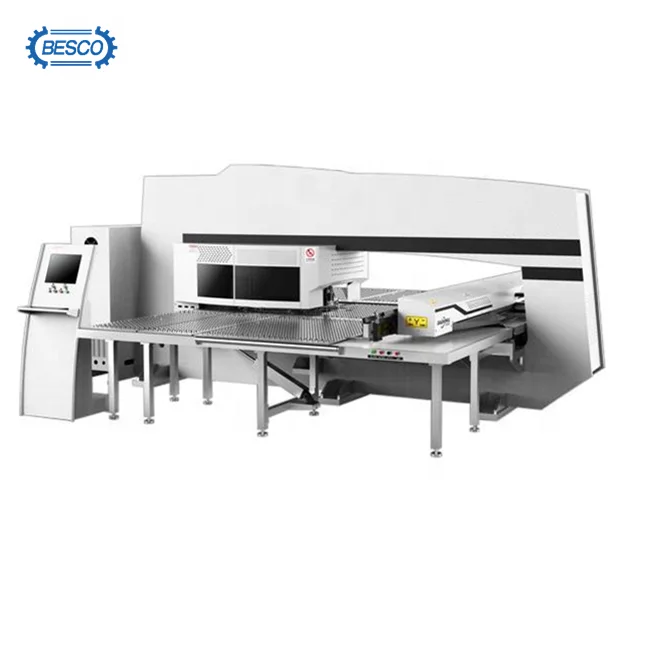

CNC metal punching machine mini metal cnc punching machine BESCO

Feedback Ratings
US $57000.00 / Set | 1 Set (Min. Order)
Model Number:
O-mechanical cnc turret pounch press
US $57000.0
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
45 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Contact Supplier
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Condition:
New
CNC or Not:
CNC
Power Source:
Mechanical
Place of Origin:
Shandong, China (Mainland)
Brand Name:
BESCO
Voltage:
220v-380v
Power(W):
10kw
Weight:
10ton
Dimension(L*W*H):
5500*3500*2300mm
Certification:
CE
Warranty:
1 Year
After-sales Service Provided:
Online support, Video technical support, Field installation, commissioning and training
range of one time processing:
1250*2500mm
ax movement speed:
40mm/mine
max thickness of workpiece:
6.35mm
mold station:
8/12/24/32set
self rotated moid:
2(C station) optional
process precision:
0.1mm
punch frequency:
160/240(double speed) hpm
bed structure:
C or O optional
Air pressure:
0.55mpa
Nominal Force:
300kN

Packaging & Delivery

Selling Units:
Single item
Single package size:
550X350X230 cm
Single gross weight:
10000.0 kg
Package Type:
The export packaging of o type mechanical numerical control turret punch is packed in large wooden boxes and fixed in container
Lead Time :
Quantity(Set) 1 - 5 >5
Est. Time(day) 45 To be negotiated
Video Description
Product Description

Product Application

CNC Turret punch Machine can be used for punching and stretching on thin sheet, and other machining with different shapes. Cnc mechanical punch press tooling is suitable for batch or sample processing to reduce mold input and production cost.Precis punch press  punching and air conditioner faceplate mainly used in various large high and low switchgear, control panel, air conditioning panel, cabinet, housing, metal furniture, kitchenware, advertising industry.
e
Name
Unit
Specification parameler
Norminal Force
kn
300
range of one time processing
mm
3050*5000
ax movement speed
mm/mine
40
Max thickness of workpiece
mm
6.35
mold station
set
8/12/24/32
self rotated mold
set
2(C station) optional
process precision
mm
0.1
punch frequency
hpm
160/240(double speed)
Bed structure

C or O optional
Air pressure
mpa
0.55
Machine power
kw
10
Machine weight
ton
10
Dimension
mm
5500*3500*2300

Main Features

1) Standard thick turret, adopting international universal 85 series mould, long guide, universal, high stability, marketing and positioning

2) Closed bed, good rigidity, small deformation, stable feeding support.

3) CNC punching special system, WINDOWS operation interface, pure Chinese hint, easy to learn, easy to operate

4) Bed guide rail design span, level, good support, to ensure processing accuracy, high-speed feeding stable.

5) Software added automatic search clamp position, no manual participation, high accuracy.

Certifications
Detailed Images

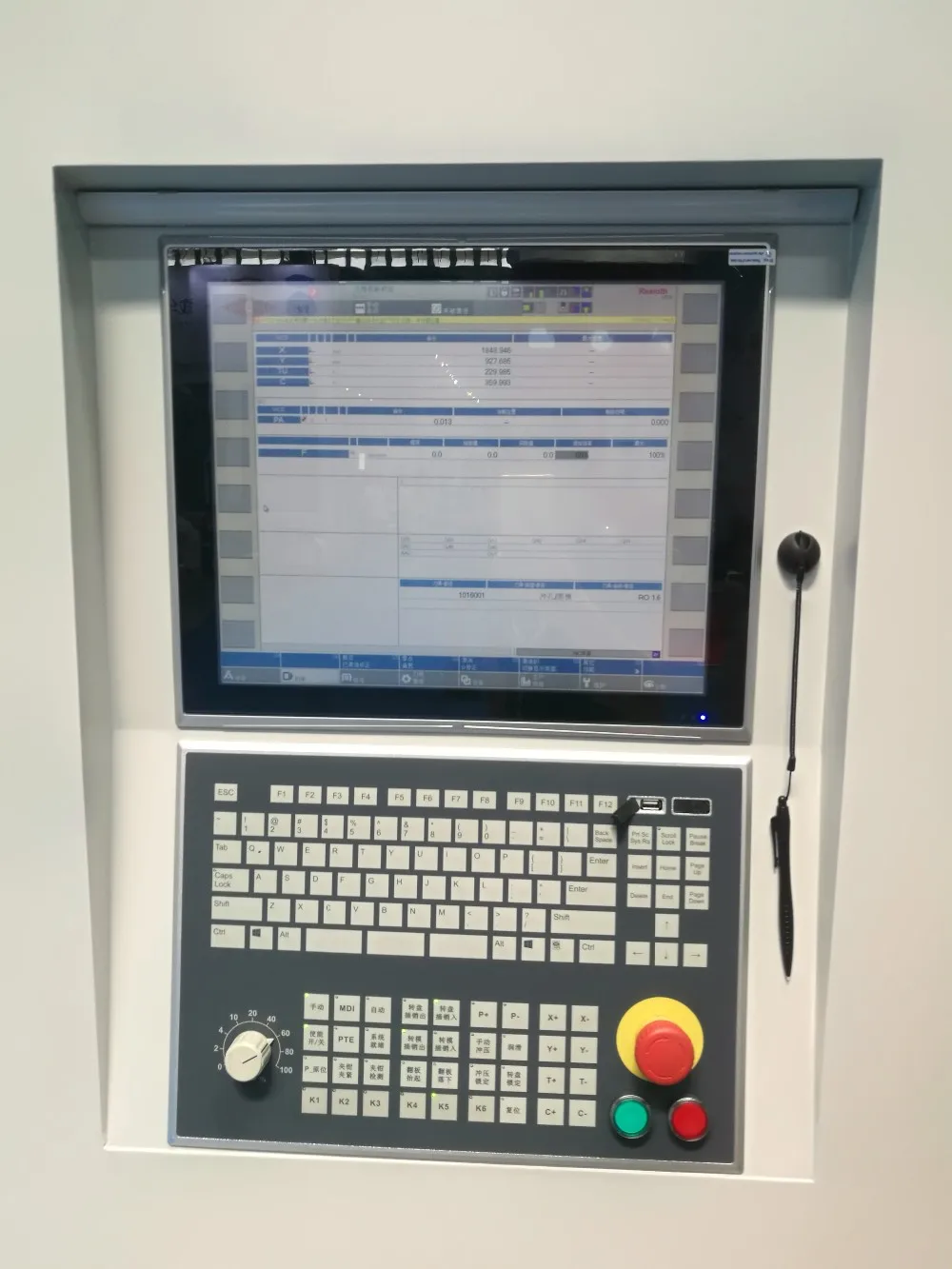

 CNC punching special system




WINDOWS operation interface, pure Chinese hint, easy to learn, easy to operate

Mould


Standard thick turret, adopting international universal 85 series mould, long guide, universal, high stability, marketing and positioning



BED STRUCTURE


1)Closed bed, good rigidity,

2)Small deformation,

3Stable feeding support.

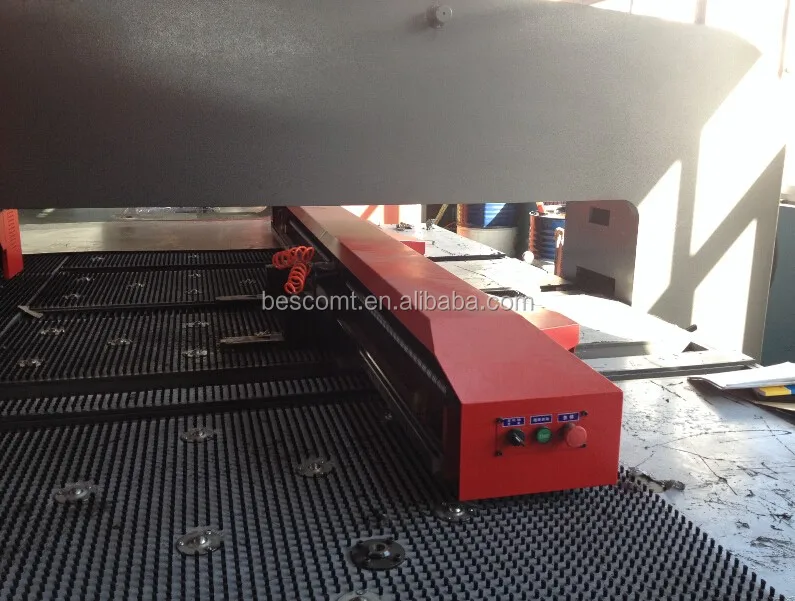

Bed guide rail design


1) Bed guide rail design span,


2) level, good support, to ensure processing accuracy,


3)high-speed feeding stable.

Our Service

Pre-Sales Service

*Technical solution


* Online video authentication machine work.

* 24 hours online service

After-Sales Service

Supplier will provide detail manual for software, hardware and trouble shooting, also supplier should give necessary guidance online if Buyer need. If it's necessary, Buyer should send regular his technical staff to Supplier for technical training..

Packing & Delivery
Packaging
Size
5500*3500*2300mm
Weight
10T

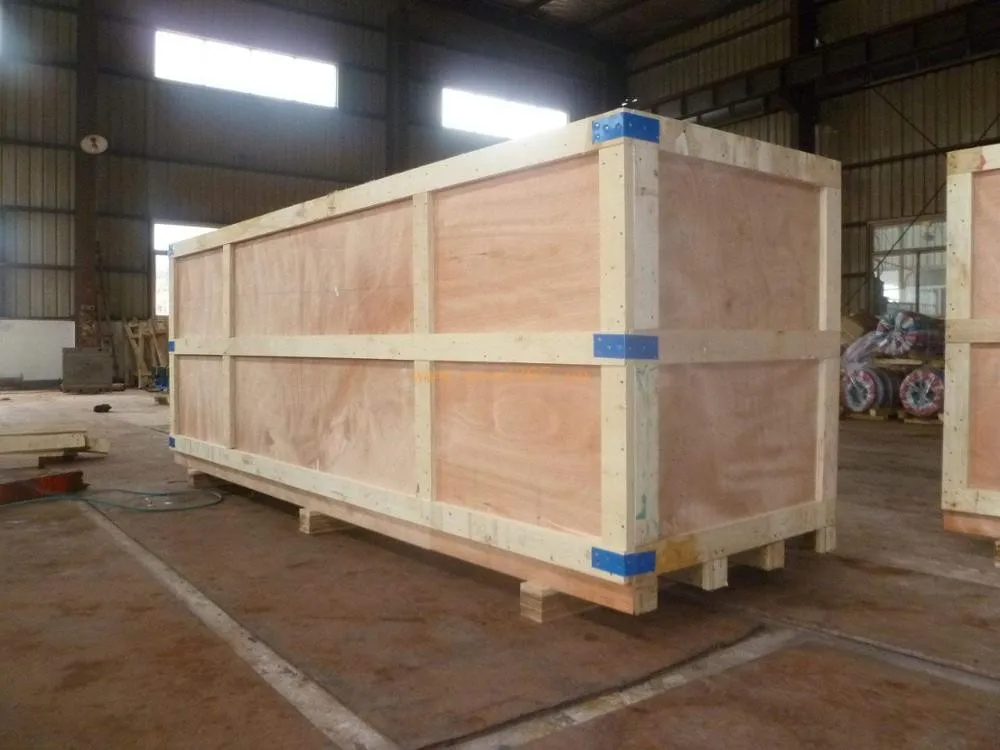

Packaging Details
We packed the machines in wooden cases and fixed them in container to ensure the safety of the machines and guarantee the use effect of the machines
Packaging Details
