COP-S-A-30 Stainless Steel Dirty Vegetable Oil Filter

FOB Reference Price:Get Latest Price
$9,900.00 - $10,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
COP-S-A-30
Lead Time:
Quantity(Sets) 1 - 1 2 - 5 6 - 10 >10
Est. Time(days) 10 30 45 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Flow:
1800 L/H
Working Pressure:
0.4Mpa
Place of Origin:
Chongqing, China (Mainland)
Brand Name:
TOP OIL PURIFIER
Usage:
Cooking Oil
Voltage:
380V/50HZ/3 Phase
Power(W):
≤0.4 mpa
Dimension(L*W*H):
1500*1050*1650 mm(L*W*H)
Weight:
450 KG
Certification:
CE; ISO
Color:
Any
Continous Working Time:
≥150 h
Moisture content:
≤50 PPM
Clean degree:
≤4 Grade (NAS1638)
Gas content:
≤0.1%
Power supply:
380V,50Hz, 3 phase (or as needed)
Type:
Cooking Oil Purification Machine
Normal Working Time:
≥4000 h
Function:
Removes particles, odor, water, acid and alcohol
Impurity size:
≤1 micron (no free carbon)
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
200 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard Export Wooden Cases
Port
Chongqing
Lead Time :
Quantity(Sets) 1 - 1 2 - 5 6 - 10 >10
Est. Time(days) 10 30 45 To be negotiated
Product Description

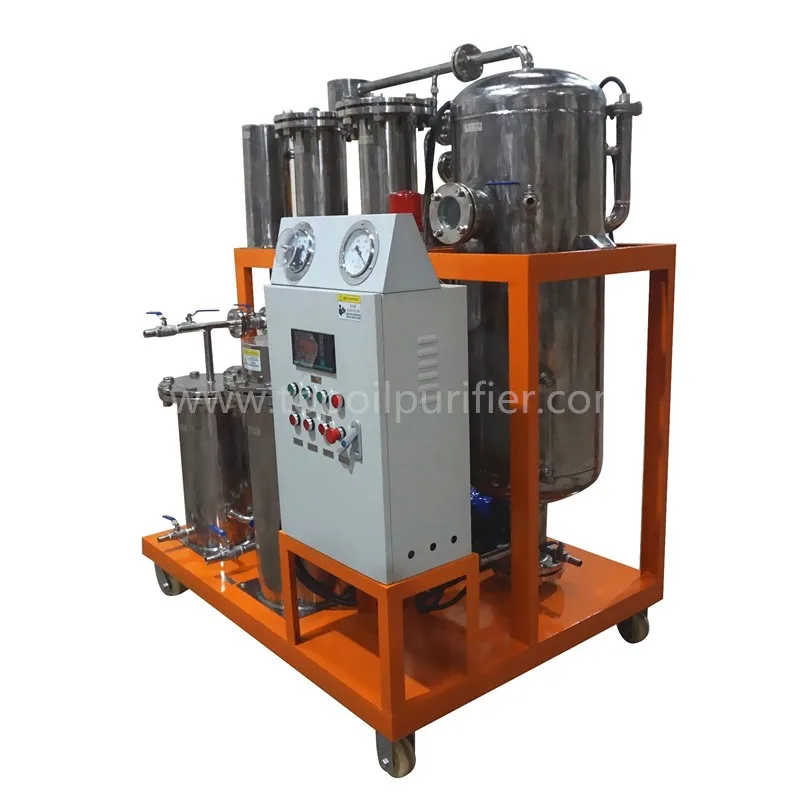

COP-S-A-30 Stainless Steel Dirty Vegetable Oil Filter

Product Application

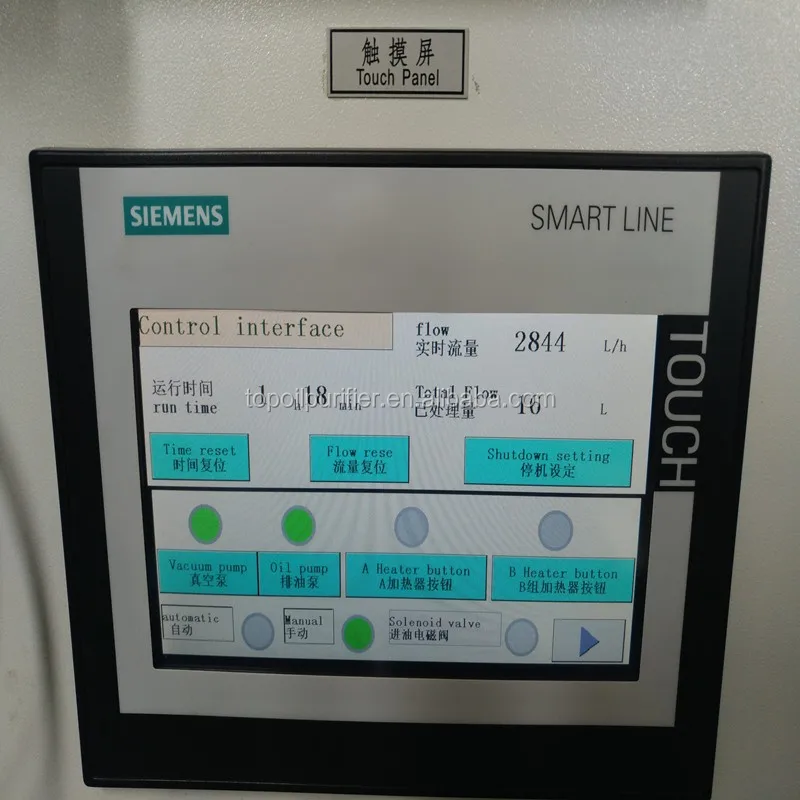

This COP-S-A-30 Stainless Steel Dirty Vegetable Oil Filter is made of stainless steel and equipped with a programmable logic controller which can automatical control the oil purifying progress.It is mainly used for purifying UCO used cooking oil, KFC oil, edible oil,  sesame oil, peanut oil, coconut oil, beam oil, kitchen oil, bio-diesel oil, plant oil, wood oil etc. It dewaters, deodorizes, and eliminates impurities highly effectively.

Product Features
1. Highly effective vacuum dewatering, deodorizing, and impurities removing system.
2. It adopts plate pressure system with the strong ability to filter the particles and impurities completely.
3. It has the back flush system which can clean the filter elements automatically.
4. Hi-automatically operated, convenient, reliable, and safe.

Product Features

5. We uses stainless steel filter element which has a good anti-corrosive performance. Especially, the precision of eliminating impurity is high and the service life is long. Also, it has large volume for holding the impurities.

6. Unique degassing and dewatering system: Using 3D-Evaporation technical and thin film evaporation, which can separate the trace water, soluble water and gases from the oil quickly by the Multi-level water-oil separation technology.

Technical Parameter
Parameters
Unit
COP-S-A-10
COP-S-A-20
COP-S-A-30
COP-S-A-50
COP-S-A-100
COP-S-A-150
COP-S-A-200
COP-S-A-300
Flow Rate
L/min
10
20
30
50
100
150
200
300
Working Vacuum
MPa
0.06 ~ -0.095
Working Pressure
MPa
≤0.4
Temperature Range
0 ~ 100
Power supply
380V,50Hz, 3 phase (or as needed)
Working noise
dB(A)
≤65~80
Working time
H
≥ 4000
Continuous working time
H
≥150
Working noise
dB(A)
≤75
≤75
≤75
≤78
≤78
≤78
≤80
≤82
Heating power
KW
36
40
45
72
80
90
120
135
Total power
KW
38
42
47
75
87
101
135
147
Inlet/outlet
mm
25
25
25
32
42
50
50
60
Net weight
Kg
350
380
400
450
550
650
700
750
Overall dimensions
mm
1500×1000×1600
1500
×1050
×1600
1500
×1050
×1650
1600
×1150
×1700
1750
×1150
×1750
1900
×1600
×1950
1950
×1600
×1950
2100
×1600
×2000
Guarantee Value
Item
Guarantee indexes
Moisture content
≤50 PPM
Demulsification value
New oil≤15min,running oil≤30min
Impurity size
≤1 micron (no free carbon)
Gas content
≤0.1%
Clean degree
≤4 Grade (NAS1638)
Our Company

Chongqing TOP Oil Purifier Manufacture Co., Ltd is a professional leading manufacturer of oil purifiers and oil testers. We takes the mission of existing on the basis of excellent quality as well as developing technical innovation,and introduces advanced technology.


TOP Oil Purifiers are widespread in the fields of electric power, petrifaction, mineral, shipbuilding, steel construction, bridge, automobile and railway, playing a great role in reducing energy consumption for clients as well as environmental pollution. We provides you with reliable oil purifiers such as transformer oil purifier, turbine oil purification machine, hydraulic oil purifier, lubricating oil filtration machine, fuel oil restoration, oil and water separator, oil regeneration equipment, waste oil recycling equipment etc.

TOP Testers works on the development, production, market, technical and after-sale service for petrochemical analyzers, transformer substation electrical testing equipment and circuit detecting equipment. Main products are water content testers, surface/interfacial tension testers, flash point testers, kinematic viscosity testers, oil acidity testers, insulation oil dielectric strength testers, transformer characteristics testers, relay protection testers, high voltage testing equipment etc.

Factory On-Site

Plate Rolling                                                                            Soldering Machine

Cutting Material                                                                      Polishing Vacuum Tank

Certificates
Our Service

Trustworthy technical and after sale service:

1. Long-term warranty of 2 years.
2. Provide best spare parts at low price (some for free).
3. Provide timely reply and technical support.
4. If anything wrong with the equipment, we would give prompt response and provide solution within 24 hours.
5. If there is technological innovation, we would guide our customer to upgrade.

Packing & Delivery
Safety and Timely Transportation

*Standard export wooden case with high quality cushioning material ensure the item arrive customer in good condition.
*Carefully check every packing detail before delivery to avoid any troubles during the transportation.

*Appointed logistics company could be used according to customers demands.

* Do our best to make sure customer can get their goods in time.
