COSINE Automatic basmati rice packing machine at best price

FOB Reference Price:Get Latest Price
$13,000.00 - $40,000.00 / Sets | 1 Set/Sets stand up pouch packing machine (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Packaging Type:
Bags, Barrel, Bottles, Cans, Capsule, Cartons, Case, Pouch, Stand-up Pouch, stand up pouch packing machine
Packaging Material:
Glass, Metal, Paper, Plastic, Wood, stand up pouch packing machine
Condition:
New
Application:
Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles, stand up pouch packing machine
Automatic Grade:
Automatic
Driven Type:
Pneumatic
Voltage:
Customized
Power:
2.5KW
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
Cosine
Model Number:
GD-8-200
Dimension(L*W*H):
2100*1500*1800 mm
Weight:
1300kg
Certification:
CE SGS
for:
stand up pouch packing machine
Product name:
stand up pouch packing machine
Usage:
stand up pouch packing machine
Processing Types:
stand up pouch packing machine
Warranty:
One year free warranty maintenance for life
Capacity:
1200-3000 pouch/hour
Filling material:
liquid and paste and granule
Processing:
load pouch, filling and packing
Air Pressure:
0.6Mpa
Name:
stand up pouch packing machine
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
stand up pouch packing machine be packed into wooden case.
Port
shanghai
Lead Time :
Shipped in 30 days after payment
Video Description

 COSINE Automatic basmati rice packing machine at best price

Product Description



Stand up pouch packing machines Application:

This is suitable for filling and sealing for:

1. Solid Species: Candy, chocolate, rock candy, cookies, cakes, peanuts, green beans, pistachios, nuts, cooked food, pickles, puffed food, daily necessities, etc.

2. Granule Species: grain, MSG, chicken essence, sugar, melon seeds, nuts, capsules, granular medicines, seeds, feed, pesticides, fertilizers, chemical raw materials, vegetable seeds ,etc.

3. Powder species: spices, monosodium glutamate, salt, glucose, refined sugar, milk powder, washing powder, pesticides fertilizers, chemical raw materials.

4. Liquid Species: rice wine, soy sauce, rice vinegar, fruit juice, beverages, detergent , milk ,water ,and so on.

5. Thick liquid Species: tomato sauce, peanut butter, jam, chili sauce, bean paste and so on.

6. And others ......



Stand up pouch packing machines introduce:

1) Easy to operate, adopt advanced PLC from Germany Siemens, mate with touch and electric control system, the man-machine interface is friendly.

2) Frequency conversion adjusts the speed: this machine uses frequency conversion equipment, can be adjusted within the range according to the needs of reality in production.

3) Automatic checking: no pouch or pouch open error, no fill, no seal. The bag can be used again, avoid wasting packing materials and raw materials.

4) Safety device: Machine stop at abnormal air pressure, heater disconnection alarm.

5) Horizontal conveyer style to giving bag: it can put on more bags on the bag storage and have a low requirement about the quality of bags.

6) The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of clips, easily operate, and save time.

7) Use the plastic bearing; don't need put on oil, less pollution.

8) Use no oil vacuum pump; avoid polluting the environment in the production.

9) The open zipper framework is special in the feature of zipper bag, it can avoid distortion or destroy when open zipper.

10) The packing materials loss low, what this machine is used the reformed bag, the bag pattern is prefect and has a high quality of the sealing part, this improved the product specification.

11) Product or packing bag contact parts adopt stainless steel or other materials which accord with the food hygienic requirements, guarantee hygiene and security of the food.

12) With different feeders changed to pack solid, liquid, thick liquid, power and so on.

13) The packing bag suits in extensive range, suit for multi-layer compound, monolayer PE, PP and so on preformed bag made by film and paper.



Stand up pouch packing machines Basic Workflow:

1. Giving bags

2. Date printing

3. Open bags 1st

4. Open bags 2nd (Integrity open the bottom of bag)

5. Filling & Vibrate (Check 1: No bag or bag open error, no filling)

6. Filling 2nd (Or instead of Filling 2nd)

7. Sealing 1st (Check 2: No bag, no sealing. Safety device: Machine stop at abnormal air pressure, heater disconnection alarm)

8. Sealing 2nd & Output Product



Stand up pouch packing machines technical parameters:



Working Position

Eight-working position

Pouch Material

Laminated film

Pouch Size

W:100-210mm L:100-350mm

Filling Scope

Granule

10-1000g  (can be adjusted)

Liquid

50-500ml  (can be adjusted)

Weight Accuracy

Granule

±0.1-2g

Liquid

±1-5ml

Speed

10-60 pouches/min

(The speed depends on the product status and filling weight)

Power source

380V 3phase  50HZ

Total power

8 KW

Compress air

0.6m3/min





Our Support and service:

  • Detailed user's manual,English type;
  • Detailed video of showing machine installation and operation;
  • Detailed pictures of showing how to adjust machine's speed, how to adjust filling volume, how to adjust strength of vibrating, how to adjust strength of capping, how to maintance
  • After sale response time less than 4 hours ;
  • We can provide door to door service ;
  • We can provide free training in factory;
  • We provide free on-line service by Skype, Wechat...to help you solve problem.
  • Please contact us to get more details.

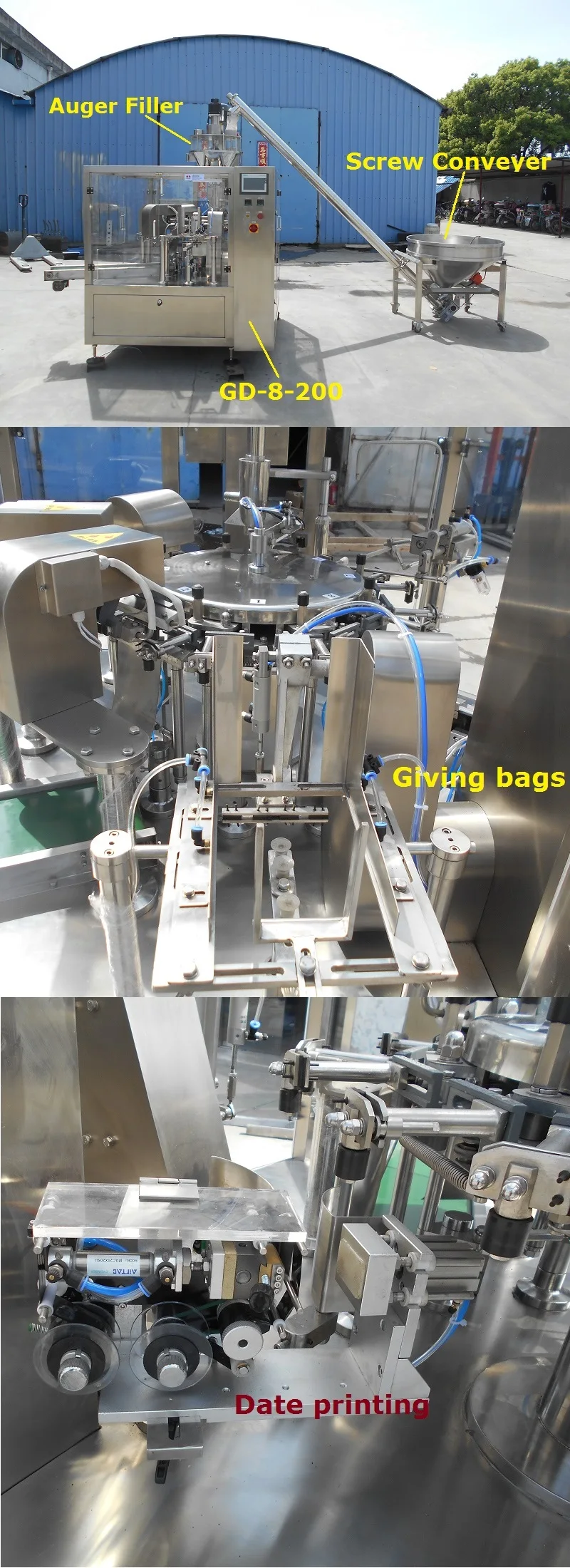

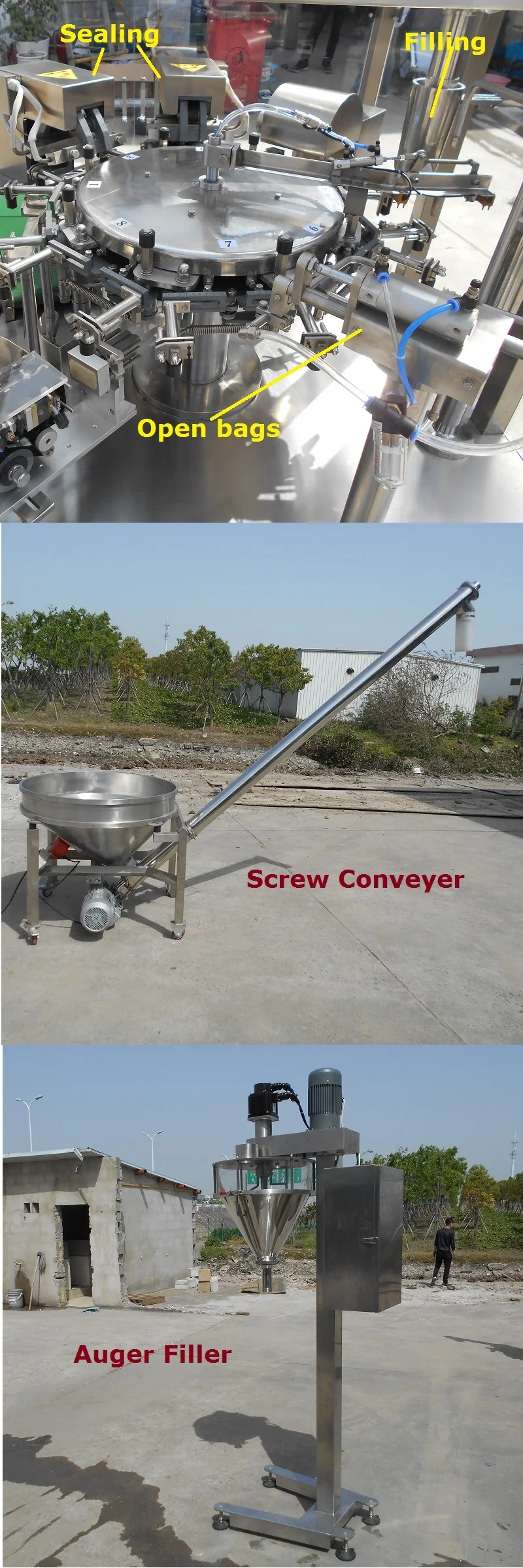

Machine picture.



Sample picture:




product categories







company profile









production flow



customer visit



certificate show



packing







payment and shipping







contact us

FAQ:

Q1:Are you factory or trading company?

A: We are factory and manufacturer. We provide great product and service.



Q2: Where is your factory located? How can I visit your factory?

A: We are located in Shanghai, you can fly to Shanghai Hongqiao airport or Pudong airport. Wecan pick you up from the airport or your hotel.

Our factory address is : NO 1082 Jiaxin Road, Jiading District, Shanghai ,China.

Welcome to visit us!



Q3:How to place an order to us ?

A: Just contact us via TraderManager, E-mail, Skype, WhatsApp or telephone to confirm the product, Wire the deposit by T/T, then we will start to design and manufacture...



Q4 : What is the payment term?

A: 30% T/T deposit and 70% T/T balance payment before shipping.

   For small value, we also can accept Paypal or Western Union.



Q5:How long is the delivery time?

A: About 20- 40 working days.



Q6 : What is the guarantee and service of machine ?

A: One year free warranty, life-long maintenance. We can provide free high quality service on-line, we also can provide door to door service, this is paid service.
