CRC9 to sma best car satellite tv antenna with connector mount 900/1800mhz gsm

Feedback Ratings
  • 1-1999 Pieces
    $0.34
  • 2000-4999 Pieces
    $0.33
  • >=5000 Pieces
    $0.31
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
3 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
YSTOOM
Model Number:
YA-SMAk/CRC9-143-02
Frequency range:
0-6GHz
Temperature range:
-55 ℃ to +155℃
Relative humidity:
≤95%
Working Voltage:
500V
Standard retention:
≥0.28N
Normal Force:
63N MAX
Un Engagement Force:
8N-20N
Contact Resistance:
≤2.5m ,
VSWR:
~1Ghz ≤1.22
Carton weight:
0.2kg/100pcs

Packaging & Delivery

Selling Units:
Single item
Single package size:
3X3X3 cm
Single gross weight:
0.002 kg
Lead Time :
Quantity(Piece) 1 - 5000 >5000
Est. Time(days) 3 To be negotiated

Related RF & Coaxial Connectors

YA-SMAk/CRC9-143-02 is engineered to carry analog signals while minimizing RF signal losses.Hurryup's RF and coax connectors feature impe-dance matched designs and microminiature interfaces,with the ruggedness to help with stand high-use in harsh environments. Available with tight-tolerance electrical characteristics, small sizes,and rugged yet lighter weight materials. The RF connectors and coax connectors include SMA,SMB,BNC,TNC,MCX,MMCX,N-type,F-type,IPEX,FME.,etc.All the connectors with the versatility needed in high-density packaging. they are manufactured with crimp,solder,and clamp terminations for easy cable termination.

Standard Tips:

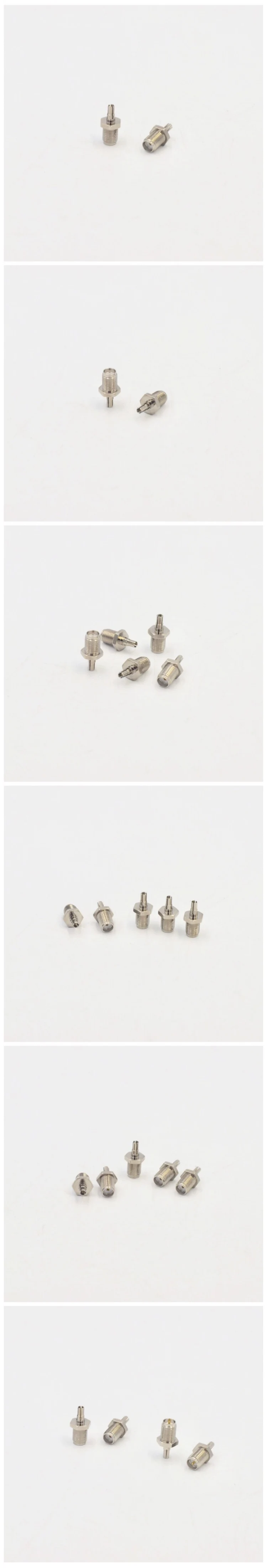

Connector : SMA female to CRC9 straight adapter

Port: SMA female hole to CRC9 male

Connector plating : Nichel

Connector body stype : Straight

Impedance : 50Ohm

Package: Standard export cartons.

Quantity : 100pcs

Carton Weight : 0.2KG


50 Ω and 75 Ω impedance designs allow customers to match impedance to system requirements.

50 Ω and 75 Ω connectors are intermateable to ensure non-destructive mating.

Three grades of connectors are available for military, industrial and commercial applications.

Electrical   Specifications

Mechanical Specifications

Impedance

50

Pin   contacts

Brass/Beryllium   copper-Au plating

Frequency   range

0-18GHz

Bodies

Outer   contacts



Working   voltage

>250~500V,50Hz(sea level)

Beryllium   copper

Au   plating

>65~125V,50Hz(Height 21000m)

Stainless   steel

Passivation

Dielectric   with standing voltage

750~1500V,50Hz

Brass

Au   plated/ternary alloy plating

Insulation   resistance

>5000m Ω

Phosphor   bronze

Au   plating

Inner   conductor

≤ 3m Ω

Socket   contacts

Beryllium   copper/Phosphor bronze

Outer   conductor

≤2.5m Ω

Crimp   ferrules

Brass-Au   plating

Semi-rigid   Flexible

>60dB

Insulator

PTFE/PFA

Cable

>100dB

Gaskets

Silicone   rubber




Plug

Jack

Min.

Max

Min.

Max.

A

---

4.59/.181

4.59/.181

---

B

0.00/.000

0.25/.010

0.00/.000

0.25/.010

C

0.00/.000

0.25/.010

0.00/.000

0.25/.010

D

---

0.54/.100

2.67/.105

---

E

1.24/.049

1.29/.051

1.24/.049

1.29/.051

F

0.38/.015

1.14/.045

1.88/.045

1.98/.078

G

---

3.43/.135

0.38/.015

1.14/.045

H

0.90/.036

0.94/.037

5.28/.208

5.49/.216

I

---

---

4.32/.170

---

J

---

---

5.54/.218

---

RF connector production process:

  1. We purchase Raw material from reliable ventors and all materials can meet the ROHS standard.

  2. Make matal body and center contact by lather moulding and stamping process.

  3. Matel body send for plating process for corrosion protection

  4. Produce the plastic case and insulators for RF connector by lathe or injection moulding.

  5. Connector components will be assambled together tightly to ensure durability in using .

  6. Before package,we will test the performance of our products to ensure high quality .

  7. All products will test PIM.VSWR,3rd order IMD ensure the quality and performance.

We owned adcanced test equipments as following :

  1. Stamping workshop : Insert metal plate between the top and bottom mold,then apply pressure to cut the plate. Ideal for mass the production as high production capacity with only one die mold .

  2. Die casting workshop :Forcing the molten metal under high pressure into a mold cavity.In Ystoom,this workshop is main for die casting moulding to make Zinc Alloy or Aluminum Alloy parts.

  3. Injection moulding requires to transder the polymeric material in powder or granule form from a feed hopper to a heated barrel. then the plastic melted and injected into a mould. This process is automated.So the production capacity is high.

  4. Lathe Turning : Lathe is used to remove unwanted material from a cylindrical workpieces by machine tool. We used lathe to produce copper parts and insulators(like Teflon).No mould required for this process. The production capactity limited by products'structure and quantity of machines.

Please contact us to get full product list of our connector series products!

Visit our website at www.ystoom.com . Free sample is ok for test before you place bulk order . No cost,No risk .

Or you could click here to find more SMA series connectors from Ystoom !

QUALITY

To provide quality products at the same time to improve after-sales support

     Why Us ?

DESIGN

We have competent R&D Group and experienced engineers

TEAM

24 hours reply and good after-sales service .

PRODUCTION

We have own assembling factory and mold factory

PROFESSIONAL

Professional team to provide you with efficient service

What's your products?

We are a factory focus on telecom products. The products include 4G LTE antenna,3G WCDMA antenna, WIFI/WIMAX antenna,GSM antenna,VHF/UHF antenna,TV antenna etc.

How long is the production time?

3 days for sample. 8-10 days if less than 10,000 pieces, 11-14 days around if more than 50,000 pieces .

20-30 days around if more than 100,000 pieces .



How about the shipping?

The shipping time need around 3-5 days by DHL,7-9 days by Air, 20-30 days by Sea. We can send the goods use our account or use customer's account number, or use customers' shipping forward.

How about the payment condition?

We accept Trade Assurance, T/T,Western Union , Paypal etc .

30% deposit after order confirmed ,and 70% balance before shipping.

What's your working time?How to contact you if have urgent things?

Our working time is from 8:00AM till 18:00PM.We can contact by email, Skype ,QQ, Wechat, WhatsApp or by Phone.
