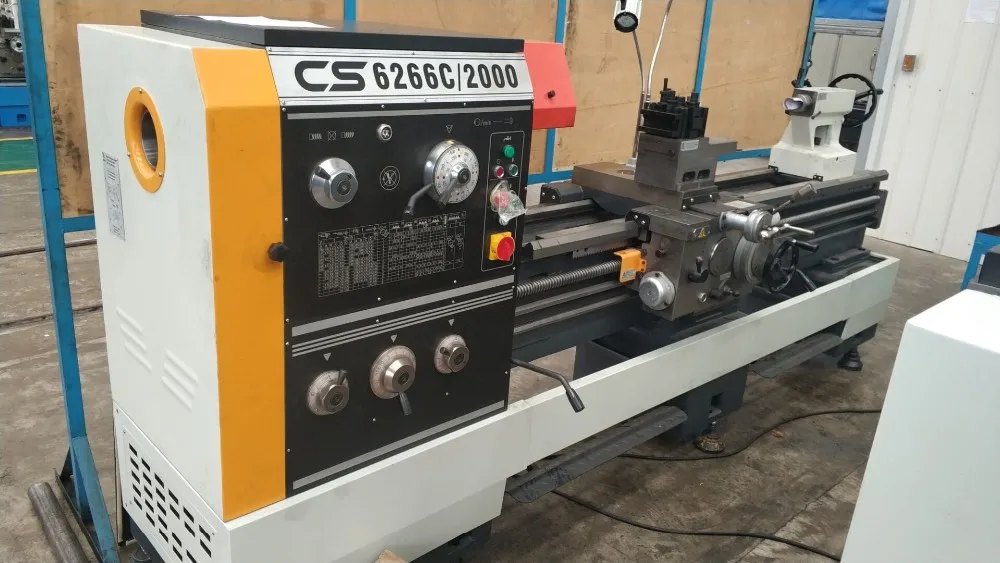

CS6266C 105mm spindle bore heavy duty lathe for screw cutting

$9,480.00 / Set | 1 Set (Min. Order)
Max. Swing Diameter (mm):
660
Spindle bore:
105mm
$9,480.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
60 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Home Use, Retail, Construction works , Energy & Mining
Range of Spindle Speed(r.p.m):
1600rpm
Max. Swing Diameter (mm):
660
Width of bed (mm):
390
Max. Length of Workpiece (mm):
3000
Max. Turned Length (mm):
3000
Condition:
New
Type:
Horizontal
CNC or Not:
Normal
Automatic Grade:
Manual
Year:
New
Place of Origin:
Anhui, China
Brand Name:
WMT
Model Number:
CS6266C
Voltage:
380V
Dimension(L*W*H):
3820x1300x2100
Certification:
CE, ISO
After-sales Service Provided:
Online support, Video technical support, Engineers available to service machinery overseas
Power (kW):
7.5
Weight (KG):
2200
Warranty:
1 Year
Key Selling Points:
High Productivity
lathe machine:
metal cutting
high speed:
low cost
logo printing:
available
spindle bore:
105mm
Width of bed:
390mm
Max. Swing Diameter:
660mm
Weight:
2200kgs
Power(W):
7.5KW

Packaging & Delivery

Selling Units:
Single item
Single package size:
280X115X190 cm
Single gross weight:
3100.0 kg
Package Type:
CS6266C is packed with standard export package.
Picture Example:
package-img
package-img
Lead Time :
Quantity(Set) 1 - 1 >1
Est. Time(days) 60 To be negotiated
Video Description
Technology Data

Specification for lathe machine CS6266C

Specification
CS6250C
CS6266C
CQ6280C
Max. swing over bed
Φ500mm
Φ660mm
Φ800mm
Max. swing in gap
Φ710mm
Φ870mm
Φ1000mm
Max. swing over slide
Φ300mm
Φ420mm
Φ560mm
Max. workpiece length
1000/1500mm / 2000/3000mm
2000/3000mm
Spindle bore
Φ105mm
Type of spindle
ISO 702/II NO.8 com-lock type
Spindle speed
12 steps:36-1600rpm
12 steps:30-1400rpm
Spindle motor
7.5kw
Diameter of quill
Φ90mm
Max. travel of quill
150mm
Taper of quill
MT5
Tool O.D. size
25×25mm
Max. X travel
145mm
Max. Z travel
320mm
310mm
320mm
X feed range
65 kinds 0.063-2.52mm/r
Z feed range
65 kinds 0.027-1.07mm/r
Metric threads
22 kinds 1-14mm
Inch threads
25 kinds 28-2t.p.i
Module threads
18 kinds 0.5-7πmm
Diametric pitch
24 kinds 56-4t.p.i.π
Cooling pump
60w
Length
2632/3132mm/3632/4632mm
3365/4365mm
Width
975mm
1340mm
Height
1270mm
1450mm
1490mm
N.W
2100/2300kgs/2500/2900kgs
3000/3200kgs
G.W
2200/2400kgs/2600/3000kgs

Standard accessories:

1) 3-jaw chuck  2) 4-jaw chuck
3) face plate     4) steady rest
5) follow rest     6) face plate
7) work lamp     8) coolant system
9) splash guard  10) foot brake
11) dead centers 12) tool box tools


Optional accessories:

1) 2- axis Sino DRO
2) 3-axis Sino DRO
3) taper attachment
4) Quick change toolpost
5) live center


Machine Pics

1) Optional accessories:

quick change toolpost

2) Optional accessories:

Digital read out

3) Optional accessories:

Taper turning attachment

Packing & Delivery
