CTB two way motorized pvc ball valve with electric actuator 220V 380V 24V 12V

FOB Reference Price:Get Latest Price
$60.00 - $200.00 / Set | 1 Set/Sets (Min. Order)
Shipping:
Support Express · Sea freight · Air freight · Land freight
Lead Time:
Quantity(Sets) 1 - 100 >100
Est. Time(days) 20 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Tianjin, China
Brand Name:
TF
Model Number:
CTB series
Application:
General
Material:
plastic,cast,iron,stainless steel
Temperature of Media:
Normal Temperature
Pressure:
Medium Pressure
Power:
electric,motorized,motor
Media:
water,gas
Port Size:
DN50 to DN200
Structure:
Ball,Butterfly
Product name:
motorized pvc ball valve
voltage:
220V 380V 24V 12V
Torque output:
50 NM- 600NM
Working Pressure:
0-4.0 Mpa(40bar)
Temperature:
-25 to 60 Degree Celsius
Size Scope:
ball valve,15-250(mm); butterfly valve 50-800(mm)
Open/Close time:
20 -- 30 sec
Type:
Butterfly/Screw/flange
Body material:
SS304/PVC/Cast Iron
Other:
4-20mA 0-10V modulating optional
Supply Ability
Supply Ability:
1000 Set/Sets per Month motorized pvc ball valve
Packaging & Delivery
Packaging Details
carton(motorized pvc ball valve)
Port
Tianjin China
Lead Time :
Quantity(Sets) 1 - 100 >100
Est. Time(days) 20 To be negotiated
Product Description

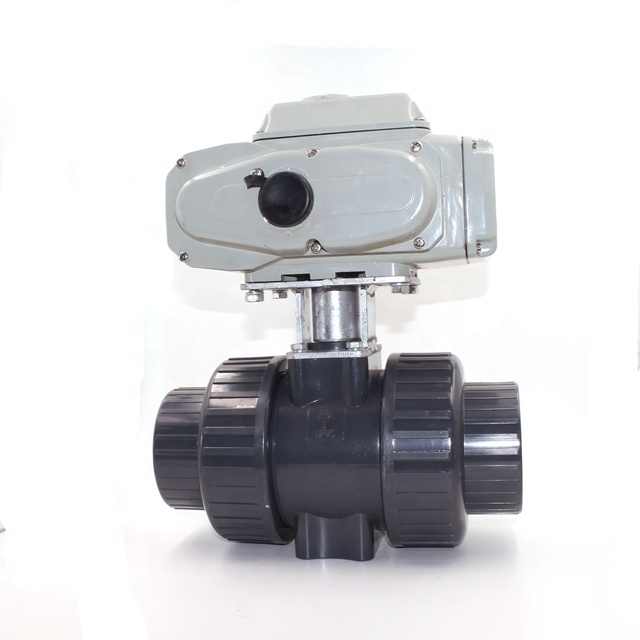

 CTB two way motorized pvc ball valve with electric actuator 220V 380V 24V 12V



Valve electric appliance owns characteristics of special design, beautiful appearance,

strong function, operation endurance exceeding ten times of standard of same kind of

product, it may be called to be endurable as diamond. The rotation valve electric

appliance series product has a completely new appraisal from customers with its super

performance and peerless advantage.

1.Powerful function: intelligently, proportionally type, switch type, it has all kinds of

signal output type you wish for;

2.Small volume: the volume is just about thirty percent of product of same kind;

3.Be portable: its weight is just about thirty percent of product of same king;

4.Beautiful appearance: outer casing is pressure-cast with Al alloy, fine and evenly,

reducing electromag-netic disturbance;

5.Wear-rseistance: the worm-wheel output axle integration design avoids the stitch

closure in connection place of key, the transmission precision high, forged with special

copper alloy, with features of high strength and super wear-resistance;

6.Safety quarantee: has passed AC1500v pressure-withstand test, F grade of

insulated electric machine, which guarantees the operation safety;

7.Easily forming complete set: adopting single-phase power, simplifying wire

connection from outside also can be 380V DC power;

8.Using simply: don’t need add-oil, point-check, and owns performance of waterproof

and antirust, could be installed at any angle;

9.Protection appliance: double position-limiting, over-hot protection, overload

protection(optionally);

10.Many kinds of speed: whole stroke time has many kinds as

9s,13s,15s,30s,100s(before dispatching from the factory in order to establish);

11.Antirust and anticorrosion: complete-machine support, both coupling and screw are

made of stainless steel;

12.Intelligently numerically-control: the function of intelligently controlling module

height is integrated into electric appliance body, the externally-connected localizer is not

required. Numerically setting, numerically regulating, highly accurate, self-diagnosis,

many functions on one machine.





1. Domestic sewage treatment.

2. industrial wastewater treatment.

3. industrial irrigation treatment.





 CTB CTB005 CTB010 CTB016 CTB025 CTB050 CTB100 CTB200
 Power AC380 AC220 DC24V DC12V
 Torque 20NM 100NM 160NM 250NM 500NM 1000NM 2000NM
 Opening Time 20S 30,60S     100S
 Motor Watt 15W 23W 23W 50W 90W 100W 100W
 Protection Overheat protection (automatic restorer)
 Input Signal 4-20mA 1-5V.DC Other options available before delivery
 Output Signal 4-20mA 1-5V.DC Other options available before delivery.
 Turning Angel 0-360° 0-90°
 Environmental temperature   -25°~ 60°
  Pressure-withstanding value 1500VAC/Min
 Weight 2.5KG 3.7KG 3.7KG 6.8KG 8.0KG 12KG 12KG
 Mounting Angle Any Angle
 Waterproof IP65
  Cabinet MaterialAluminium alloy die-castings
 Manual OperationWith Handle
 Limit SwitchElectric operation,full open closed limit switch,Manual operation,mechanical block
