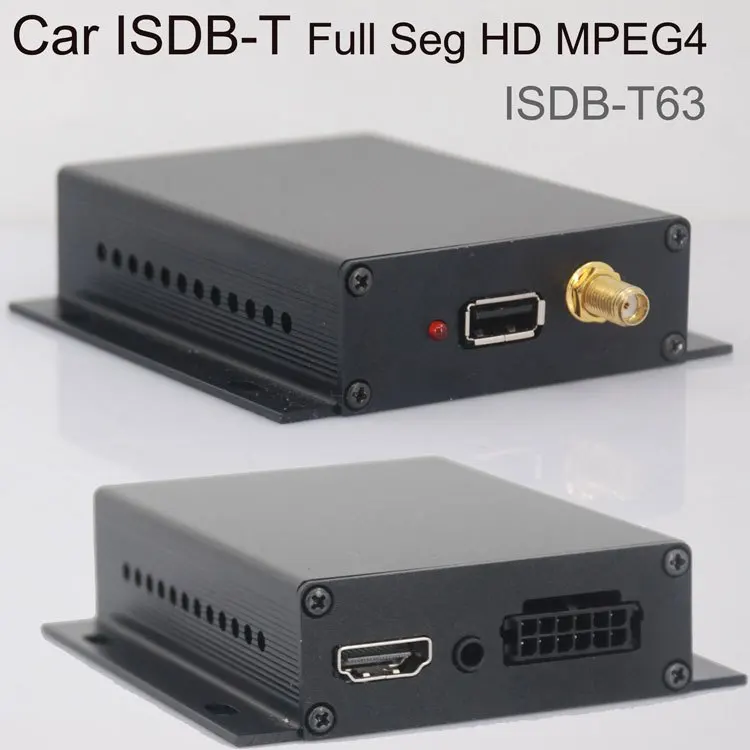

Car ISDB-T High Speed Digital TV Full segment HD ISDBT Receiver for Brazil Peru Paraguay Philippines free Antenna ISDB-T63

  • 1-99 Pieces
    $23.00
  • 100-499 Pieces
    $22.00
  • 500-999 Pieces
    $21.00
  • >=1000 Pieces
    $18.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
10 day(s) after payment received
Contact Supplier
Samples - $30.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Vcan.cc
Model Number:
ISDB-T63
Warranty:
12 Months
High Speed:
90~180km/H
Tuner Quantity:
1pc
Antenna Quantity:
1set
HD Output:
1 route
Power Supply:
12~24V
Spanish:
Yes
Portuguese:
Has
USB:
Movie, Music
Remote Control:
Yes
Full Segment:
Yes

Packaging & Delivery

Selling Units:
Single item
Single package size:
9X6X3 cm
Single gross weight:
1.0 kg
Package Type:
GiftBox
Lead Time :
Quantity(Piece) 1 - 10 >10
Est. Time(days) 10 To be negotiated
Product Description

Car ISDB-T High Speed Digital TV Full segment HD ISDBT Receiver for Brazil Peru Paraguay Philippines free aerial ISDB-T63

Advantage Points
Both Support Full Segment and One Segment TV Channel
MPEG2~MPEG4 HD 1920 * 1080 P
High Speed Tuner Signal and picture HD clearly
Stable Receiving Ability

Features

Fully compatible with the ISDB-T standard
Auto and Manual Channel Scan Functions
Built in with one moving performance High Sensitivity tuner
Minimum receiving sensitivity: One Segment -95db; Full Segment -83db
High Performance Antenna Input

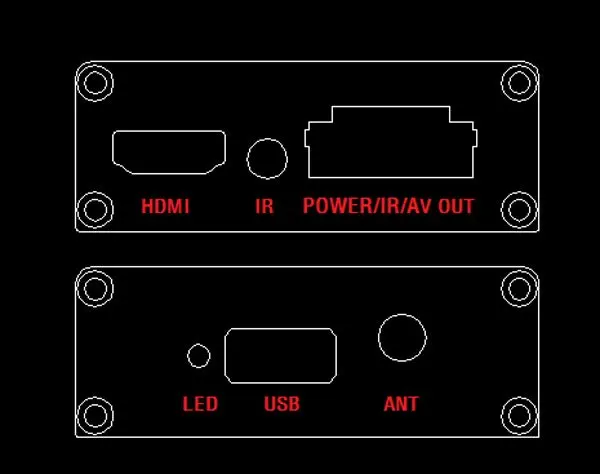

One CVBS RCA AV Output and One HDMI output, Stereo Audio Output
Support high-speed mobile reception
USB 2.0 for PVR, Time shift, software upgrade and media files playback
Touch screen or IR remote control support (optional for some head unit, need debug protocol)
Support Electronic Program Guide (EPG) and Channel list
Auto search and Manual search supported
Support MPEG 1/2/4, H.264 decoding
Memory function after power off
Easy installation for car
Multi-language OSD: English, Spanish, Portuguese
Multi-language subtitle and audio output supported
Tele text Support
Full Function Remote Control
Parental Control Lock
Power supply: DC 12V-24V (12V for Car, 24V for Bus)
Program Reminder

With years of export experience along
With years of export experience along
With years of export experience along
With years of export experience along

Specification

TV System Standard: ISDB-T
Fully compliant with ETSI EN 302 755 ( ISDB-T )
RF input: SMA Female type terminal
Input Impedance@Antenna: 75ohm
Frequency range: 470MHz ~ 806MHz
Signal level: 97±3dBm
Bandwidth: 6MHz 8Mhz (optional)
Demodulation: DQPSK / QPSK / 16QAM / 64QAM
Guard interval Modes:1/32,1/16,1/8,1/4
FEC Modes Rate: 1/2,2/3,3/4,5/6,7/8
Video System: PAL/NTSC
Video formats: Suitable 16:9 or 4:3
Video output: CVBS and HDMI
Audio output: Stereo
IR remote control
Input Voltage Range: 12V~24V
Power consumption: ≤1W
Acceptable movement speed: 0km / h ~ 150km / h
Operation temperature: -20-70℃,
Working limit: -25-75℃
Size: 89 * 59 * 23 mm
