Carbon Steel Stainless Steel Mild Steel Gold Silver Aluminum fiber laser Cutting Machine Company looking for distributors

  • >=1 Sets
    $205,500.00
Model Number:
ECO-Fiber 1530
Report Suspicious Activity
Overview
Quick Details
After-sales Service Provided:
Video technical support, Engineers available to service machinery overseas
Applicable Material:
Crytal, Glass, Leather, Metal
Laser Type:
Fiber Laser
Cutting Area:
3000mm*1500mm
Cutting Speed:
0-40000mm/min
Graphic Format Supported:
BMP, DST, DWG, DXF, DXP, LAS, PLT
Application:
Laser Cutting
Condition:
New
Cutting Thickness:
0~6mm
CNC or Not:
Yes
Cooling Mode:
Water Cooling
Control Software:
LASER Control System
Place of Origin:
Anhui, China (Mainland)
Brand Name:
ACCURL
Certification:
CCC, SGS, UL
Warranty:
3 years
Model Name:
ECO-FIBER-315 2 KW
Laser Power:
IPG YLS-2000 with 2000W
Laser type:
IPG fiber laser generator
Working Size:
1500 x 3000mm
Servo motor/ Servo drive:
YASKAWA from Japan Brand
Format supported:
AI, DST, DWG, DXF, DXP, LAS

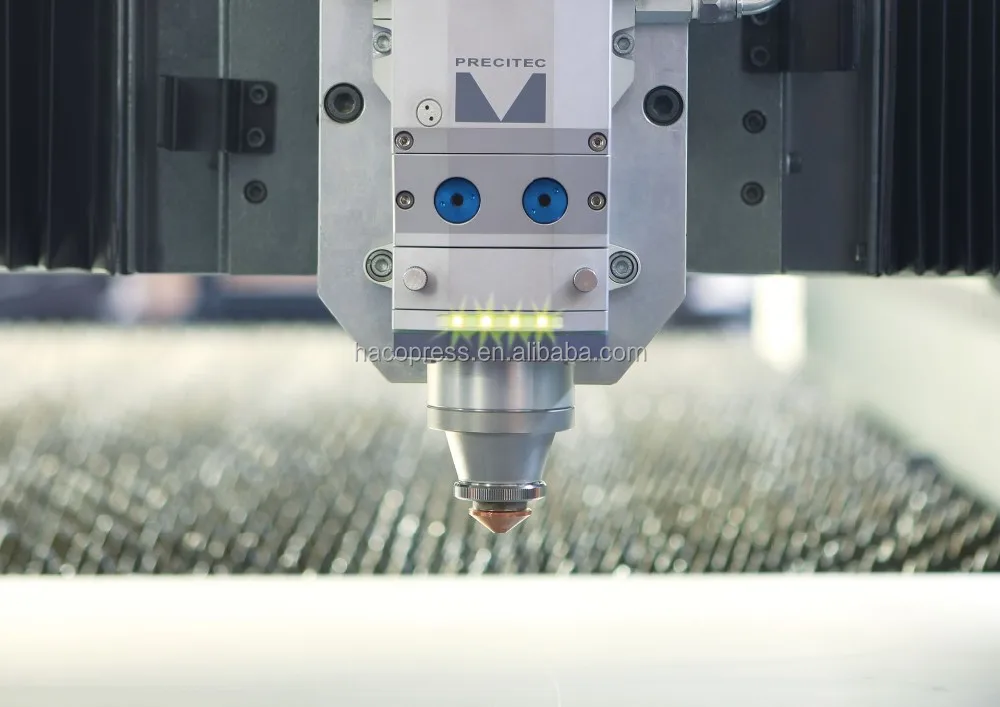

Laser Head:

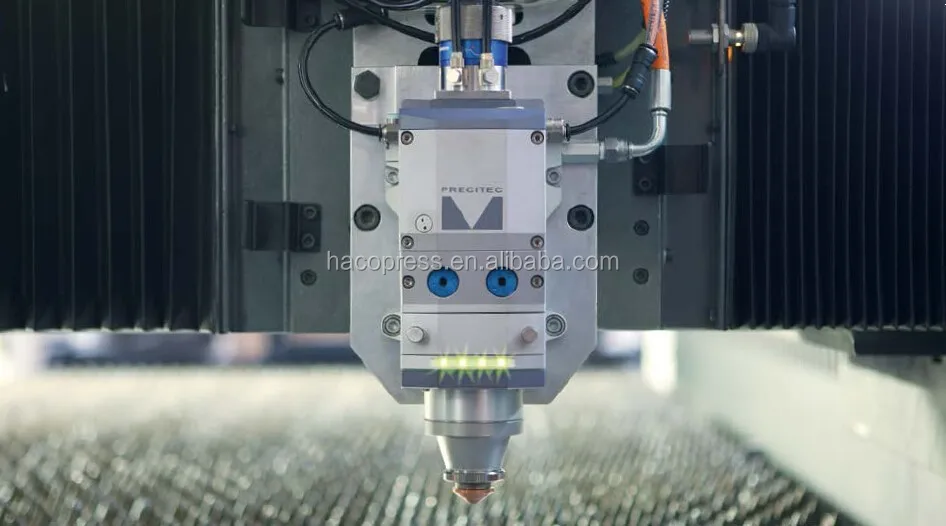

Precitec Cutting head from Germany
Laser Generator:
IPG Fiber laser source YLS-2000
Electrical components:
Schneider Electrical from French
Supply Ability
Supply Ability:
10 Set/Sets per Day
Packaging & Delivery
Packaging Details
Steel Pallet for Laser Cutting Machine
Port
Shanghai port
Product Description

Product Application

The ACCURL@ Fiber Lasers bring you a cost effective, low-maintenance, low operating cost,environmentally friendly solution to your organization. We deliver a machine that providesquality cutting and tolerances with small productivity loss between jobs, equating to higher returnon investments. Our fiber laser cutting machines are developed and sold based on these criteria.


• Manufactured by people who use their own machines.

• The resonator comes with a 100,000 hour warranty from the manufacturer (IPG)

• Higher cutting speeds possible

• Dual interchangeable tables allow for faster loading and unloading, reducing downtime

• Laser wavelength is one-tenth of a CO2 laser

• Reduction in cutting variables or tribal knowledge

• Fiber Laser is extremely efficient, equates to very low power consumption

• Low cost of operation, energy cost reduced, no laser gases requied to produce beam

• High cutting flexibility (Steel, Stainless Steel, Brass, Copper, Titanium, Aluminum, and more)

• Laser beam transmitted through a fiber optic.cable rather than with mirrors and channel tubing resulting in negligible power loss.

• Created and tested in a 100,000 sq ft Research and Development facility operating 9 metal cutting fiber Lasers, cutting 24/7.


Main Features:

•The ACCURL@ Fiber Lasers bring a cost eᴀective, low-maintenance, low operating cost and environ-mentally friendly solution to your organization. Our ἀber laser machines provide quality cutting and tolerances with minimal productivity loss between jobs, equating to a higher re turn on investment.

• Acceleration speed: 19,6 m/s2 (2G).
• Maximum simultaneous positioning speed: 160m/min.
• Precision: + - 0.05 mm.
• Energy efficiency: greatly reduced power consumption.
• Excellent cutting quality for fine thic kness and medium thickness sheet metals.
• IPG Resonator. Power output from 1 kw to 6 kw .
• Precitec light cutter cutting head with po wer output up to 2kw.
• Precitec HP cutting head for po wer output of more than 2kw.
• Fully enclosed and cabinned to ensur e máximum operator protection.
• Effective high to low pressure gas exchange system.
• Capacitative Sensor, high pressure cutting head.
• TCI Cutting parameter tables.
• Pre-cut film protector.
• Automatic mechanized Nesting power output control function (edges, start-ups).
• Automatic time and unit cost calculation function.
• Network connection from external.
• Automatic table exchanger (included in series models).
• Smoke extraction (included in series models).
• 3 point reference sensor (sheet metal rotation detector).
• Piercing Sensor.
• Collection of work pieces and trimmings.
• Dual proportional valve control system for different gas pressures and special system for high pressure cutting.
Fiber Laser Metal Cutting Machine Technical Parameters
Model No.

KJG-150300JH

KJG-150300JH

XJGC-150300JH

Laser Type

IPG / Coherent / Raycus

Laser Power

500W

800W

1000W

Cutting Area

1500mmX3000mm

Working Table Structure

Fixed working table

Pallet Changer

Control System

PMAC full-closed loop servo control

Positioning Accuracy

±0.01mm

Driving Mode

Double gear rack driving

Idle/Processing Speed

72m/min / 36m/min

100m/min / 30m/min

Laser Head

Precitec / Accurl Laser / Laser Mech

Cooling System

Dual temperature dual control water chiller

Protection System
Open Type

Enclosure protection

Format Supported

PLT, DXF, BMP, AI, DST, DWG, etc.

Power Supply

380V / 220V

Total Power

7KW / 11KW

17KW / 8~22KW

Floor Space

5.6m x 3.2m

9m X 4m

Certifications
Detailed Images

Machine Parts

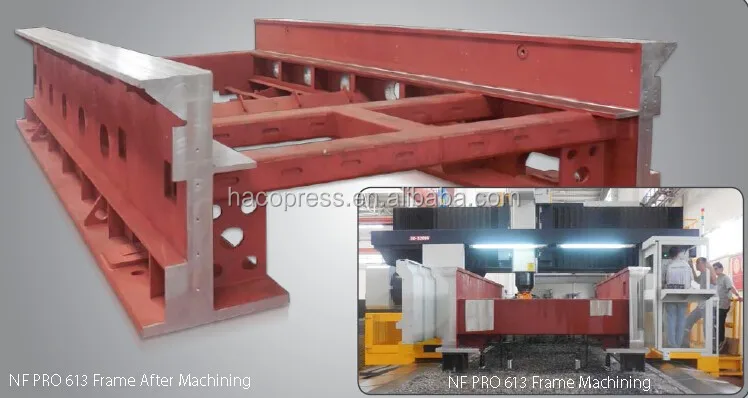

Name: Machine Body

Brand: ERMACO

Original: CHINA

1.the steady gantry framework provides an open worktable

2.Synchronous X/Y/Z axes: The Z-axis can run 150mm, suitable for cutting many varieties of metal sheets.

3.High quality guarantees its durability and easier maintenance.

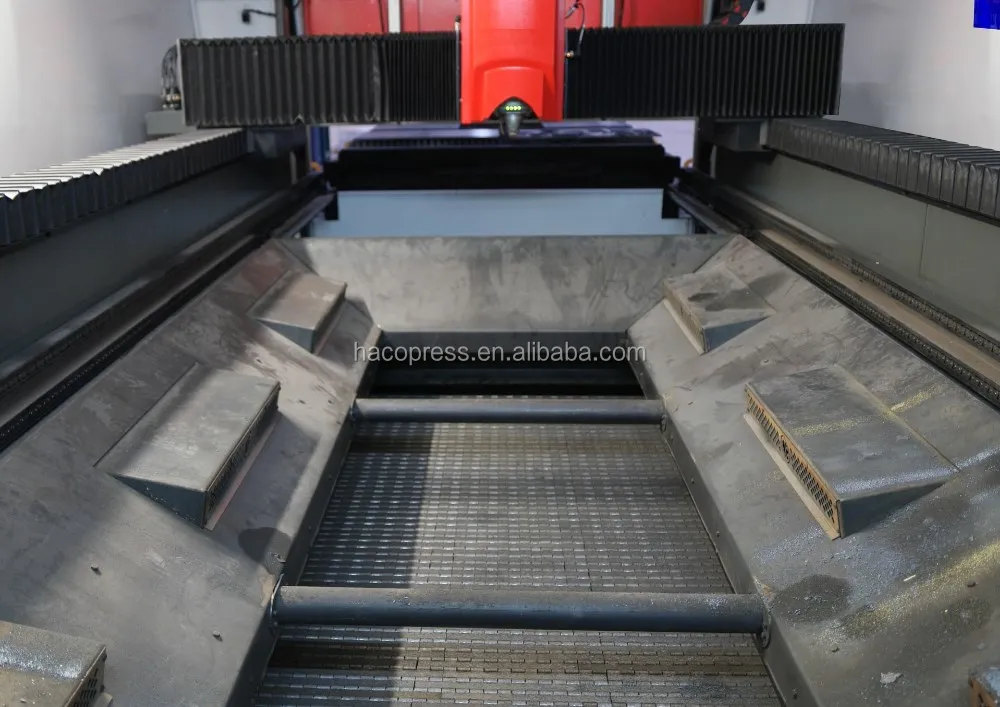

Conveyor System

Name: Conveyor System
Brand: ERMACO
Original: CHINA
A special hard steel construction conveyor system, standard on our machines, is located under the workspace. The conveyor removes slag and small parts during the cutting process. The operator can choose the movement direction of the conveyor.

Machine Parts

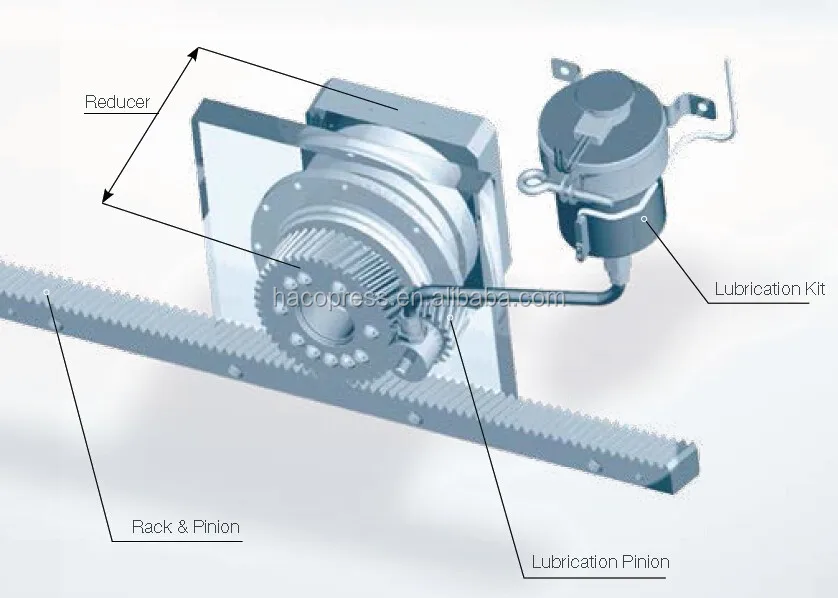

Name: HIGH PRECISION DRIVE SYSTEM
Brand: Wittenstein
Original: Germany
The Wittenstein high precision helical gear rack and pinion system uses precision planetary and servo-worm reducers. Our special design eliminates any noticeable backlash variance. The rack used in these systems is also hardened & precision ground.

Main Features

Name: SINGLE CABLE SERVO MOTOR TECHNOLOGY
Brand: YASKAWA
Original: Japan
1.Accurl has 4 servo motors for all axial movements.These are the latest technology single cable servomotors.

2.Power and process data are transmitted in onestandard motor cable, significantly reducing costs.

3.This technology also gives more accurate positioningand more geometrically accurate parts.

Standard Euipment

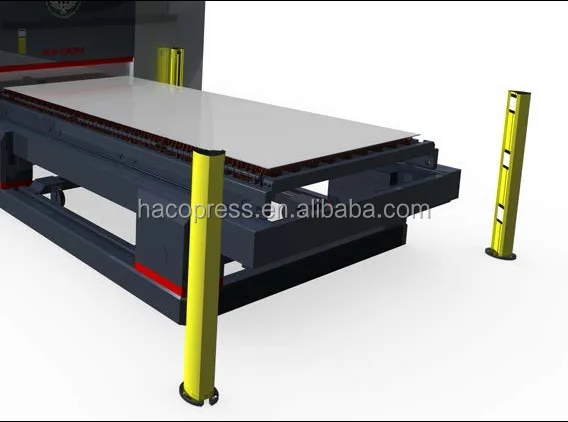

CUTTING TABLE

The dual cutting table system is designed for in-creasing your workflow and reducing time spent on placing and removing materials. Cutting table exchange speed can be adjusted according to thickness of materials.

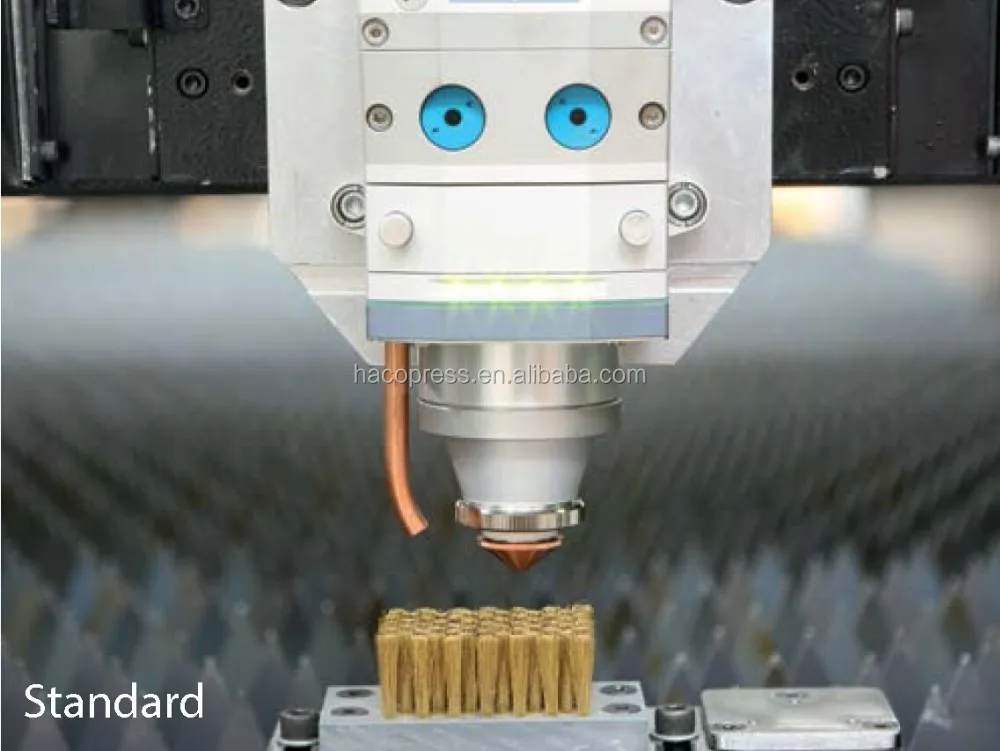

NOZZLE CLEANER

Keeping your machine cutting quickly and cleanly is important. Our nozzle cleaner helps improve the life of your nozzles so your cuts stay consistent, longer.

Our Service

Pre-Sales Service

* Technical solution.

* Online video authentication machine work.

* Cutting samples provided by DHL.

After-Sales Service

* Supplier will provide detail manual for software, hardware and trouble shooting, also supplier should give necessary guidance online if Buyer need. If it’s necessary, Buyer should send regular his technical staff to Supplier for technical training.

Packing & Delivery
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
1.2 T



Packaging Details
1.Our wooden case is after fumigation treatment.Needn’t timber inspection,saving shipping time.
2.All the spaer parts of the machine were covervd by some soft.
3.The outmost is wooden case with fixed formwork.
4.The bottom of the wooden case has firm iron jack,convenient to handing and transport.
