Carbon stainless Aluminum 500w 750w 1000w 1530 fiber laser cutting machine of IPG Raycus laser source

  • 1-2 Sets
    $23,000.00
  • >=3 Sets
    $19,000.00
Model Number:
DRK3015 DRK4015
Power(W):
1000w
$
- +
available
1500W
$
- +
available
2000W
$
- +
available
All 6 Options
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
30 day(s) after payment received
Customization:
Customized logo (Min. Order: 5 Sets)
Customized packaging (Min. Order: 5 Sets)

More

Graphic customization (Min. Order: 5 Sets) Less
Samples: $26,500.00 /Set, 1 Set (Min. Order): Buy Samples
Contact Supplier
Samples - $26,500.00 /Set, 1 Set (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Application:
Laser Cutting
Condition:
New
Applicable Material:
Metal
Laser Type:
Fiber Laser
Cutting Area:
1500*3000mm
Cutting Speed:
1400mm/s
Graphic Format Supported:
AI, BMP, DST, DWG, DXF, DXP, LAS, PLT, Other
Cutting Thickness:
2mm-10mm
CNC or Not:
Yes
Cooling Mode:
Water Cooling
Control Software:
Cypcut
Place of Origin:
Shandong, China
Brand Name:
DRK
Certification:
CE, FDA
Laser Source Brand:
RAYCUS
Laser Head Brand:
Worthing
Servo Motor Brand:
Yaskawa
Guiderail Brand:
HIWIN
Control System Brand:
Cypcut
Key Selling Points:
High-accuracy
Optical Lens Brand:
Worthing
Warranty:
2 years
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Engineers available to service machinery overseas
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Product name:
fiber laser cutting machine
Color:
normally is blue/white
Fiber laser cutting driver:
Japan Yaskawa Servo Motor
Function:
Fiber laser cut SS,MS,copper,aluminum,brass,aluminum
Type:
Fiber Laser Cutting
Fiber laser cutting power:
500W(Option 200W/300W/400W/750w/1000w/1200w/2000w
keyword:
fiber laser cutting machine
working table:
Sawtooth
Control System:
Cypcut

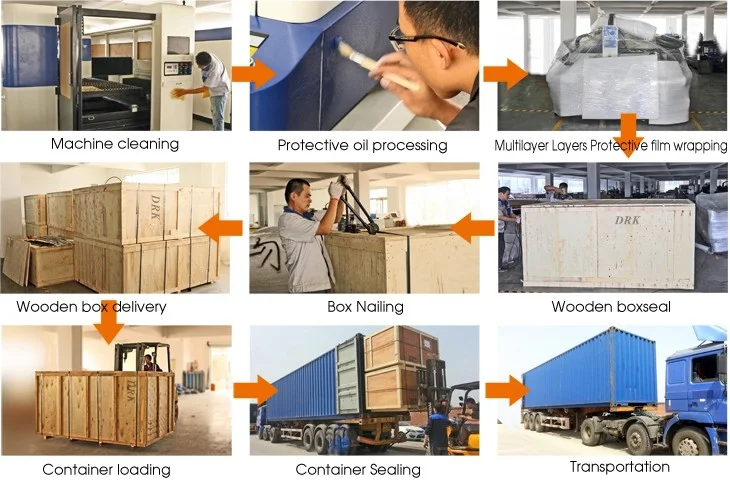

Packaging & Delivery

Selling Units:
Single item
Single package size:
815X282X212 cm
Single gross weight:
7500.000 kg
Lead Time :
Quantity(Sets) 1 - 2 >2
Est. Time(days) 30 To be negotiated
Video Description

Product Description
Welecome to Jinan Derek Laser Technology Co.,Ltd
500w-2000w fiber laser metal cutting machine for both stainless steel tube and sheet 1530 fiber laser cutter
SPECIFICATIONS FOR DRK1530 FIBER LASER CUTTING MACHINE
Model
DRK-1530F metal laser cutting machine
Cutting Tube maximum diameter
200mm
Rotary Attachment
For both sheet and tube cutting
Control System
Cypcut
Laser Power
Domestic 500W 750W 1KW 2KW Raycus
Position Type
red dot
Working Area
1500*3000mm
Power Consumption
≤12KW
Laser Wave Length
1064nm
Working Voltage
380V/50Hz
Working Table
Sawtooth
Auxiliary Gas
oxygen,nitrogen,air
Maximum Idle Running Speed
1400mm/s
Working life of fiber module
More than 100000 hours
Fiber laser cutting head
Worthing Raytools
Liner guider system
PMI made in Taiwan , (Option THK made in Japan)
Transmit system
Dual Rack & Pinion type
Warranty time
Whole machine for 24 mouths
Delivery time
15 days
Gross weight
4000kg
Driver system
Janpan Yaskawa servo motor
Working life of fiber module
More than 100000 hours

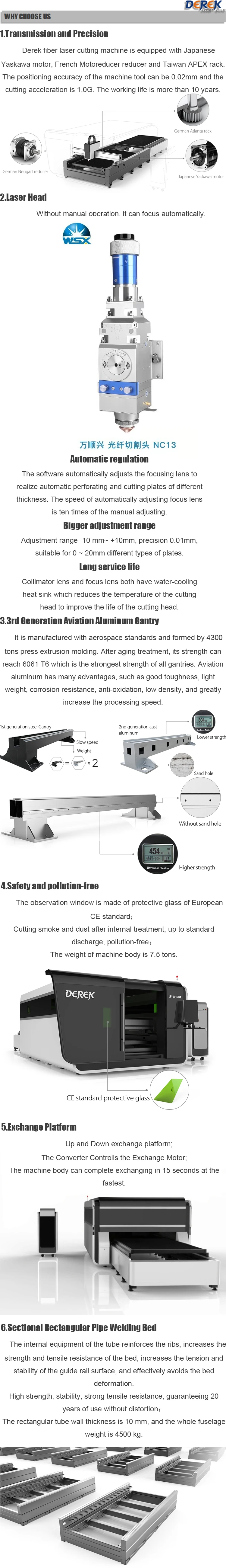

Features for high quality laser cutting machine

1. Low cost and the power consumption is 0.5-1.5kw/h; Customer can cut all kinds of metal sheets by blowing air;

2. High-performance. Imported the original packaged fiber laser, with stable performance and the lifespan is over 100,000 hours;

3. High speed and efficiency, the speed of cutting metal sheets close to tens of meters;

4. The laser maintenance free;

5. The cutting edge looks perfect and the appearance is smooth and beautiful;

6. Imported the transmission mechanism and servo motor, and high cutting accuracy;

7. Dedicated software enables graphic or text to be instantly designed or processed. Flexible and easy operation.



Configuration


3000*1500mm working area;
Worthing laser cutting head;
X,Y axis Japan YASKAWA servo motor;
Z axis Japan Panasonic servo motor;
Taiwan HIWIN guide rail;
Taiwan APEX   Gear rack;
France MOTOREDUCER reducer;
Taiwan TBI ball screw;
Japan SMC /Taiwan AirTac pneumatic components;
France Schneider electrical components;
Tongfei Teyu water chiller;
Cypcut control system;


Fiber Laser Cutting Machine Application

Application Industry: Manufacturing Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal Crafts, Metal Art Ware, Elevator Panel Cutting, Hardware, Auto Parts, Glasses Frame, Electronic Parts, Nameplates, etc

Available Materials:Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring Steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc

Cutting speed


Material
 thickness
(mm)
Speed
 (meter/min)
Pressure
(mpa)
Focus
SS 201
1
9
0.8
-4
SS 201
2.2
2
1.2
-4
SS 304
1.3
7
0.9
-4
SS 304
1.8
3
1
-4
  Carbon Steel
1.1
9(10)
0.8
-1
  Carbon Steel
2.4
2.2
0.4
-3
  Carbon Steel
2.8
1.5
0.4
-3.5
  Carbon Steel
4
1.5(1.2)
0.4
-4

Warranty and service

1. One year equipment warranty and maintenance for lifetime.
2. Free installation and test before sending and free training for operators
3. Advice for the solutions best for customers requirements.
