Carbon steel Air Floatation Waste Water Treatment for solid liquid separator

FOB Reference Price:Get Latest Price
$1,000.00 - $10,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
HOLLY
Model Number:
HLDAF, HLDAF
Type:
dissloved air flotation
Material of construction:
carbon steel or stainless steel SS304/SS316L.
Flow rate:
1-300 m3/h
Certification:
ISO9001 CE SGS
Color:
grey
Application:
Solid-liquid Separation
Usage:
wastewater pre-treatment
Delievery time:
after get the deposit within 15 days
Supply Ability
Supply Ability:
15 Set/Sets per Month
Packaging & Delivery
Packaging Details
Export standard package or customer reqiurment for Carbon steel Air Floatation Waste Water Treatment for solid liquid separator
Port
shanghai
Video Description
Product Description

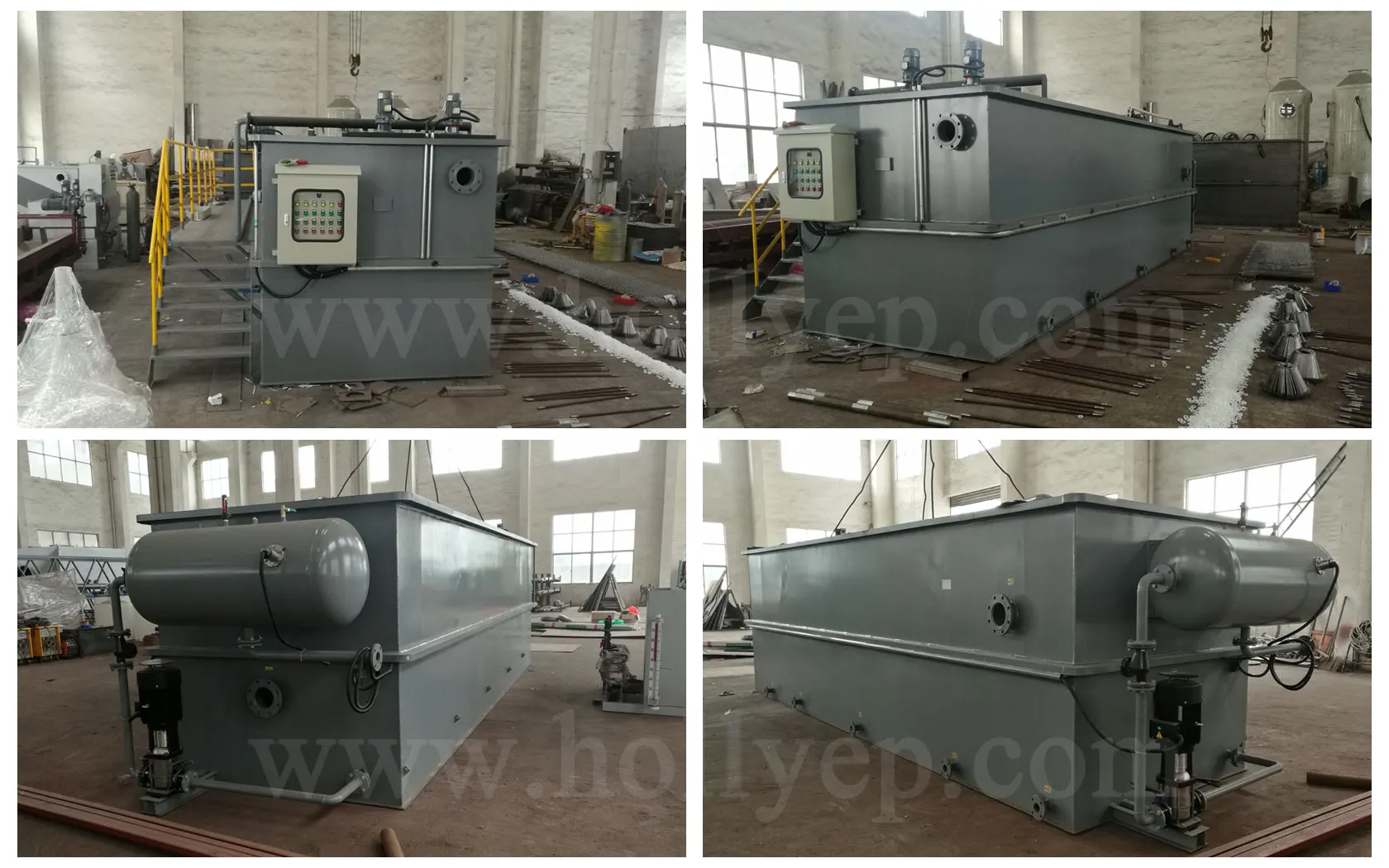

Carbon steel Air Floatation Waste Water Treatment for solid liquid separator

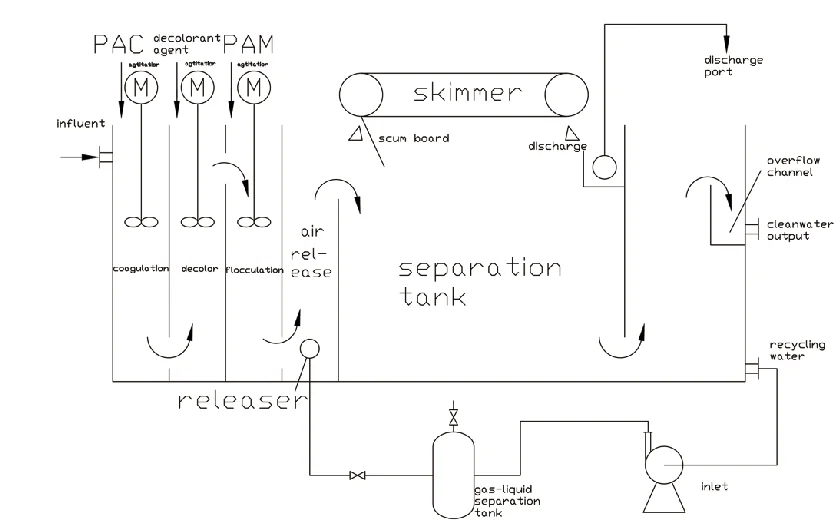

Carbon steel Air Floatation Waste Water Treatment for solid liquid separator is an efficient flotation method for water clarification. The term refers
to the method of producing flotation by dissolving air in the water under pressure and then releasing
the pressure. When the pressure is released the solution becomes supersaturated with air as millions
of small bubbles form. These bubbles attach to any particles in the water causing their density to
become less than that of water. The particles then rapidly float to the surface for collection and
removal, leaving the clarified water behind.

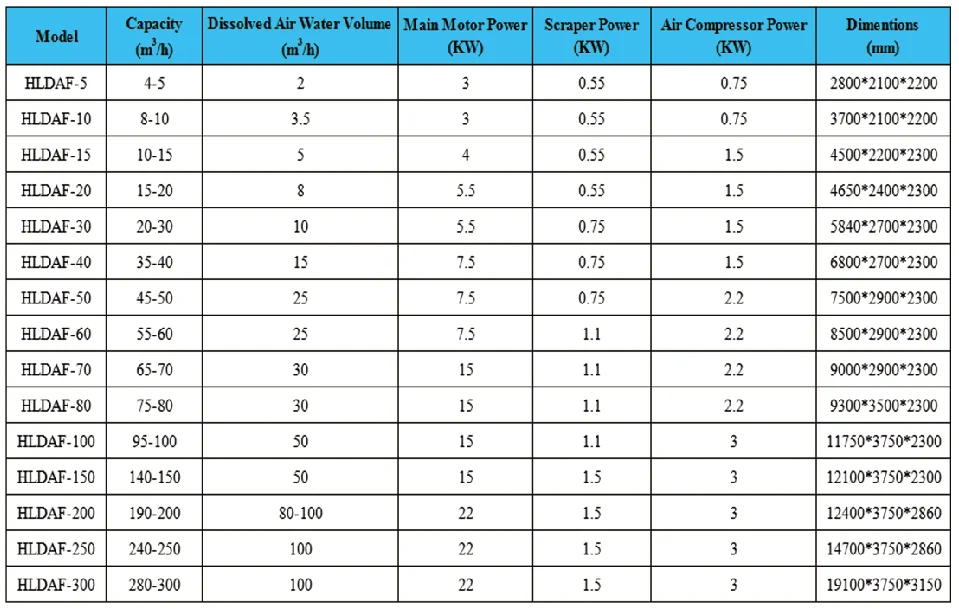

Technical parameters

Technical parameters of Carbon steel Air Floatation Waste Water Treatment for solid liquid separator

Carbon steel Air Floatation Waste Water Treatment for solid liquid separator

1. Flow rate of one set: 1-300 m³/h.
2. Recycle flow dissolved air flotation.
3. High efficiency pressurization system providing high quantity dissolved-air water to create large
quantities of small bubbles.
4. Custom design on different dissolved air flotation equipment and recycle flow ratio according to
the type of wastewater and treatment requirement to achieve target removal effect and stability.
5. Adjustable stainless steel chain type skimmer to suit the different quantity of sludge.
6. Integrated coagulation tank and or flocculation tank and cleaning water tank(as optional)is
available to save the space and cost.
7. Automatic and remote controllable.
8. Material of construction: carbon steel epoxy painted, carbon steel FRP line, stainless steel
SS304/SS316L.

Application

Carbon steel Air Floatation Waste Water Treatment for solid liquid separator

DAF is a proven, and effective physical-chemical technology commonly used for many
industrial and municipal applications,including :
•Product recovery and reuse
•Pretreatment to meet sewer discharge limits
•Pretreatment to reduce loading on downstream biological systems
•Polishing of biological treatment effluent
•Removing silt and grease from industrial water

DAF is used extensively in the following industries:
•Meat, poultry, and fish processing
•Dairy industry
•Petrochemicals
•Pulp and paper
•Food and beverage

Key DAF features

Key DAF features of  Carbon steel Air Floatation Waste Water Treatment for solid liquid separator

Total suspended solids (TSS) reduction up to 97%
•Chemical oxygen demand (COD) removal up to 85%
•Low-cost operation and maintenance
•Standard and customized units meet a variety of application and flow ranges
•Designed for ease of installation and use
•Suitable for high-salinity water

Packing
Certifications
Related Products

Sludge dewatering machine


Mobile sludge dewatering unit


Drum Filter


About us

Yixing Holly Technology Co., Ltd

Established in 2007, Holly Technology is a domestic forerunner in producing environmental equipment and parts used for sewage treatment.
Nowadays, our company has developed into a comprehensive enterprise integrating production, trading, design and installation service of sewage treatment equipment.

Contact us

Yixing Holly Technology Co.,Ltd
Add: Gaocheng Village, Gaocheng Town,Yixing, Jiangsu,China
Website: http://www.hollyep.com
Tel: +86-510-87229907 Fax: +86-510-87975997
Mob: +86-15852760568
