Cardboard paper edge protector making machine best price

FOB Reference Price:Get Latest Price
$30,000.00 - $60,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Product Type:
grey paperboard
Processing Type:
Laminating Machine
Power(W):
11-21KW
Condition:
New
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
YALIAN
Model Number:
YL-004/YL-008
Voltage:
220V/380V
Dimension(L*W*H):
20*3.5*1.8m
Weight:
10tons
Certification:
CE
Proceed:
Paper Gluing --forming --cutting
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
1-2years
Supply Ability
Supply Ability:
30 Set/Sets per Year
Packaging & Delivery
Packaging Details
Sea shipping packing
Port
Shanghai
Lead Time :
60days
Video Description
Machine Details

Cardboard paper edge protector making machine best price:

This machine is for paper  lamination,it has following types: V type only; V & Flat type  machine; V type with puching; U type machine, the proceed as following:Paper Roll Loading  ->Gluing -> Pre-forming->Forming  ->Punching> Cutting ->Conveyor -> Auto Stacking. Paper edge board widely using in packing industry.

Paper Layers
13 layers or customize
13 layers or customize
13 layers or customize
Core Paper GSM
300-600GSM
300-600GSM
300-600GSM
Surface Paper GSM
130-280GSM
130-280GSM
130-280GSM
Max Speeed
 50m/min
50m/min
50m/min
Glue Type
Starch Glue or PVA
Starch Glue or PVA
Starch Glue or PVA
Cutting Accuracy
±1mm/m
±1mm/m
±1mm/m
Type available
V Type; Flat Type; U Type
V Type; Flat Type; U Type
V Type; Flat Type; U Type
Power
11-16KW
11-16KW
11-16KW

Servo Control Cutting

•HIgh speed and accuracy

Pring Available

•One color printing

Auto Stacking Available

•Auto stacking ,more automatical

Main Features:

1)Paper layers 13,if need more, it can customize

2)Speed: 0--50m/min;

3)The min cutting length 30mm

4)It can be V & Flat two function machine; or V type with punching in line

5)Superior cutting system with Servo control

6)No bubbles or wrinkles on the board surface

Application
 Flat Type

•Widely using in pallet legs stengthen

V Type & Punching

•In line punching,easy to fold

U Type

•Widely using in outer packing strengthen

Detailed Images

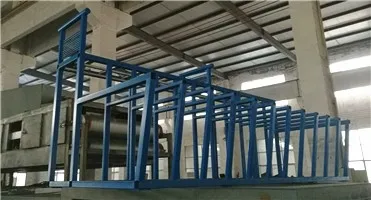

Paper Roll Stand

•90 degree stand, save space
•Max 13 layers, or customized the layers

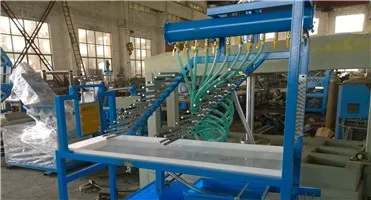

Gluing System

•With auto recycle glue system
•With Twice glue scrape function, make sure the glue is thin and even

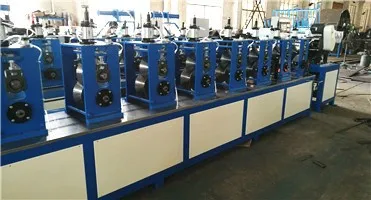

Pre-Forming Machine

•The edge board type primary forming

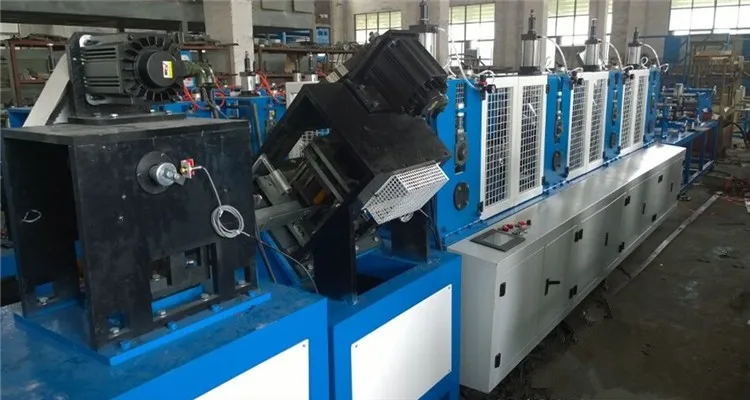

Forming Machine

•Lamination and forming

Notching Machine

•Max notching quantity is 4, notching space can set in computer

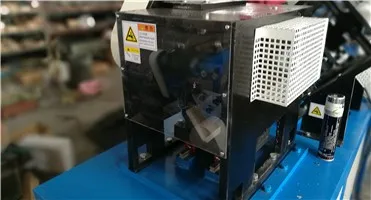

Servo Cutting Machine

•High speed and accuracy

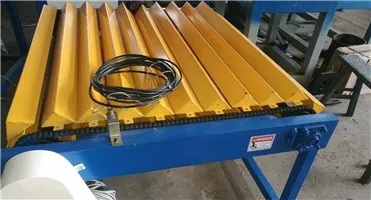

Conveyor

•Convey the finished edge board

Auto Stacking Machine

•Auto stack the edge board according to the numbers which set in computer

Packing & Delivery
Our Service

Pre-Sales Service

* Inquiry and consulting support.
* Machine Design and Quotation Sheet with Technical Details
* View our Factory and See the Machine Running

After-Sales Service

* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
