Cart-type Diesel Filter/ Coalescence Oil Water Separator

FOB Reference Price:Get Latest Price
$3,000.00 - $8,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
TYB-Ex
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 10 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Return Filter
Structure:
Vacuum
Place of Origin:
Chongqing, China
Brand Name:
TOP Oil Purifier
Power:
1.1~3kw
Weight:
80~220kg, 80~220 kg
Dimension(L*W*H):
as per model
Certification:
CE,ISO9001
Warranty:
2 years
After-sales Service Provided:
Engineers available to service machinery overseas
Working Pressure:
≤0.3 Mpa
Working Noise:
≤65 dB
Continuous working time:
≥150H
Power supply:
380V 50HZ 3 Phase(customizable)
Total electric power:
1.1~3KW
Moisture content:
≤100PPM
Filtering accuracy:
≤5(customizable)
Application:
Diesel oil/ Fuel oil/ Kerosene/ Gasoline/ light low viscosity lube oil
Function:
Fuel oil separator machie
Supply Ability
Supply Ability:
60 Set/Sets per Month
Packaging & Delivery
Packaging Details
standard export wooden case
Port
Shanghai
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 10 To be negotiated
Product overview

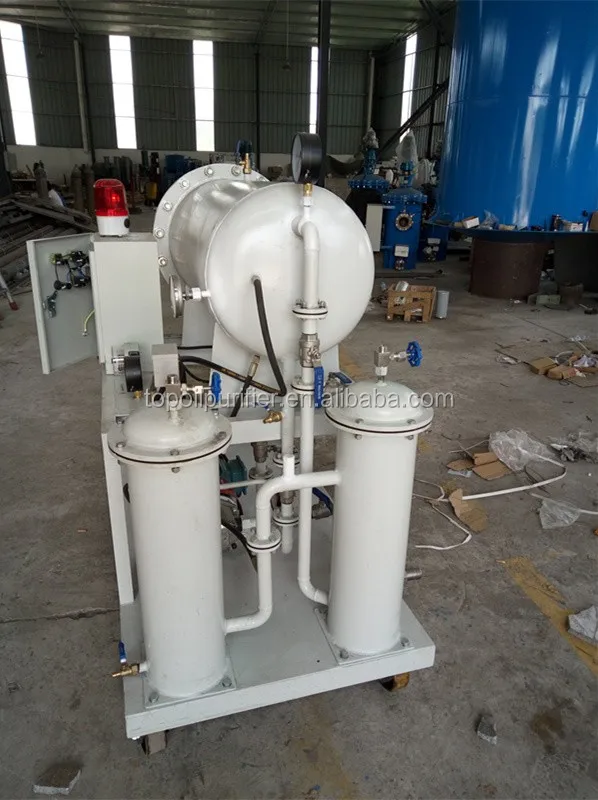

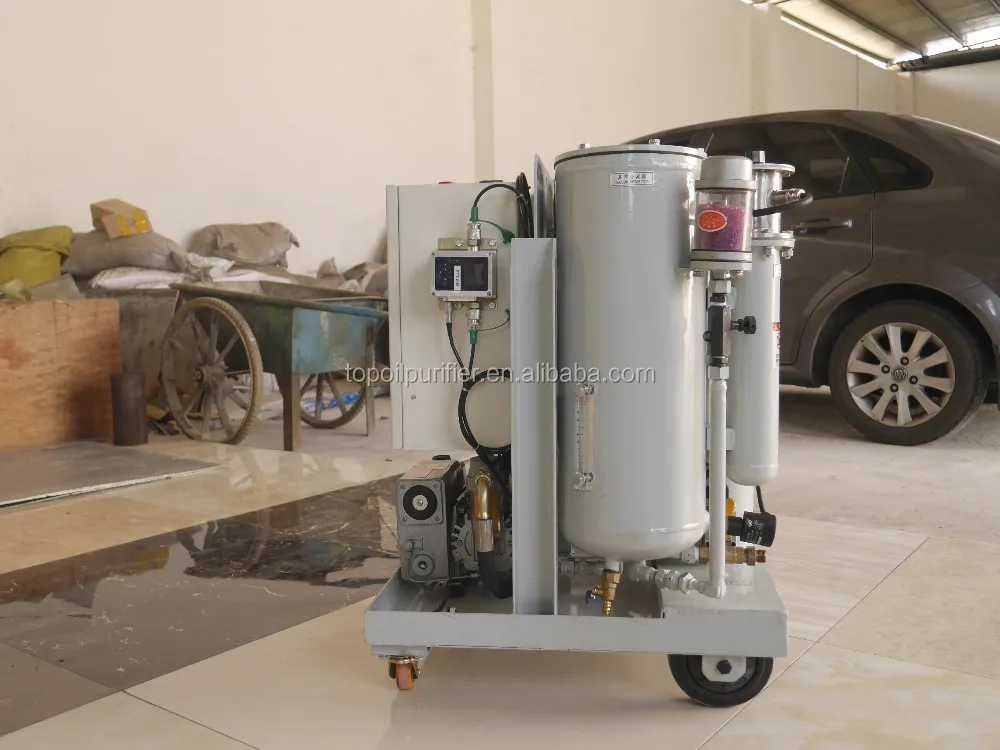

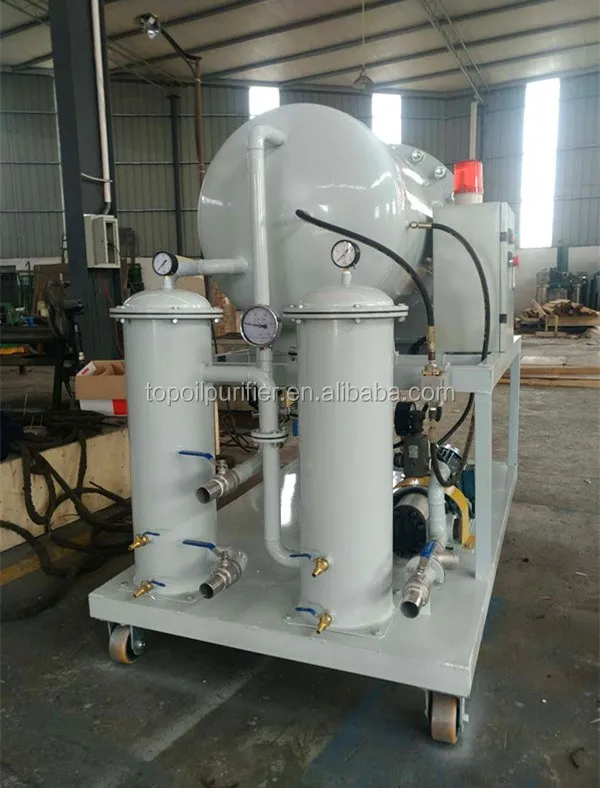

Cart-type Diesel Filter/ Coalescence Oil Water Separator





Introduction:

Specially designed for liquid fuels filtration(gasoline,kerosene,diesel,light low viscosity lube oil etc.) in data center fuel storage tank

Cart-type Diesel Filter/ Coalescence Oil Water Separator is the process by which emulsified water is removed from diesel fuel in storage tanks in order to maintain the integrity of the fuel. An automated diesel fuel polishing system that uses coalescing filters will remove emulsified water and maintain the integrity of the fuel and of the backup power generator.

Introduction:

TYB Series diesel fuel oil separator machine integrate Coalescer and Separator Filter elements, high efficiency demulsification and dehydration into one body. Besides removing all particles from the oil, this series can remove large water content without heating. It owns fastest dehydration speed in domestic and can quickly separate water from the oil to attain cleanness of NAS six grades, with convenient using with the go-cart model design. This machine is especially designed for fuel oil including diesel and gasoline as well as light lubricating oil purification.

1.TYB series purifier adopt special oil water separator which requires no heating, offering 20 times higher water removing efficiently than over other types of purifiers.

2.As no heating is needed, the additives in the oil are well prevented from degradation or deterioration.

3.Easy-to-operate, water can be discharged online automatically without the presence of operators.
4.Low operation cost, 20%-40% lower than vacuum purifier, centrifugal purifier and filter press.

Technical data
Name
Unit
TYB-10
TYB-20
TYB-30
TYB-50
TYB-100
TYB-200
TYB-300
Flow rate
L/h
600
1200
1800
3000
6000
12000
18000
Working Pressure
Mpa
                                                             ≤0.3
Working Noise
dB(A)
                                                              ≤65
Power
kW
0.75
0.75
2.2
2.2
3
4
5
Net Weight
kg
80
90
105
135
150
185
250

Overall

Dimensions

L
mm
700
700
700
850
800
1000
W
mm
570
570
600
650
650
700
H
mm
550
600
650
750
800
850
                                Index after filtration
moisture content
≤100ppm
filtering accuracy
≤5μm(customizable)
degree of cleanliness
≤6 NAS
power supply
380V 50HZ 3Phase(customizable)
Our Company

Chongqing TOP is a professional leading manufacturer and supplier of oil purifiers and various related testers. We consists of departments respectively for technological development, machinery manufacture, instrument manufacture, quality control etc. On basis of mature development and manufacture technology and highly qualified production management team, the products own high quality, easy operation, excellent performance and lone service life.


 We are able to greatly extend oil and component life, which will significantly reduce maintenance and down time costs.we are proud to offer our products and services to assist our clients in achieving optimal machine performance.


TOP Oil Purifiers uses single or multi-stage filtration to remove, particulate, free water, and small quantities of dissolved water if necessary. The systems are usually customized to suite the specific customer application. Oil "regeneration", "reclamation", "recycling" are all terms used to describe the process of restoring used, aged, contaminated oils to "like new" reusable condition. The reclamation process removes free water, most dissolved water, dissolved gas, particulate, carbon contamination, acids, oxidation by products, most color bodies, wear metals, and most additive chemicals.


TOP Oil Testers works on the development, production, market, technical and after-sale service for petrochemical analyzers, transformer substation electrical testing equipment and circuit detecting equipment. Main products are water content testers, surface/interfacial tension testers, flash point testers, kinematic viscosity testers, oil acidity testers, insulation oil dielectric strength testers, transformer characteristics testers, relay protection testers, high voltage testing equipment etc.

Honest Team - TOP always honestly treat you and keep faith to make you satisfied with every cooperation with us.
Sincere Communication - TOP sincerely communicate with you to guarantee the provided products to be your ideal ones.
Reliable Quality -TOP own high quality and performance for every TOP product is under strict quality control and testing.
Service Commitment - TOP bring you prompt, considerate and professional aftersale service and technical support, and explore technology future together.

CE CCPIT ISO Certificates

Workflow

machining

cutting

welding and polishing

assembly semi-finished machine

finished machine

packed machine with enclosure

Contact Info

Contact us today to discuss your tailor-made Oil Maintenance Plan!
