Cast iron Flameless Infrared catalyst Industrial Propane Gas Burner

FOB Reference Price:Get Latest Price
$50.00 - $80.00 / Piece | 2 Piece/Pieces (Min. Order)
Model Number:
HD162
Shipping:
Support Express · Sea freight · Land freight · Air freight
Lead Time:
Quantity(Pieces) 1 - 50 51 - 200 >200
Est. Time(days) 1 3 Negotiable
Customization:
Customized packaging (Min. Order: 200 Pieces)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Warranty:
6 months, 1 year without human factor
Applicable Industries:
Manufacturing Plant, Machinery Repair Shops, Powder coating/drying/curing oven
After Warranty Service:
Video technical support, Online support, Spare parts
Local Service Location:
None
Showroom Location:
None
Video outgoing-inspection:
Not Available
Machinery Test Report:
Not Available
Marketing Type:
Hot Product 2019
Place of Origin:
Chongqing, China
Brand Name:
THD
Type:
Gas Burner
Gas type:
NG/LPG/Propane/Butane
Net.Weight:
9.5kg
Dimension:
570*130*175mm
Heat output:
6.3KW/h 5400Kcal/hr
Life:
above 11000hr
Heating mode:
Infrared radiant catalytic heating
Advantage:
20% gas saving than non-catalyst infrared gas burner
Conversion rate:
above 95%
Application:
powder coating oven,drying/curing oven etc
Supply Ability
Supply Ability:
100000 Unit/Units per Year depending on the customer require
Packaging & Delivery
Packaging Details
2 Pieces packaged in one carton
Port
Chongqing, China
Lead Time :
Quantity(Pieces) 1 - 50 51 - 200 >200
Est. Time(days) 1 3 To be negotiated
Video Description
Certifications
Product Description

There are three ways to transfer heat, Radiation, Convection, Conduction and their thermal efficiency decrease in turn. Most Equipment is mainly by convection to heat air first and then, the heated air transfer to object. Heat loss is big. But, differently, infrared gas burner heat object directly by radiation and transfer rate will be much higher, usually it can save 10~20% gas energy and cost.cast iron Flameless Infrared catelyst Industrial Propane Burner details as below.

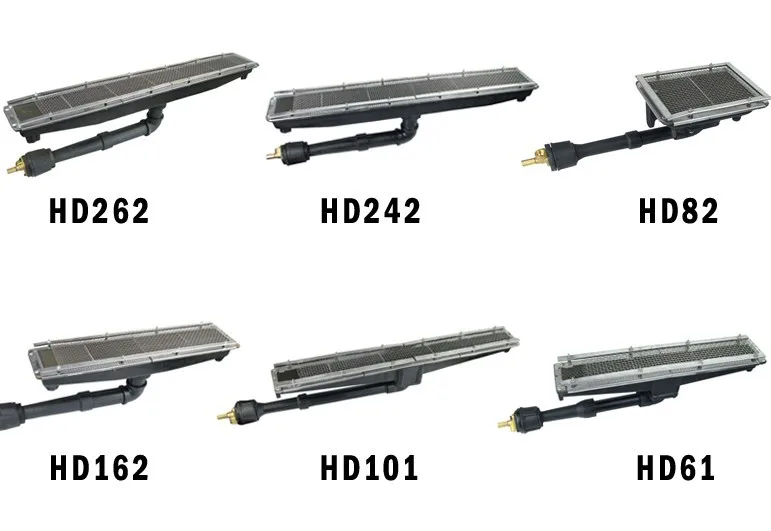

 Industrial Ceramic Infrared Gas Burner Catalogue
MODEL
Dimension
Weight
Gas Type
Heat Output
Consumption

mm
kg

KW/h
Kcal/hr
NG(m3/h)
LPG(kg/h)
HD61
423*80*94
3.8
NG/LPG
2.4
2030
0.18
0.18
HD82
219*164*108
4.8
NG/LPG
3.1
2700
0.24
0.24
HD101
690*80*115
6.9
NG/LPG
3.9
3380
0.3
0.29
HD162
570*130*175
8
NG/LPG
6.3
5400
0.49
0.47
HD410
410*175*220
8
NG/LPG
6.3
5400
0.49
0.47
HD242
840*130*175
11.7
NG/LPG
9.4
8120
0.75
0.71
HD600
600*175*220
11.7
NG/LPG
9.4
8120
0.75
0.71
HD262
930*130*175
13
NG/LPG
10.9
9360
0.8
0.82

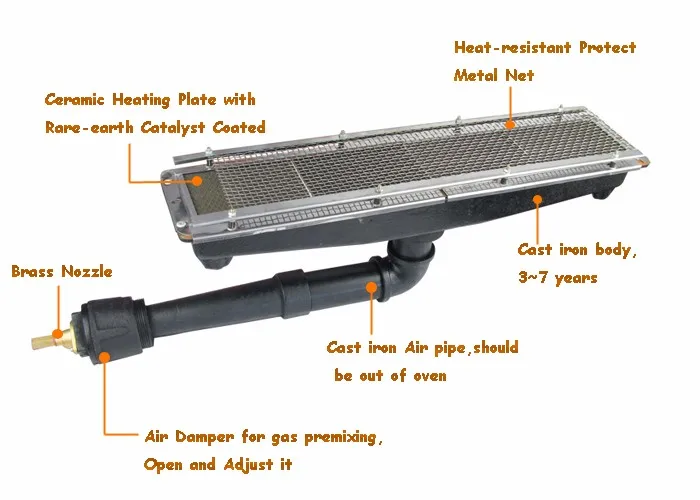

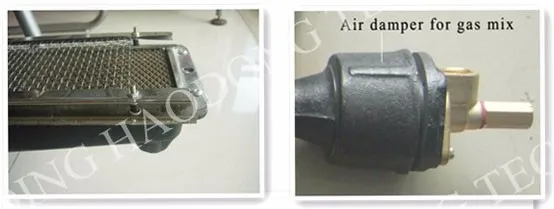

Detailed Image

Our Industrial Ceramic Infrared Gas Burner Advance

1. Widely used in low pressure (below 6 Kpa)

2. Adopting advanced technology of rare-earth catalyst on ceramic plate, about 10%~20% gas consumption

 will be saved.
3. Low gas consumption.
4. Even heating,
5. Much cheaper than metal fiber burner
6. Single product has separate control system, it will not influence work of each other
7. Flameless combustion, also suitable for powder products baking process
Energy saving:conversion rate:≥90%
Environmental protection:CO≤80ppm;NOx≤10ppm;CHx≤50ppm
Taking full usage of heat:95% of energy released in the form of infrared ray ;heating the objects directly
Long life:≥11000hr
Easily installed

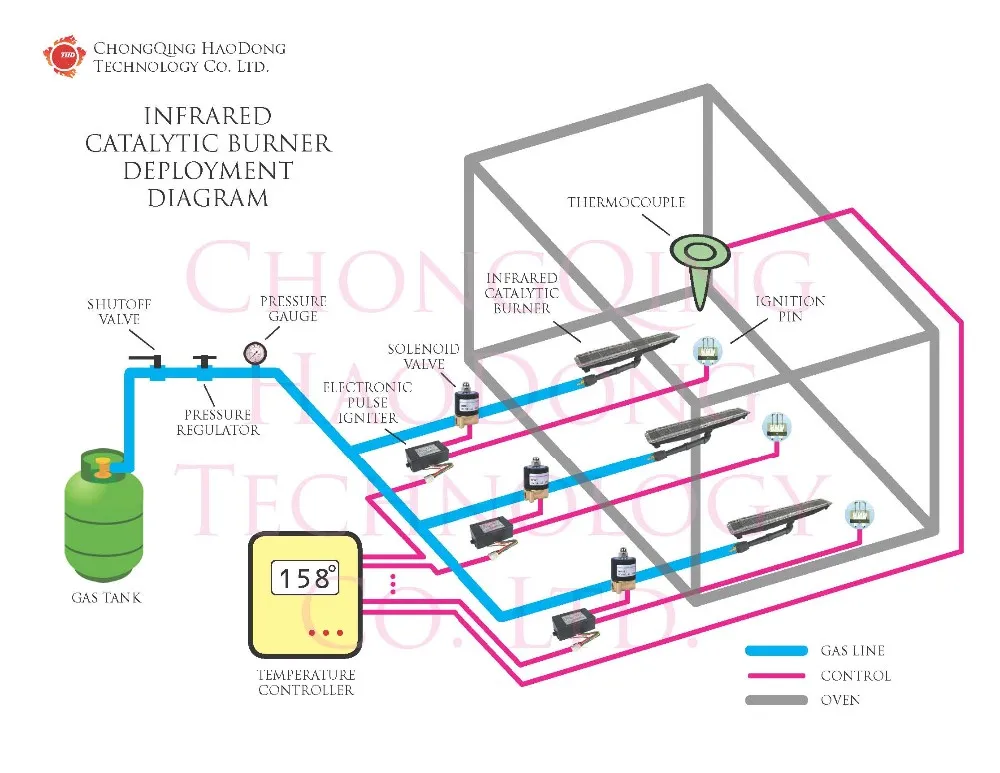

Installation Drawing

 Notice
1. The inside casing measurement of oven should be confirmed when choose infrared catalytic burner model.
2. The intake-tube (or air blast pipe) and shell body can't be installed in the oven but bared in the air.
3. It is gas & air pre-mixed type, if baring air damper into air is unavailable, pls leave some hole for enough air in.

It needs to leave a 4-5cm space between oven wall and ignition pin for maintenance; Also keep the pinpoint distance from burner ceramic surface 2~5mm.

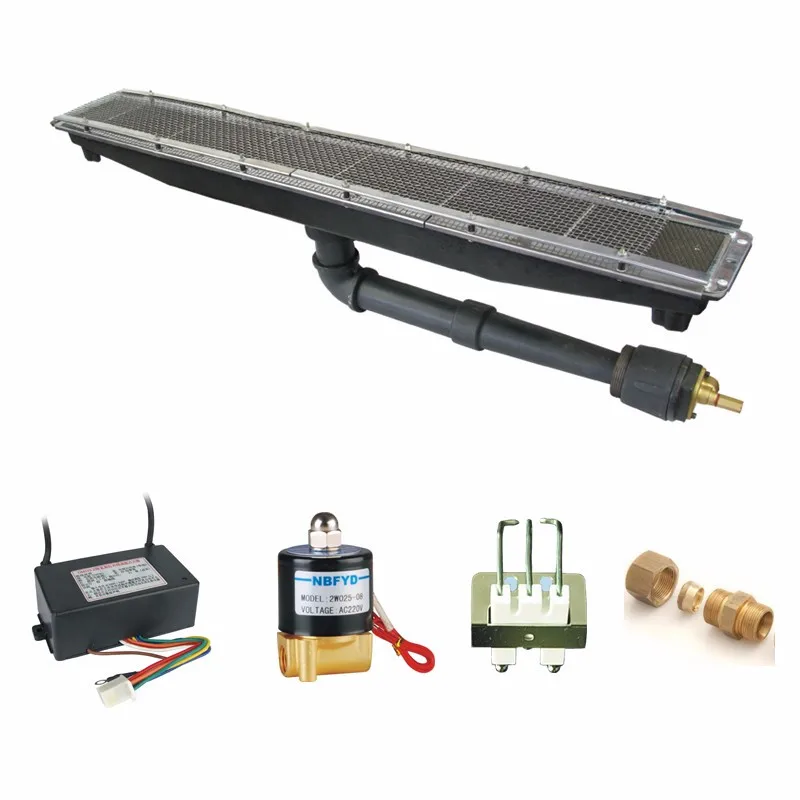

4. A set of standard configuration of infrared catalytic burner is infrared catalytic burner + ignition needle + pulse ignition + solenoid valves.
5. Any installed position is ok, but when the burner is on top or side, you should keep a 15° gradient between the wall and burner ceramic surface so that the heatwave will rise up smoothly.

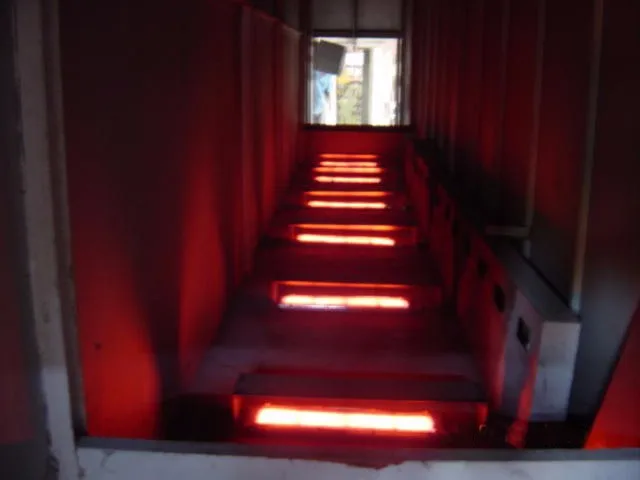

workshop show
Packing & Delivery

cast iron Flameless Infrared catelyst Industrial Propane Burner HD162

Selling Units: Single Item
Carton outside Size : 610x250x290mm
Single gross Weight: 20.1KG
Package Type: 2 Pieces packaged in one carton

1X20 FT CONTAINER,Iterm  HD162 quantities about 1068~1156pcs

1X40 FT  CONTAINER,Iterm HD162 quantities about 2403pcs

If you want use your own package ,  pls.contact  us in advance.
