Casting Stainless Steel Volute Pump/Centrifugal Pump

FOB Reference Price:Get Latest Price
$10.00 - $300.00 / Sets | 10 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Aulank pump
Model Number:
RGP-60 - Thermal Oil Pump
Structure:
Single-stage Pump
Usage:
hot oil , hot water , glycol
Application:
Big Capacity Stable Performance Electric Thermal Oil Pump
Power:
Electric
Fuel:
electric
Pressure:
Low Pressure
Item:
Thermal Oil Pump
Flange Diameter:
1"/1.2"/1.5"/2"
Motor (kw/Hp):
4.5/6
Voltage (V):
3phase-380
Rotation speed (r/min):
2760
MAX Head lift (m):
52
Capacity (L/min):
400
High temperature water:
+ 5 ℃ ~ +180 ℃
Thermal conductivity oil:
+ 5℃ ~ + 250℃
Glycol:
-30 ℃ ~ + 180 ℃
Standard or Nonstandard:
Standard
Theory:
Centrifugal Pump
Supply Ability
Supply Ability:
5000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Each pump is packed in standard wooden case.
Port
Shanghai
Lead Time :
Shipped in 5 days after payment

RGP-60 Big Capacity High Performance Electric Hot Thermal Oil Pump



Product Description




♦♦ Detailed Introduction



1. WL series vertical high temperature pump is axial suction, vertical high temperature medium transferring circulating pump. The transferring medium is the water without the particle and fiber, such as water, conduction oil and glycol and so on.
2. The pump’s entrance soak in the circulating liquid, the exit adopts pipe screw connection, which has the advantages of no leak, fine appearance, high pump head, fast flowing speed, low noisy, stable performance.
3. The pump is widely used in high power molding temperature controller, pipe increasing pressure, oil heater, receiving water system of the boiler, wood-working machine, leather machinery, heating equipment of the wind power technology and other industry area and equipment.



♦♦ Technical Parameter



Type

Flange

Diameter

Motor

(kw/Hp)

Voltage

(V)

Frequency

(Hz)

Rotation

Speed

(r/min)

MAX

Head Lift

(m)

Capacity

(L/min)

Weight

(kg)

RGP-10

1”/2”/1.5”

0.75/1

3phase-380

50

2760

20

105

18

RGP-20

1”/1.2”/1.5”/2”

1.5/2

3phase-380

50

2760

24

235

25

RGP-30

1”/1.2”/1.5”/2”

2.2/3

3phase-380

50

2760

30

315

31.5

RGP-50

1”/1.2”/1.5”/2”

3.7/5

3phase-380

50

2760

45

367

60

RGP-60

1”/1.2”/1.5”/2”

4.5/6

3phase-380

50

2760

52

400

65

RGP-100

1.5”/2”

7.5/10

3phase-380

50

2900

50

680

110

RGP-120

1.5”/2”

9/12

3phase-380

50

2900

60

1200

115



♦♦ Material of Thermal Oil Pump



1

Pump Body

Cast iron

2

Axis

SUS

3

Sealing Material

Carborundum or alloy or ceramic + graphite

+ high-temperature resistance rubber

4

Impeller

Copper

5

Insulation Grade

F

6

IP Grade

IP54



♦♦ Installing Drawing

♦♦ Performance Chart


♦♦ Feature



1.Connecting motor directly, slight vibration , low noisy , stable performance
2.Saving room , saving cost
3.Precision sealing structure , which make sure the medium’s transferring
4.There is no any other friction except to the sealing friction , long term stable performance



♦♦ Application Scope



1. Mold temperature controller, oil heater, rubber extruding machine and other high temperature controlling equipment.
2. For water transferring system of the boil in energy, metallurgy, bathroom, hotel and other related area.
3. Using for high power booster pump in temperature controlling equipment
4. For the transferring system of the hot water , fuel and other medium



♦♦ Using Condition



High Temperature Water

+ 5 ℃ ~ + 95 ℃

High Temperature Conductivity Oil

+ 5℃ ~ + 200℃

Glycol

-30 ℃ ~ + 180 ℃



♦♦ The Testing Base



The above characteristic testing is based on the water transferring with the normal speed under 20 degrees. The error of the capacity and head is about 10%, characters ‘error is about 10%. The pump characters change according to the difference of the liquid mediums’ proportion and density.


♦♦ Product



♦♦ Certificate




Packaging & Shipping

♦♦ Trade Details



MOQ

1 sets Thermal Oil Pump

Port

Shanghai

Packaging

Standard wooden case and carbon

Payment

L/C, T/T, Western Union

Delivery

Within 7 days after receiving deposit for Thermal Oil Pump

Shippment

By air, by sea, by truck, express



Our Services

♦♦ Our Service



1. According to your requirements, we supply you the high quality Thermal Oil Pump with the best price, more better suggestions are offered to you.
2. We will arrange the delivery the Thermal Oil Pump when receiving your deposite. Generally speaking, It will taked about 5 -10 days to arrange.
3. The warranty period is 1 years except the wear parts. We will supply you free replaced parts (except wear parts ) if the Thermal Oil Pump is damaged caused by the machine itself during warranty period . For online instruction service is free. For the wear parts, we will supply you by the lowest price if necessary.



Company Information

♦♦ About Us



Name

Kunshan Aulank Pumps Manufacturing Co., Ltd.

Business type

Manufacturer

Specialize in manufacture, R&D and sales of temperature control equipment

Established

1. First founded in Hong Kong in 1996.

2. AODE Machinery Group set up its headquarter in Kunshan, Jiangsu province in 2012.

3. Three manufacture plants in Shenzhen City, Suzhou City and Tianjin City in 2004, 2007 and 2010.

4.  Kunshan Aulank Pumps Manufacturing Co.,Ltd is founded in 2007, located in KunShan city, JiangSu province, which is subsidiary company of AODE Machinery Group.

Area

14000 sq.m.

Main Product

Kinds of Pumps, kinds of chillers, etc.

Certificate

ISO, CE Certificate

Company Advantage

AODE has been the first brand TCU supplier of China.

Main Market

Japan, America, Italy, Brazil, Southeast Asia, Africa, etc.

Website

http://ksalk.en.alibaba.com/



♦♦ Our Team and Partner

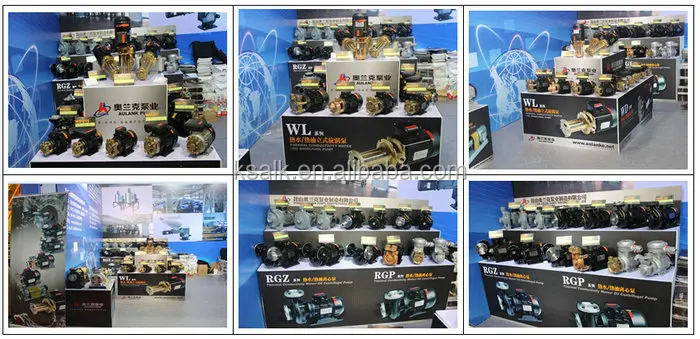

♦♦ Exhibition



In Shanghai

In Asia Pacific



FAQ

♦♦ FAQ



1. OEM &ODM
According to your requirements, we can supply OEM &ODM service for you if necessary .



2. Our Main Product
Water Pumps, Oil Pumps, Water Chillers, Oil Chillers, Air Chillers, etc.



3. Reputation
We are legal company supervised by the government and Alibaba as well as the third parties, which have the strict requirements for our company. If you pay us and do not receive the Thermal Oil Pump, the alibaba will compensate for your loss, and also our company will be accused by the Alibaba Group. Please trust me that we will try our best to supply you high quality prouducts with our professional service .
