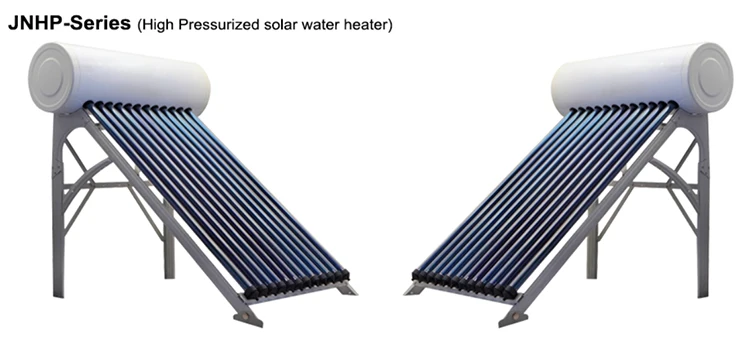

Ce Approved Solar Water Heater Parts, 300L Pressurized Tanks and Vacuum Tube Collector CPC

FOB Reference Price:Get Latest Price
$170.00 - $500.00 / Sets | 1 Set/Sets Solar Water Heater Parts (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
JN
Model Number:
JNHP
Type:
Pressurized
Application:
Solar Thermal
Pipe Material:
Copper
Warranty:
5 Years
Certificate:
Solar keymark, ISO9001,CE, CCC,SGS
Circulation Type:
Direct / Open Loop (Active
Heating System:
Thermosyphon (Passive)
Installation:
Freestanding
Pressure:
Pressurized
Housing Material:
Galvanized Steel
Product name:
Solar Water Heater Parts,Pressurized Tanks and Vacuum Tube Collector
Capacity:
150L,200L,250L,300L
Use:
Bathroom
Supply Ability
Supply Ability:
54000 Set/Sets per Year Solar Water Heater Parts
Packaging & Delivery
Packaging Details
water tank and bracket in export carton,vacuum tubes in wooden box,Solar Water Heater Parts, 300L Pressurized Tanks and Vacuum Tube Collector CPC
Port
Shanghai

Product Description

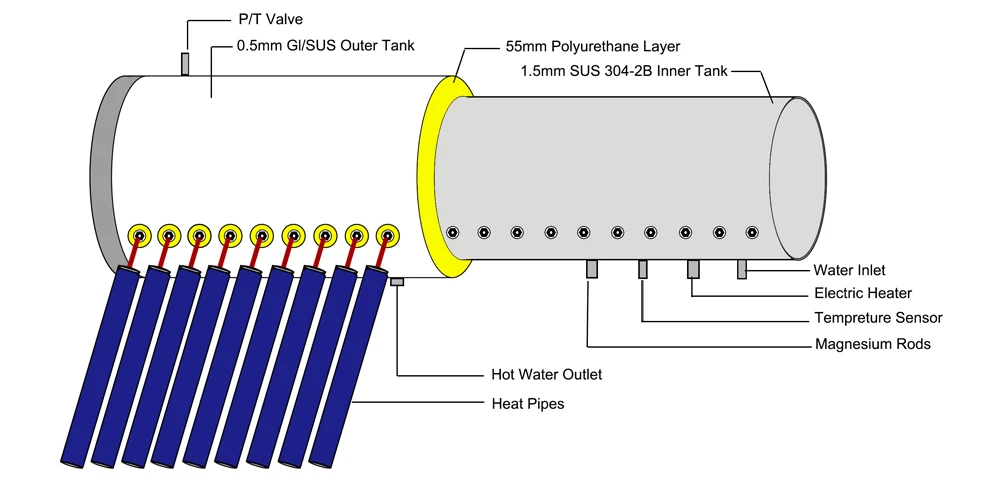

Product Specification:
WATER TANKINNER TANKStainless Steel (SUS304 2B); Thickness: 1.25mm
OUTER TANKGalvanized Steel, Thickness: 0.41mm
DIAMETER360mm/470mm
INSULATION Polyurethane, Thickness: 55mm
WORKING PRESSURE0.7Mpa
TEST PRESSURE1.0Mpa
VENT CONNECTION3/4 inch
WATER CONNECTION3/4 inch
BRAKETMATERIALGalvanized Steel; Thickness: 1.2±0.15mm
ANGLE 20°~60°
HEAT PIPE TUBETUBE SIZE Ø58 x 1800 mm
HEAT PIPE MATERIALCopper
CONDENSER DIAMETER14mm
HEAT PIPE LENGTH1700mm
ALUMINUM FINSThickness is 0.15mm; Length is 1600mm
TUBE STRUCTURE All glass double deck co-axial structure
COATING MATERIALThree-Target [CU/SS-ALN(H)/SS-ALN(L)/ALN]
GLASS MATERIALBorosilicate 3.3 glass; Thickness is 1.6±0.15mm
ABSORPTIVITYα=0.92-0.96(AM1.5)
EMISSION RATIOε=0.04-0.06(80℃±5℃)
VACUUM DEGREEP≤5.0X10-3(PA)
TRANSMITTANCET≥0.89(AM1.5 ISO9806-1:1994)
STAGNATION PARAMETER Y≥200/KW
AVERAGE HEAT LOSSULT: 0.4-0.6/(m2X℃)
PRESSURE-ENDURE0.6Mpa
HAIL RESISTANCEDiameter 25mm
CIRTIFICATESSolar Keymark, CE, GMC, ISO9001, ISO14001, CCC, SGS


Feature:

1.Start up quickly. heat pipe transfer the heat energy into the storage tank in one direction:

2. With standard pressure of 6 Bar, can be connected directly with tap water:

3. No water in the vacuum tube eradicates the incrustation scale, thus keeping them running in the high efficiency:

4. No water  inside the evacuated tubes, the solar water heater can still in service even with several tubes broken:

5. Simple structure, easy to assembly and install:

6. Can be used all year round in the cold clim

7.Uni-directional heat transmission



Models CollectorCapacityLoading Capacity(sets)
20’ GP40’ GP40’ HQ
JNHP-80L-8Vaccum Tube+Heap pipe80L69115130
JNHP-100L-10Vaccum Tube+Heap pipe100L60102120
JNHP-120L-12Vaccum Tube+Heap pipe120L5293113
JNHP-150L-15Vaccum Tube+Heap pipe150L4985107
JNHP-180L-18Vaccum Tube+Heap pipe180L4279100
JNHP-200L-20Vaccum Tube+Heap pipe200L397291
JNHP-250L-25Vaccum Tube+Heap pipe250L336177
JNHP-300L-30Vaccum Tube+Heap pipe300L275266
JNHP-360L-36Vaccum Tube+Heap pipe360L234452
