Cement plaster spraying machine automatic sand mortar spraying pump machine for construction

Feedback Ratings
  • 1-4 Sets
    $1,890.00
  • 5-9 Sets
    $1,750.00
  • 10-19 Sets
    $1,550.00
  • >=20 Sets
    $1,430.00
Model Number:
MG-CS500 MG-CS300
Max. Output Capacity:
150Cubic/H
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Power:
380V,50hz,3Phase
Weight:
300kg
Dimension(L*W*H):
1.7*0.6*1.1
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Online support
Condition:
New
Application:
Sprayer
Place of Origin:
Henan, China (Mainland)
Brand Name:
MG
Certification:
CE
Name:
Cement plaster spraying machine
Applicable materials:
Cement,Mortar,Plaster,putty,etc
Sprayer way:
spray gun
Driven way:
electric engine or diesel engine
Usage:
Spraying Wall Cieing
Spray area(Cubic/H):
150
Working Pressure(Mpa):
5-8
Max.Granule(Mm):
7
No.of conveying tube:
38#
Match ratio(water:cement:sand):
1:1:3

Packaging & Delivery

Selling Units:
Single item
Single package size:
170X60X110 cm
Single gross weight:
300.0 kg
Package Type:
Wooden Case
Picture Example:
package-img
Lead Time :
Quantity(Set) 1 - 5 >5
Est. Time(days) 15 To be negotiated
Video Description

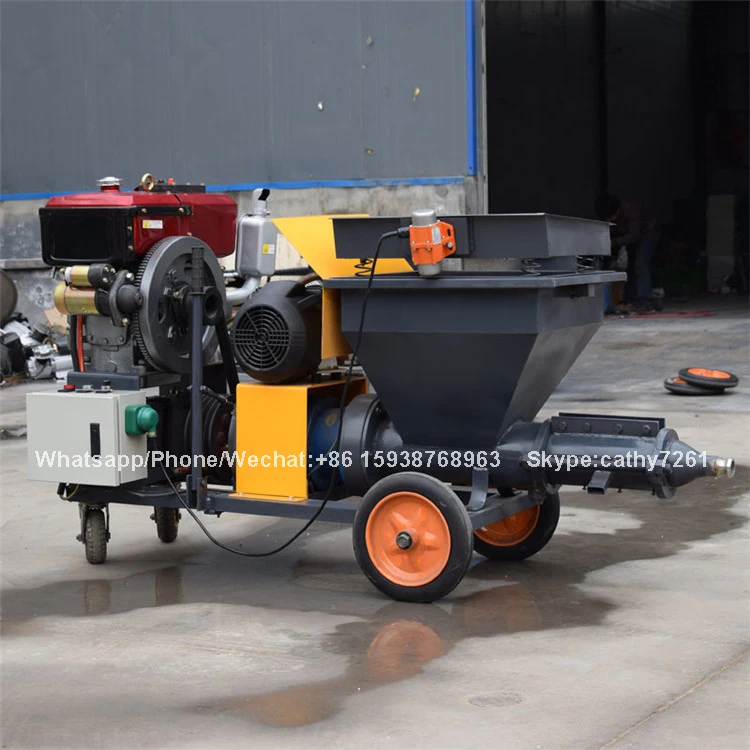

Cement plaster spraying machine automatic sand mortar spraying pump machine for construction



Product Description

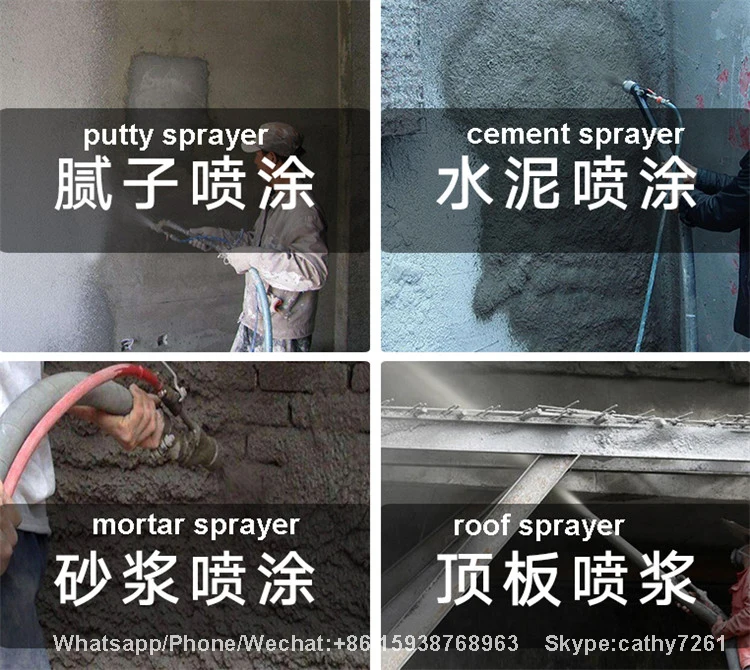

Our cement spraying machine is mainly used in the building construction industry, both inside and outside wall for plastering and spraying mortar, external wall insulation mortar spraying, the materials can be mortar roughcast,refractory coating, large building spraying fire materials, waterproofing coating and so on.





Specification

Model

MG-CS300

MG-CS500

Power(Kw)

4

7.5

Voltage(V)

380

380

Conveying flow(M³/H)

2

3

No.of conveying tube

25#

38#

Match ratio(water:cement:sand)

1:1:3

1:1:3

Working Pressure(Mpa)

3-6

5-8

Spray area(M³/H)

150

150

Pump power(Kw)

2.2

2.2

Max.Granule(Mm)

4

7

Dimenison(M)

1.6*0.45*0.95

1.7*0.6*1.1

Weight(Kg)

150

300

Using range

mortar,putty, paint

mortar,putty, paint

Advantages

1. Reasonable design pumps and compressor integrated ,easy to move.

2. Equipped with international standard copper motor.

3. Continuous feeding ,no pulse

4. Wide application,could spray mortar and powder and so on

5. Spray gun and nozzle can operate any direction

6. New modified system by thousand sales experience,free standard spare parts ,if over-heating change motor

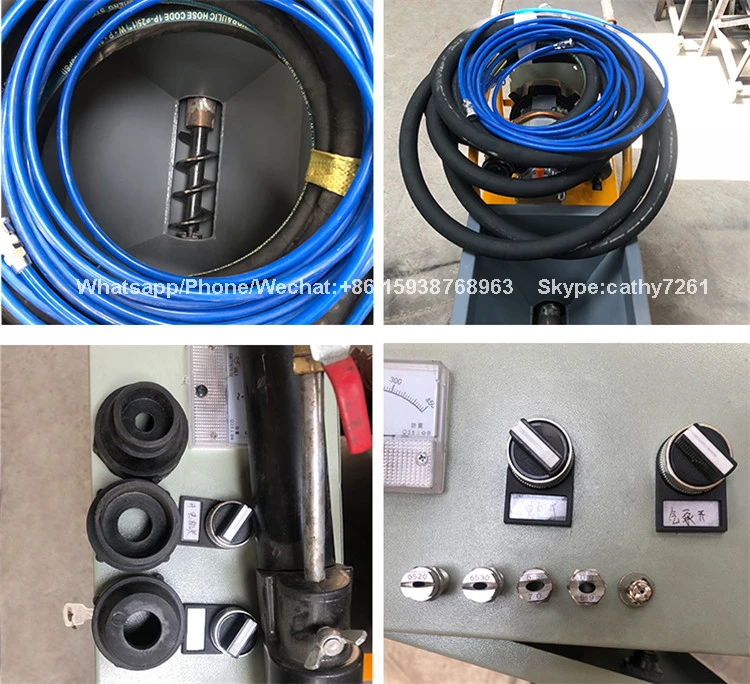

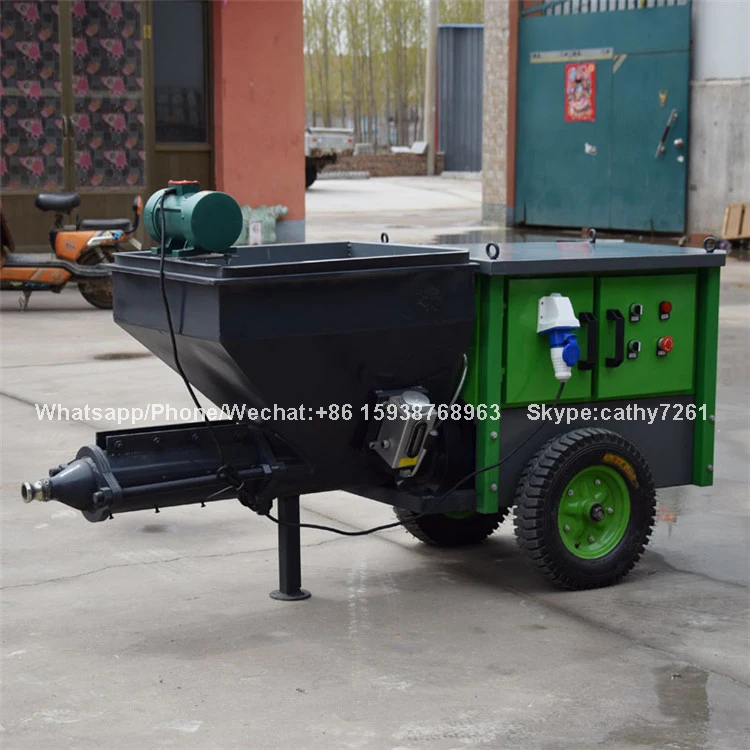

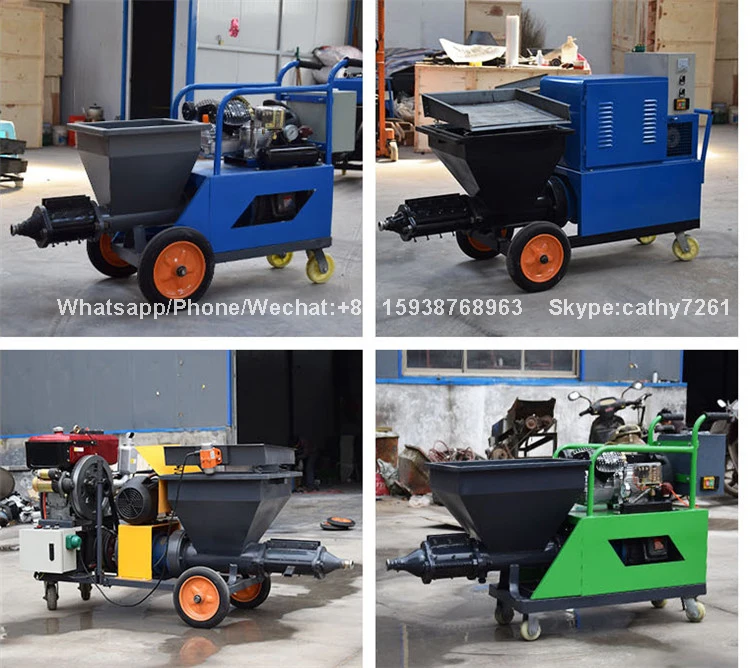

Detailed Images

Packaging & Shipping
Packaging: Wooden Crate or Pallet or bare package in standard containers for export;



Shipping: All machines will be sent by sea, if you need other kind of transportation, please inform us in advance.

And all machines would be shipped in 7 days after the receipt of payment. Before and after shipping, we will take photos of machines and send photos to client.
