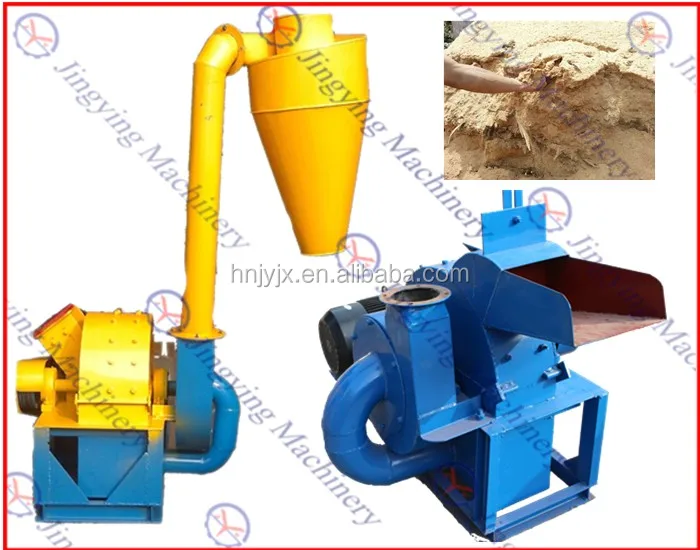

Charcoal coal grain hammer mill and wood chip crusher with blade

FOB Reference Price:Get Latest Price
$850.00 - $1,350.00 / Sets | 1 Set/Sets grain hammer mill crusher (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Henan, China (Mainland)
Brand Name:
grain hammer mill crusher
Model Number:
JY400
Voltage:
220v/240v/380v/400v/440v
Power(W):
7.5kw-11kw
Dimension(L*W*H):
1200*500*800mm
Weight:
220kg
Certification:
ISO
Capacity:
400-600kg/h
Quantity of the hammers:
24pcs
Size of the Screen:
1mm-10mm
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
12 month
Supply Ability
Supply Ability:
50 Set/Sets per Month grain hammer mill crusher
Packaging & Delivery
Packaging Details
grain hammer mill crusher
wooden case or upon the customers' requst
Port
Qingdao/Shanghai/Guangzhou
Lead Time :
Shipped in 7 days after payment

Charcoal coal grain hammer mill and wood chip crusher with blade

Product Description

1. Wood crusher is a new type wood working machine, it can make the raw materials such as wood, wod chips, wood block,  branch into sawdust in one process.

2. Characteristics: Less investment, Low energy consumption, High productivity, Good economic return, convenient usage and maintenance etc.

Raw Material Request

Any types of Agro-forestry waste & forest waste.

Such as wood branch, wood logs, wood waste, wood chips, wood pieces, bamboo, panel, and corn comb, stalks, rice husk, coffee husk, coir pith, jute sticks, groundnut shells.



Machine Parameters

Model No.

Wood crusher 400

wood crusher 600

wood crusher 800

wood crusher 1000

Cutter diameter (mm)

400

600

800

1000

Quality of hammer(pcs)

24

32

56

 72

Power

7.5-11KW/380V

18.5KW/380V

30KW/380V

45KW/380V

Capacity (kg/h)

400~600

700-1000

1500-2000

2000-3000

Dimension (m)

1.1*0.7*0.95

1.5*0.8*1.2

21.*1.1*1.4

2.1*1.2*1.6

Weight (kg)

300

500

700

1150

Applications of Agricultural wood chip hammer mill crusher for sale

1. Driven by a diesel engine makes materials crushing possible especially in the rural area with shortage of electricity.

2.The core part -the hammers are made of high quality carbon alloy steel, which is durable and wear-resistant.
3. Available screen discharge area can be up to1904 square centimeter which allows for high throughput at a lower horse power.
4. We can equip air blower, the crushed material can be directly collected and transported to next machine for further processing.
5. You can change screening sieve according to different material grinding requirements.
7. We can customize the following sieve with screening hole diameter of 2mm-10mm.





FAQ

 In actual production, a cyclone is always a necessary device in wood hammer mill. What’s the function of cyclones? How does it work? Does the cyclone really work?

Cyclonic separation is a method to remove wood particles from air steam though vortex separation without filters. In wood chips and sawdust collection, rotational effects and gravity are main ways to separate the mixed air flow. This method can be also used to separate fine droplets of liquid from a gaseous stream.
