Cheap 1000m3/h Water Pump Set with Mixed Flow Pump and Diesel Engine

FOB Reference Price:Get Latest Price
$3,980.00 - $10,000.00 / Sets | 1 Set/Sets (Min. Order)
Horsepower:
50KW
Maximum Flow Rate:
1400M3/H
Maximum Head:
10
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Match Power
Model Number:
MC400HW-10S-1
Structure:
Single-stage Pump
Usage:
Water
Application:
Irrigation and Drainage
Power:
Electric
Fuel:
Diesel
Pressure:
High Pressure
Standard or Nonstandard:
Standard
Theory:
Centrifugal Pump
Certificate:
ISO9001
Max Capacity (m3/h):
1720
Max Capacity (L/s):
478
Max Lift:
11.5 m
speed:
730 rpm
Name:
watter pump
Color:
Blue
Material:
Cast Iron
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
plastic bag/ plywood
Port
Qingdao
Product Description

Application:

The diesel engine water pump is driven by the diesel engine, which is connected to a water pump driven by a flexible coupling, and is installed on a fixed base, a moving base, or a pump unit with a rainproof and mute protection device.


Scope of application for the HW-S series mixed flow pump:
1. forced circulation in chemical process,
2. mariculture,
3. city gas engineering,
4. water supply and drainage fordrainage,
5. water treatment system,
6. mine drainage,
7. water supply and drainage for large flow pump, etc.
Basic Specification
Model
MC400HW-10S
Brand
Match Power
Lift
10.0 m
Capacity
1400 m³/h ;  390 L/s
Power
50 kw
Power
Diesel
Pressure
High Pressure
Application
Cryogenic, Fire, Maritime, Metering, Sewage, Submersible
Structure
Mixed-Flow Pump
Color
As your request
Function
Axial Flow Pump, Centrifugal Pump, Chemical Pump, Electric Pump, Electromagnetic Pump, Gear Pump, Jet Pump, L Pump, Mixed-flow Pump, Oil Pump, Others, Pump, Roots Pump, Screw Pump, Sewage Pump, Slurry Pump, Steam Pump, Submersible Pump, Vane Pump, Vortex Pump

Main Features

1) Due to the larger overcurrent area, the obstruction is reduced.

2) The pump rotation direction, from the driver side, is clockwise direction.
3) It can be drived by electric motor or diesel engines.
4) The pump can equip with a complete air release device, to facilitate the exhaust of the suction line.

4) The mixed flow pump has advantages of both centrifugal pump and axial flow pump:  simple structure, wide efficiency area and convenient operate.

Detailed Images

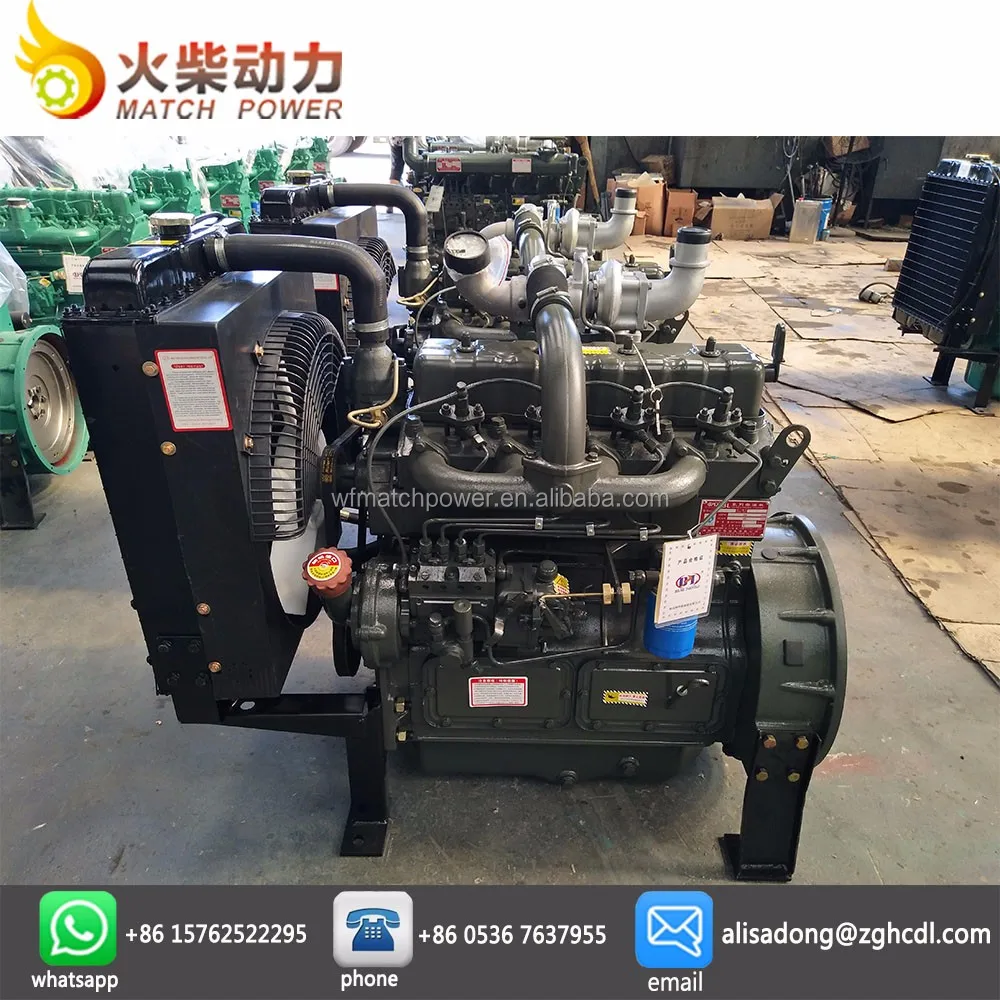

Diesel Engine

The diesel engine have characteristics of advanced performance, compact structure, high reliability, environment protect, low noise, easy to start and strong environmental adaptability.
The engine adopts gantry frame structure engine body, single cylinder head and wet cylinder liner. WP6 engine adopts second-generation engine body, and built-in engine oil cooler, increase the cooling capacity of diesel oil and reliability significantly.

Specification of Diesel Engine
brand
Match Power
model number
ZH4105ZD
rated power
56 kw
standby power
61.6 kw
rated speed
1500 rpm
governor
mechanical / electric governor
cooling method
water cooling
start method
electric start
cylinders and cycles
4 cylinders, 4 stroke
bore x stroke
105x125 mm
fuel Consumption
≤ 226g/kw·h
displacement
4.33 L

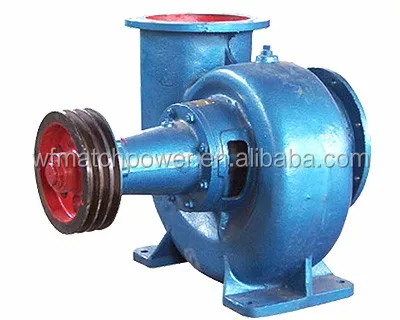

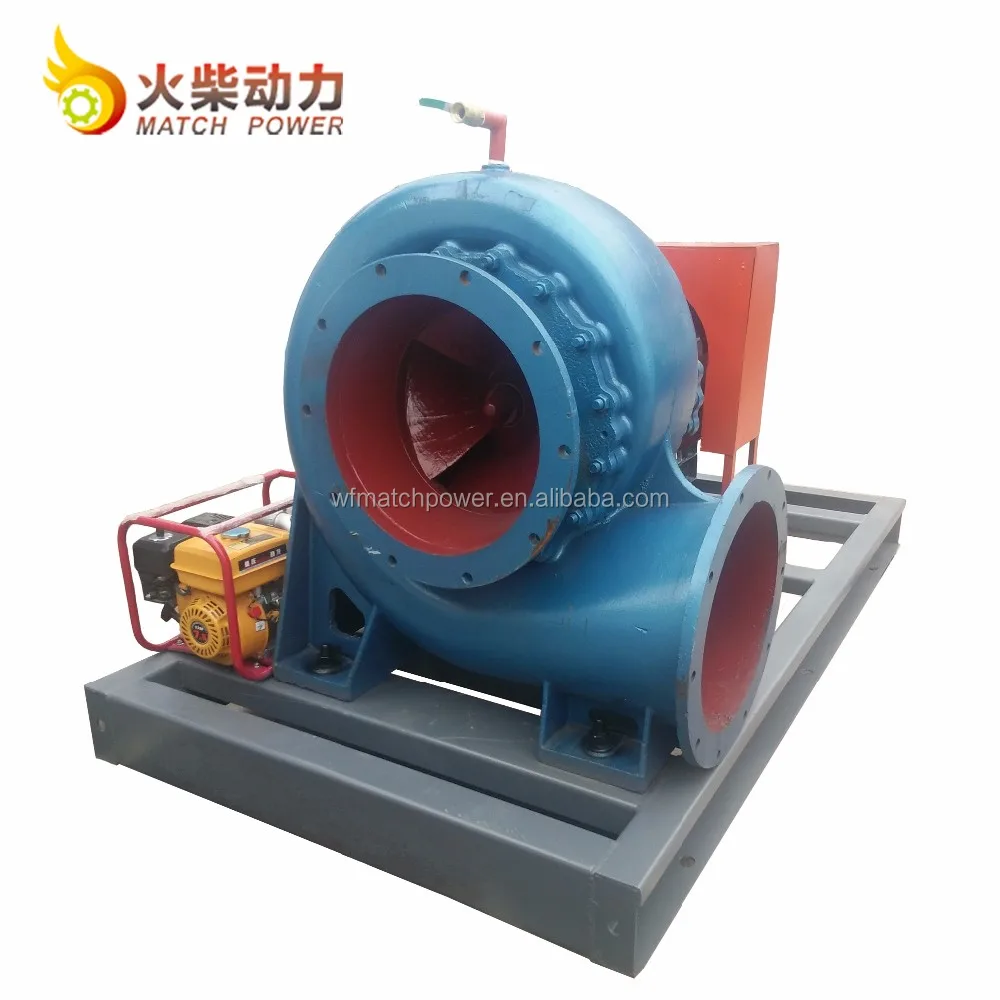

Water Pump

The single stage centrifugal pump series is applicable to water supply and drainage for industry and city pressure increasing water supply for high building ,garden irrigation, pressure increasing for fire fighting, long distance transportation, heating and cooling circulation, cold and warm water circulation pressure increasing and matching equipment.

Specification of Pump
Max Lift
11.5 m
material of case
cast iron
Max Flow
1720 m³/h ; 478 L/s
material of axle
cast steel
inlet size
400 mm
material of blade
cast steel
outlet size
400 mm
sealing method
packing seal
speed
730 rpm
suction
5 m

optional accessories

1.vaviable head
2.quick connector
3.suction pipe
4.hose
5.auto water suction device
6.batteryfly valve
7.foot valve
8.clutch

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Our Company

Weifang Match Power Co., Ltd

Weifang Match Power Co., Ltd was founded in 2017, it specializing in producting and selling the Marine Generators, Marine Engine, OceanSwitches as well the Industrial Generators, Mobile Lighthouses and Diesel Engine Parts.


The company is located in the eastern of Shandong Province. There's only 160km distance to Qingdao, about 2 hours drive.


After the previous accumulate of experience, Match Power has established business relationship with hundreds of domestic and international customers now, such as Russia, Saudi Arabia, the united Arab emirates, Cyprus, India, Sri Lanka, the Philippines. And we aim to be the leading supplier of electric power solutions
