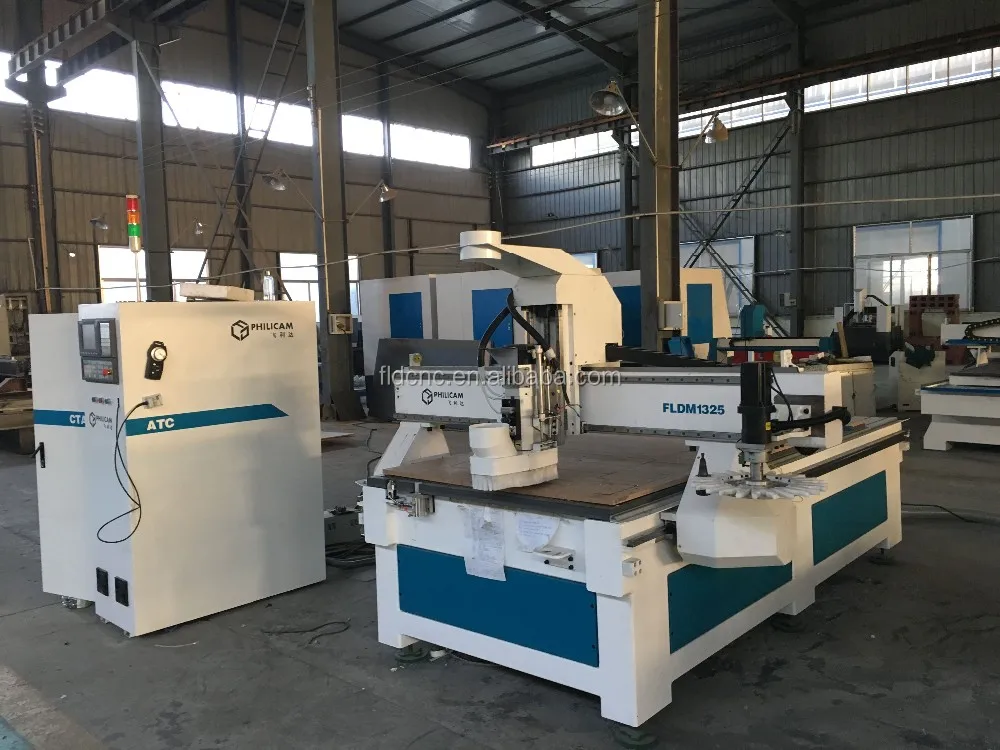

Cheap atc wood cnc machine cnc router multi fonction
china 9.0 kw Air cooling tool changer spindle
Transmission in X, Y axis:
Z axis transmission:
Taiwan TBI Ball Screw Transmission
Vacuum Table Optional
Taiwan Hiwin 25 Rails
Taiwan Syntec Control System
750W Delta servo motor
Delta with reducer
10 Set/Sets per Month cnc router china
Packaging & Delivery
Shipped in 15 days after payment
Door and Furniture Engraving Machine ATC CNC Router center is widely used on: 1. Furniture: plate, office furniture, doors, cabinets. 2. Wood products: speakers, games cabinets, computer tables, sewing machines, musical instruments. 3. Board processing: insulation, plastic chemical components, PCB, car body, bowling track, ABS, PP, PE, etc. 4. Decoration: Acrylic, PVC, MDF, glass, plastic and soft metals such as copper and aluminum.
#.working area:1300x2500x300mm #.Spindle motor : China 9KW air cooling ATC spindle #.motor and dreiver system: schneider #.Inverter: China Fuling inverter 11KW #.Operating system: Taiwan Syntec 6MA #.Rail: Taiwan HIWIN square rails #.Beam: steel beam stiffeners #.Cable: drag chain specific Cable, anti-jamming, anti-static; with high flexibility, long-term use will not break #. helical rack #.Taiwan TBI ball screw #.Table:Vacuum table #. software Artcam etc #.dual-drum dust collector ,Brush, suction pipe, Vacuuming stents. #. Overall welding tempered aging treatment, strong and does not distort #.Change of tools - circular the 10 tools #.Voltage 3PHASE 380V/ 50HZ #.oil injection system #. tools box (include router bits,collect, clamp, tool sensor,etc)
Working vidoe in customer's workshop
Name: China 9.0KW ATC spindle
Easy to install, low maintenance cost, not easily affected by environmental factors. Match with Taiwan Delta inverter, enjoys long lifetime, large torque, high precision, little running vibration. It is one of the best brand all over the world, and after-sales department spred all over the world

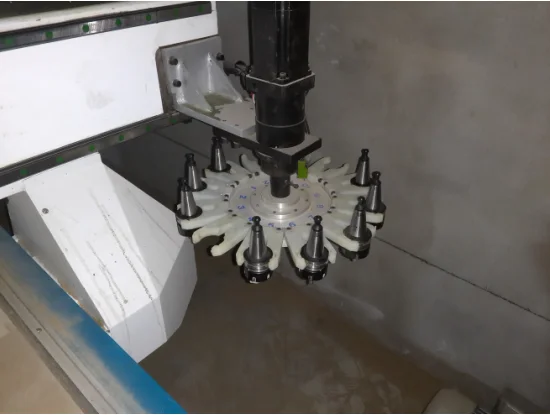

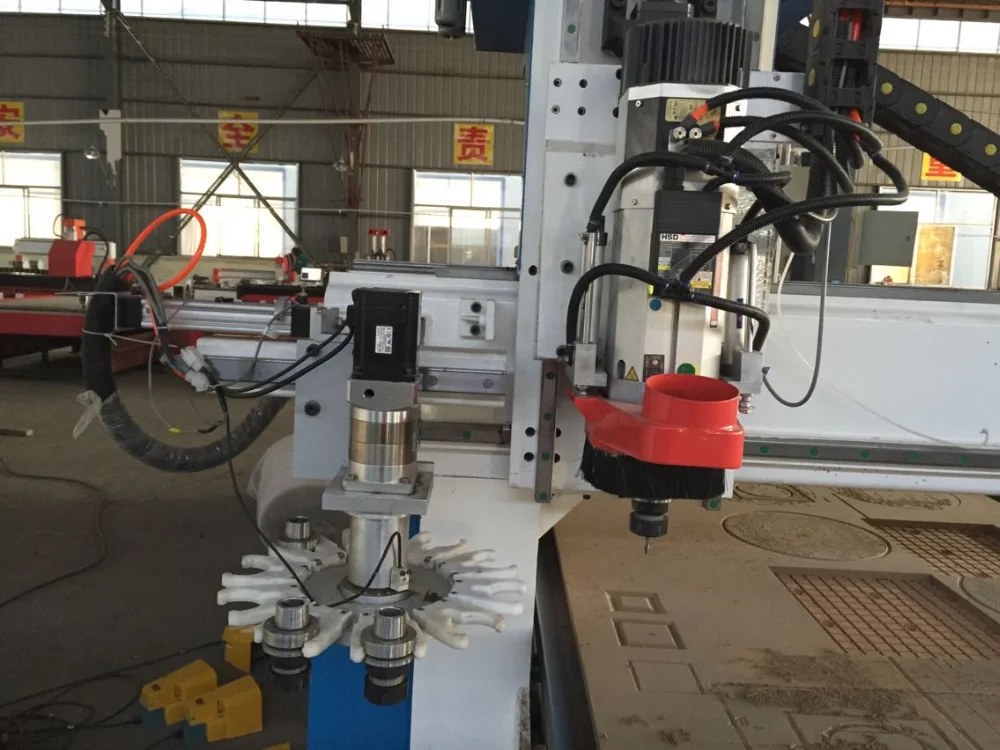

Name: disk magazine 10-12 tools. Original: China Easy to change tools automatically during the operation. No need to change the tools manually. Can greatly enhance the work efficiency and save time atc on cnc router for 1325 cnc router hsd spindle atc wood working machine

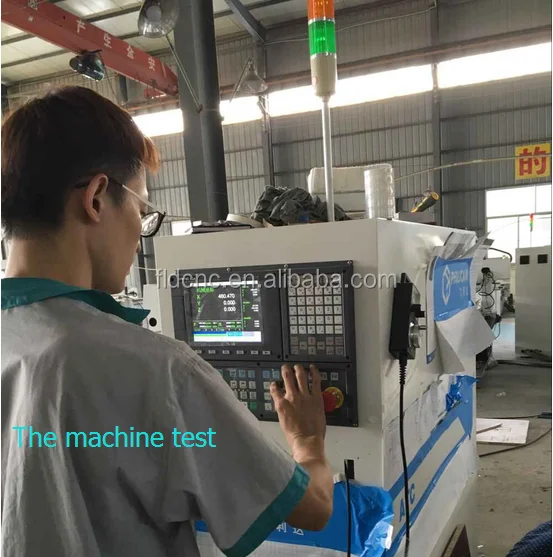

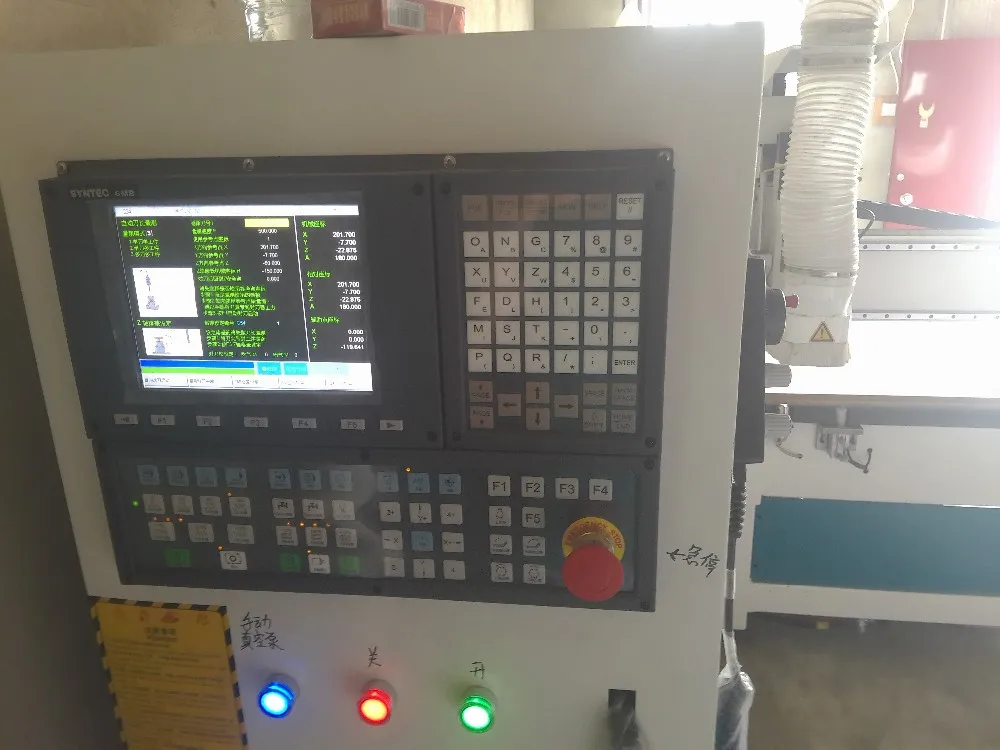

Name: Control system Brand: Syntec Original: Taiwan Can compable with various types of software such as type3/artcam. Support G&M code, with post-processor.

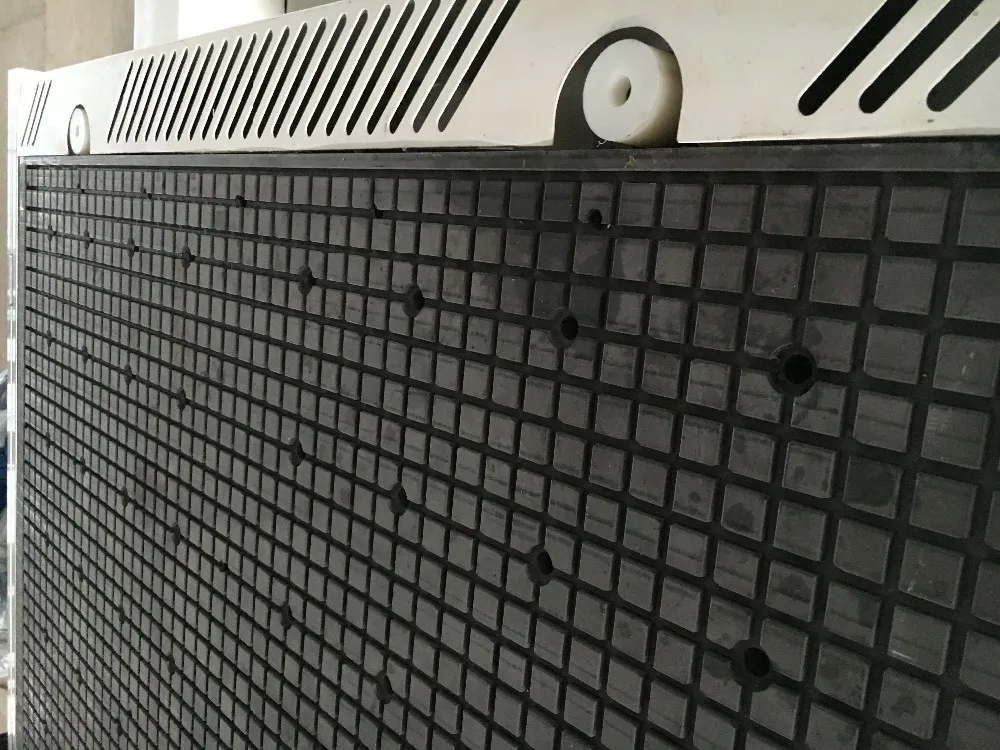

Name: vacuum table Original: China Vacuum table can be strong adsorption of materials of different sizes, density, not easily deformed, can be high temperature.

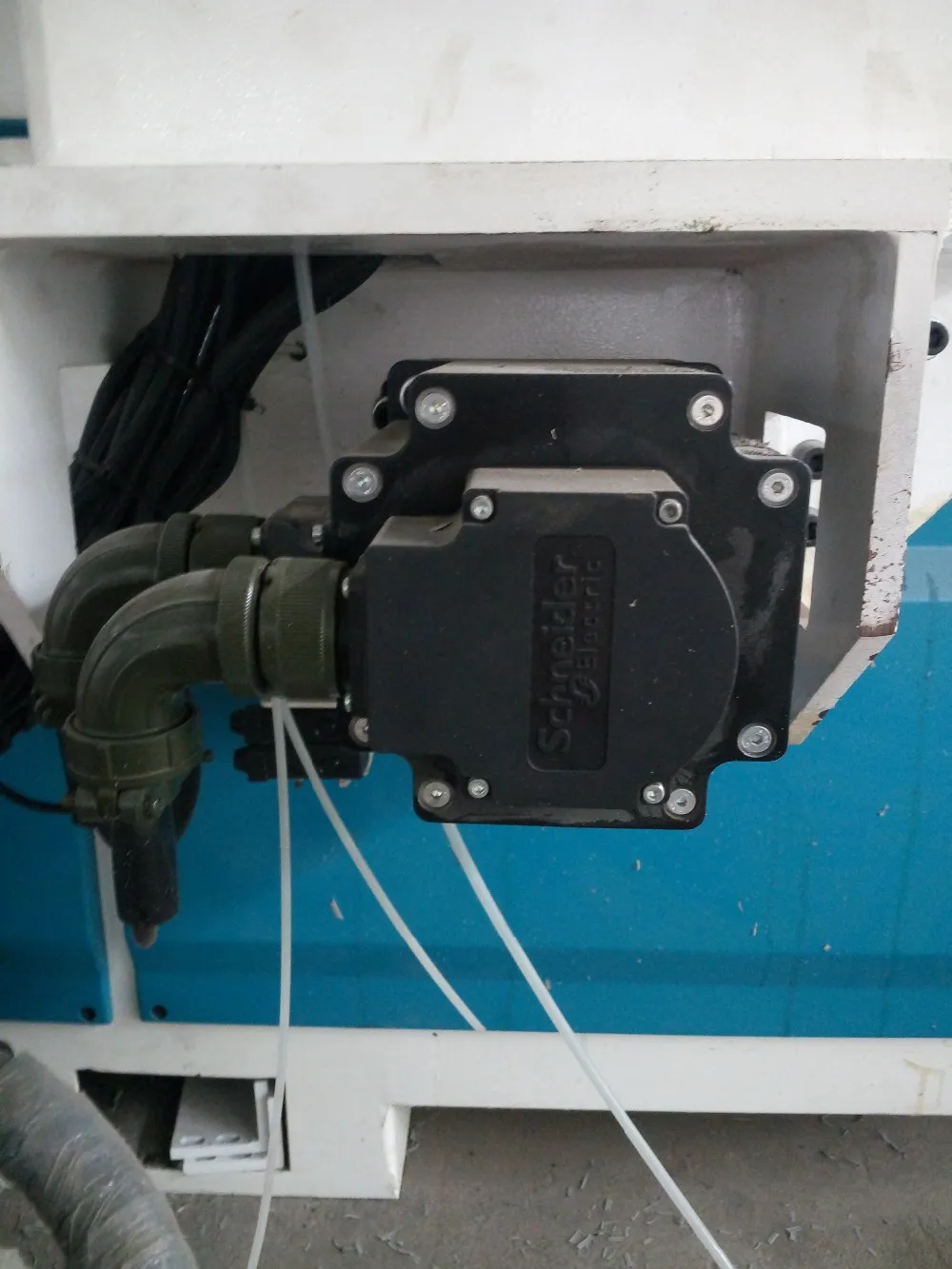

Name: Schneider motor
Will not lose step and lock rotating even when operating with large overload. High control accuracy, fast spped feedback on woodwork.

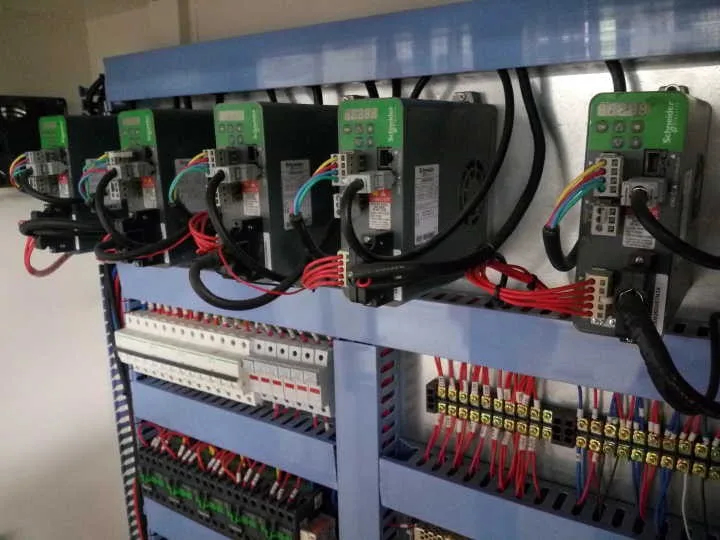

Main Features Name: Schneider servo driver Original: China
When operate in low frequency and low speed,it also enjoys large torque, with great overload capability

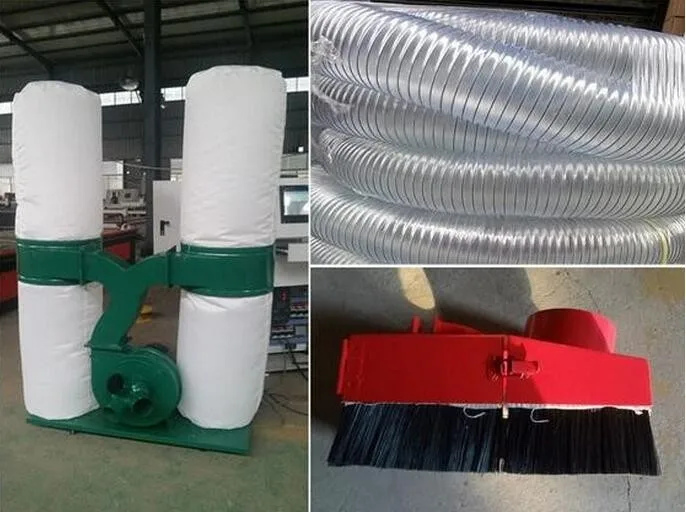

Double bags, we also provide the pipes and brushes for wood door making cnc router auto tool changer
* Inquiry and consulting support.
* Sample testing support.

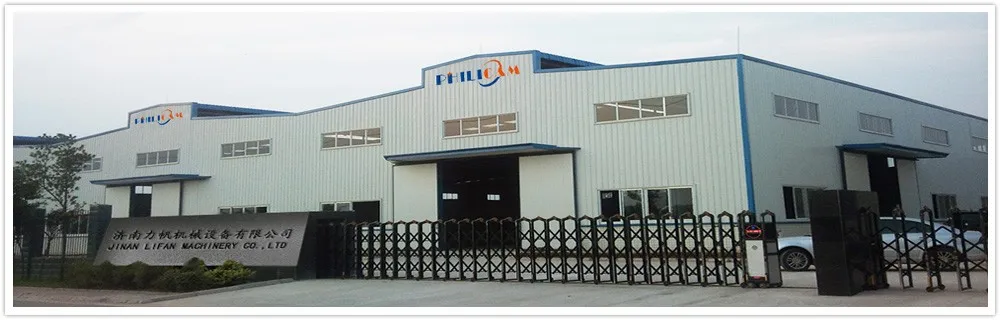

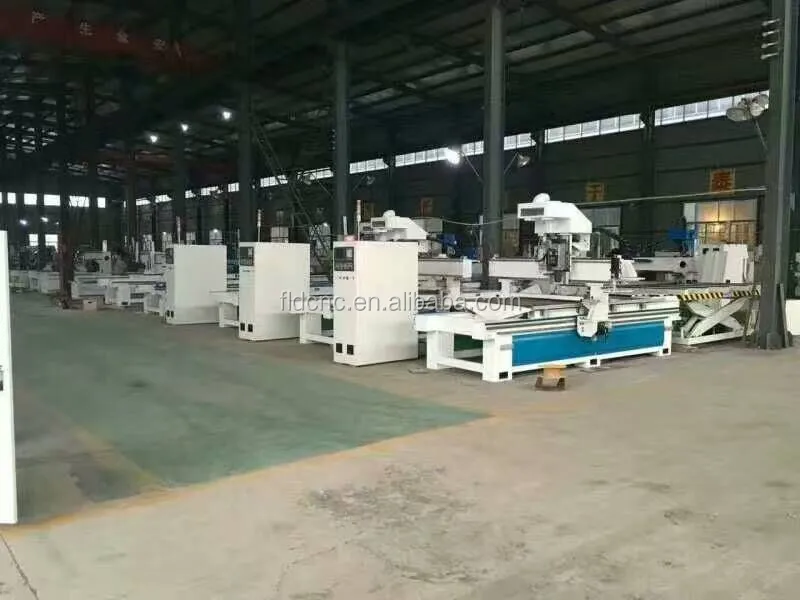

* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.

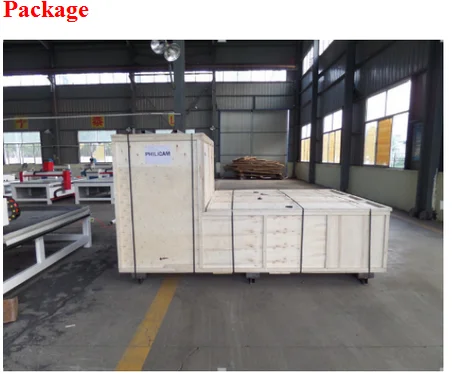

Packing & Delivery
Title goes here.

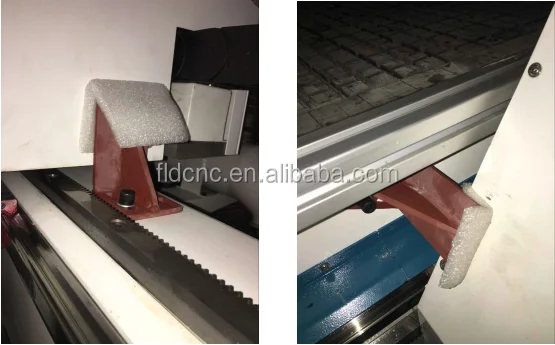

Before shipment, XYZ axis are fixed, In order to prevent the occurrence of damage in the process of transportation.
