Cheetos/kurkure Corn/cheese Curls Snacks Making Machine

FOB Reference Price:Get Latest Price
$10,000.00 - $50,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Shandong, China (Mainland)
Brand Name:
TAINUO
Model Number:
TN70
Voltage:
380V 220V
Power(W):
100W
Weight:
10T
Dimension(L*W*H):
18X4X5M
Certification:
CE
Brand name:
TaiNuo
Motor:
Chinese or Simens or ABB
Floor area:
100 square meter
Material:
stainless steel
Operator number:
2-4
Project character:
Turn-key
Screw material:
38CrMnAl
Self cleaning:
yes
Particle size:
evenly
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
12month
Application:
Chips
Supply Ability
Supply Ability:
20 Set/Sets per Month
Packaging & Delivery
Packaging Details
We test the machine befor packing
Firstly packed with plastic bags
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Port
Qingdao
Lead Time :
Shipped in 30-45 days after payment
Product Description

Product Application

Kurkrue/Cheetos food machine. Kurkrue/Cheetos are special extruded snacks, very crunchy and great in taste. They are made by a special extrusion process. The corn grits are moisturized in the flour mixer with water and fed to the rotary head extruder. In the extruder, due to the two rotary plates, the corn grits are squeezed and twisted to curls shapes. The cutting knifes can cut into required lengths. The Kurkure/Cheetos are fried in cookingoil or toasted in oven and then cooled before flavoring. Seasoning is sprayed on the surface to achieve different favorable tastes. Due to the delicious flavors and nutrition, it is quite popular with consumers.

                                                                 Machine parameters

Twin-screw extruder
 model
Install power
Main motor power
Output
TN65
34KW
22KW
100-150kg/h
TN70
48KW
30KW
200-260kg/h
TN85
73KW
55KW
300-500kg/h
TN90
100KW
75KW
1000-1500KG/H
TN95
110KW
90KW
1500-2000KG/H
Motor power
Output
Dimension
Function
Mixer
4kw
200-260kg/h
1.0*0.6*1.45m
Mix the raw material with water
Screw-conveyor
1.1kw
100-260kg/h
2.3*0.8*2.3m
Send the material into the extruder
Drying oven
45kw
200-260kg/h
5.0*1.3*1.7m
Bake and dry the food
Hoister
0.2kw
100-260kg/h
2.4*0.6*2.0m
Take the food to drying oven
flavor roller
1kw
200-260kg/h
3.6*0.9*1.7m
Flavor the food
Colling conveyor
1.48kw
200-260kg/h
4.2*0.8*1.4m
Colling the food before packing

Main Features

1)The model is TN65, the output is 100-150kg/h,and we have other capacity,they are 200-260kg/h,300-500kg/h,800kg/h
2)Extruder screws quantity is two.
3)The main body material is stainless steel, which is easy to be cleaned
4)The screws material is 38CrMoAl, which is wear-resisting.
5) The processing line needs two workers to operate.
6) We advice the plant area is no less than 150 square meters, the length is no less than 30 meters.
7) The temperature and rotating speed can be controlled and adjusted.
8)The processing line has self-cleaning function

9)Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers' Local voltage according to        different countries

Detailed Images

Machine Parts

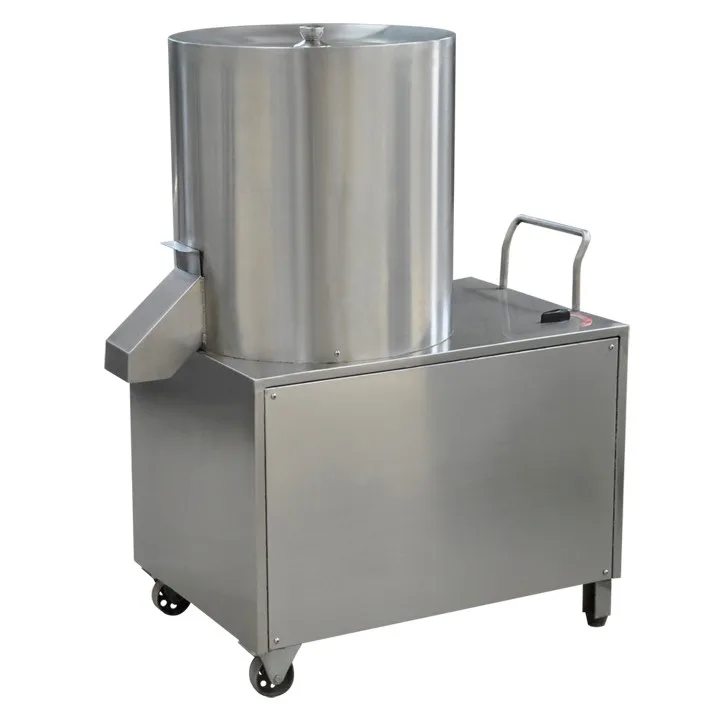

Name: Mixer
Brand: TaiNuo
Original: China

Powder mixing machine is a kind of equipment which can add a variety of raw materials into a certain amount of water or liquid additives to achieve full mixing after mixing.


Main Features

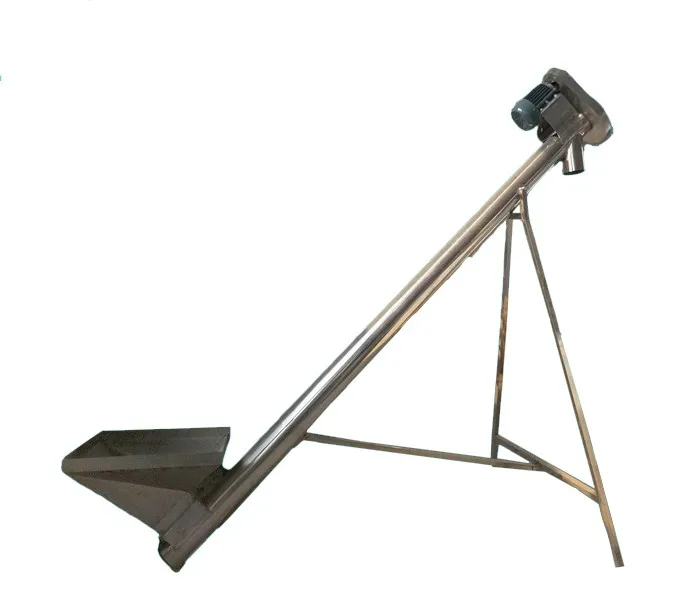

Name:  Screw-conveyor
Brand: TaiNuo
Original: China
The mixed materials can be conveyed in the stainless steel roller to the feeding machine(feeder)of extruder without any leaking, dusting and pollution; feed quantity and speed is even and stable

Machine Parts

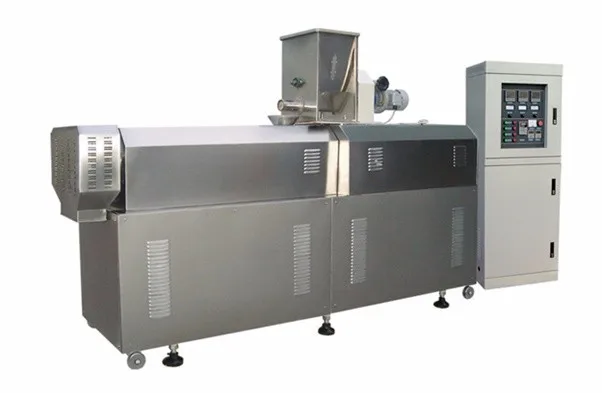

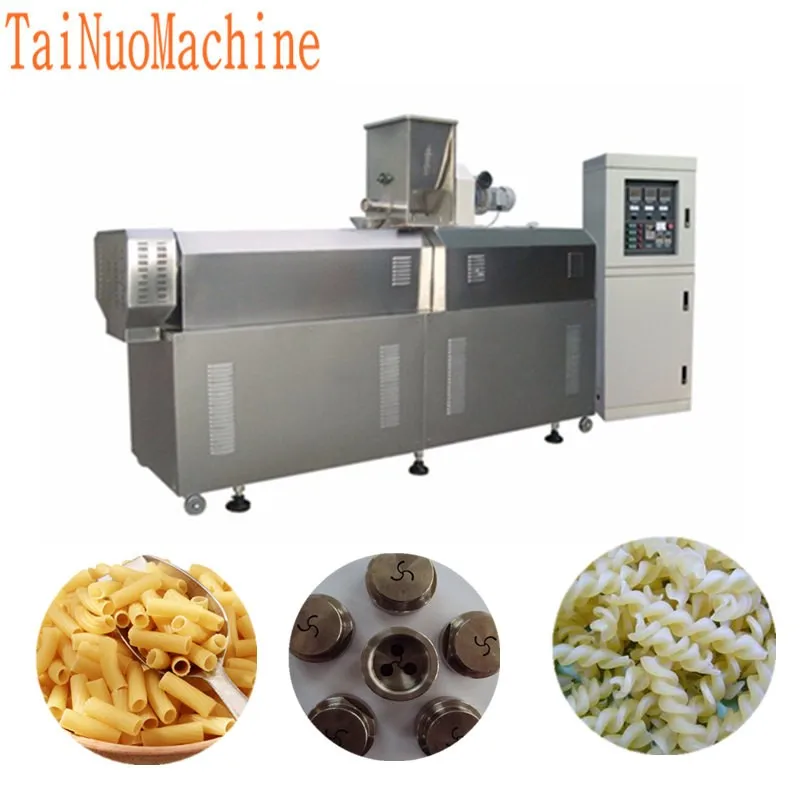

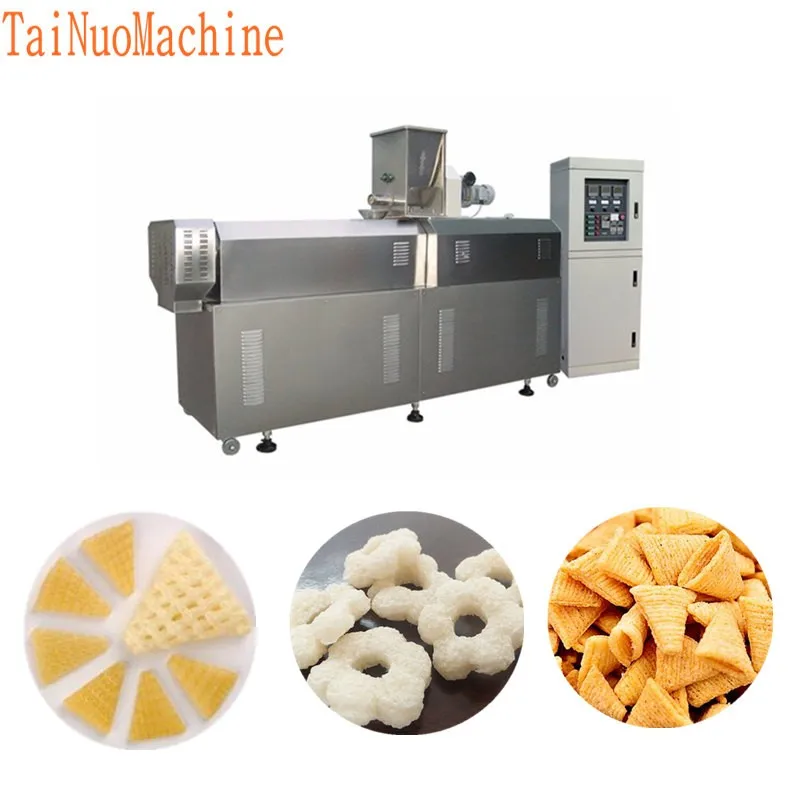

Name: Twin-screw extruder

Brand: TaiNuo
Original: China
The twin-screw extruder is made of the feeding system, extruding system, cutting system, heating system, transmission system and controlling system. Through the extrusion and expansion of raw materials, a variety of products are produced



Main Features

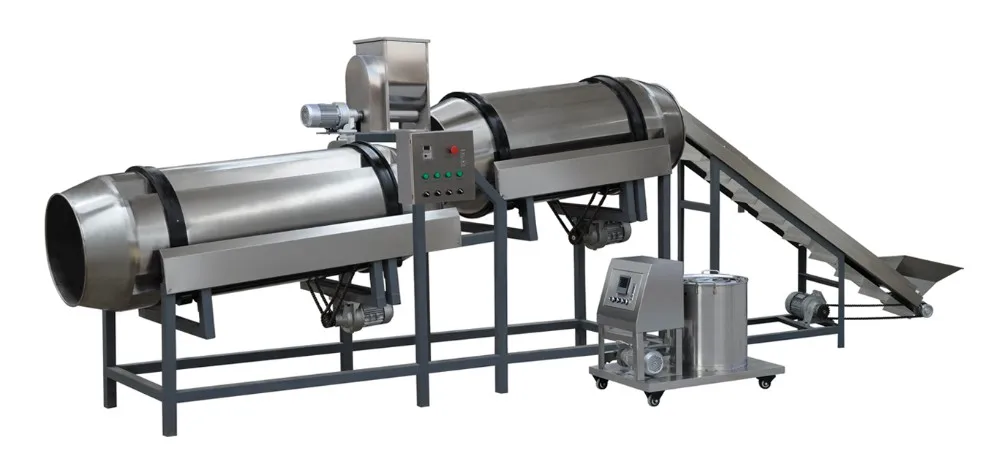

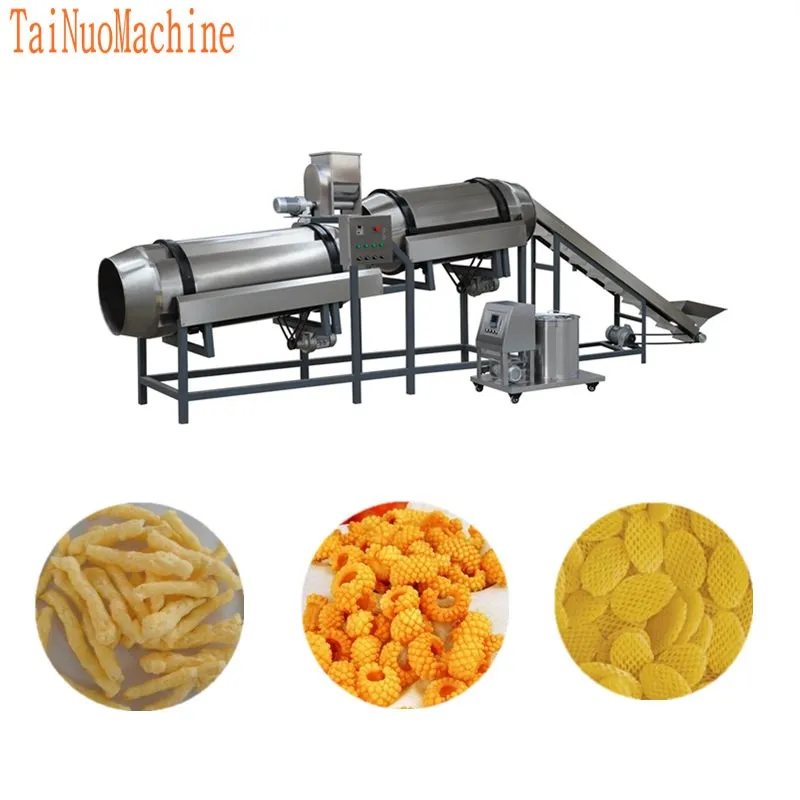

Name: Flavor roller
Brand: TaiNuo
Original: China
The stainless steel flavor machine is used to spray powder flavor to the snacks. We can control the spraying quantity via the different speed

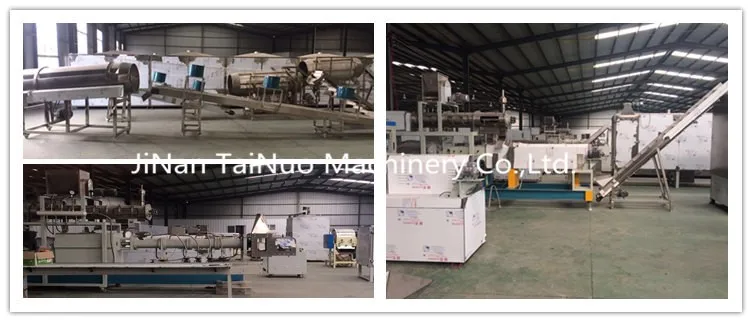

Our Company

JiNan TaiNuo Machinery Co.,Ltd is professional manufactory of food and snacks food machinery.It is used to be a state-owned business mainly deal with the manufactory,research and development of the food machinery.Also to comply with the request of different clients,we could design and make the whole complete processing line of different snack food,TVP textured soya protein food,pet food,2D,3Dpellet snack food and so on.


Our Service



Pre-sale service

1.Related machines’s technical parameter will be supplied to customer.
2.According to customer’s factory size, factory layout can be provided in advance.
3. According to customer’s material cost, general formulation can be prepared well.
4.Special machine can be supplied as customer’s request.
5.Professional Advice about Market, machines, processing , materials, packing can be supplied
6. Suggesting professional ship agent or helping book ship as customer request.

After sale service:

1.Allocation chart as the buyer’s request will be supplied.
2.Operation manual will be supplied after shipment.
3.One year warrantee, life time maintenance with cost price.
4.Free easy broken spare parts will be sent with container .
5.First installation can be done by engineer.
6.Training workers in customer’s factory

FAQ

Here are your commen questions

1. Are you a manufacturer or a trading company?
We are a professional manufacturer of food & feed extrusion machine
2. What’s the price of your machines?
You can inquiry to us directly
3. What is your payment terms?
Recommend to use Alibaba’s Trade Assurance.
T/T or L/C; by T/T 30% as down payment, 70% by T/T before delivery, L/C before shipment.
4. Can we provide the formula to you?
We can provide basic formula for producing the food etc. And help customer to produce good quality food according customer’s detailed formula.
5. What is the workshop size required?
The production line can be put in straight line and also can change the direction according to your factory size. We can design the layout according to your factory size.
6. What is the voltage of the machine?
In china the voltage is three phases 380v/hz, single phases is 220v/hz, we can make it according to customer’s local voltage according to different countries.



Packing & Delivery

We test the machine befor packing

Firstly packed with plastic bags
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
