Chicken Duck Rabbit Pig Animal Cattle Feed Plant

FOB Reference Price:Get Latest Price
$8,999.00 - $316,999.00 / Sets | 1 Set/Sets cattle feed plant (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Feed Pellet Machine
Dimension(L*W*H):
9m*3.5m*12m
Condition:
New
Place of Origin:
Henan, China (Mainland)
Brand Name:
Hengmu
Model Number:
SZLH320
Voltage:
380V 50HZ 3phase
Power(W):
160kw
Weight:
3000 kg
Certification:
CE ISO SGS
Name:
cattle feed plant
Pellet size:
1.5-18mm
Material:
Carbon Steel Or Stainless Steel
Processing Type:
Manual / Automatic line
Finished products:
Mash, powder and pellets
Bearing:
SKF
Motor:
Siemens
CV:
≤5%
Capacity:
2-4t/h
Usage:
Home use or livestock farm, poultry feed
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
One Year
Supply Ability
Supply Ability:
10 Set/Sets per Month cattle feed plant
Packaging & Delivery
Packaging Details
Packing details: 1.Wooden or metal case according to specific size of each equipment, we twine thick plastic coating for each machine. 2. Tight the equipment in the truck without space to ensure no rubbing during the transportation
Port
Qingdao
Lead Time :
Shipped in 45 days after payment
Product Description

Chicken Duck Rabbit Pig Animal Cattle Feed Plant


Product Application of cattle feed plant

a. Feed making line used to make pellet for animal feed, such as pig, cattle, sheep,rabbit, chicken, duck, fish etc.

b. It is an ideal equipment for animal and poultry breeding in grain feed factory, livestock farm, poultry farm, individual farmers, feed processing industry, etc.

c. It can process different materials such as corn, maize, grass, grains, molasses, and some other raw materials

Main Features of cattle feed plant

1. animal feed pellet production line include feed hammer mill, feed mixer, feed pellet machine,cooling machine, packing system.it can make all kinds of animal feed pellet.

2. All of our pellet machine past CE,ISO,SGS certificate.and we use Siemens motor,SKF&NSK Bearing. so for the machine quality, it's very competitive. Meanwhile, for our machine body thickness, it's 2mm thick than standard.

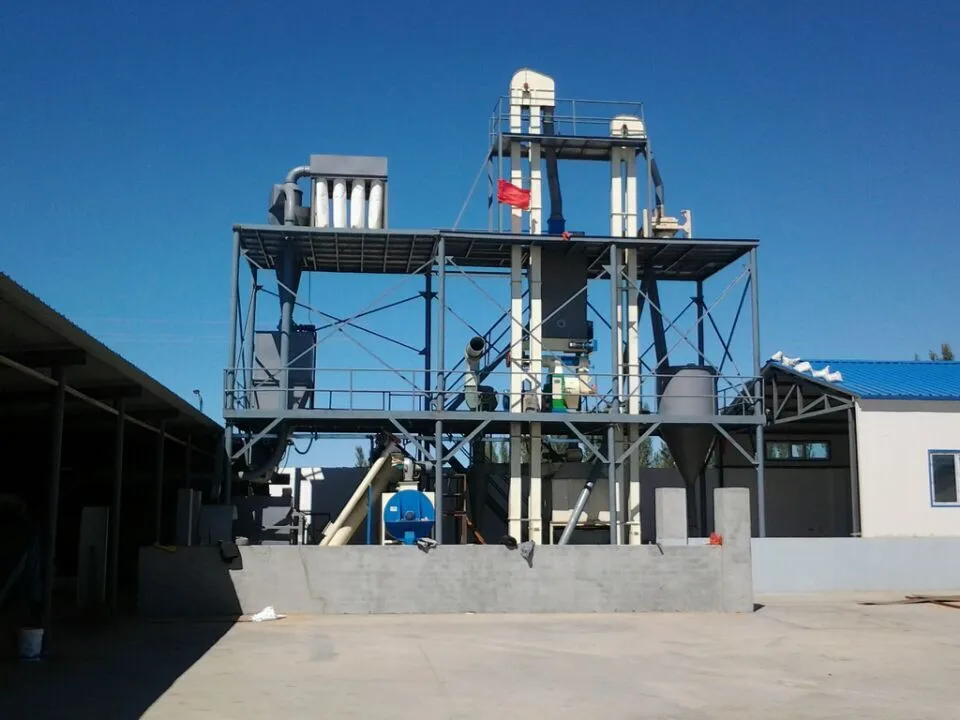

3. The structure has two kinds of overall steel frame type and floor type. The overall steel frame type layout is compact, aesthetically pleasing air; Floor of type of operation and maintenance is convenient.

4. The large and medium-sized complete feed equipment using computer automatic measuring ingredients, the ingredients good precision, high degree of mechanization and automation.

Technical Parameter of cattle feed plant

Capacity
1-2t/h
2-3t /h
3-5 t /h
6-8 t /h
8-10 t/h
10-15 t /h
SZLH250
SZLH320
SZLH350
SZLH400
SZLH420
SZLH508
SWSP56*30
SWSP56*40
SWSP56*60
SWSP56*60
SWSP66*80
SWSP112*40
SHW1.0
SLHY1.0
SLHY2.0
SLHSJ1.0
SLHSY2.0
SLHSJ2.0
Cooler
SKLN11*11
SKLN15*15
SKLN15*15
SKLN19*19
SKLN19*19
SKLN22*22
Rotary
screener
SFJH80*2d
SFJH100*2d
SFJH100*2d
SFJH130*2d
SFJH130*2d
SFJH150*2d
Crumbler
SSLG22*40
SSLG15*100
SSLG15*100
SSLG15*150
SSLG24*110
SSLG24*165
Cooling
fan
4-72No4A
4-72No5A
4-72No5A
4-72No8D
4-72No8D
4-72No8C
Cooling
discharger
XL60
XL90
XL90
XL120
XL120
XL150
Boiler
LSG-0.3-0.4
LSG-0.3-0.4
LSG-0.5-0.4
LSG-1.0-0.7
LSG-1.0-0.7
LSG-1.0-0.7
Lifting
equipment
TDTG26*18
TDTG26*18
TDTG36*23
TDTG36*28
TDTG36*28
TDTG50*23
Outline
dimension
9*3.5*11m
9*3.5*12m
12*4.2*13.5m
12*4.5*14m
13.5*4.8*14m
15*5.5*17m
Certifications
Detailed Images

The whole process of feed pellet production line mainly includes the following processes:

1. Raw materials receiving and pre-cleaning system→2. Crushing system→3. Mixing system→4. Pelletizing system→5. Cooling system→6. Crumbling system→7. Screening system→8. Packing system

Raw materials

The raw materials can be corn, soybean, wheat, rice husk, grass etc. And the moisture of raw materials is also

important.

As the material dimension is an important factors for the line to produce pellets, so if the materials are not powder type, need to be crushed.


Crushing system

The best material dimension for supporting to produce pellets is 1-5mm. Thus, if your material dimension exceed 5mm, then we recommend one set grinding machine for your using. After the material is grinded into fine powder what is 1-5mm. Then the fine powder will be conveyed to the next process-mixing system

Mixing system

Mixing is considered to be one of the essential operations in feed pellet processing. Lack of proper mixing may lead to reduced diet uniformity, affecting the feed pellet quality. And to make feed pellets, different customer has different formula, so you need the mixer machine to mix the raw material and formula, then they will be entered into the next process-pelletizing system

Pelletizing system

Feed pellet mill is the main equipment of the whole production line. According to customers' requirements and feeding animals, pellet mil can be matched with single conditioner, double conditioners or three layers conditioners. After the final wood pellets come out from the pellet machine, then they will be entered into the next process-cooling system

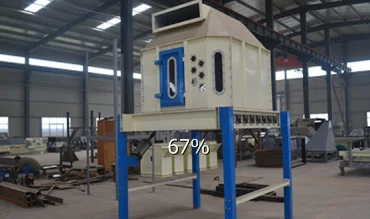

Cooling system

The feed pellets pressed out by the feed pellet mill are hot and moist. They can’t be crushed, screened or packed immediately. Counterflow feed pellet cooler is designed to cool or dry the feed pellets. It can decrease the temperature and moisture of the feed pellets, preparing for the following process-crumbling system

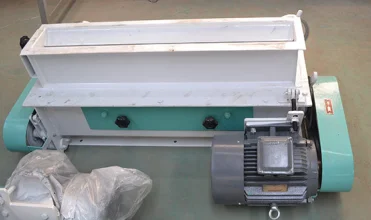

Crumbling system

Different poultry, livestock or aquatic feed pellets are with different sizes. Some big ones should be crushed into small ones. After this, the pellets will be host to the next process-screening system

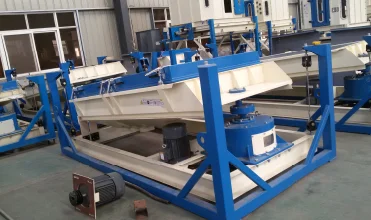

Screening system

The crushed feed pellets are with different sizes, and there may be some powder. The rotary grading sieve can be
used to screen and grade the feed pellets. After processing, you can get the qualified feed pellets without fine powder. After this, enter into the final process-packing system

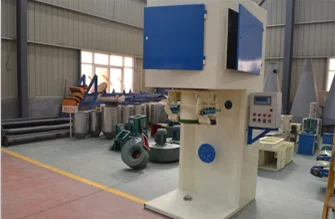

Packing system

This part is added based on customer's requests. If customer don't need it, then we don't add the packing part here. Meanwhile, it can save cost for you.

Our Service

*Pre-Sales Service

* Inquiry and consulting support
* Sample testing support
* View our Factory
* 24 hours rapid response for full-time

*After-Sales Service

* Training how to instal the machine, training how to use the machine

* We remind the customer termly to maintain the machine
* Engineers available to service machinery overseas

Packing & Delivery
Packaging
Size
900 (L) * 350 (W) * 120 (D)
Weight
4T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries, the wooden box will be fumigated. If container is too tigher, we will use pe film for packing or pack it according to customers special request.

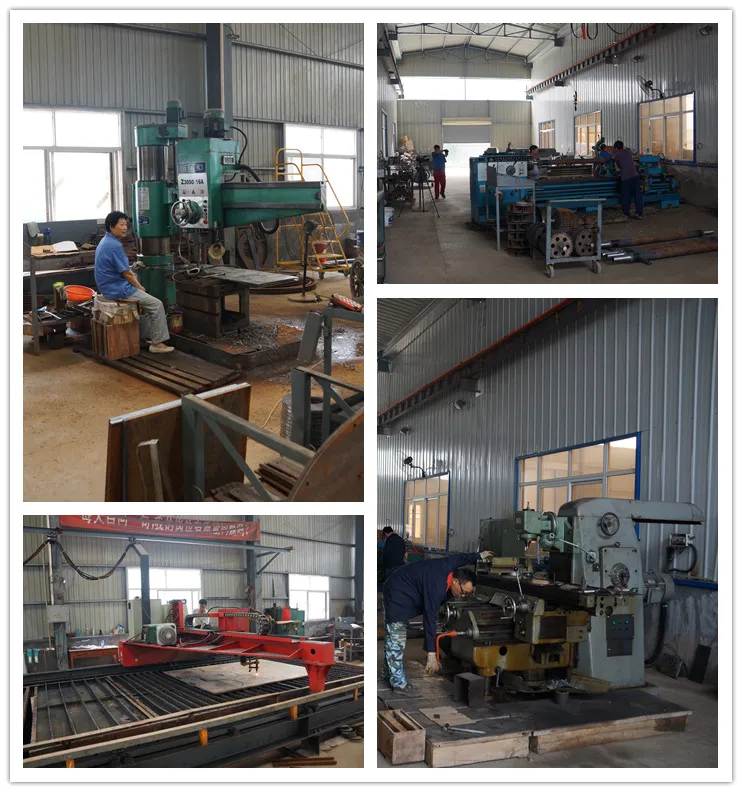

Our Company

Henan Hengmu Machinery Co., Ltd was founded in 1993, there is more than 20 years of development, and we specialized in producing feed machinery, feed mixer, hammer mill, complete feed pellet line, feed grinder and mixer, wood pellet procution line etc.
The products have been exported to countries such as India, Bangladesh ,Indonesia, Myanmar,Kazakhstan, Uzbekistan, Russia,Turkmenistan, Mongolia, Nepal, Sudan, South Africa, etc.

FAQ
1. Q: Are you a trading company or a manufacturer?
A: We are a manufacturer, which has more than 20 years experience in feed machinery.

2. Q: How long is your guarantee?
A: One year, but not including artifical damage and operational error

3. Q: Will you send engineers to install the plant?
A: Yes, but at an extra cost payable by the customer. Or you can get local contractors to do the commissioning and we send one supervising engineer.
