China Crane electric chain hoist 0.5 - 5 Ton Single or Dual Speed Monorail Chain Hoist 2ton

FOB Reference Price:Get Latest Price
  • 1 - 2 Sets
    $410.68
  • >=3 Sets
    $385.58
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
China
Brand Name:
LIFTIN
Model Number:
FH005S
Usage:
Construction Hoist
Certification:
CCC CE ISO
Sling Type:
Chain
Maximum Lifting Weight:
0.5T
Maximum Lifting Height:
Free
Lift Speed:
7.8 M/min
Power Source:
Electric
Power supply:
380V 50Hz Three-phase
Color:
Customised
Type:
Traveling
Chain:
Profile Steel Chain
Voltage:
380V
Application:
Normal Working Environment
Lifting height:
2.5M-3M
Name:
Chain Hosit
Product name:
Chain Hoist Crane
Capacity:
0.5t-5t
After-sales Service Provided:
No overseas service provided
Warranty:
12 Months
Supply Ability
Supply Ability:
3000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Carton/Wooden Cases
Port
Chongqing,Shanghai,or Customer -specified
Lead Time :
About 30days after receive the advance payment
Product Description

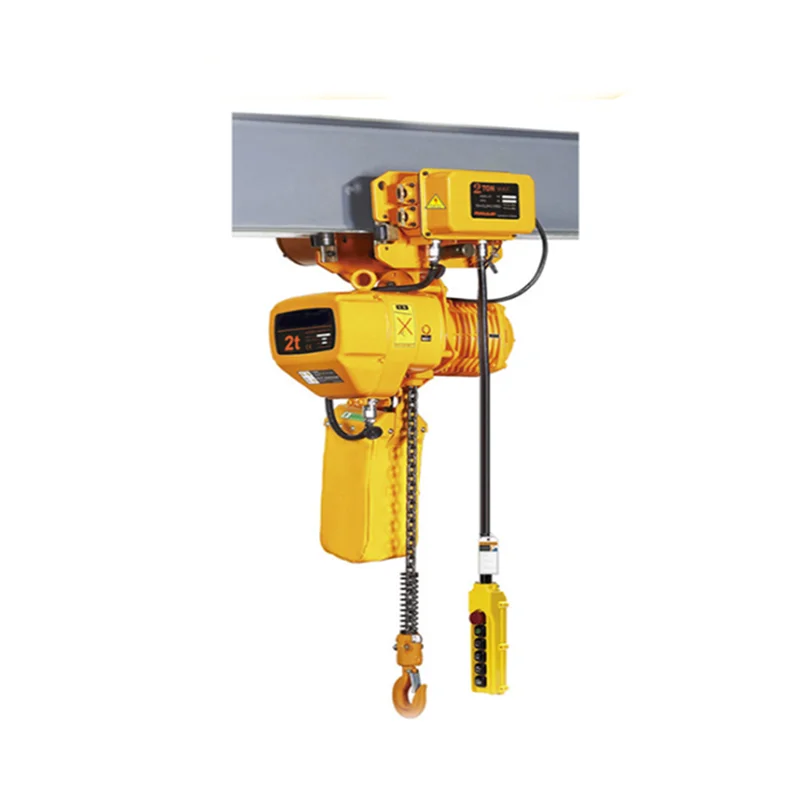

China Crane electric chain hoist 0.5 - 5 Ton Single or Dual Speed Monorail Chain Hoist 2ton

Product description:
The main features of electric chain hoist are advanced structure, small volume, light weight, reliable performance, convenient operation and wide application range. It is very convenient for lifting heavy goods, loading and unloading , repairing equipment. It can also be installed in the suspended I-beam, curved track, cantilever crane guide rail and fixed lifting point.
The standard, oil bath lubricated planetary gearbox is particularly smooth running.
Forged suspension and load hooks, manufactured from non-aging, high alloy tempering steel, yield under overload instead of breaking.
The standard case hardened and FEC chain is matched perfectly to the load chain to guarantee smooth and precise chain motion.

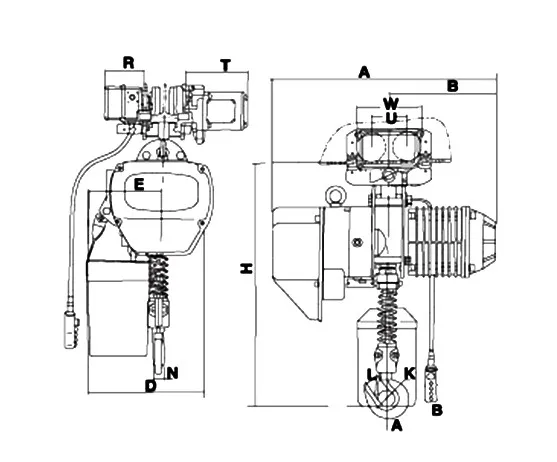

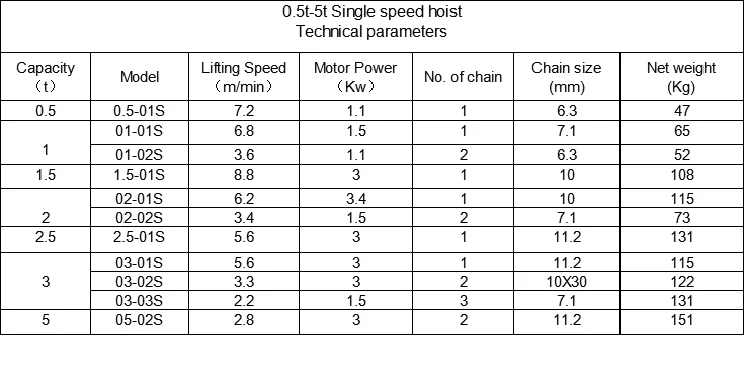

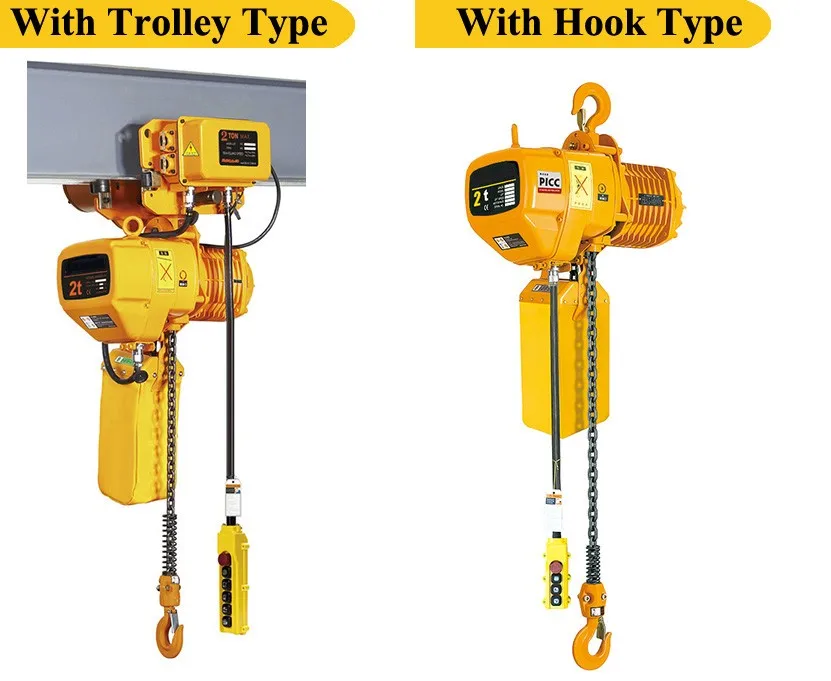

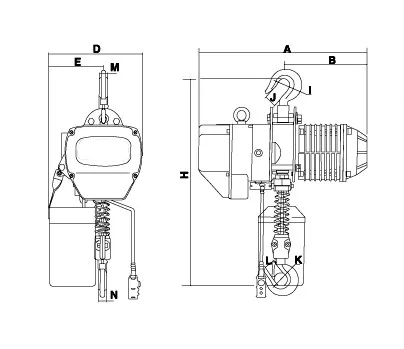

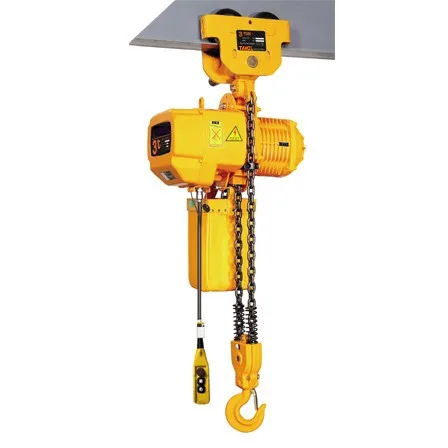

0.5t-5t Hoist with hook and trolley type
Size(mm)
Model
H
A
B
D
E
0.5-01S
530
545
260
288
178
01-01S
650
582
280
300
176
01-02S
670
545
260
288
205
1.5-01S
800
670
313
430
265
02-01S
800
670
313
430
265
02-02S
835
582
280
300
236
2.5-01S
845
670
313
430
265
03-01S
845
670
313
430
265
03-02S
950
670
313
430
320
03-03S
950
582
280
350
205
05-02S
1030
670
313
430
325

Main Features

1.Classification 1Am/M3
2. The standard version comes with direct control.
3. 1 years warranty(excluding wear parts) as well as a lifetime lubricated gear box.
4. The heavy duty squirrel cage motor has an adjustable spring pressure brake that holds the load secure even in the event of a power failure.
5. Motor protected to IP 54, insulation class F.
6. The 5-pocket load chain sheave, manufactured from wear resistant case hardening steel, is matched perfectly to the load chain to guarantee smooth and precise chain motion.
7. The assembly of component parts result in a low overall height(up to 3000 kg only one chain fall.)

Detailed Image

Alloy steel shell


Made of die-cast aluminum alloy, light but hard,durable use

Chain


High strength FEC G80 chain ,good abrasion resistance

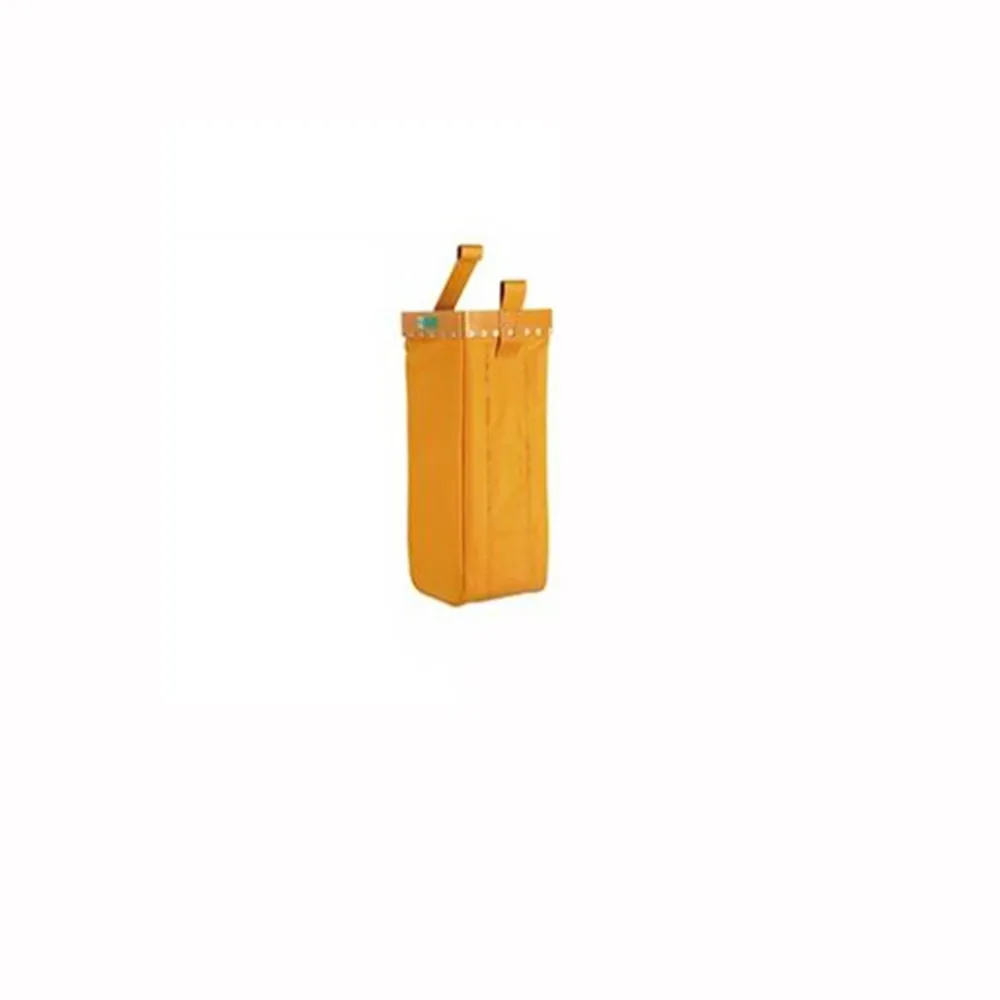

Chain Bag



Light, attractive and durable.

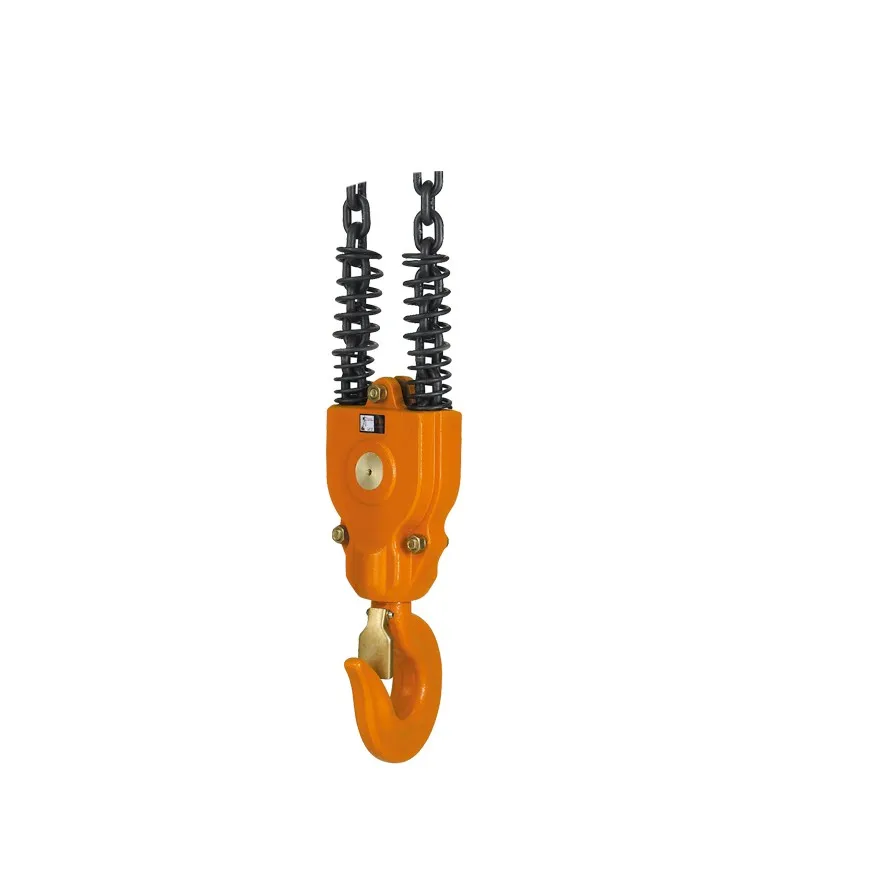

Hook


Hot forging with perfect strength that is hard to break.

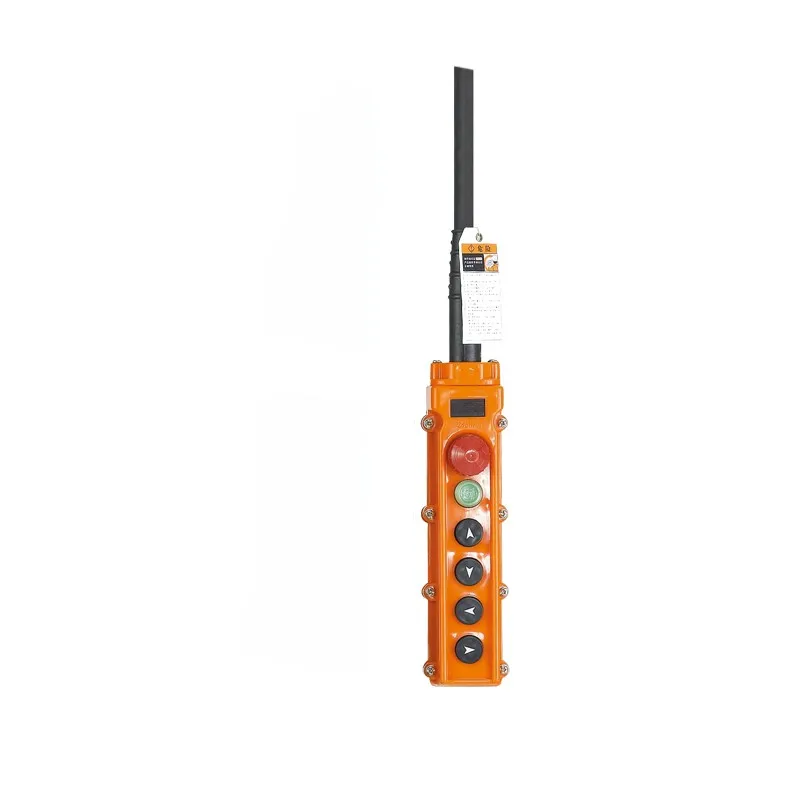

Wired handle controller


IP65 waterproof push button with emergency stop

Wireless remote controller


More convenient and fast to use

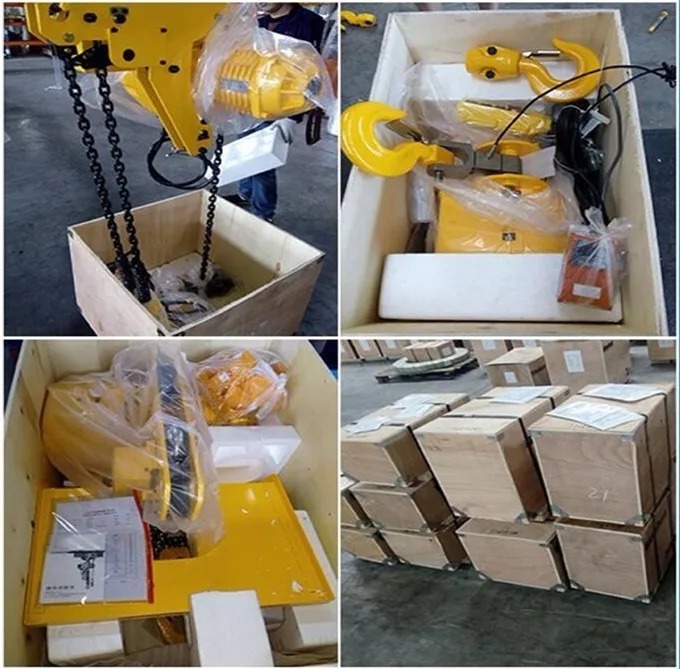

Packing & Delivery
Packing Details Description
Packing
One piece packed in carton/wooden cases
Delivery Time
About 30 days after  receiving the deposit
Delivery Place
Chongqing,Shanghai or Customer-specified
Certificates
Company Information


COMPANY INFORMATION


LIFTIN (CHONGQING) CRANES CO.,LTD. is located in Chongqing, China. We are one of the most professional company in the design and manufacturer in hoists, cranes and material handling equipment, etc.
With rich experience and professional design, our products can suit various working conditions. We supply solution for Workshop Facility, Construction, Engineering, Logistic,Marine and Energy industries, etc.
Excellent quality, swiftly action and customer service are significant driving factors for us to guarantee customer satisfaction.

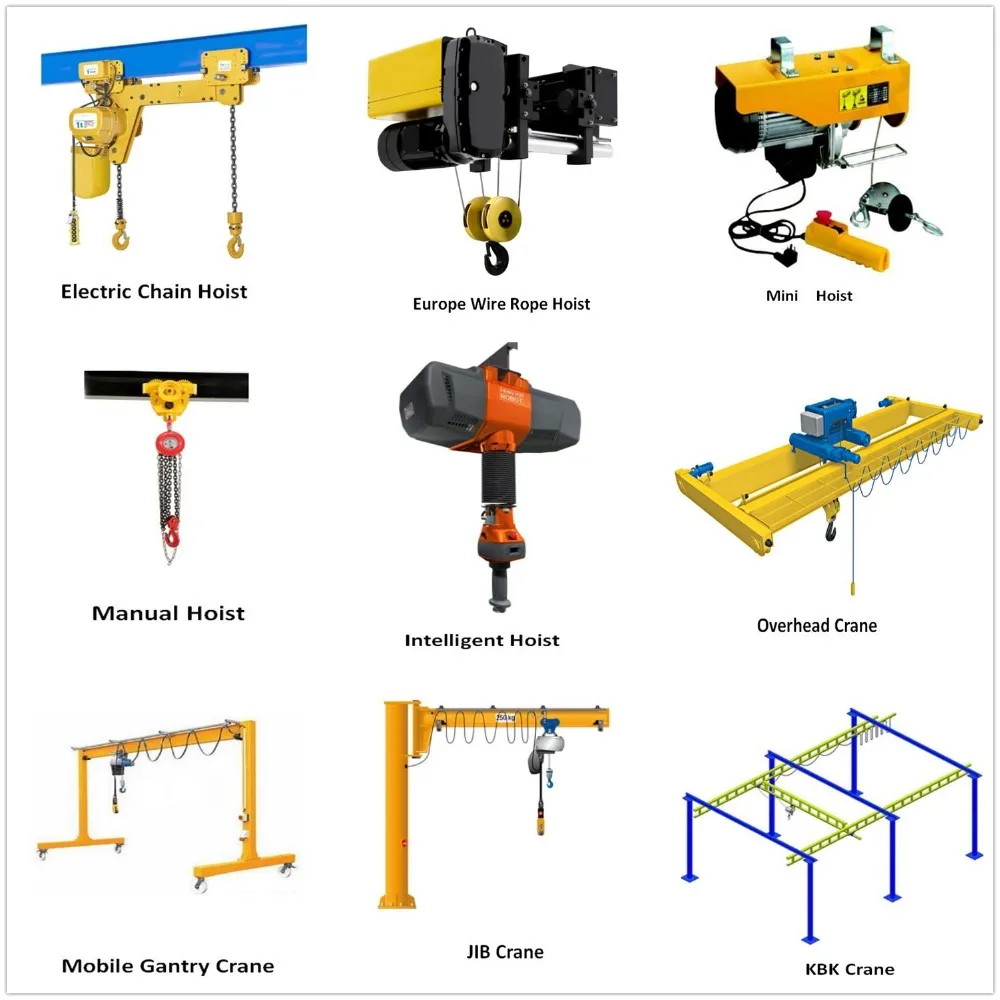

Company Products

Single Girder Electric Wire Rope Hoist(The Third Generation)


Capacity:3.2-63 ton
Max. Lifting height:18m
Power voltage:380-415v/50hz

Single Girder Gantry Crane


Capacity:2-32 ton
Max.Span:30m
Lifting Height:5-15m
Trolley Speed:5~20m/min

Single girder overhead crane


Capacity:2-15 ton
Span:10.5-31.5m
Lifting height:9m
Working class:A5/2M

Double girder overhead crane


Capacity:5-50 ton
Lifting height:9m
Span:13.5-31.5m
Working class:A5/2M


Chain Hoist

The main features of electric chain hoist are advanced structure, small volume, light weight, reliable performance, convenient operation and wide application range. It is very convenient for lifting heavy goods, loading and unloading , repairing equipment.


Wire Rope Hoist

Wire rope electric hoist,compact structure, stable running, accurate positioning,which can be installed in single beam crane, bridge crane, gantry crane, cantilever crane, etc. They can meet the requirements of ordinary occasions.


Crane

Crane feature the versatility needed for special requirements. For example, higher travel speeds, maintenance walkways, trolley with service platform and auxiliary hoist are all features which can be easily be implemented.

FAQ

Q1: Are you trading company or manufacturer ?
A: We are factory.


Q2. Do you have any MOQ limit ?
A: Low MOQ, 1 set for sample checking is available


Q3: Do you provide samples ? Is it free or extra ?
A: Yes, we could supply the sample but you have to pay the sample cost and the courier cost.


Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.


Q5. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.


Q6. What is your terms of delivery?
A: EXW, FOB, CFR, CIF


Q7. How about your delivery time?
A: Generally, it is 5-15 days if the goods are in stock. If the goods are not in stock, it will take 30 to 45 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.


Q8. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.


Q9. What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment. We'll show you the photos of the products and packages before you pay the balance.


Q10. What is your terms of packing?
A: Generally, we pack our goods in neutral wooden boxes. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.


Q11. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery


Q12. How to proceed an order for hoist ?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.


Q13: Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our products.
